OAL (Overall

Length)

74-1/4 (1886)

78-1/4 (1988)

82-1/4 (2089)

86-1/4 (2191)

90-1/4 (2292)

94-1/4 (2394)

98-1/4 (2496)

Dim A

5-9/16 (141)

7-9/16 (192)

9-9/16 (243)

11-9/16 (294)

13-9/16 (344)

15-9/16 (395)

17-9/16 (446)

Door Leaf

Width

36 (914)

38 (965)

40 (1016)

42 (1067)

44 (1118)

46 (1168)

48 (1219)

1-1/2 Min

1-13/16

(46)

(38)

1-7/16

(37)

5-3/16

15/16

(24)

(132) <u>5-1/2</u>

(140)

Dim B

30-9/16 (776)

32-9/16 (827)

34-9/16 (878)

36-9/16 (929)

38-9/16 (979)

40-9/16 (1030)

42-9/16 (1081)

Dim D

30-9/16 (776)

32-9/16 (827)

34-9/16 (878)

36-9/16 (929)

38-9/16 (979)

40-9/16 (1017)

42-9/16 (1081)

LEAF
	Door System	Dim G	Dim H
	D6021	13-1/8 (333)	12-23/32 (323)
	D6031	10-3/8 (264)	15-5/16 (389)

N	o	t	e	s

• Dimensions shown in inches / (mm) unless specified otherwise.
• Electrical requirements:
  • Power input of 120VAC, 5Amp minimum

4-19/32

(117)

5/16

(8)

Н

- REVEAL

• Accessories circuit for activation to operator and low voltage
• For initial set up, doors much be un-latched and free to move
• For additional installation instructions, see instruction sheet 80-9360-1030-020. Visit www.nortondoorcontrols.com
• Refer to page 2 for proper handing of product

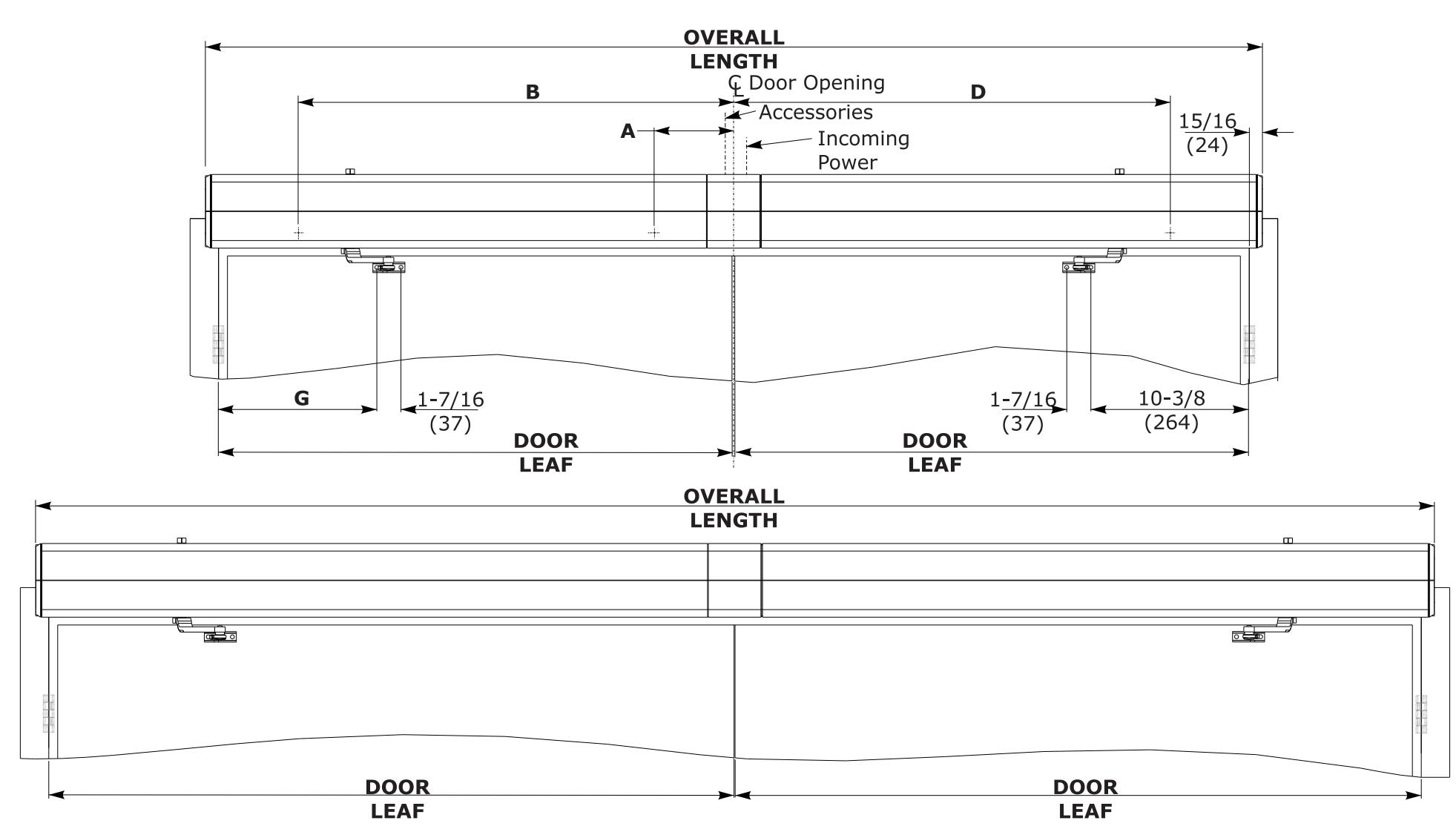

D6021/D6031 Series Template for Transom Bracket Install shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 180 degrees of opening

Norton

ASSA ABLOY

80-7360-1029-020 1 12/20

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

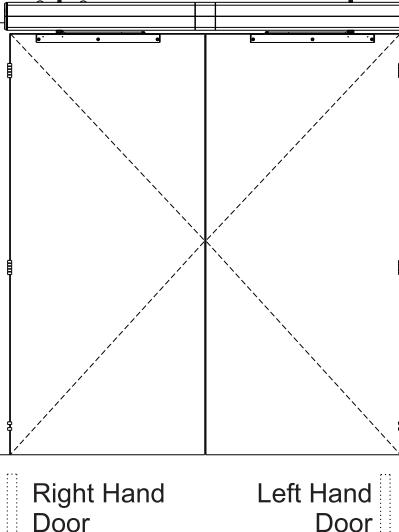

Double Door Pull Side

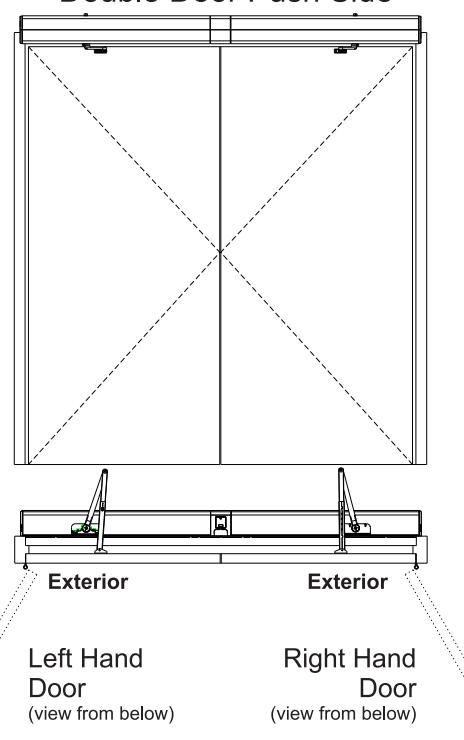

Double Door Push Side

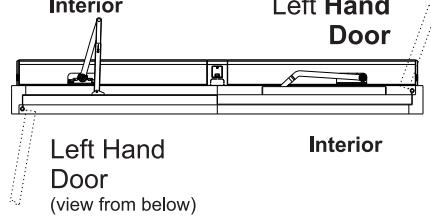

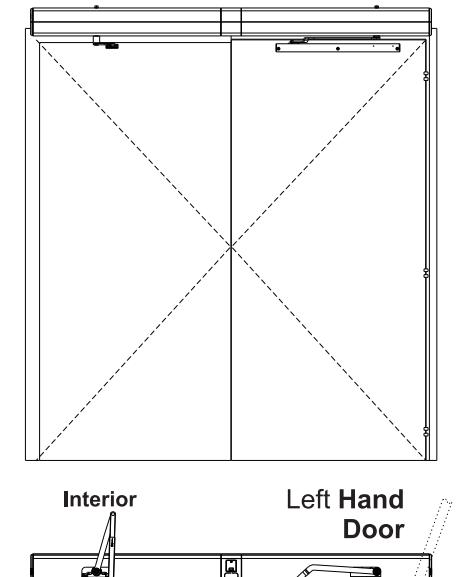

Double Door Double Egress Left Hand

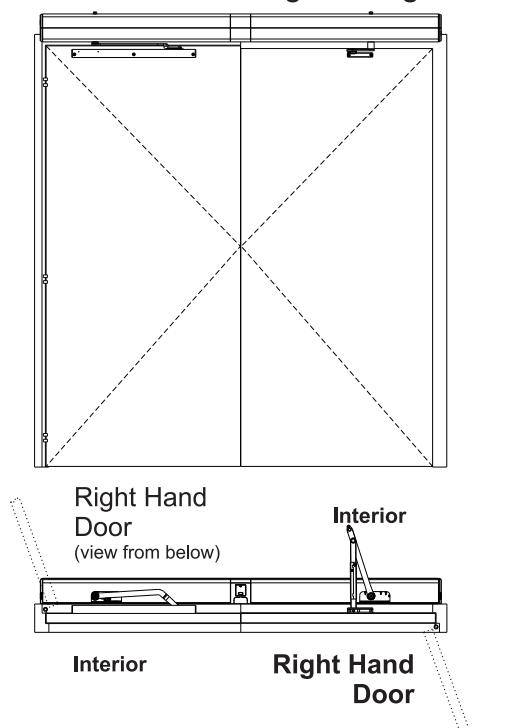

Double Door Double Egress Right Hand

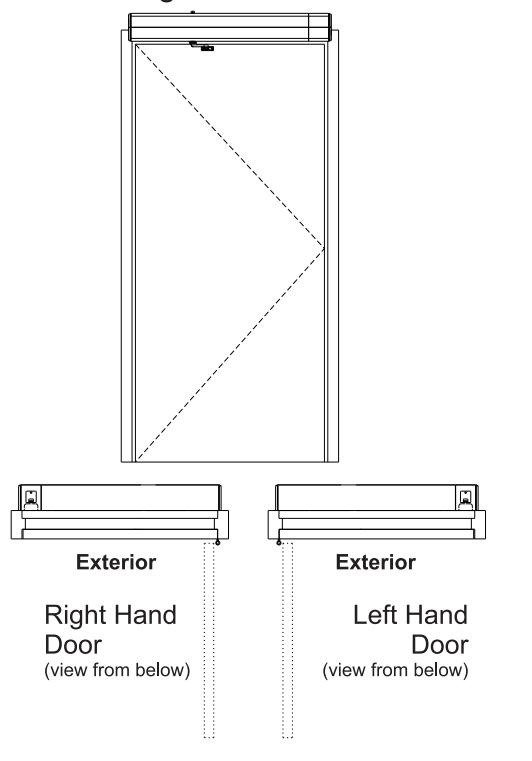

Single Push Side

D6021/D6031 Series Template for Transom Bracket Install shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 180 degrees of opening

Norton^®

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER REV DATE 80-7360-1029-020 1 12/20
