D6021-40

D6021-42

D6021-44

D6021-46

D6021-48

40 (1016)

42 (1067)

44 (1118)

46 (1168)

48 (1219)

82-1/4 (2089)

86-1/4 (2191)

90-1/4 (2292)

94-1/4 (2394)

98-1/4 (2496)

11-9/16 (294)

13-9/16 (344)

15-9/16 (395)

17-9/16 (446)

Experience a safer and more open world

5-3/16

(132)

15/16

(24)

5-1/2

(140)

3-7/16

(77)

<u>5/16</u> (8)

34-9/16 (878)

36-9/16 (929)

38-9/16 (979)

40-9/16 (1017)

42-9/16 (1081)

34-9/16 (878)

36-9/16 (929)

38-9/16 (979)

40-9/16 (1030)

42-9/16 (1081)

Notes

• Dimensions shown in inches / (mm) unless specified otherwise.
• Electrical requirements:
  • Power input of 120VAC, 5Amp minimum
  • Accessories circuit for activation to operator and low voltage
• For initial set up, doors much be un-latched and free to move
• For additional installation instructions, see instruction sheet 80-9360-1030-020. Visit www.nortondoorcontrols.com
• Refer to page 2 for proper handing of product

D6021 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 110 degrees of opening

Norton ASSA ABLOY

www.nortondoorcontrols.com TEMPLATE NUMBER REV DATE 80-7360-1052-020 2 10/20

Left Hand

(view from below)

Interior

Door

Single Pull Side

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

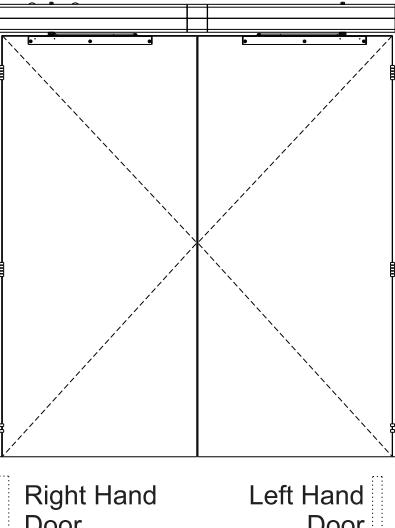

Double Door Pull Side

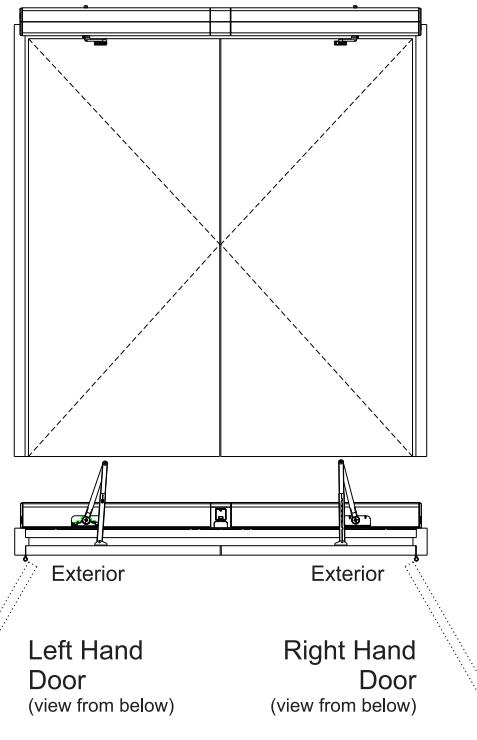

Double Door Push Side

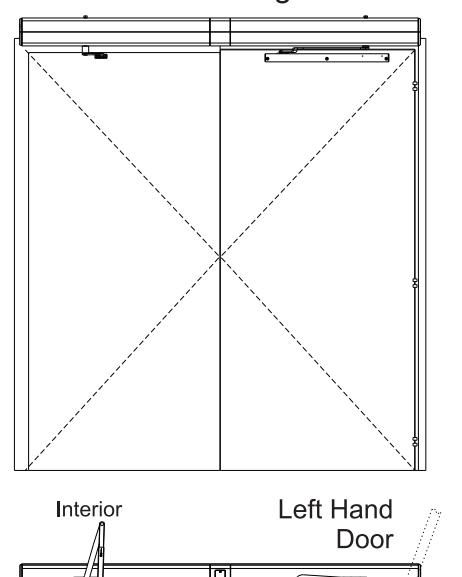

Double Door Double Egress Left Hand

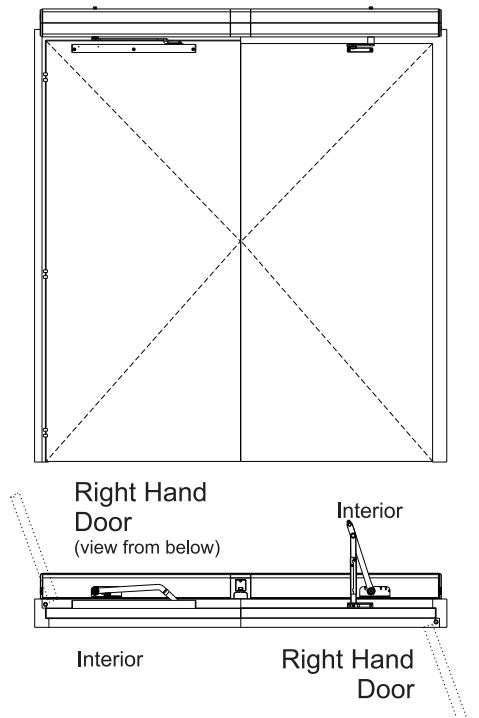

Double Door Double Egress Right Hand

Left Hand Door (view from below)

Interior

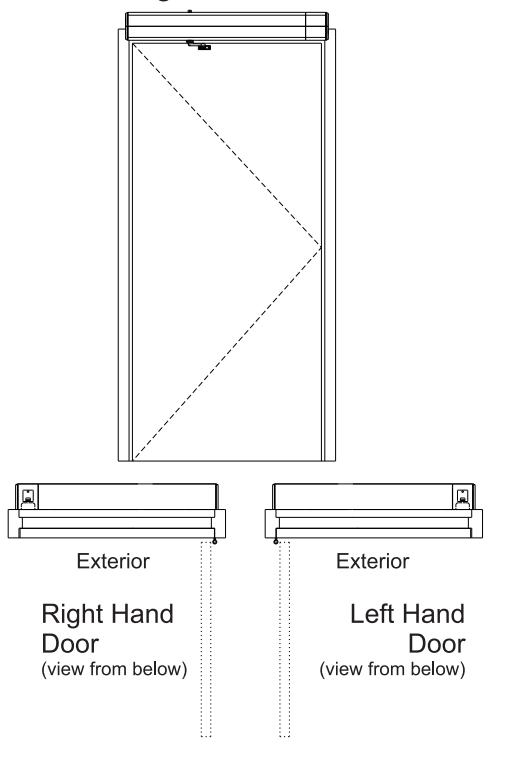

Single Push Side

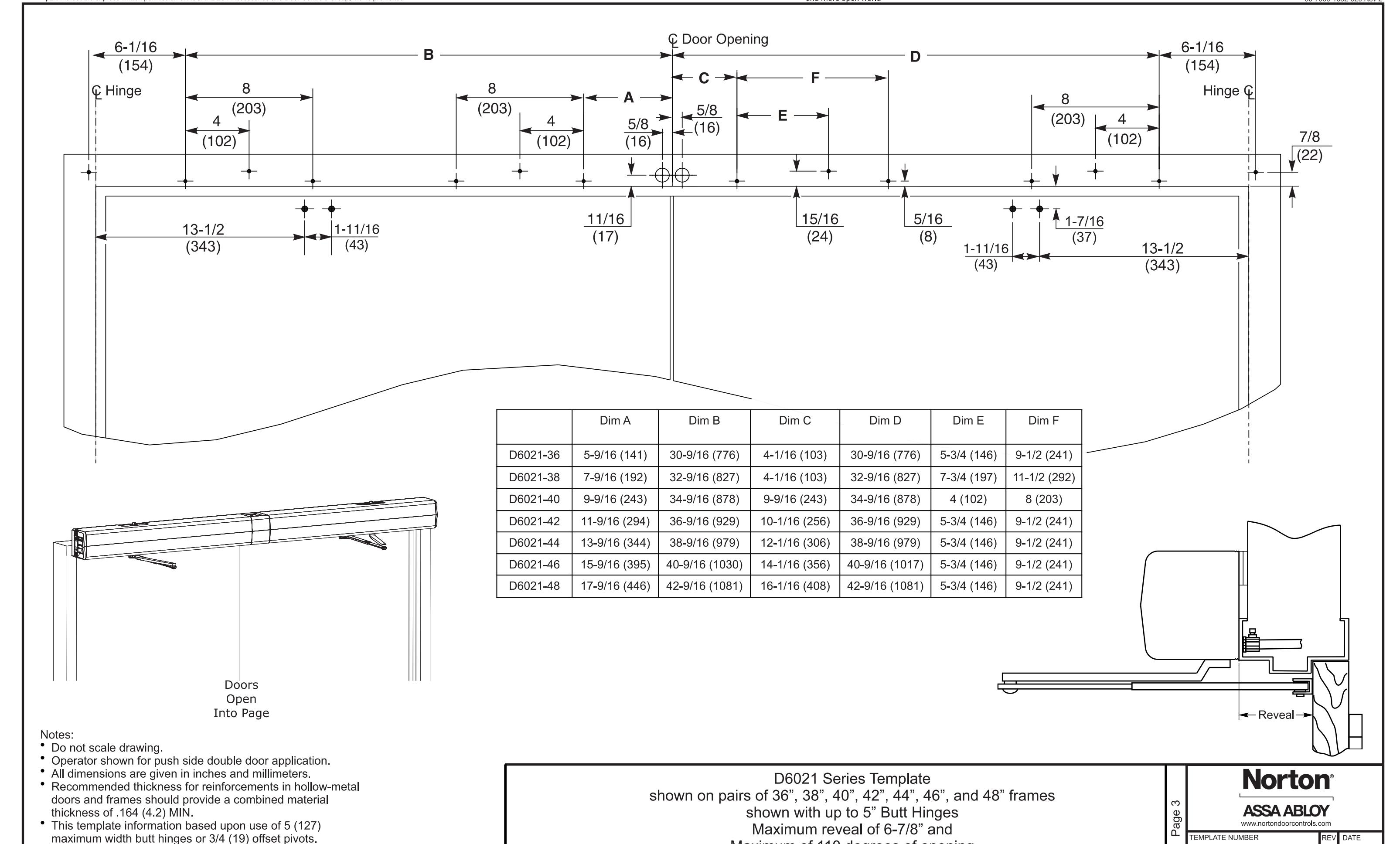

D6021 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 110 degrees of opening

Norton^®

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER REV DATE 80-7360-1052-020 2 10/20

Maximum of 110 degrees of opening

80-7360-1052-020 2 10/20
