D6011-44

D6011-46

D6011-48

44 (1118)

46 (1168)

48 (1219)

5-3/16 (132)

6-3/16 (157)

3-7/16 (77)

(25)

(25)

1-5/8

(41)

39/64

(15)

(41)

13-9/16 (344)

15-9/16 (395)

17-9/16 (446)

38-9/16 (979)

40-9/16 (1030)

42-9/16 (1081)

38-9/16 (979)

40-9/16 (1017)

42-9/16 (1081)

90-1/4 (2292)

94-1/4 (2394)

98-1/4 (2496)

1-7/8 Min (26)

• Dimensions shown in inches / (mm) unless specified otherwise.
• Electrical requirements:
  • Power input of 120VAC, 5Amp minimum

4-19/32

(117)

1-1/2

(38)

• Accessories circuit for activation to operator and low
• For initial set up, doors much be un-latched and free to move
• For additional installation instructions, see instruction sheet 80-9360-1029-020. Visit www.nortondoorcontrols.com
• Refer to page 2 for proper handing of product

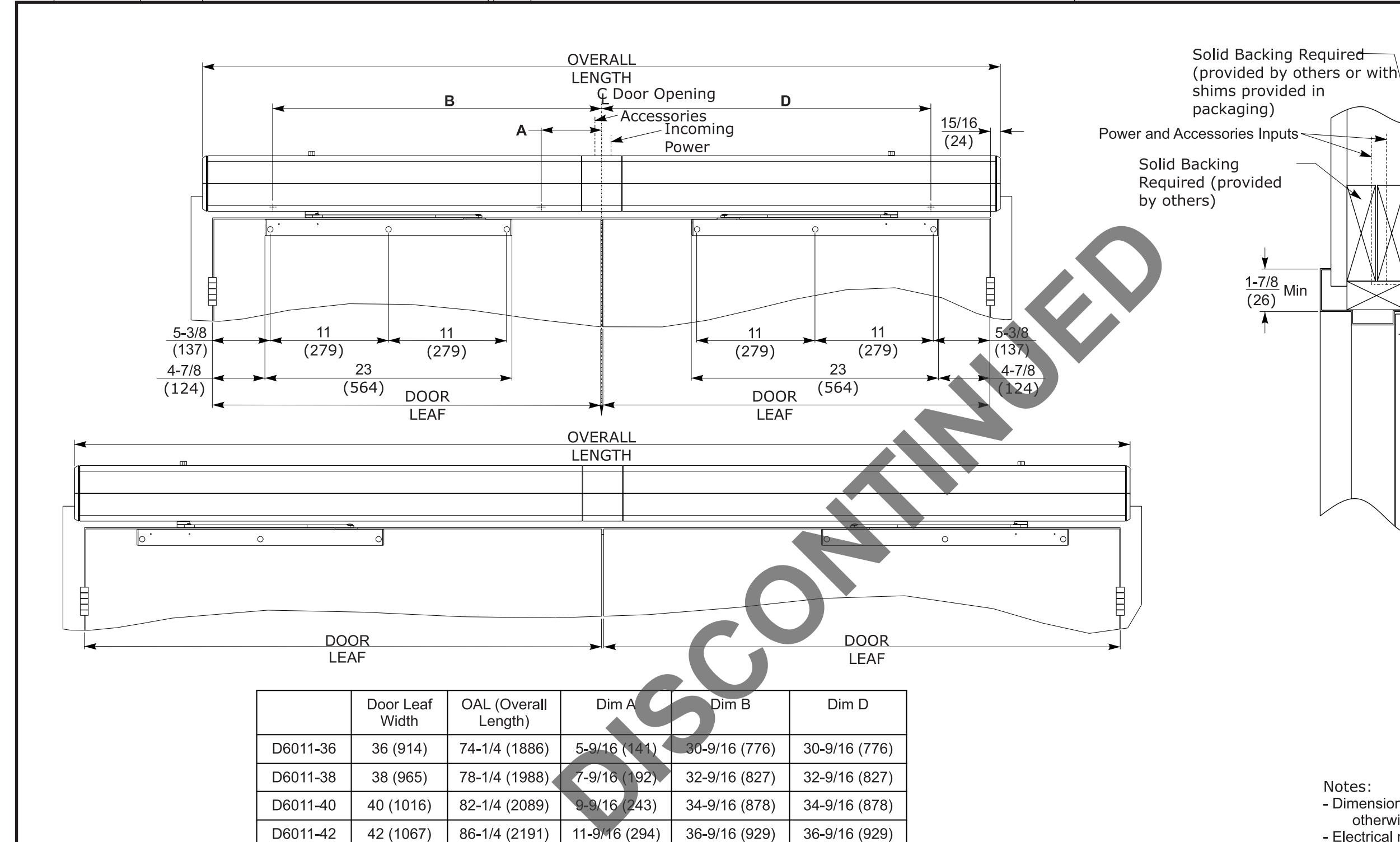

D6011 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"

Norton

ASSA ABLOY www.nortondoorcontrols.com

80-7360-1051-020 2 10/20

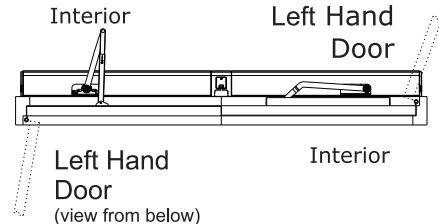

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

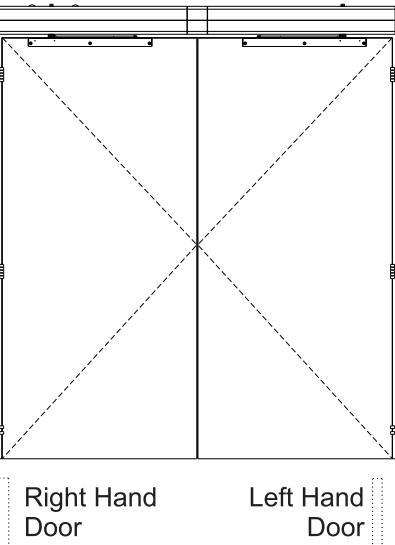

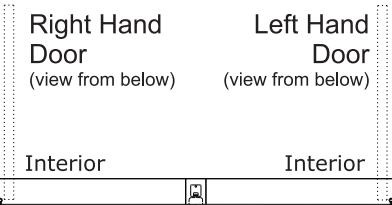

Double Door Pull Side

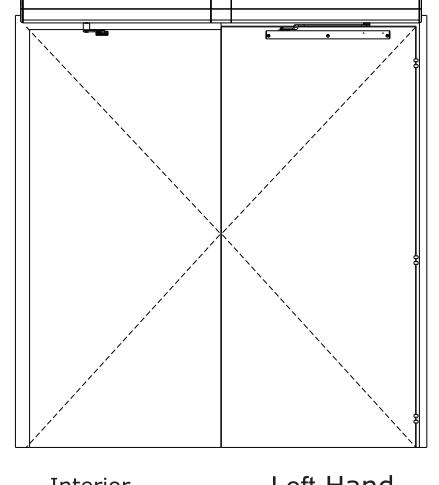

Double Door Double Egress Left Hand

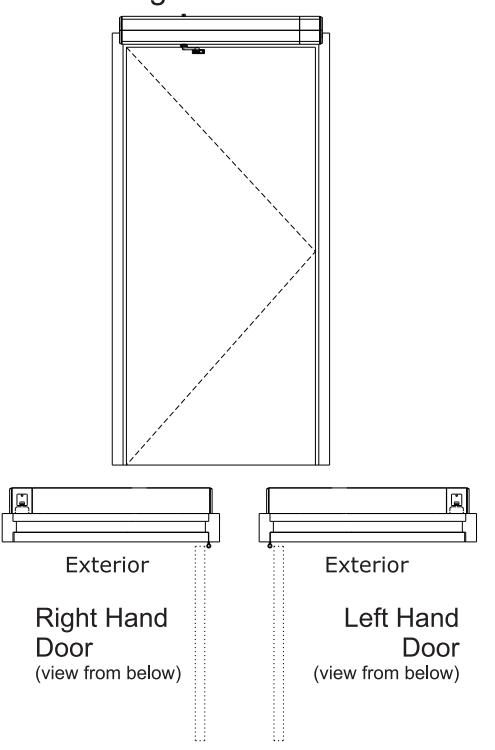

Single Push Side

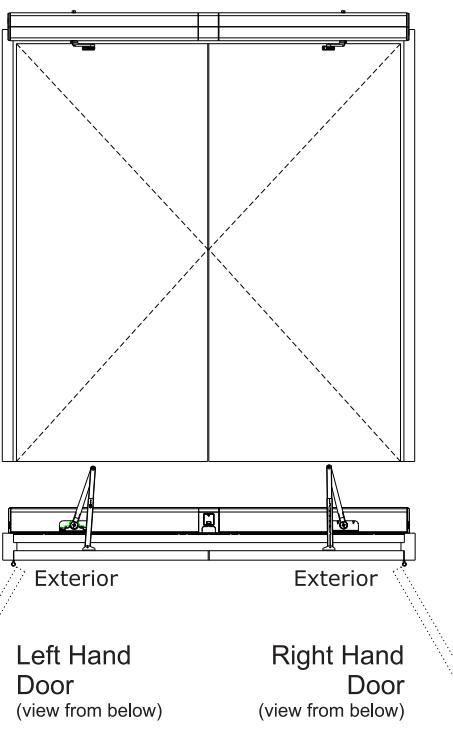

Double Door Push Side

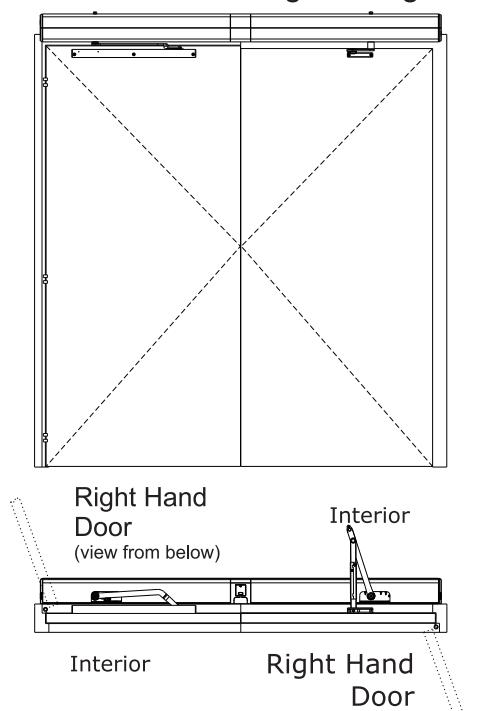

Double Door Double Egress Right Hand

D6011 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"

Norton

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER REV DATE 80-7360-1051-020 2 10/20

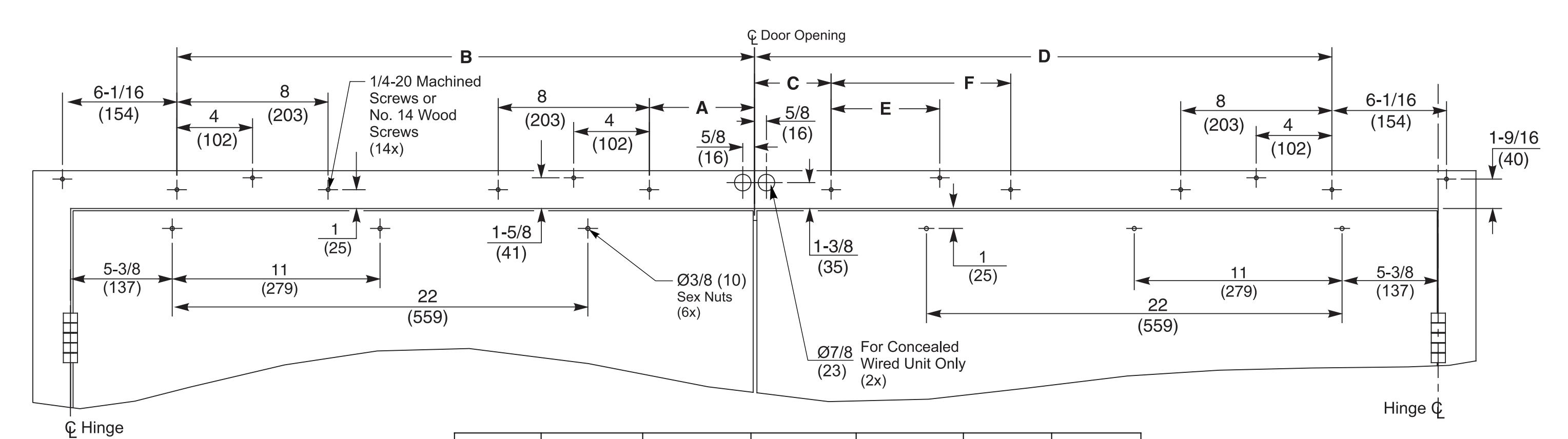

	Dim A	Dim B	Dim C	Dim D	Dim E	Dim F
D6011-36	5-9/16 (141)	30-9/16 (776)	4-1/16 (103)	30-9/16 (776)	5-3/4 (146)	9-1/2 (241)
D6011-38	7-9/16 (192)	32-9/16 (827)	4-1/16 (103)	32-9/16 (827)	7-3/4 (197)	11-1/2 (292)
D6011-40	9-9/16 (243)	34-9/16 (878)	9-9/16 (243)	34-9/16 (878)	4 (102)	8 (203)
D6011-42	11-9/16 (294)	36-9/16 (929)	10-1/16 (256)	36-9/16 (929)	5-3/4 (146)	9-1/2 (241)
D6011-44	13-9/16 (344)	38-9/16 (979)	12-1/16 (306)	38-9/16 (979)	5-3/4 (146)	9-1/2 (241)
D6011-46	15-9/16 (395)	40-9/16 (1030)	14-1/16 (356)	40-9/16 (1017)	5-3/4 (146)	9-1/2 (241)
D6011-48	17-9/16 (446)	42-9/16 (1081)	16-1/16 (408)	42-9/16 (1081)	5-3/4 (146)	9-1/2 (241)

Notes:

• Do not scale drawing.

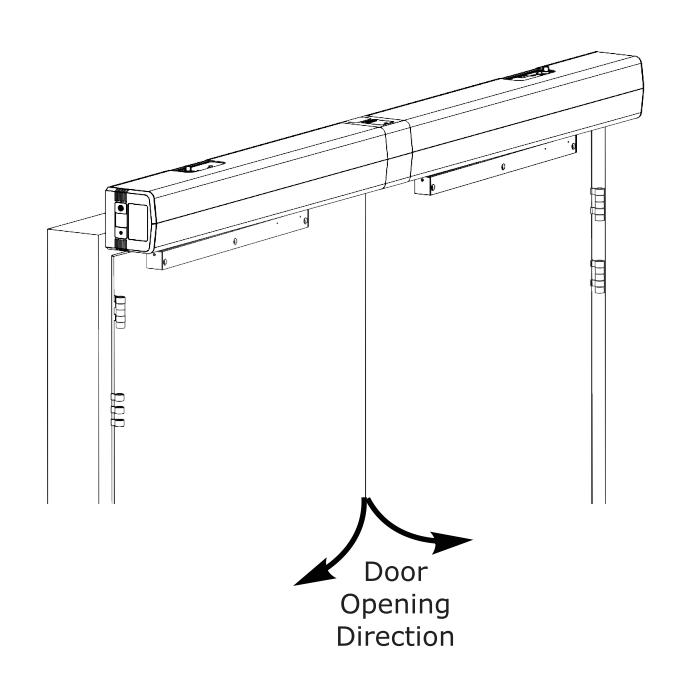

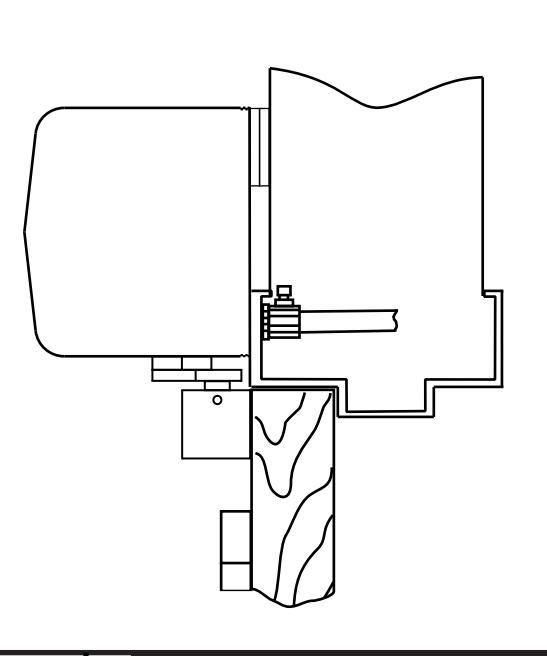

• Operator shown for pull side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

D6011 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"
