Left Hand

(view from below)

Interior

Door

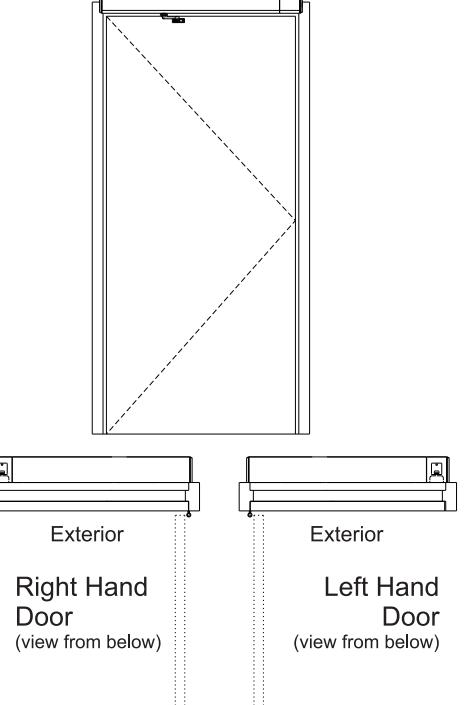

Single Pull Side

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

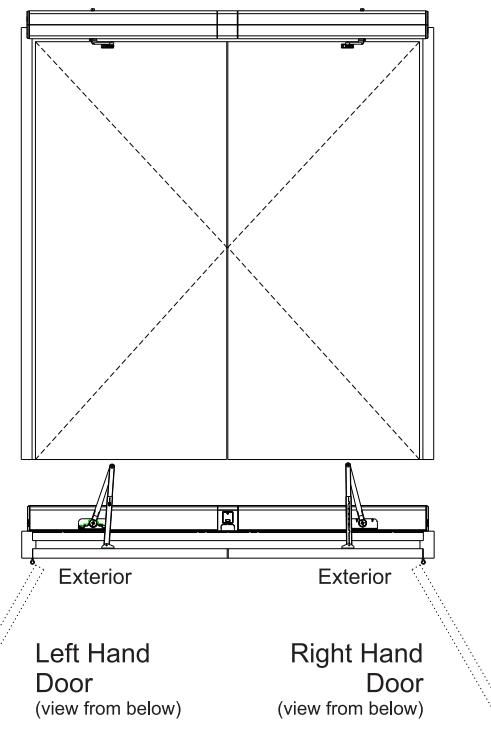

Double Door Pull Side

Interior

Double Door Push Side

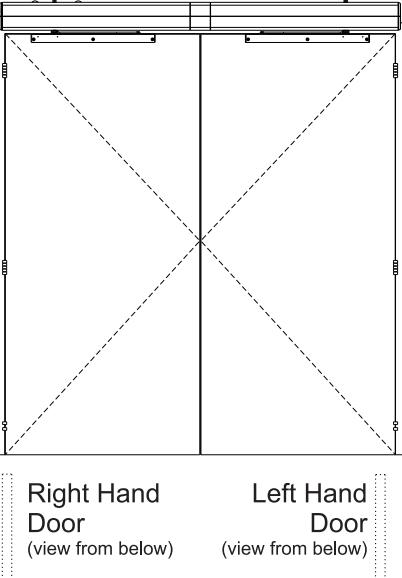

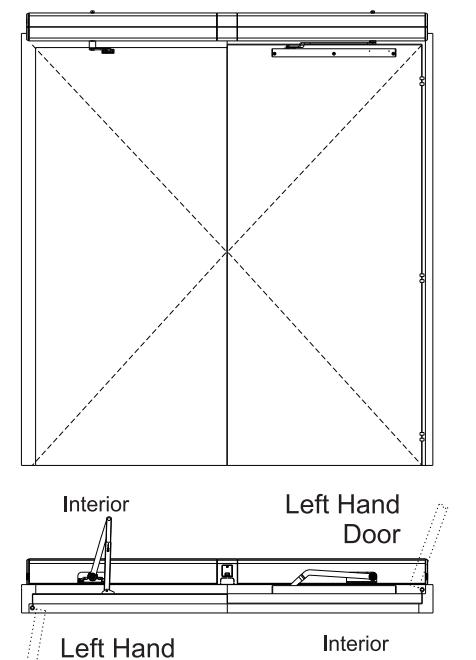

Double Door Double Egress Left Hand

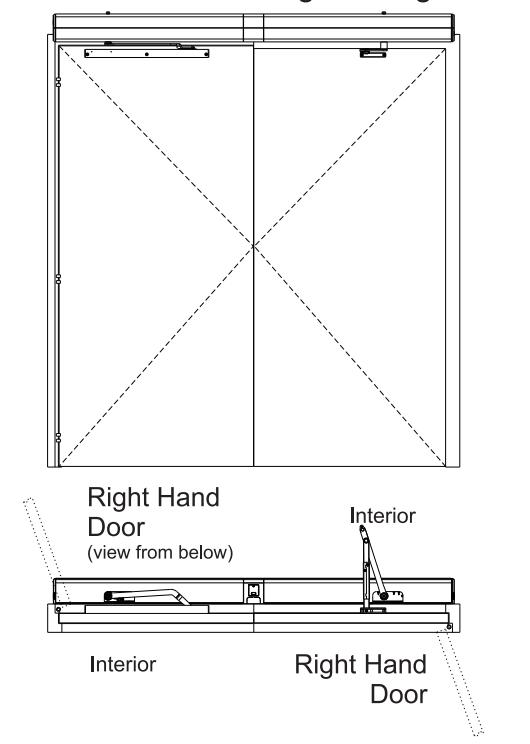

Double Door Double Egress Right Hand

Door (view from below)

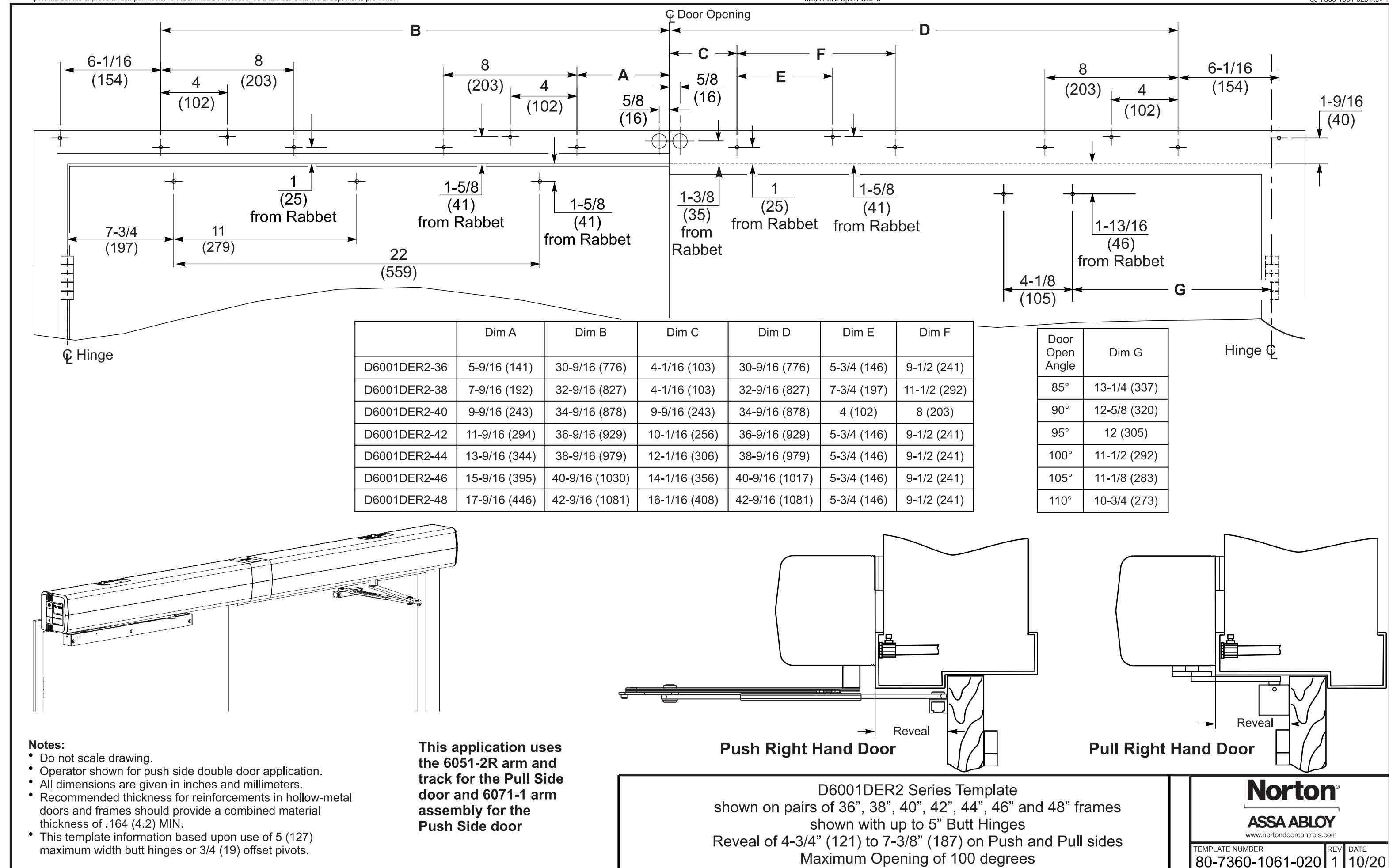

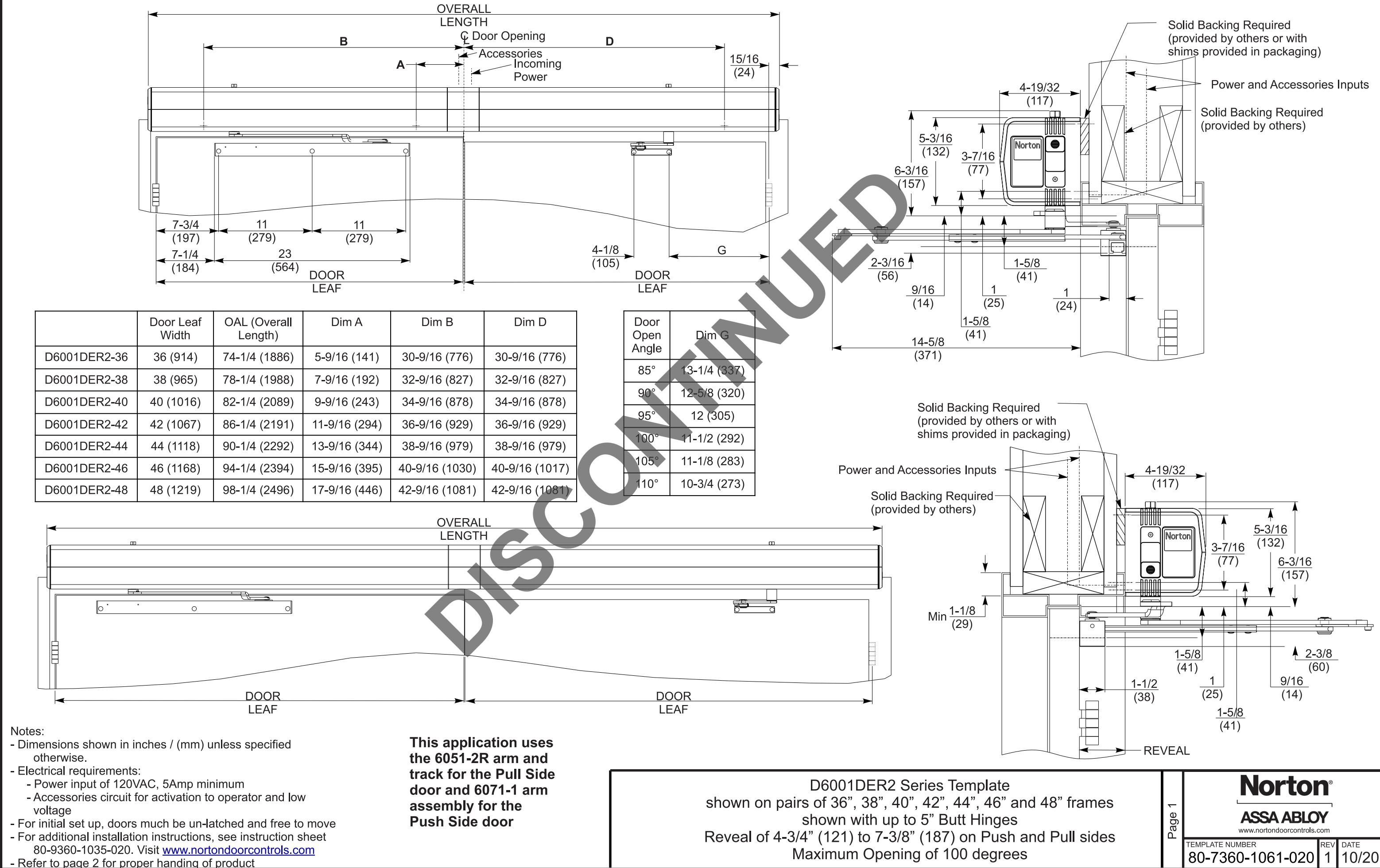

D6001DER2 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 4-3/4" (121) to 7-3/8" (187) on Push and Pull sides Maximum Opening of 100 degrees
