Left Hand

(view from below)

Interior

Door

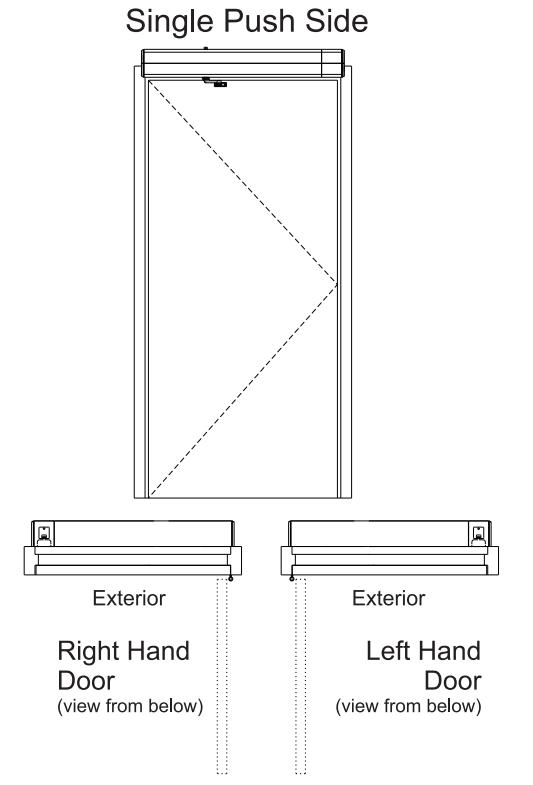

Single Pull Side

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

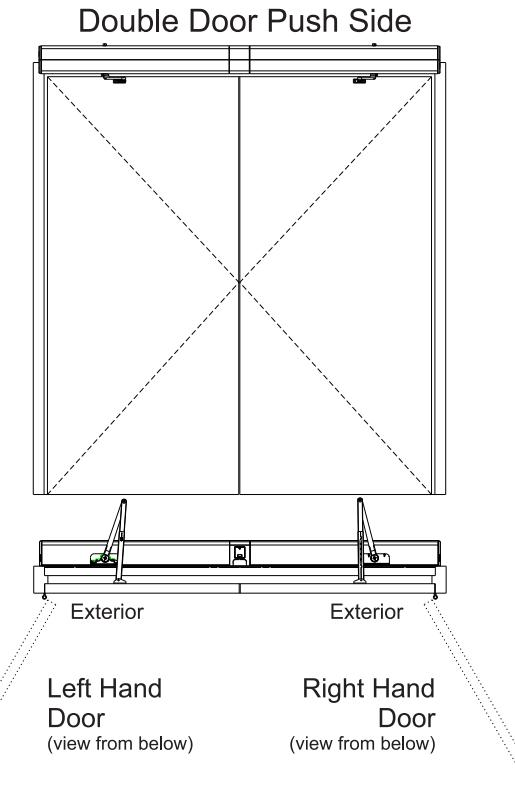

Double Door Pull Side

Interior

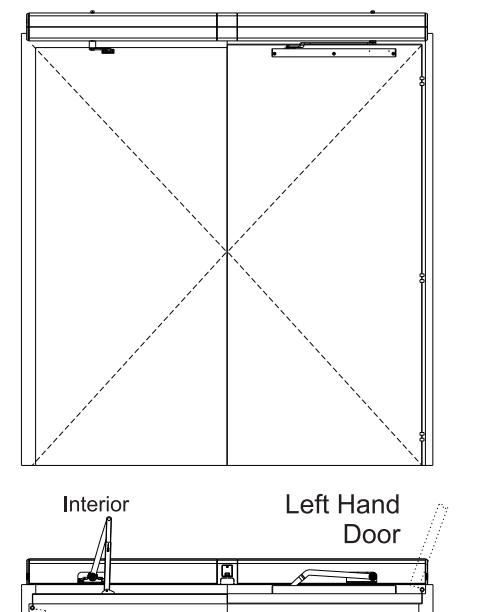

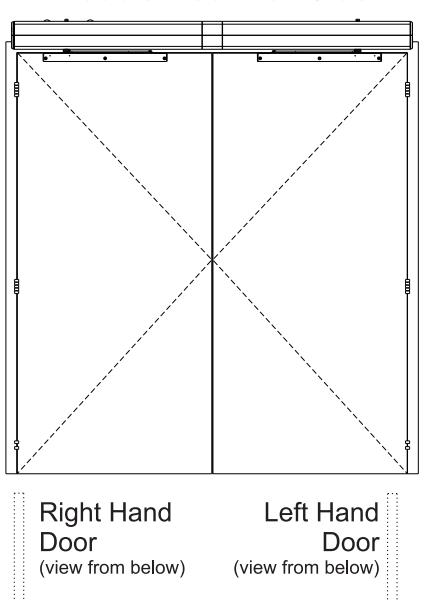

Double Door Double Egress Left Hand

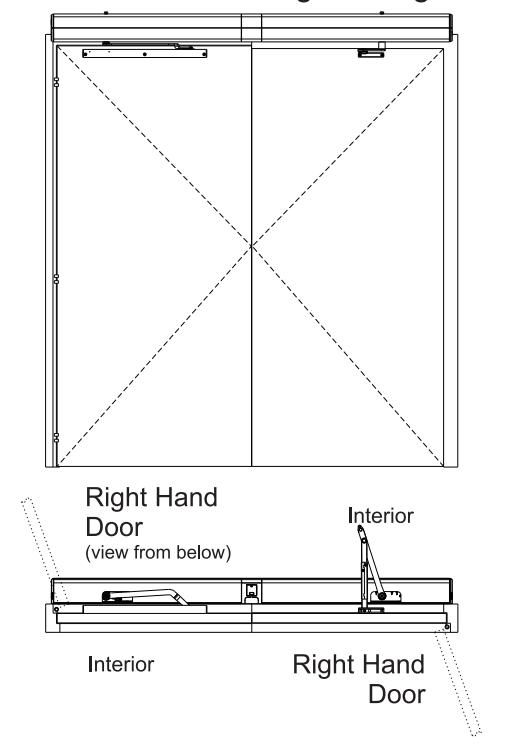

Double Door Double Egress Right Hand

Left Hand Door (view from below)

Interior

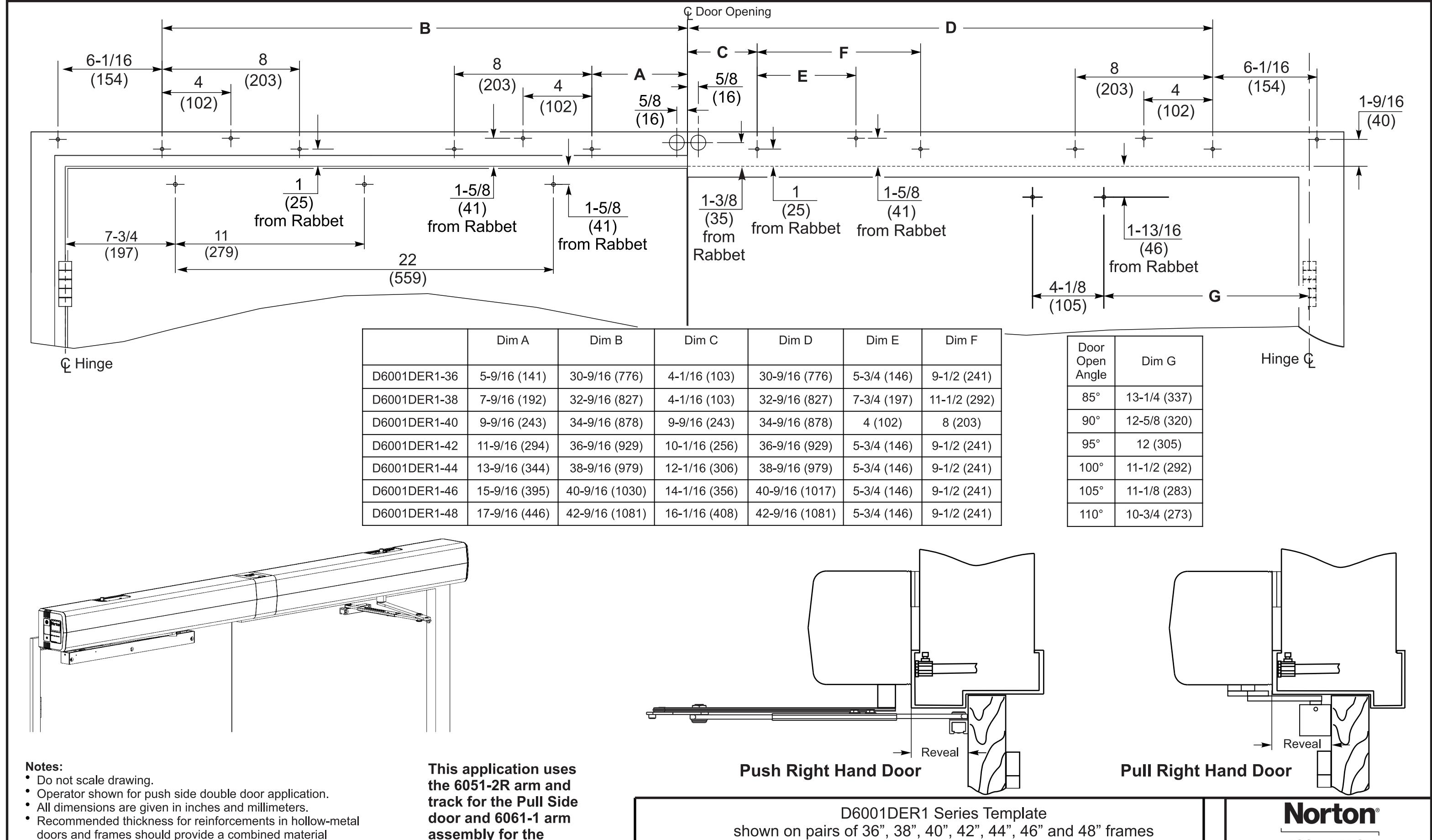

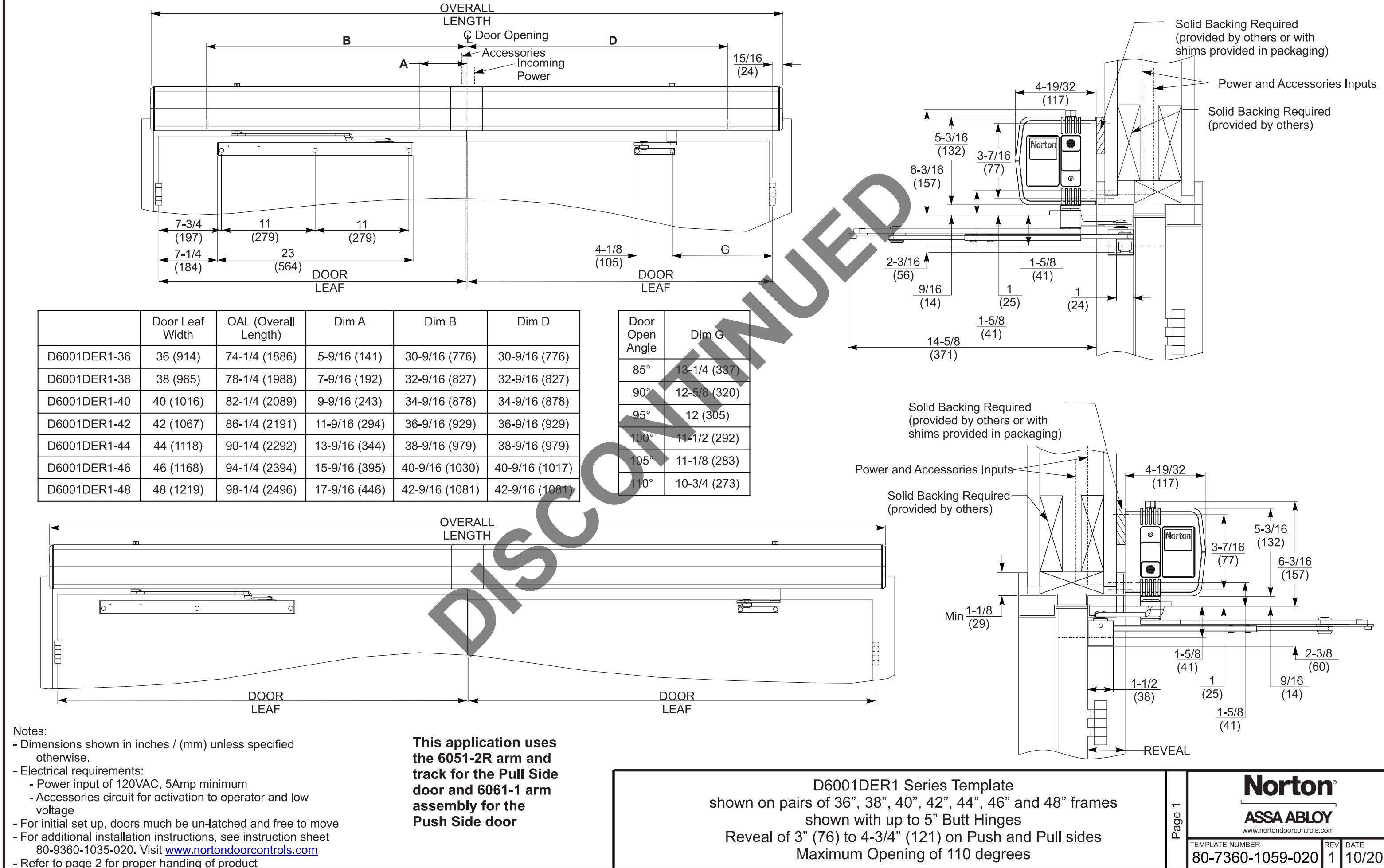

D6001DER1 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides Maximum Opening of 110 degrees

Norton ®

ASSA ABLOY www.nortondoorcontrols.com

80-7360-1059-020 1 10/20

shown with up to 5" Butt Hinges

Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides

Maximum Opening of 110 degrees

ASSA ABLOY

80-7360-1059-020 1 10/20

thickness of .164 (4.2) MIN. This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

assembly for the Push Side door
