Norton Rixson 6000 Series Operator,D6001DER Double Egress for Door Widths 36 – 48 and Reveals up to 3,110…_80-7360-1057-020

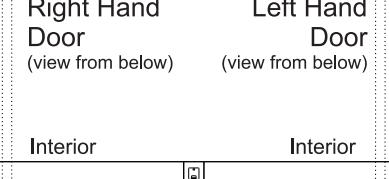

Left Hand

(view from below)

Interior

Door

Single Pull Side

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

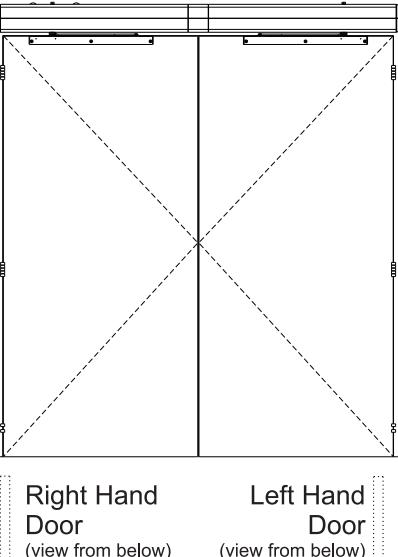

Double Door Pull Side

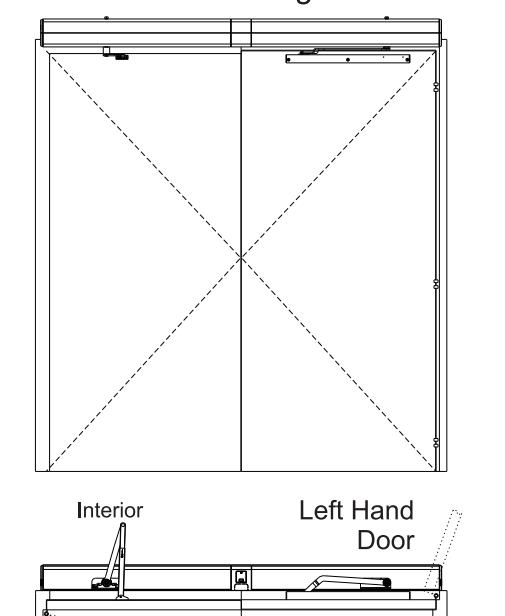

Double Door Double Egress Left Hand

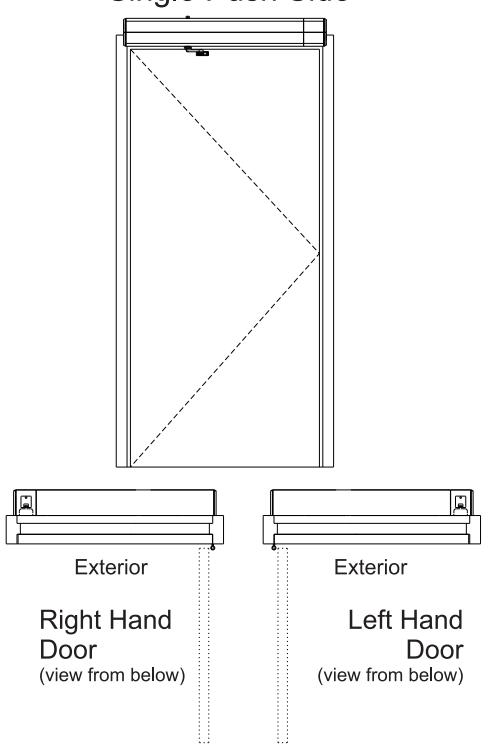

Single Push Side

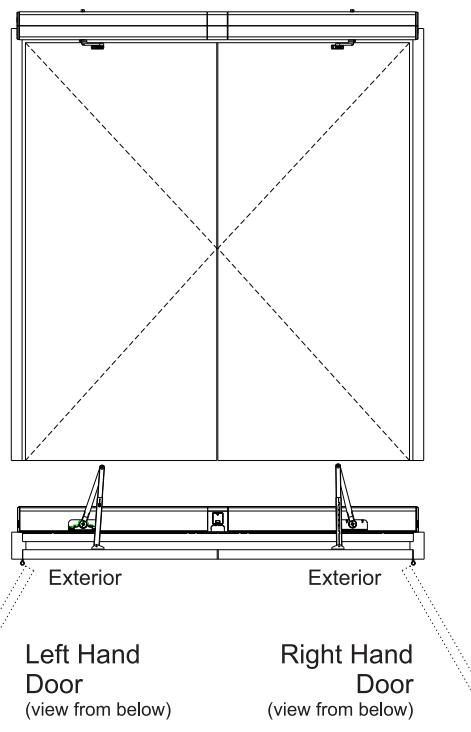

Double Door Push Side

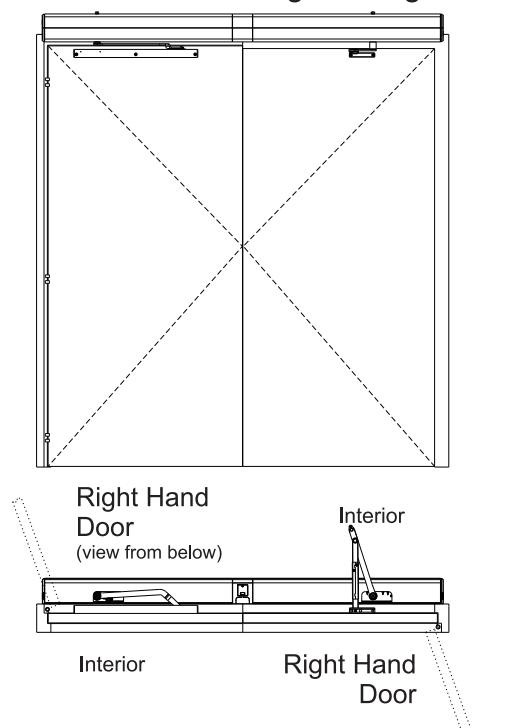

Double Door Double Egress Right Hand

Left Hand Door (view from below)

Interior

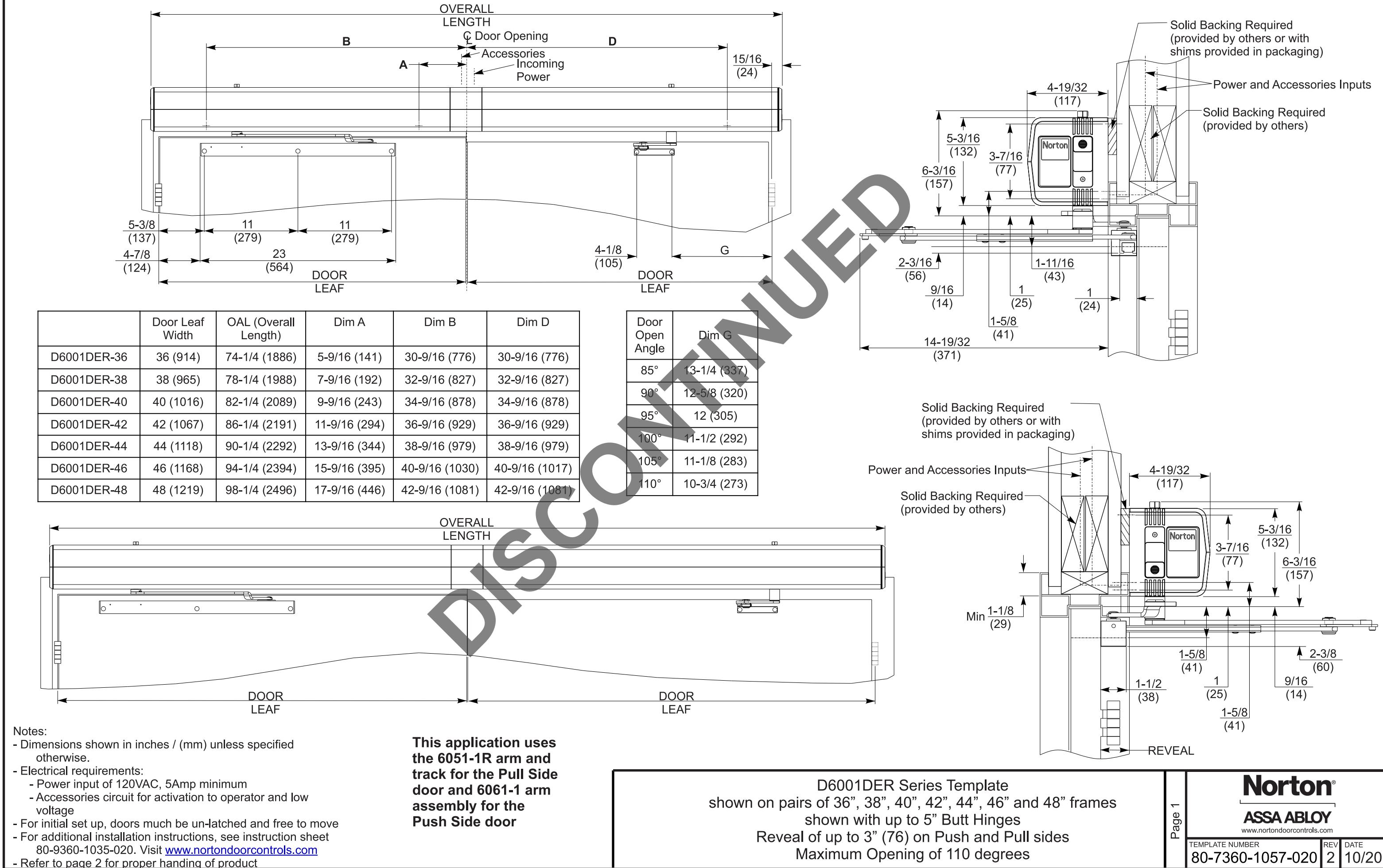

D6001DER Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of up to 3" (76) on Push and Pull sides Maximum Opening of 110 degrees

Norton

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER REV DATE 80-7360-1057-020 2 10/20

Experience a safer and more open world

• Operator shown for push side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

track for the Pull Side door and 6061-1 arm assembly for the Push Side door

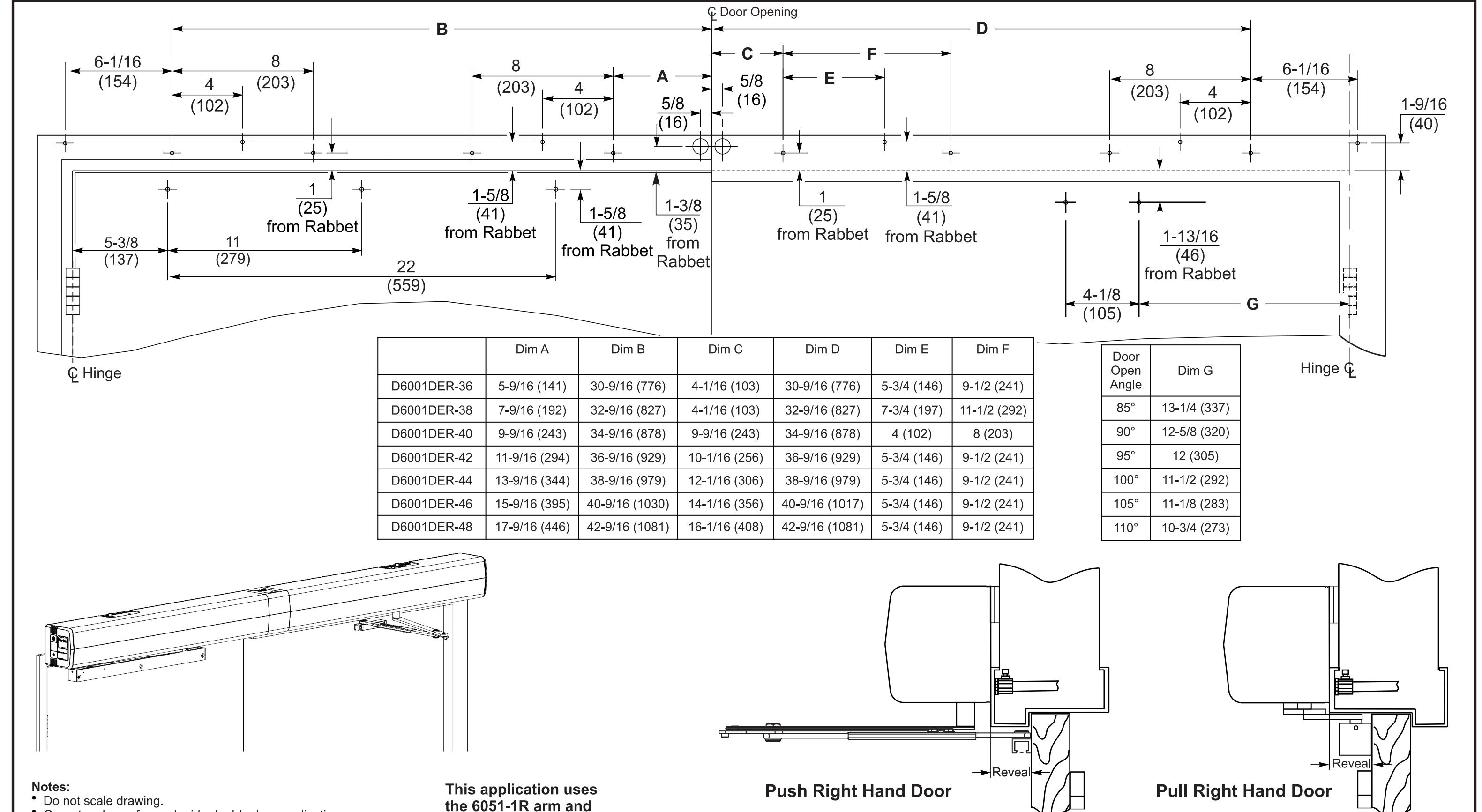

D6001DER Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of up to 3" (76) on Push and Pull sides Maximum Opening of 110 degrees

Norton ASSA ABLOY

80-7360-1057-020 2 10/20
