Refer to page 2 for proper handing of product

80-7360-1062-020 Rev

80-7360-1062-020 1 10/20

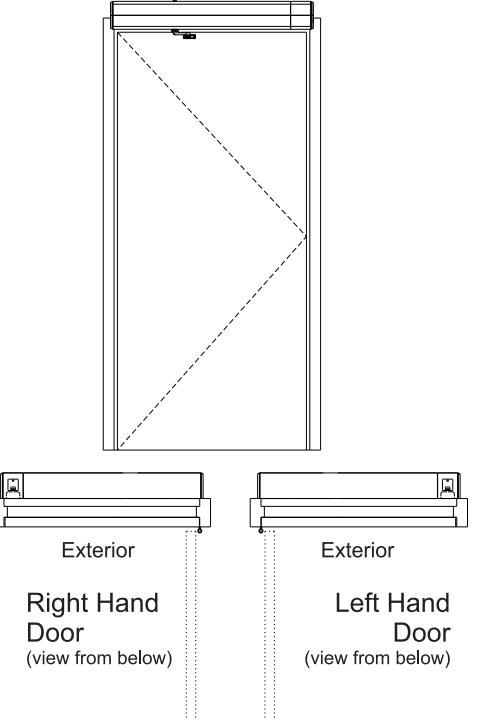

Left Hand

(view from below)

Interior

Door

Single Pull Side

NOTE:

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

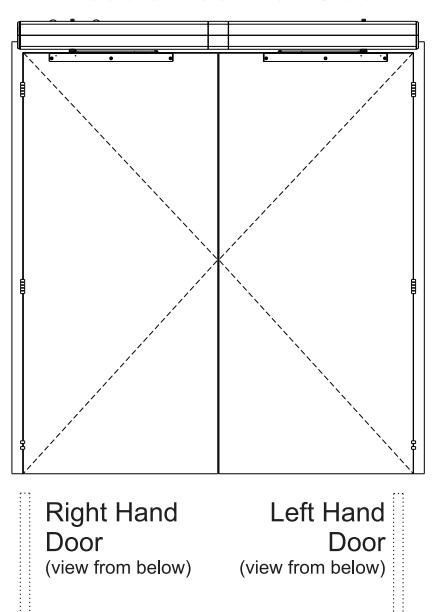

Double Door Pull Side

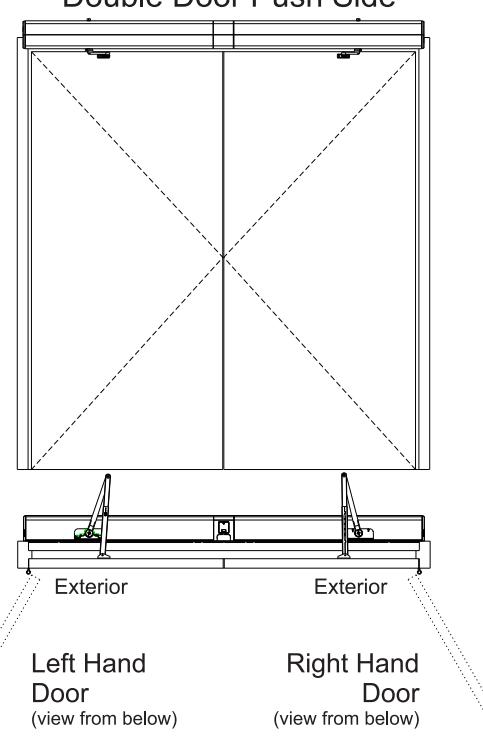

Double Door Push Side

Interior

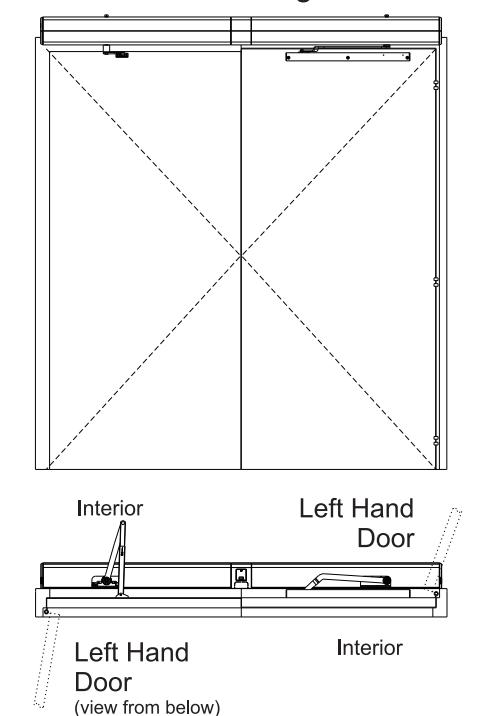

Double Door Double Egress Left Hand

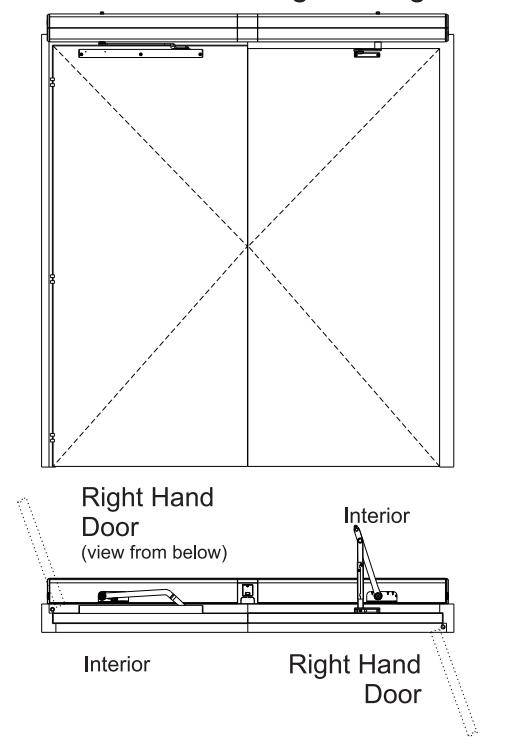

Double Door Double Egress Right Hand

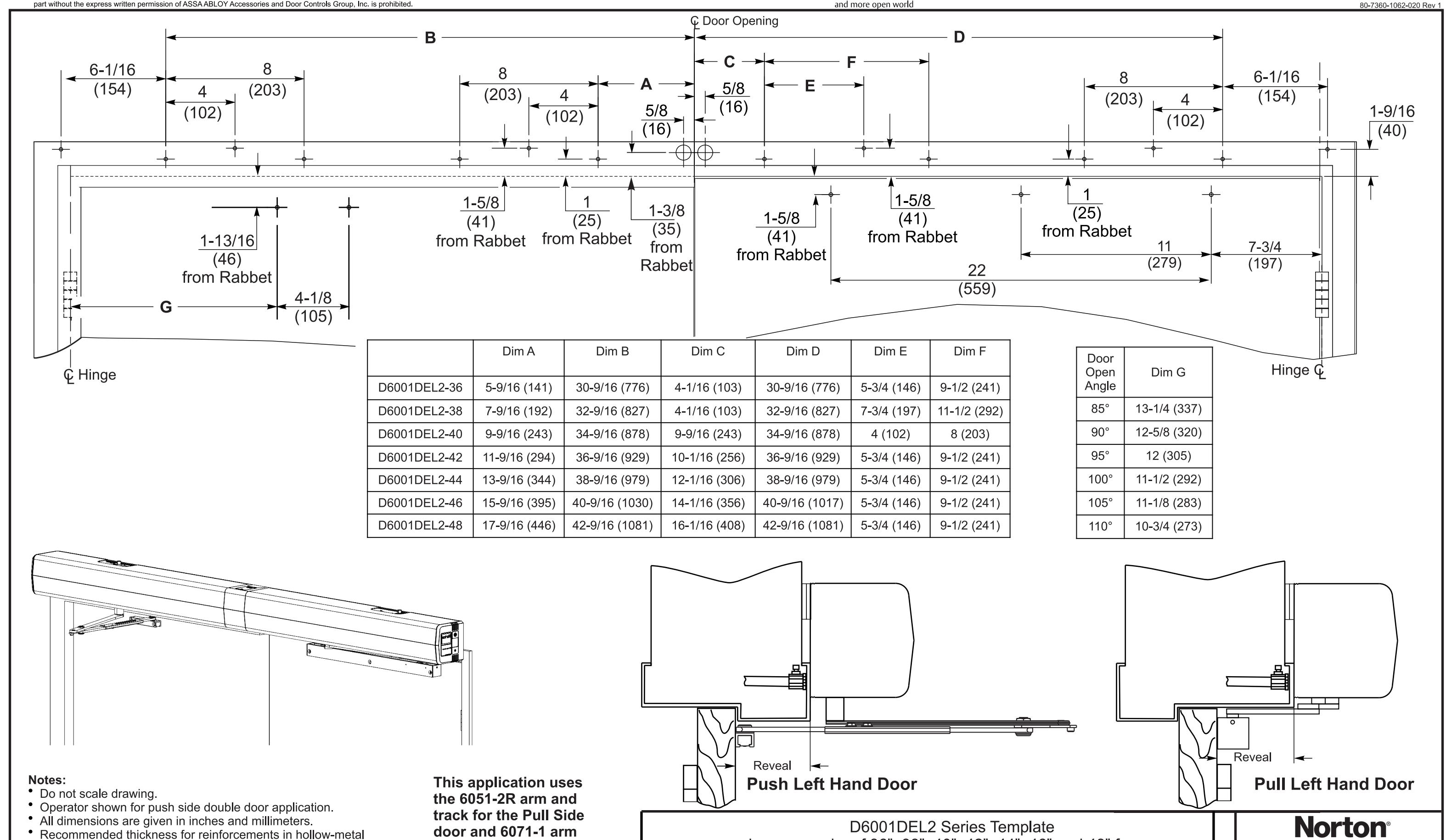

D6001DEL2 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 4-3/4" (121) to 7-3/8" (187) on Push and Pull sides Maximum Opening of 100 degrees

Norton ®

ASSA ABLOY www.nortondoorcontrols.com

80-7360-1062-020 1 10/20

doors and frames should provide a combined material

This template information based upon use of 5 (127)

maximum width butt hinges or 3/4 (19) offset pivots.

thickness of .164 (4.2) MIN.

shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames

shown with up to 5" Butt Hinges

Reveal of 4-3/4" (121) to 7-3/8" (187) on Push and Pull sides

Maximum Opening of 100 degrees

ASSA ABLOY

80-7360-1062-020 1 10/20

assembly for the

Push Side door
