Refer to page 2 for proper handing of product

Left Hand

(view from below)

Interior

Door

Single Pull Side

NOTE:

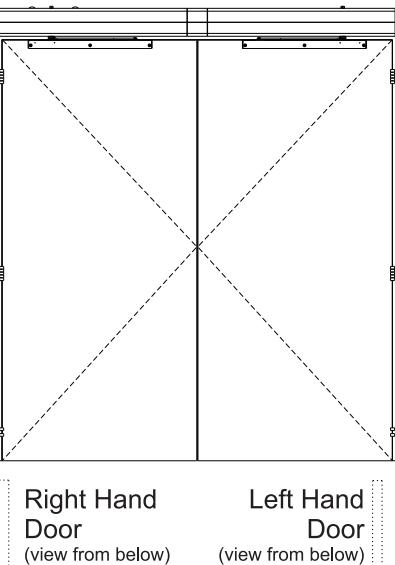

Right Hand

(view from below)

Interior

- All illustrations on this page shown with 36" (914mm) wide doors

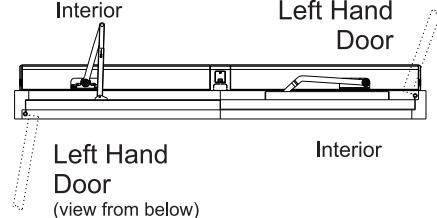

Double Door Pull Side

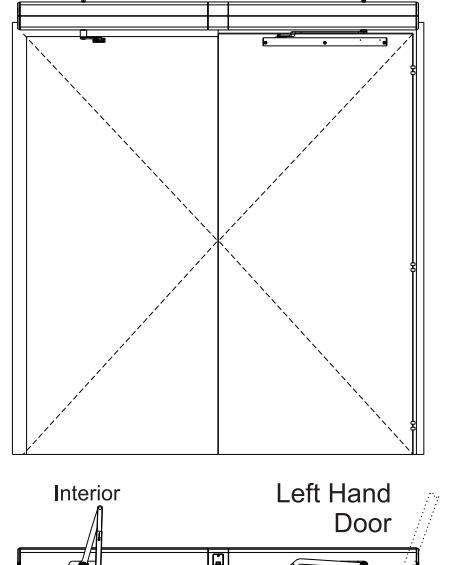

Double Door Double Egress Left Hand

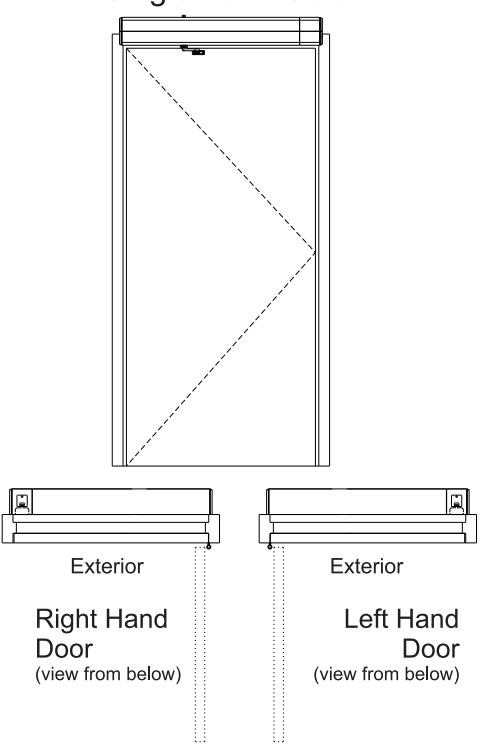

Single Push Side

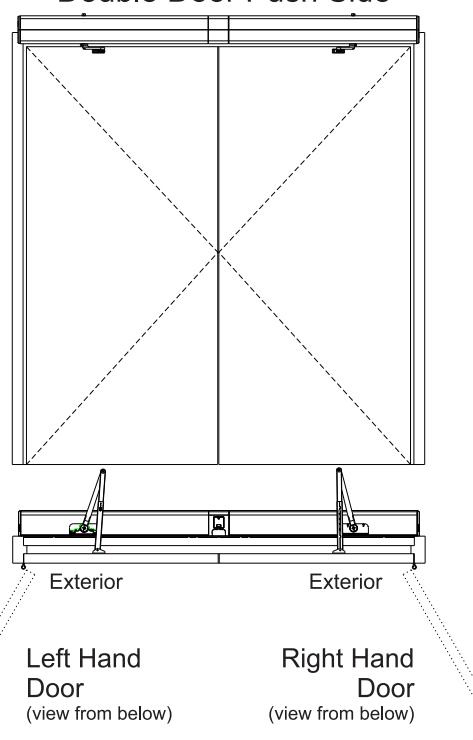

Double Door Push Side

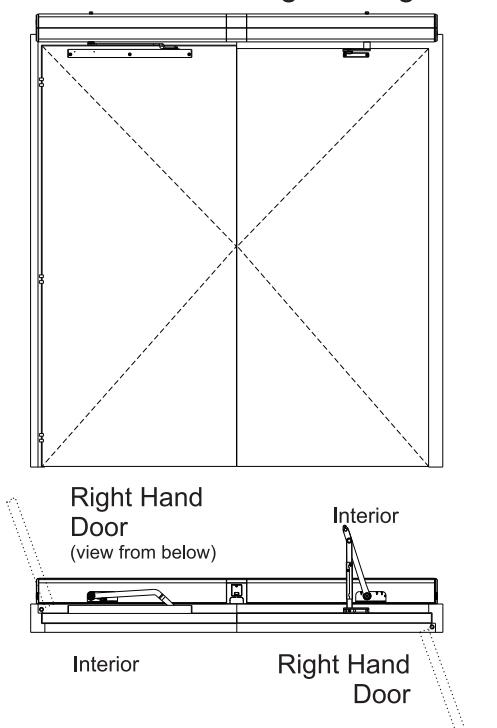

Double Door Double Egress Right Hand

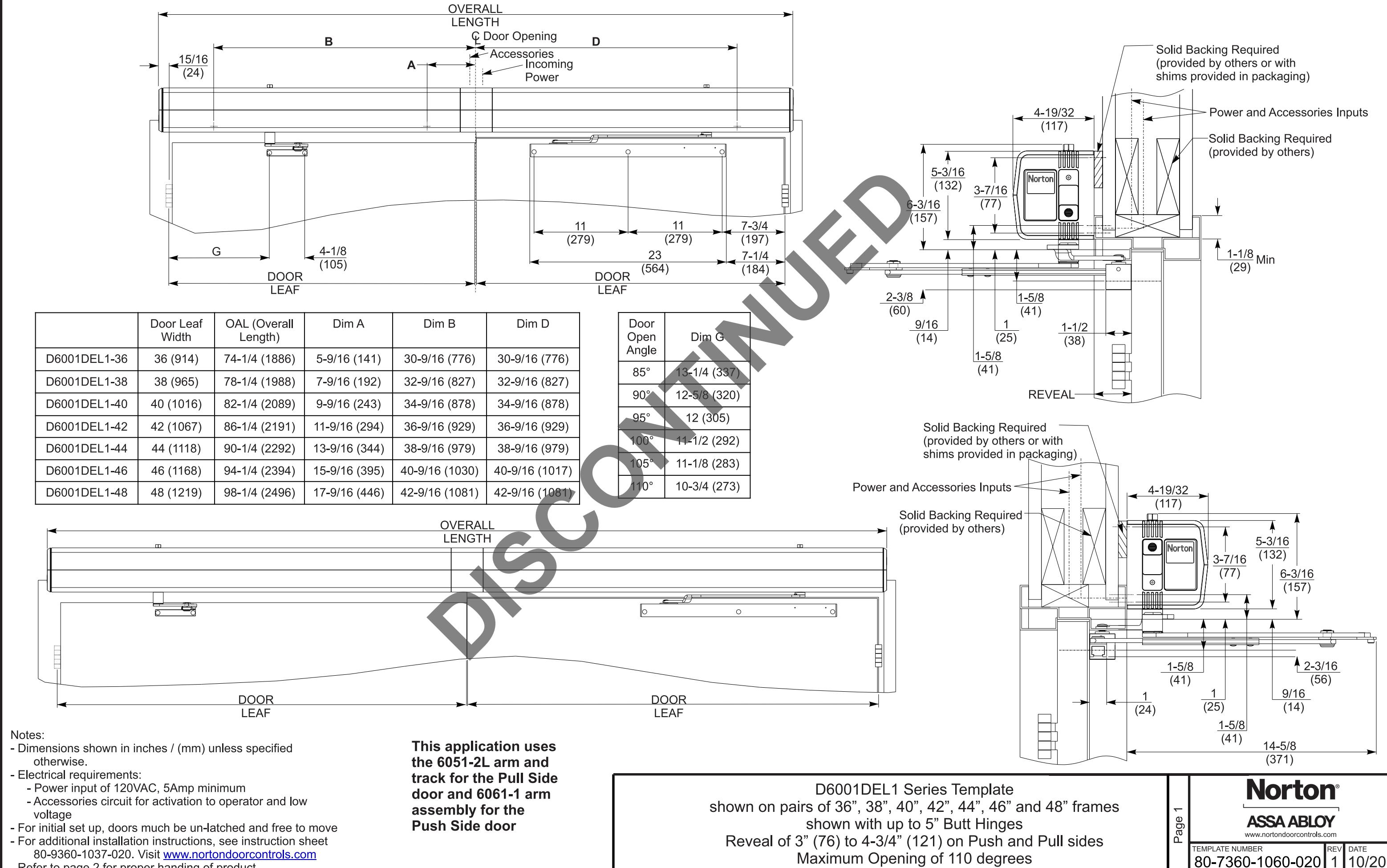

D6001DEL1 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides Maximum Opening of 110 degrees

Norton

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER REV DATE 80-7360-1060-020 1 10/20

Experience a safer

Notes:

• Do not scale drawing.
• Operator shown for push side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

This application uses the 6051-2L arm and track for the Pull Side door and 6061-1 arm assembly for the Push Side door

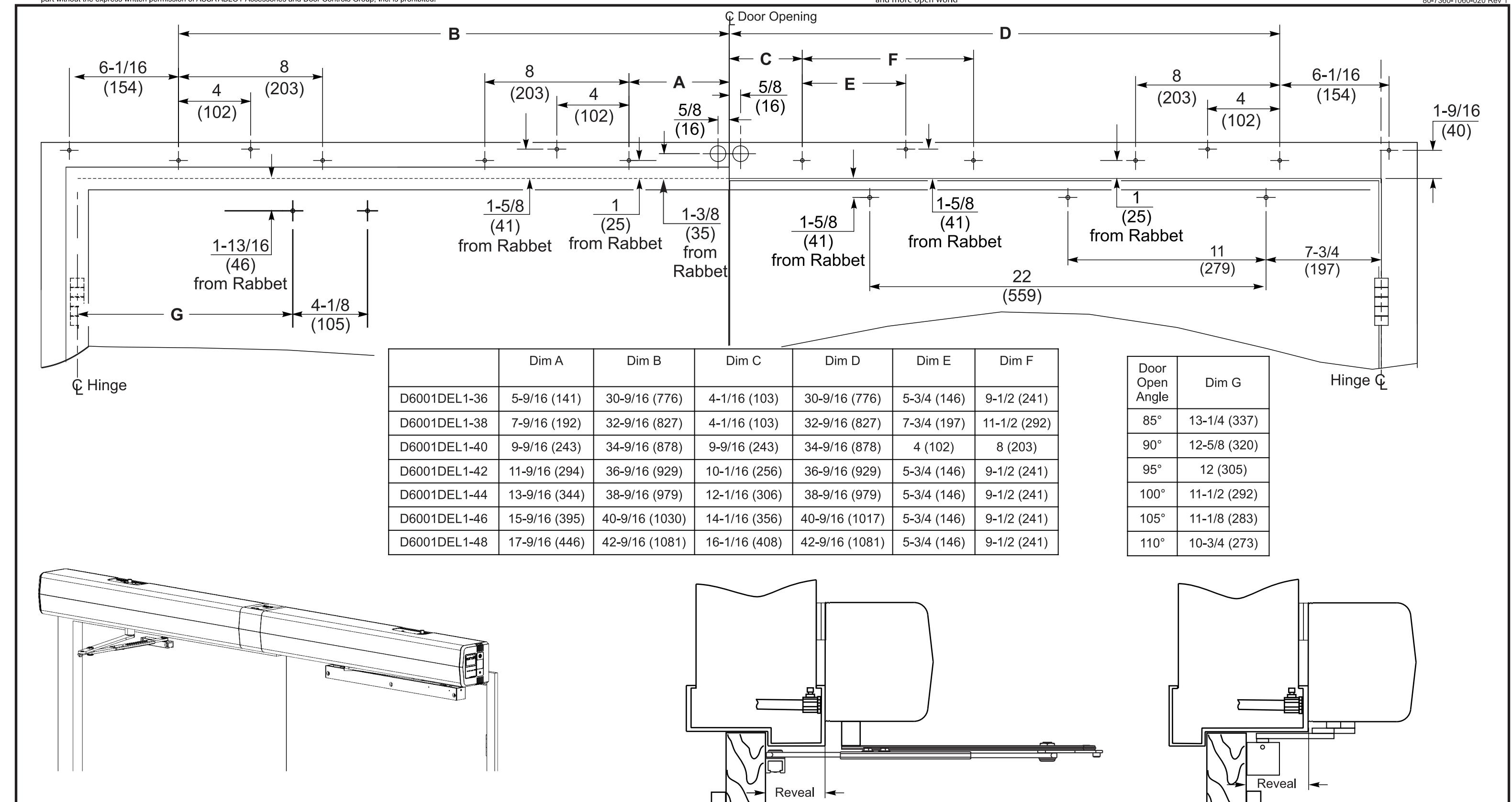

D6001DEL1 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides Maximum Opening of 110 degrees

Push Left Hand Door

Norton ®

ASSA ABLOY

80-7360-1060-020 1 10/20

Pull Left Hand Door
