Norton Rixson 6000 Series Operator,D6001 DE-L Double Egress Left Hand Doors Template_80-7360-1044-020
Open the original PDF document
View PDF
| Dim A | Dim B | Dim C | Dim D | |
|---|---|---|---|---|
| D6001 - 36 | 5-9/16 (141) | 30-9/16 (776) | 4-1/16 (103) | 30-9/16 (776) |
| D6001 - 42 | 11-9/16 (294) | 36-9/16 (929) | 10-1/16 (255.5) | 36-9/16 (929) |
| D6001 - 48 | 17-9/16 (446) | 42-9/16 (1081) | 16-1/16 (408) | 42-9/16 (1081) |
Notes:
- Do not scale drawing.

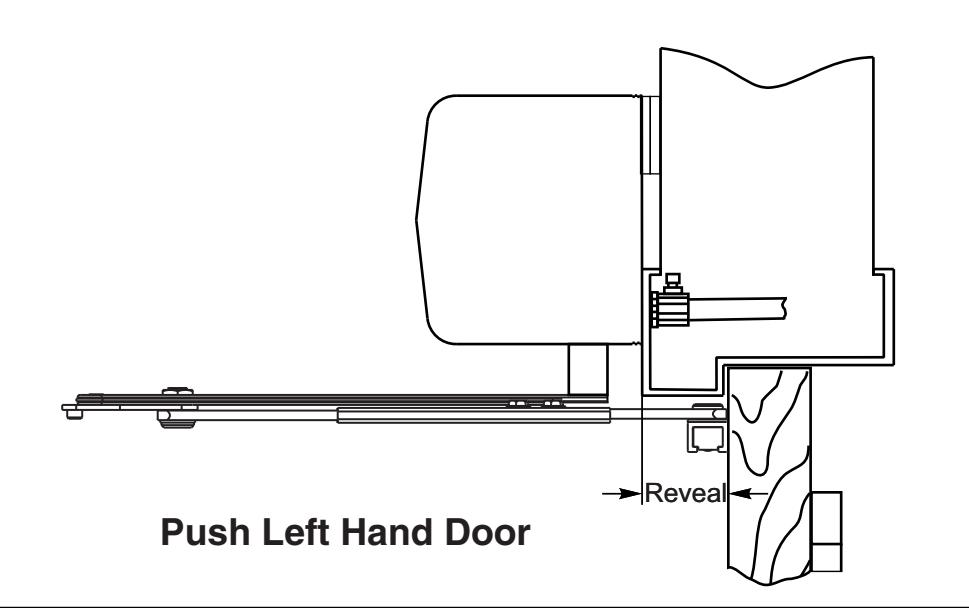

- Operator shown for push side double door application.
- All dimensions are given in inches and millimeters.
- Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
- This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

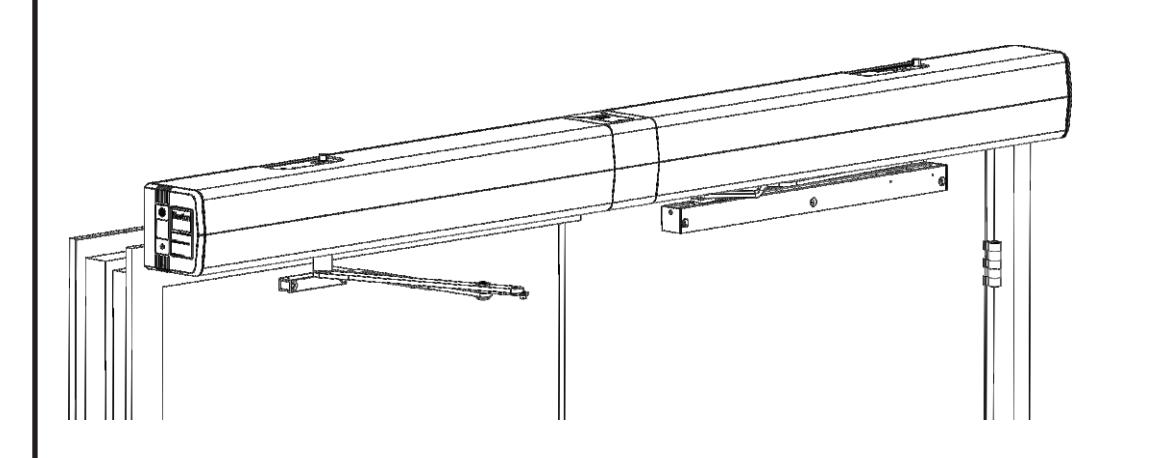

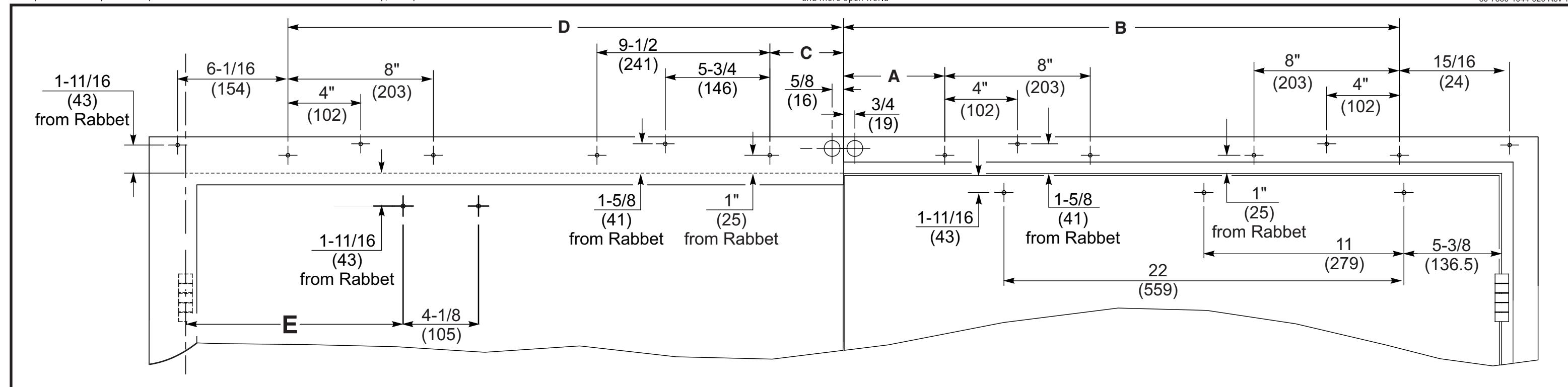

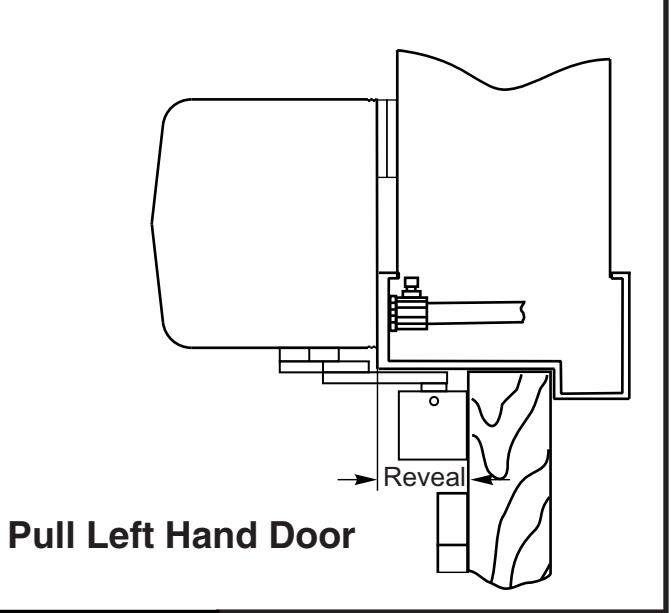

D6001DE-L Series Operator Installation Template for Double Door Double Egress Frame with Left Hand Doors on 36"(914mm), 42"(1067mm), or 48"(1219mm) leafs (shown on 36" wide leafs) For Reveal of 1/8" (3mm) to 3" (76mm) for Pull Side Door and 2-1/4" (57mm) to 4-3/4" (121mm) for Push Side Door
Norton ASSA ABLOY
80-7360-1044-020 1 05/20
