Norton Rixson 6000 Series Operator,6071 Push Side Mounting for Door Widths 36,42 and Reveals of 4-13, 16 to…_80-7360-1050-020
Open the original PDF document
View PDF

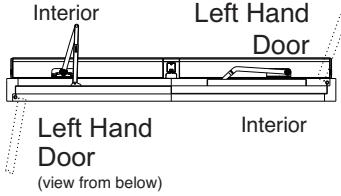

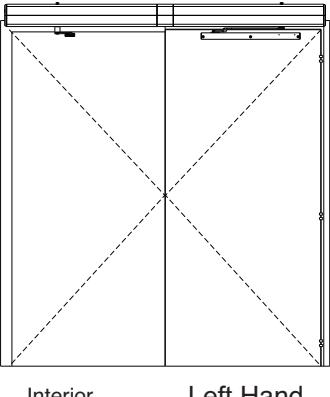

Left Hand Door (view from below)
NOTE:

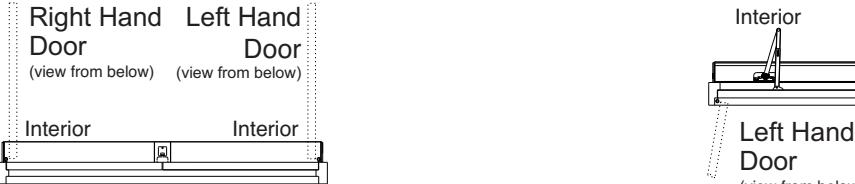

Right Hand Door (view from below)
- All illustrations on this page shown with 36Ó (914mm) wide doors

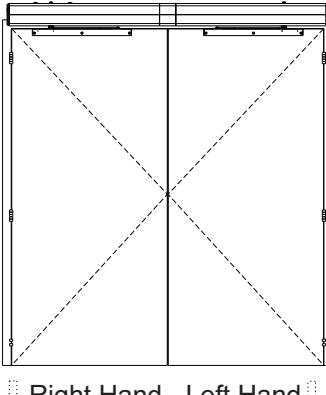

Single Push Side Double Door Push Side Double Door Double Egress Left Hand
Interior Interior

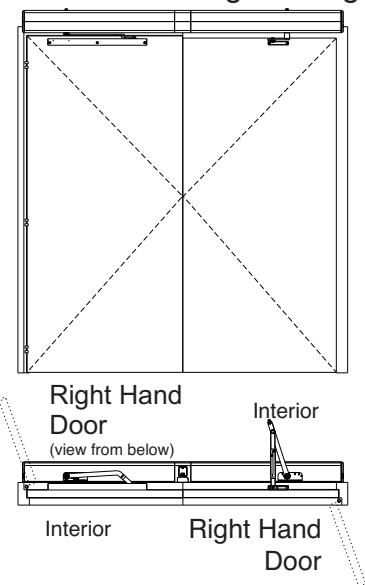

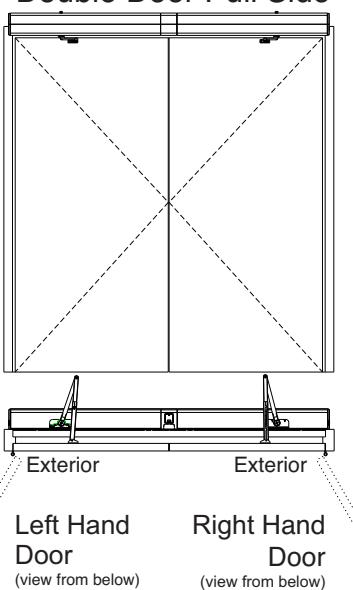

Single Pull Side Double Door Pull Side Double Door Double Egress Right Hand

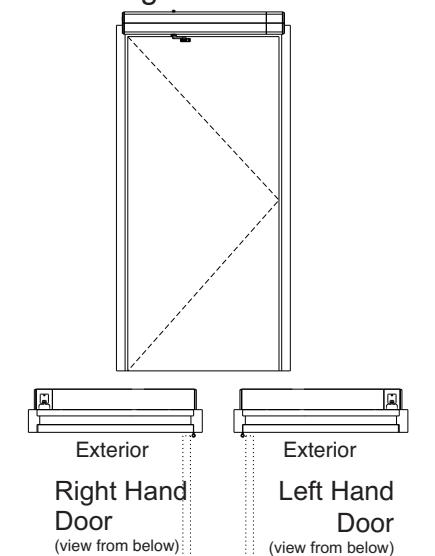

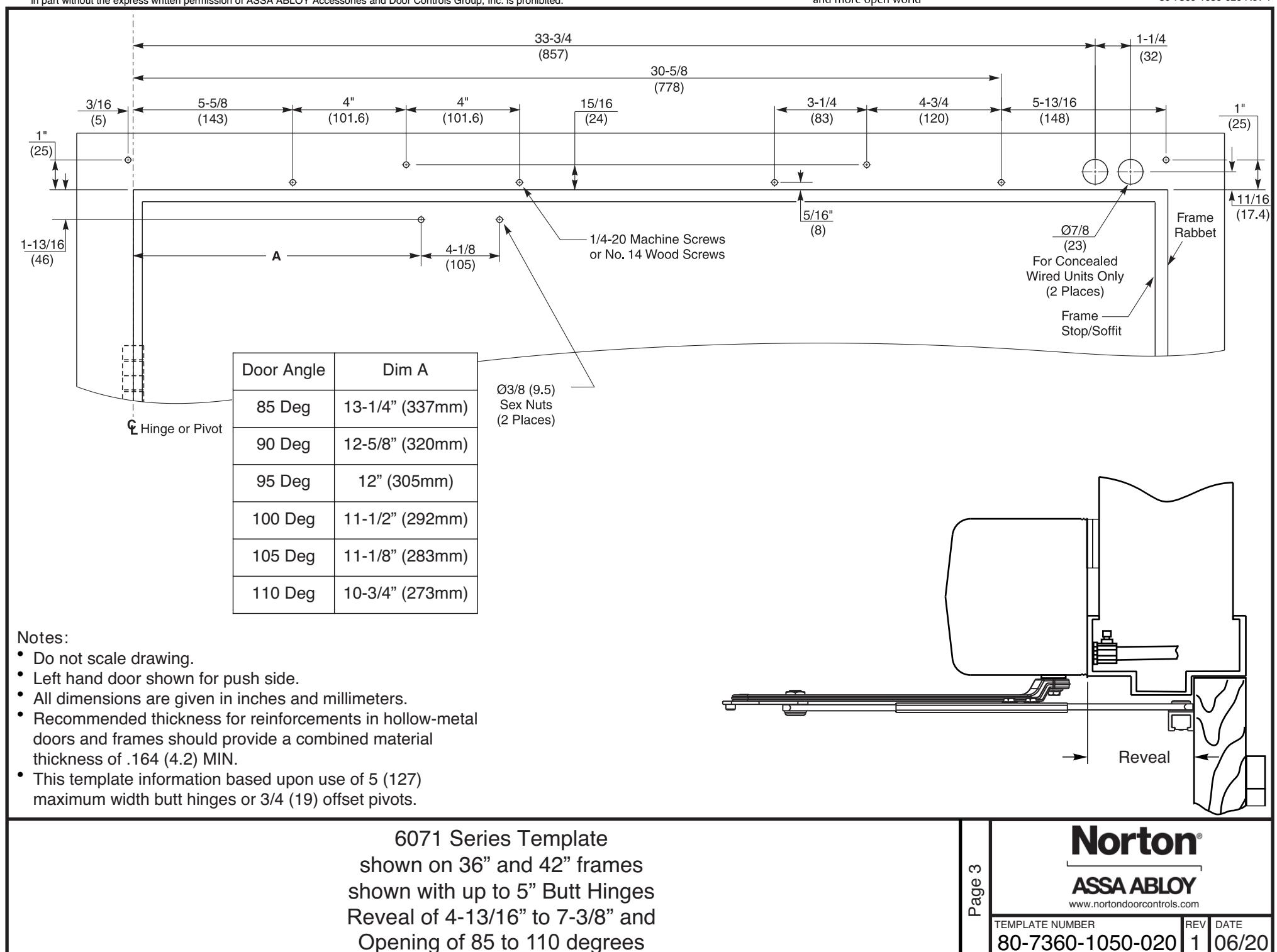

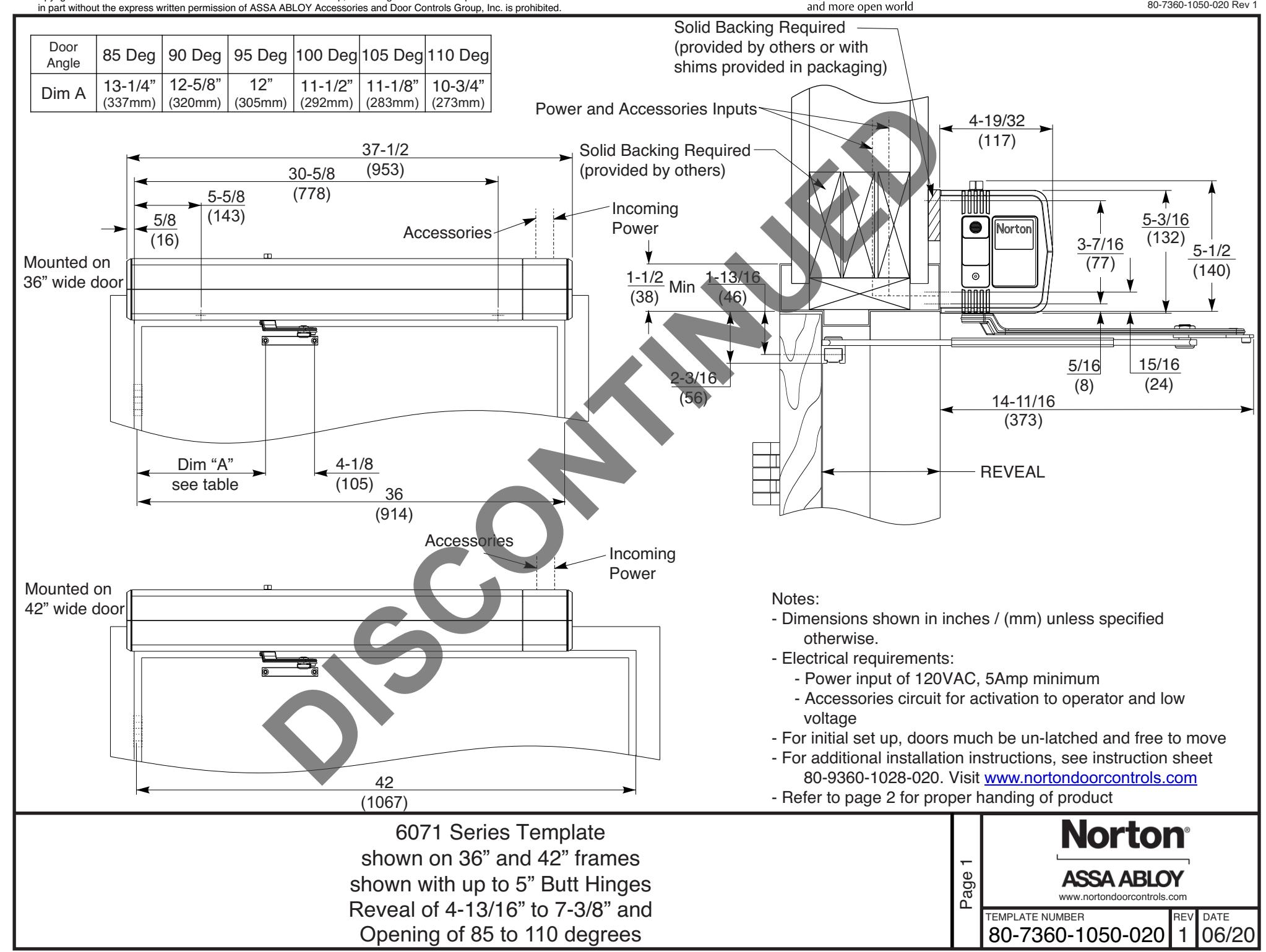

6071 Series Template shown on 36Ó and 42Ó frames shown with up to 5Ó Butt Hinges Reveal of 4-13/16Ó to 7-3/8Ó and Opening of 85 to 110 degrees
www.nortondoorcontrols.com Page 2
TEMPLATE NUMBER REV 1 DATE 80-7360-1050-020 06/20
