Norton Rixson 6000 Series Operator,6061,6071 Transom Application Push Side Mounting for Door Widths 42,48 an…_80-7360-1025-020

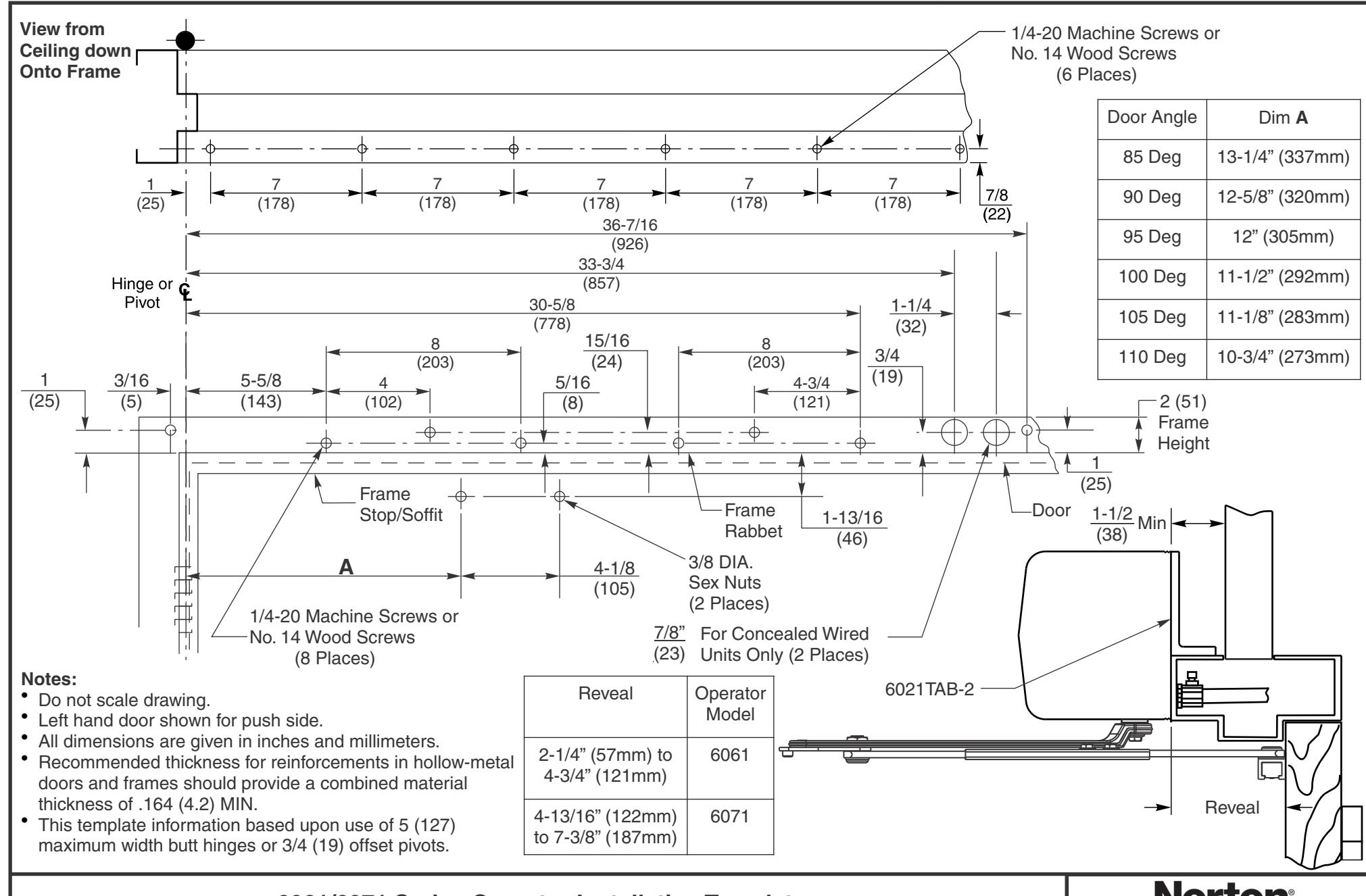

6061/6071 Series Operator Installation Template for Transom Application using 6021TAB-2 angle bracket on 42/48" wide doors For Reveal of 2-1/4" (57mm) to 7-3/8" (187mm)

Norton® ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER 80-7360-1025-020

REV DATE 1 07/19
