Norton Rixson 6000 Series Operator,6061,6071 Push Side Mount Template_80-7360-1038-020

Experience a safer

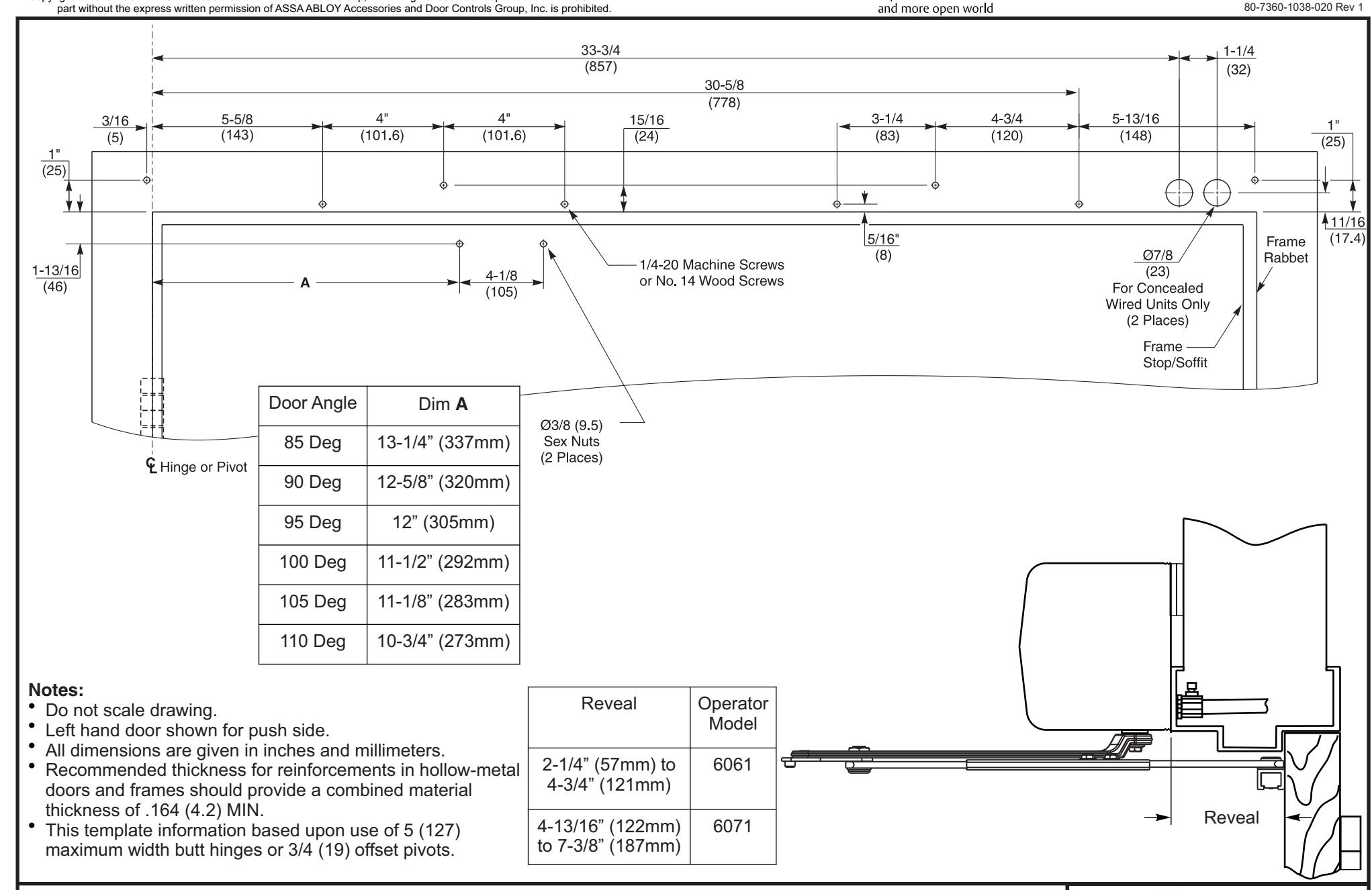

6061/6071 Series Operator Installation Template for Push Side Mount shown on 36" wide doors For Reveal of 2-1/4" (57mm) to 7-3/8" (187mm)

Norton ° ASSA ABLOY

TEMPLATE NUMBER 80-7360-1038-020

05/20
