Norton Rixson 6000 Series Operator,6061 Push Side Mounting for Door Widths 36,42 and Reveals of 2-1, 4 to 4…_80-7360-1049-020

NOTE:

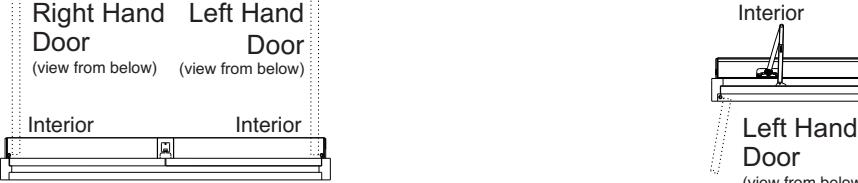

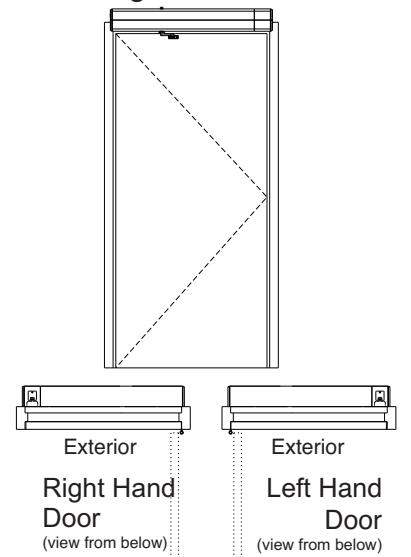

Right Hand Door (view from below)

- All illustrations on this page shown with 36Ó (914mm) wide doors

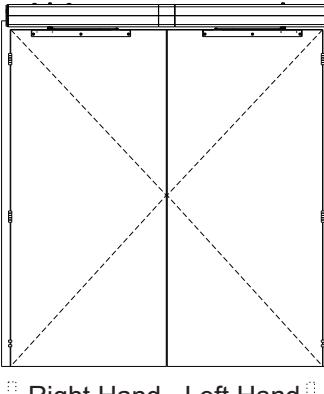

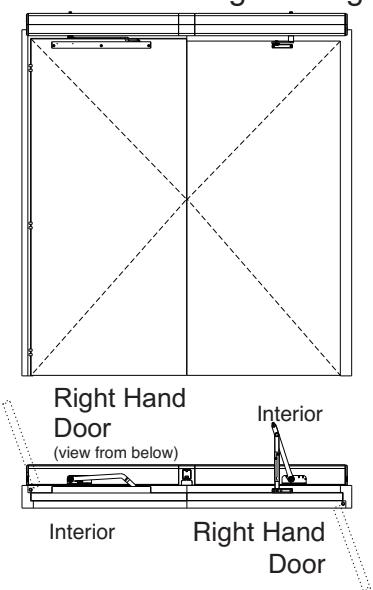

Single Push Side Double Door Push Side Double Door Double Egress Left Hand

Interior Interior

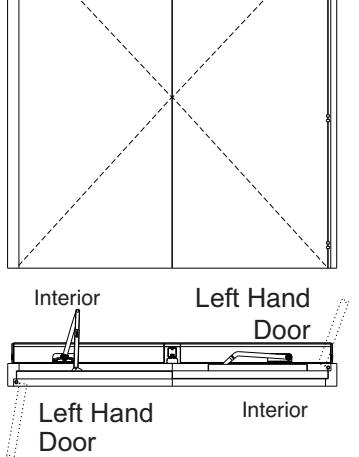

Left Hand Door (view from below)

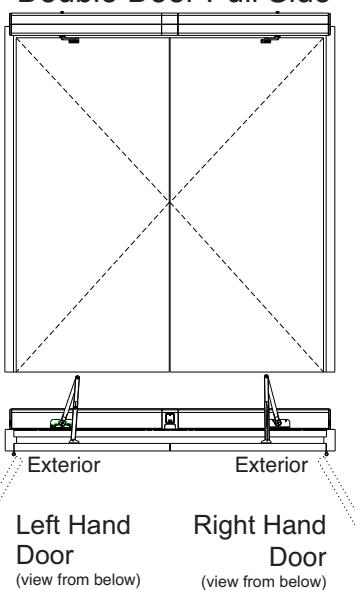

Single Pull Side Double Door Pull Side Double Door Double Egress Right Hand

(view from below)

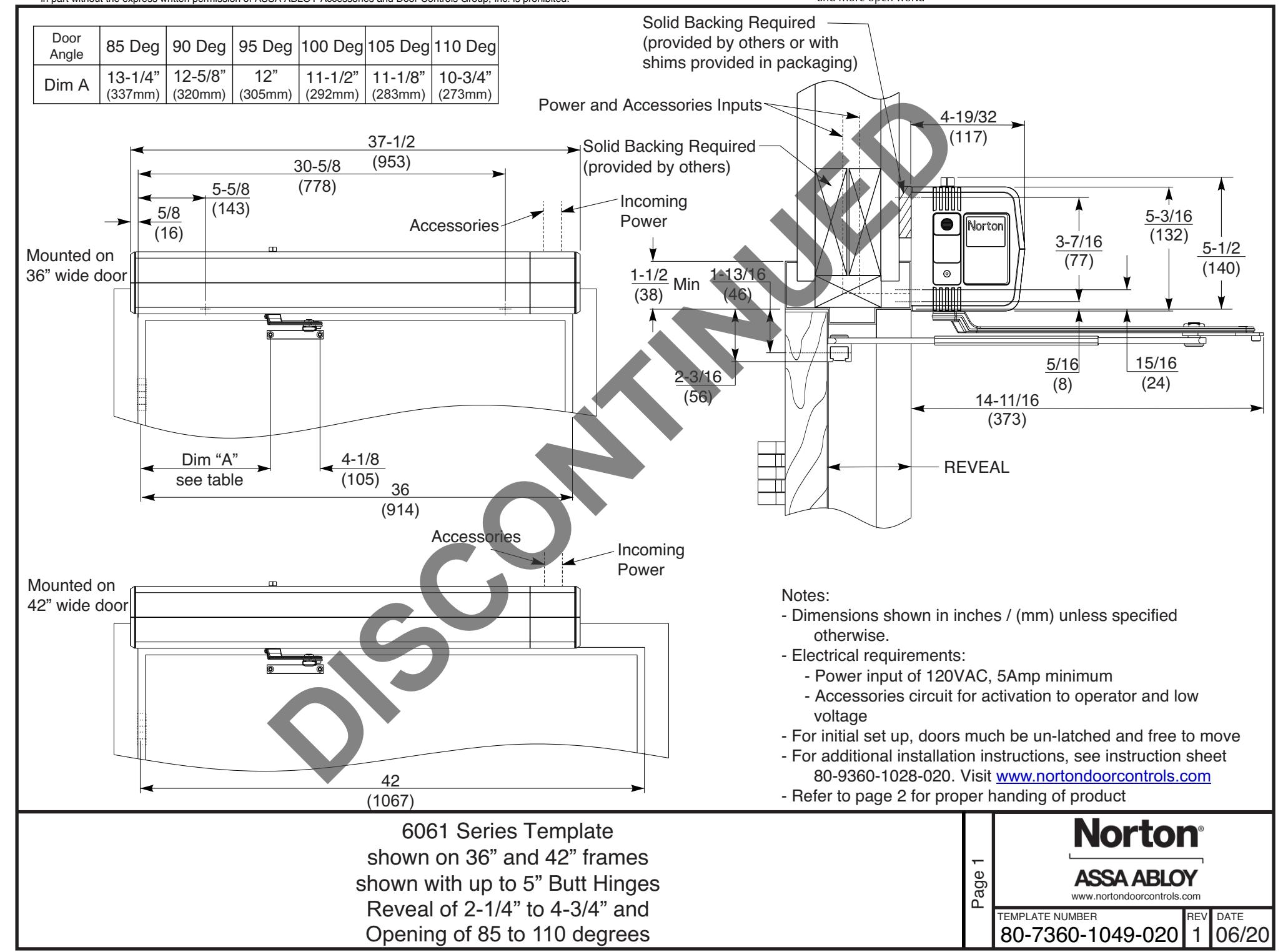

shown on 36Ó and 42Ó frames shown with up to 5Ó Butt Hinges Reveal of 2-1/4Ó to 4-3/4Ó and Opening of 85 to 110 degrees

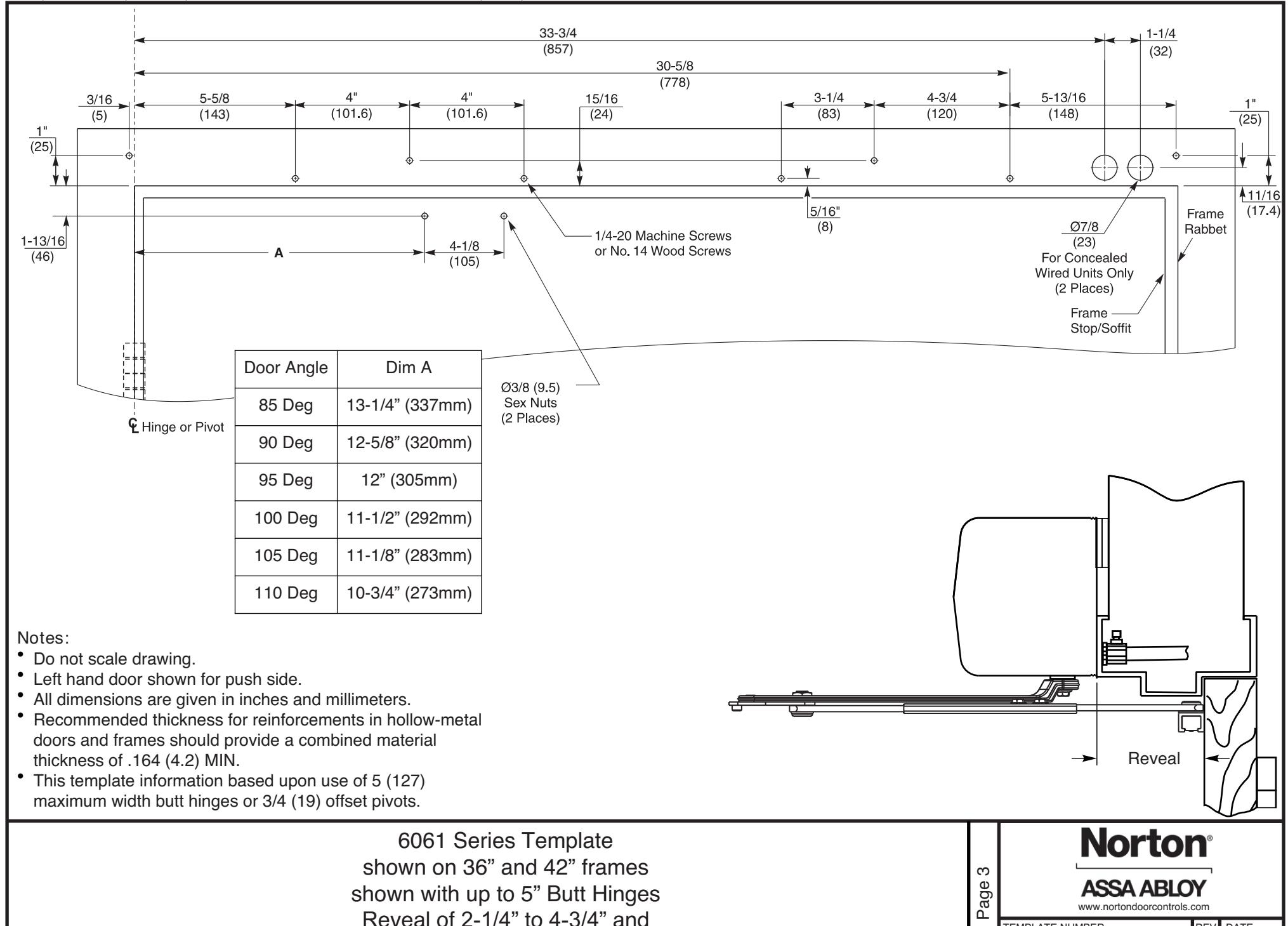

6061 Series Template

1 80-7360-1049-020 06/20

TEMPLATE NUMBER

80-7360-1049-020

06/20

Opening of 85 to 110 degrees
