Norton Rixson 6000 Series Operator,6031 Push Side Mounting for Door Widths 36,42 and Max Reveals of 6-7, 8,…_80-7360-1047-020

Open the original PDF document

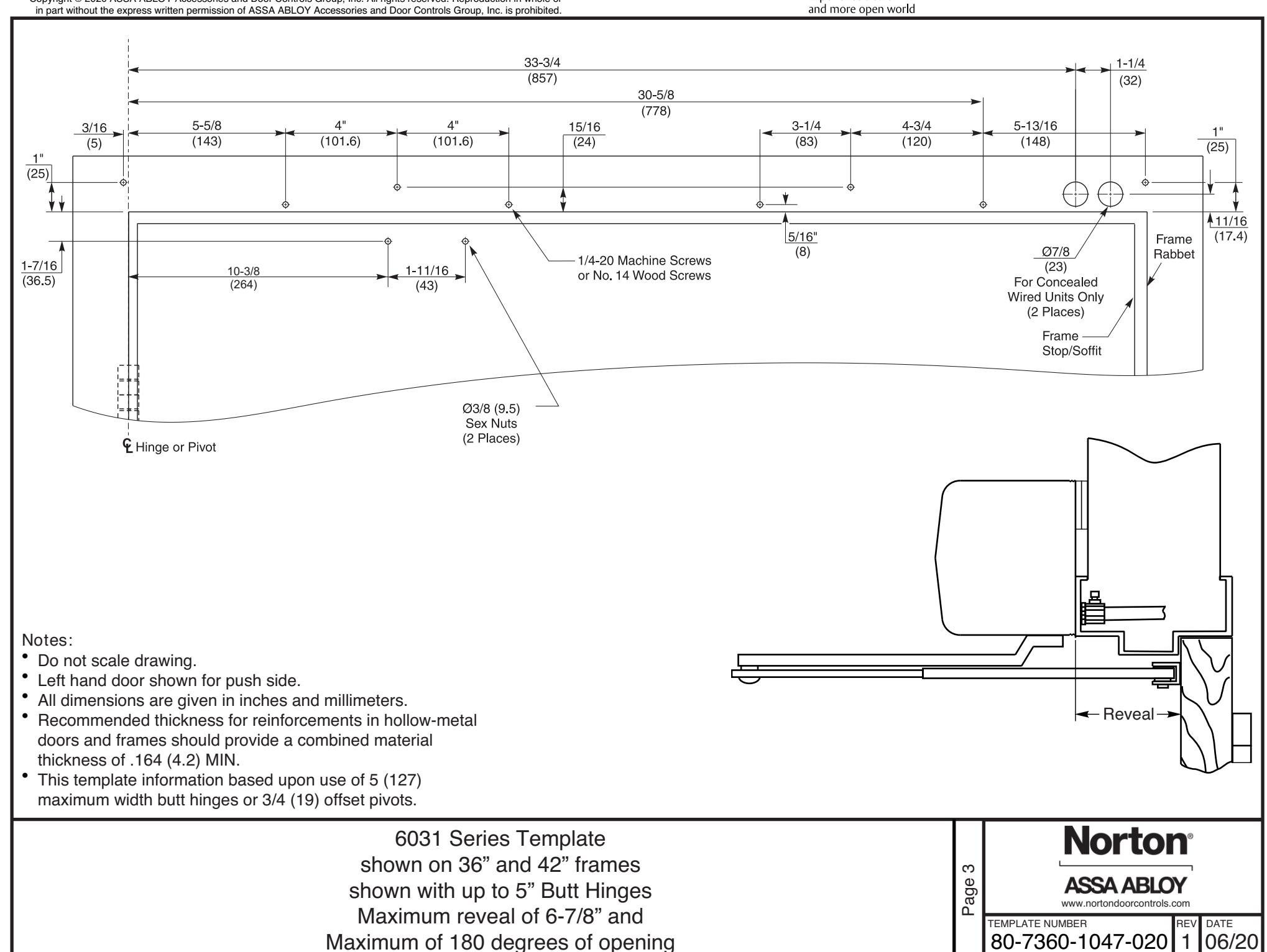

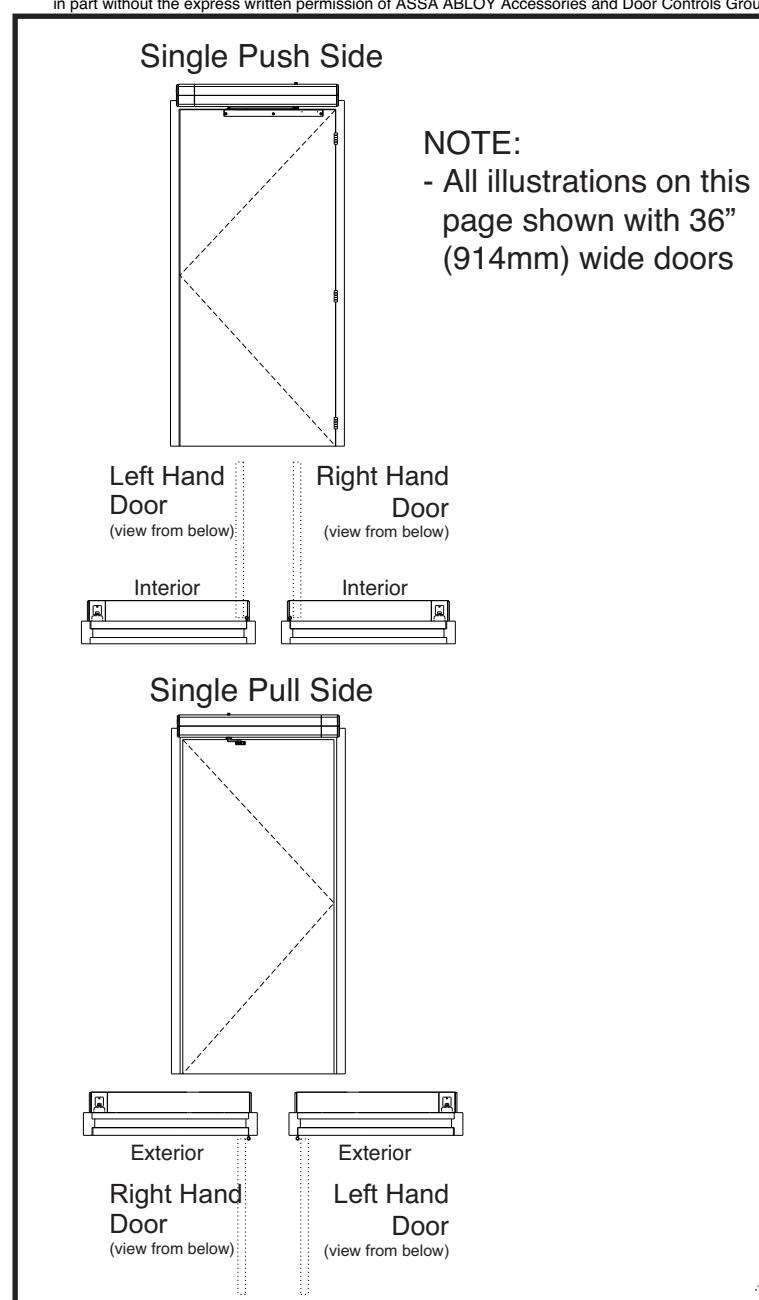

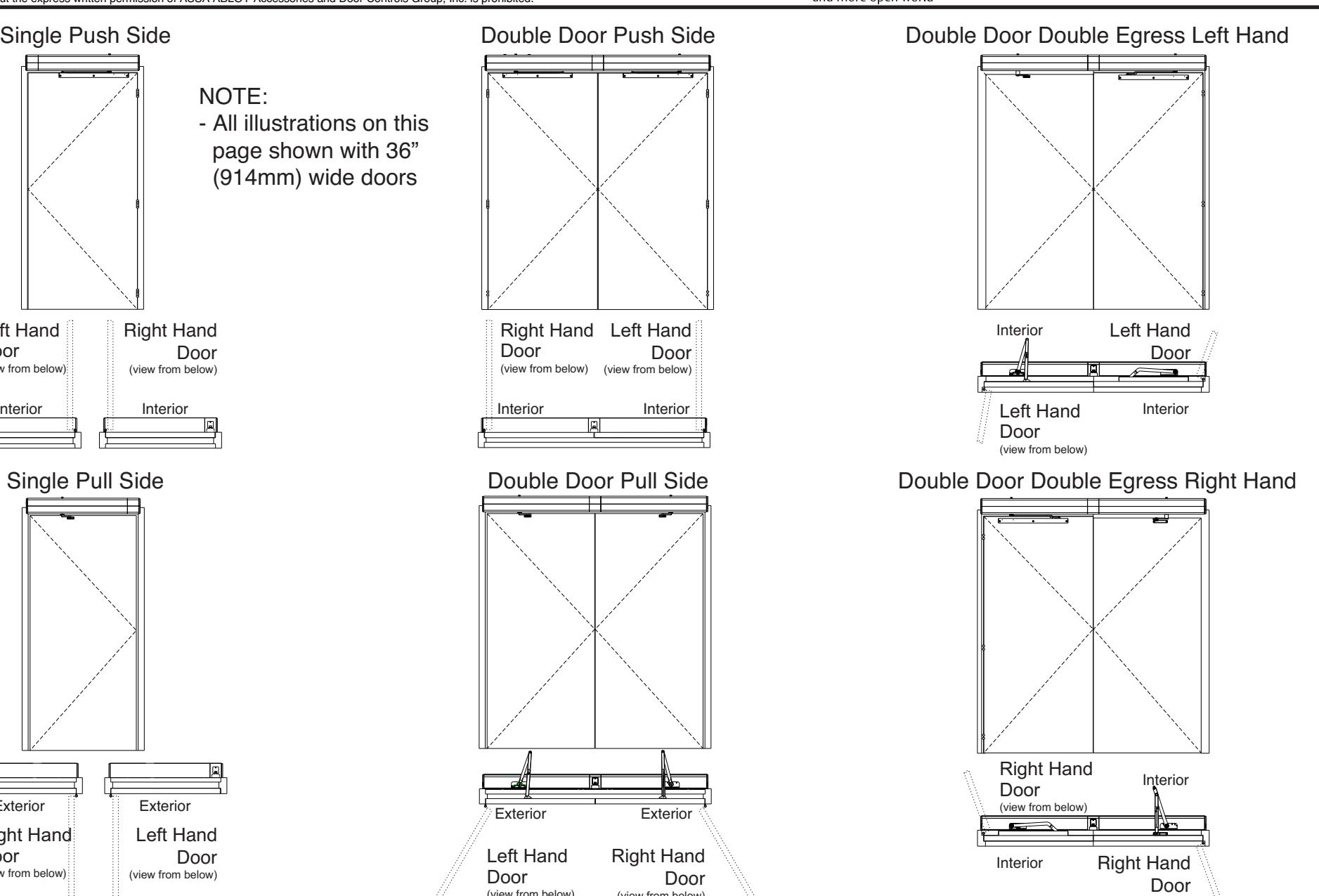

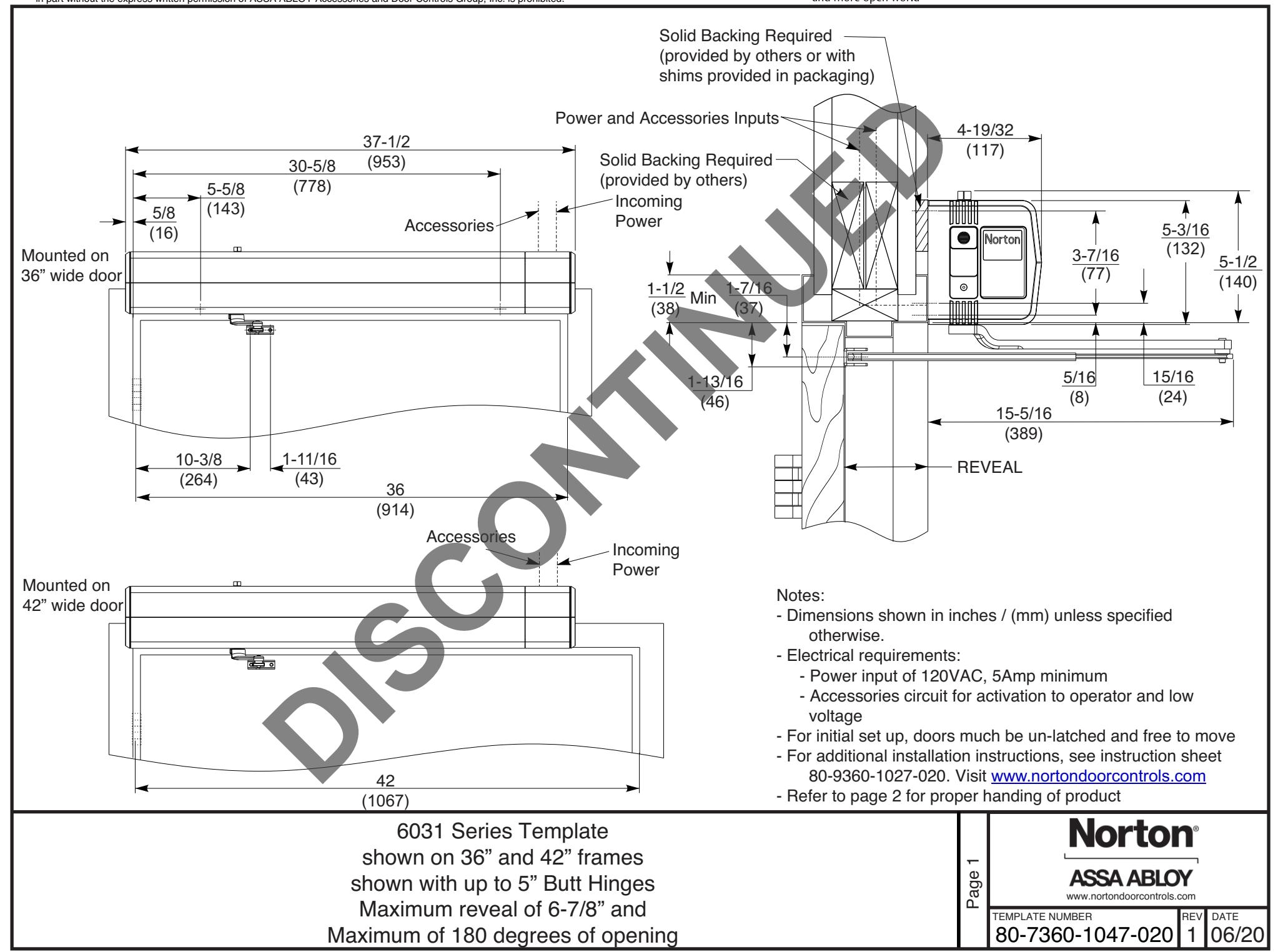

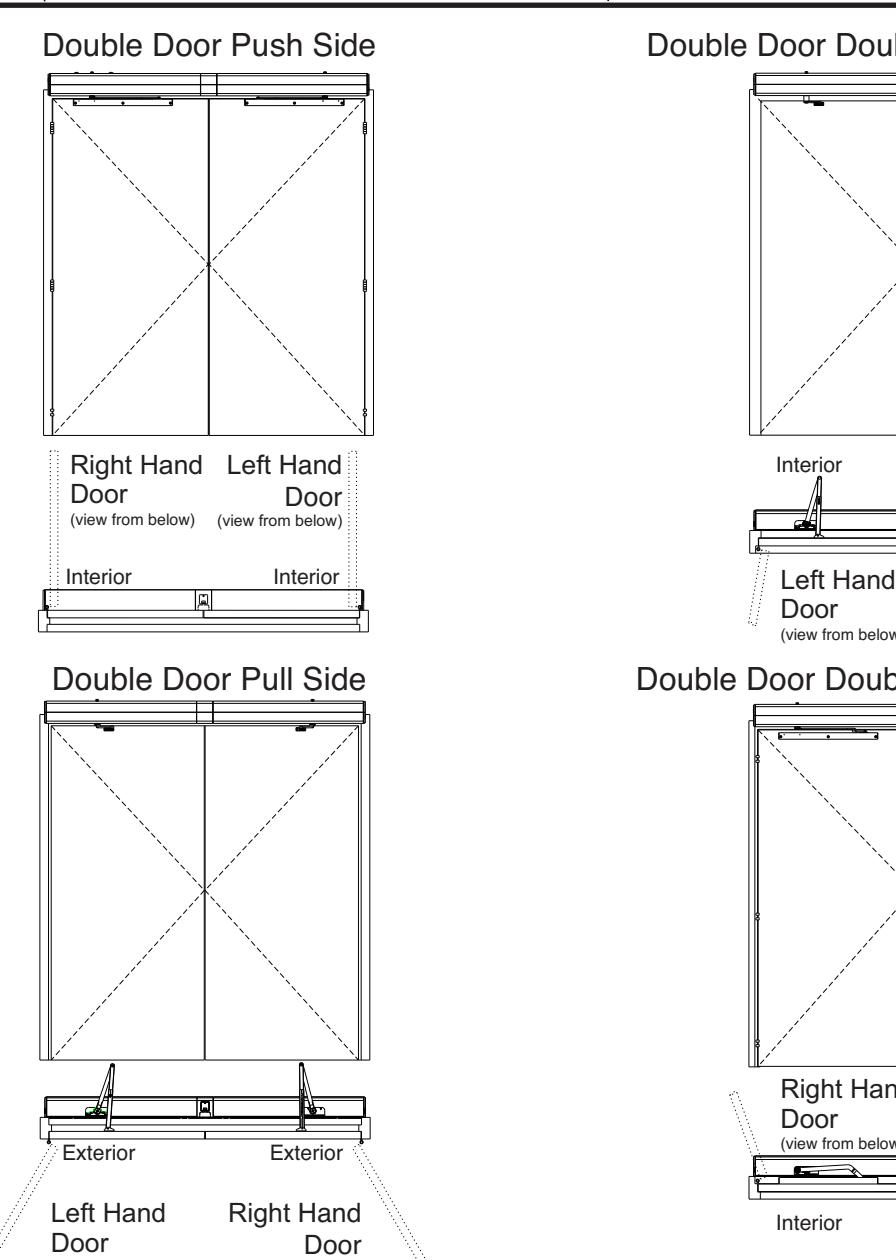

6031 Series Template shown on 36Ó and 42Ó frames shown with up to 5Ó Butt Hinges Maximum reveal of 6-7/8Ó and Maximum of 180 degrees of opening

(view from below)
