Norton Rixson 6000 Series Operator,6021,6031,Transom Application Push Side Mounting for Door Widths 42,48 an…_80-7360-1023-020

Experience a safer

and more open world

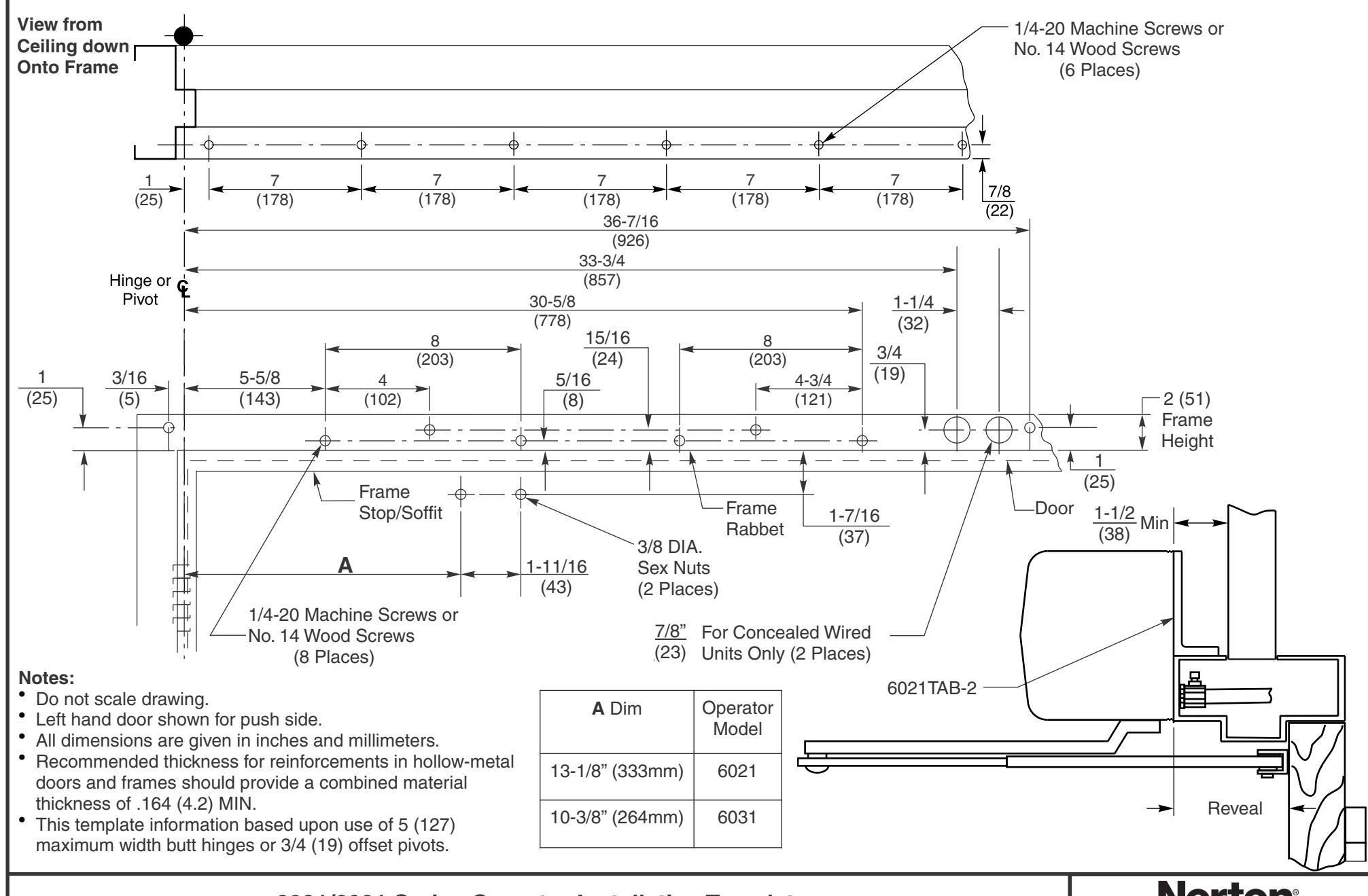

6021/6031 Series Operator Installation Template for Transom Application using 6021TAB-2 angle bracket on 42/48" wide doors For Reveal of 2-3/4" (70mm) to 6-7/8" (175mm)

Norton® ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER 80-7360-1023-020

REV DATE 1 07/1
