Norton Rixson 6000 Series Operator,6021,6031,Transom Application Push Side Mounting for Door Widths 36 and Rev…_80-7360-1022-020

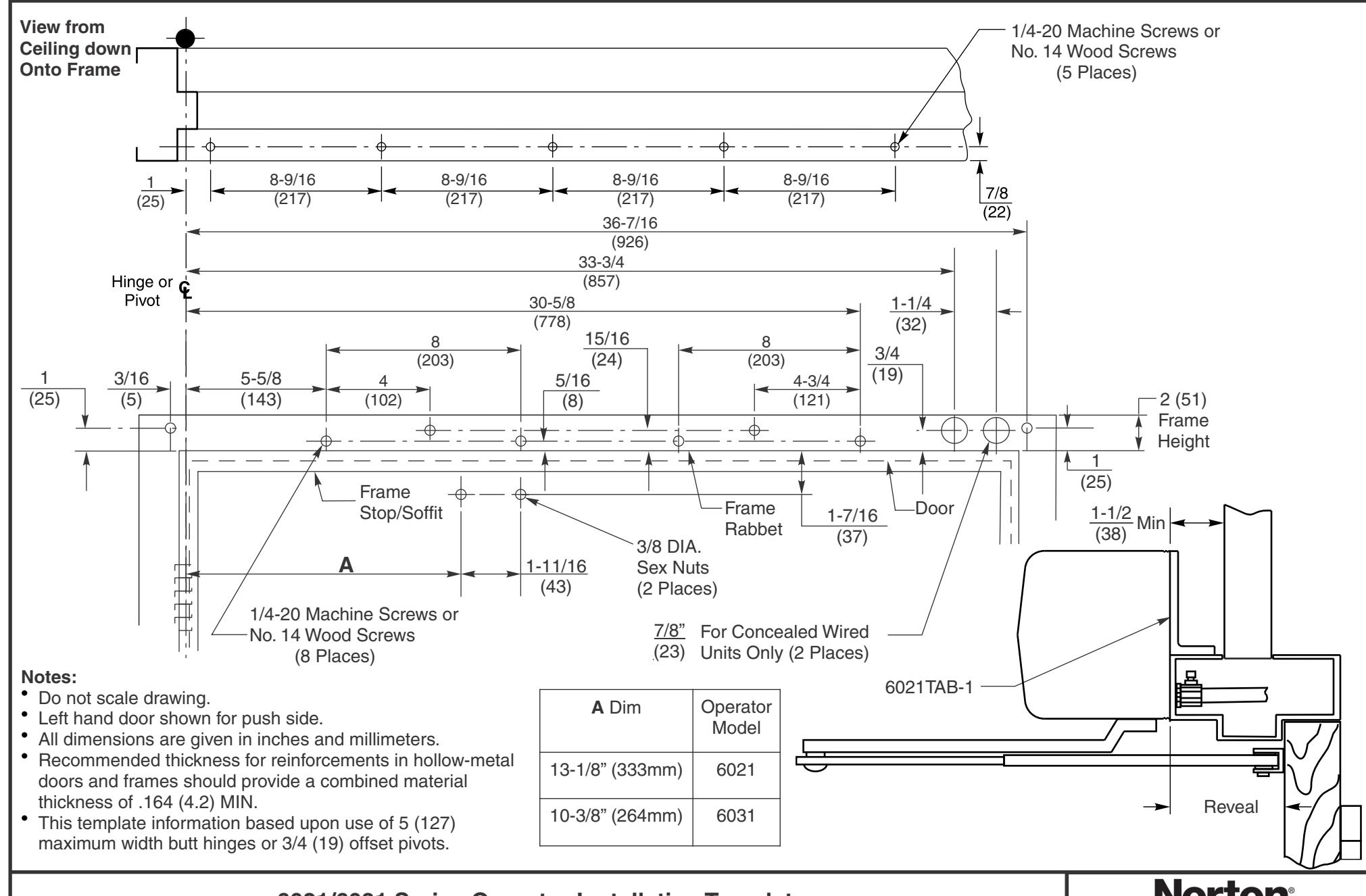

6021/6031 Series Operator Installation Template for Transom Application using 6021TAB-1 angle bracket on 36" wide doors

For Reveal of 2-3/4" (70mm) to 6-7/8" (175mm)

Norton ® ASSA ABLOY

TEMPLATE NUMBER 80-7360-1022-020
