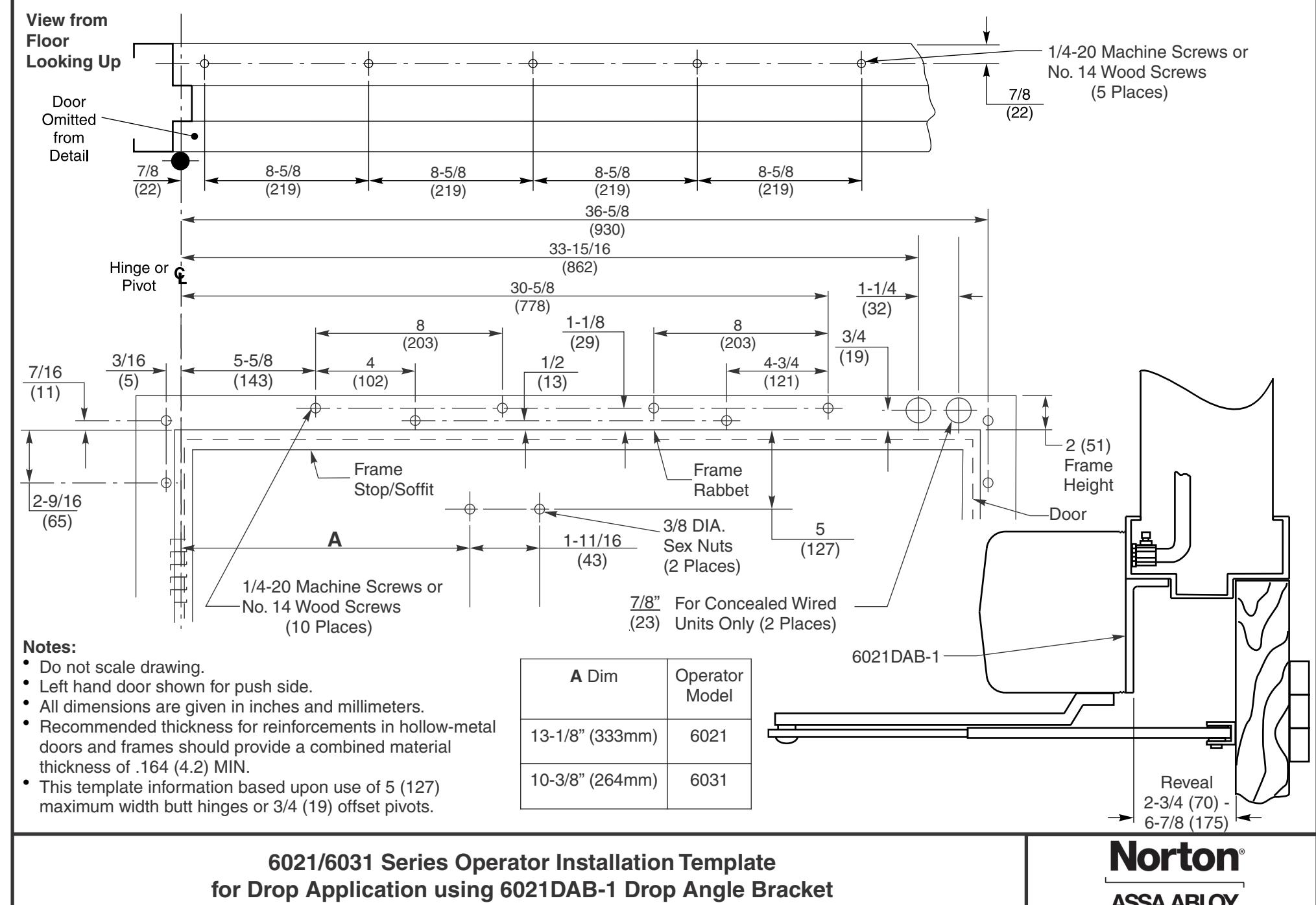

Norton Rixson 6000 Series Operator,6021,6031,Drop Application Push Side Mounting for Door Widths 36 and Reveal…_80-7360-1010-020
Open the original PDF document
View PDF
on 36" wide doors For Reveal of 2-3/4" (70mm) to 6-7/8" (175mm)
ASSA ABLOY
TEMPLATE NUMBER 80-7360-1010-020
