Norton Rixson 6000 Series Operator,6021,6031 Push Side Mount Template_80-7360-1037-020

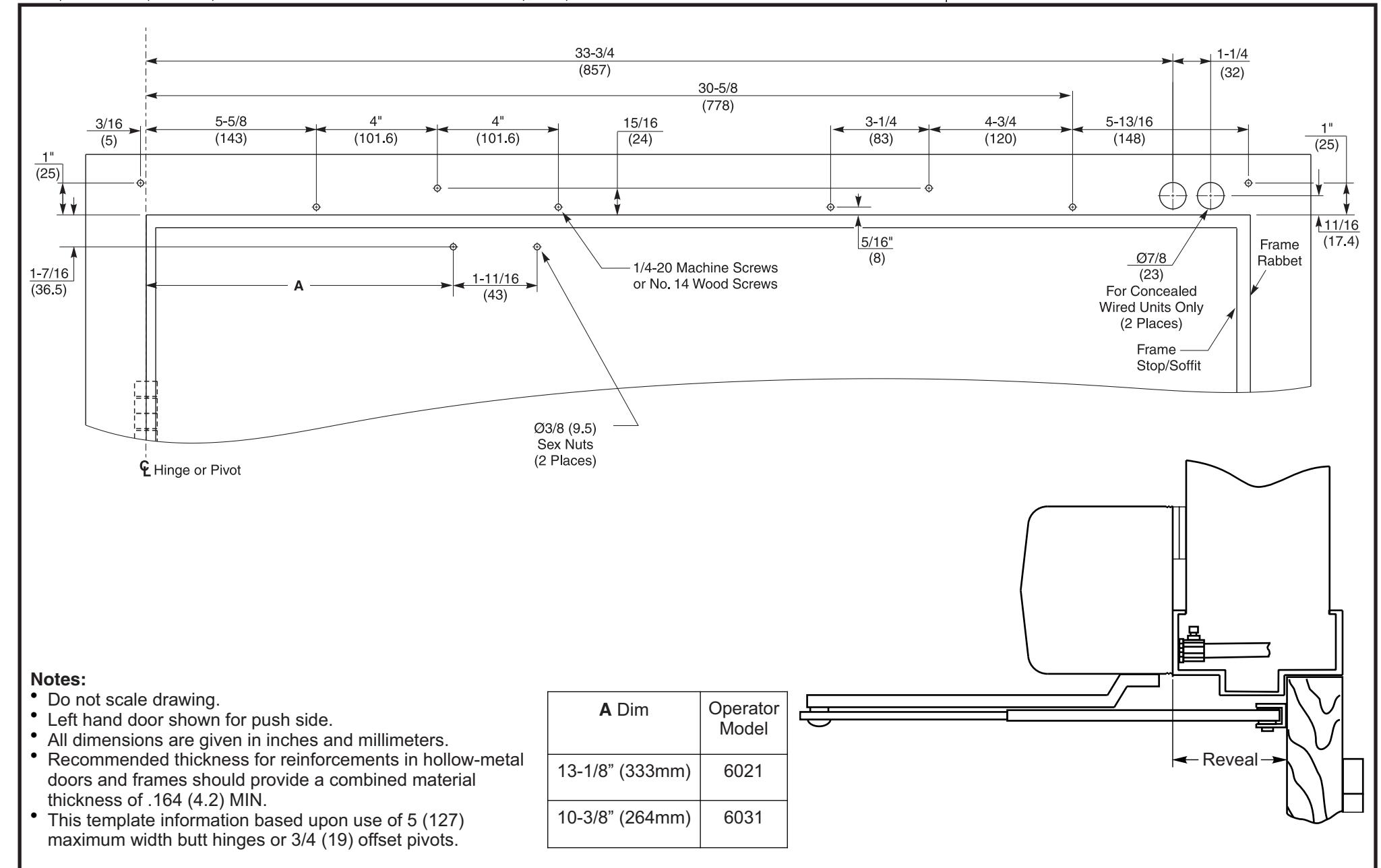

6021/6031 Series Operator Installation Template Push Side Mount shown on 36" wide door For Reveal of 2-3/4" (70mm) to 6-7/8" (175mm)

Norton ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER

REV DATE 1 05/20

80-7360-1037-020
