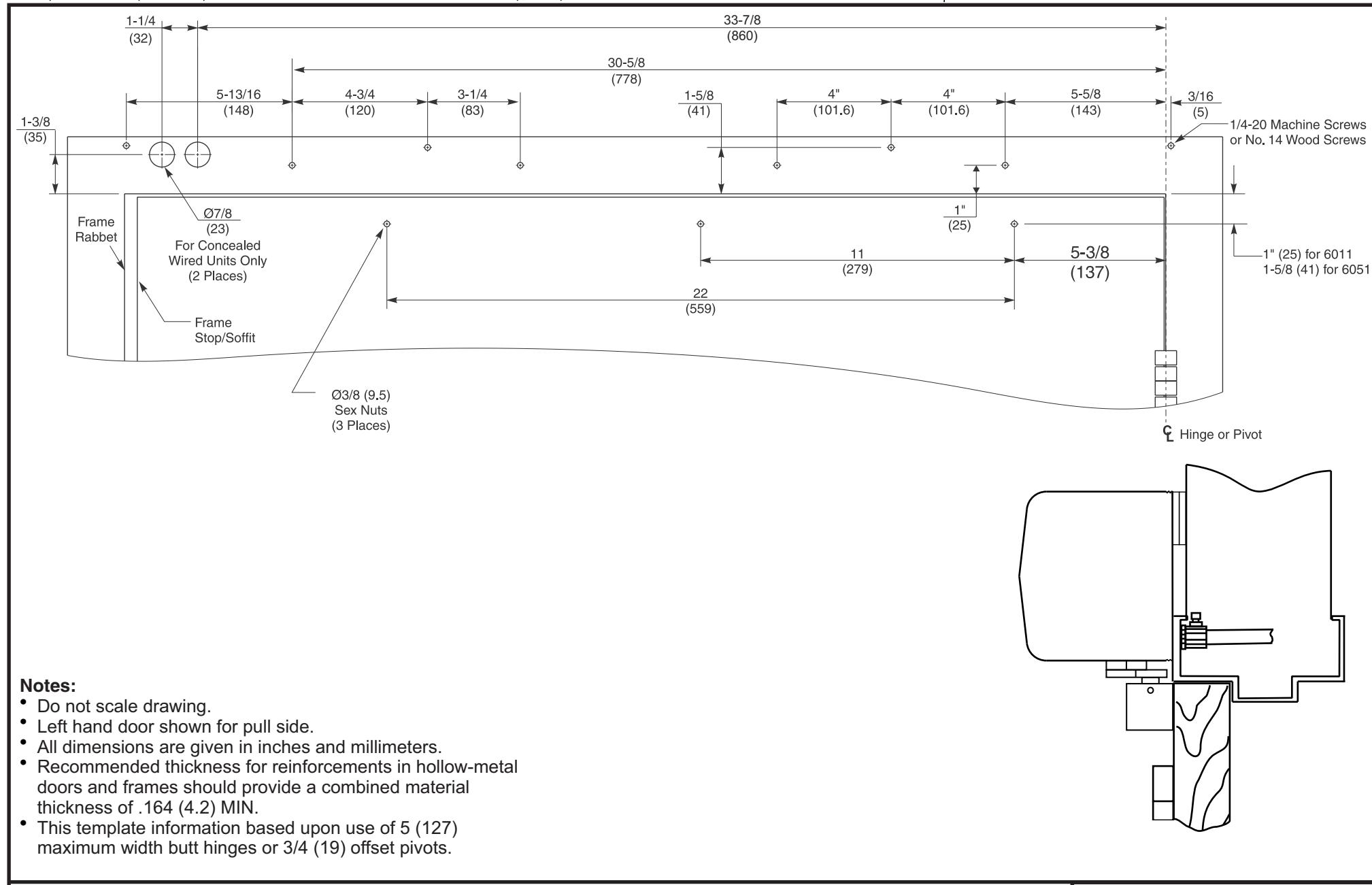

6011/6051 Series Operator Installation Template Pull Side Mount shown on 36" wide door For Reveal of 1/8" (3mm) max for 6011 or 1/8" (3mm) to 3" (76mm) for 6051
Norton® ASSA ABLOY www.nortondoorcontrols.com
TEMPLATE NUMBER 80-7360-1036-020
1 05/20
