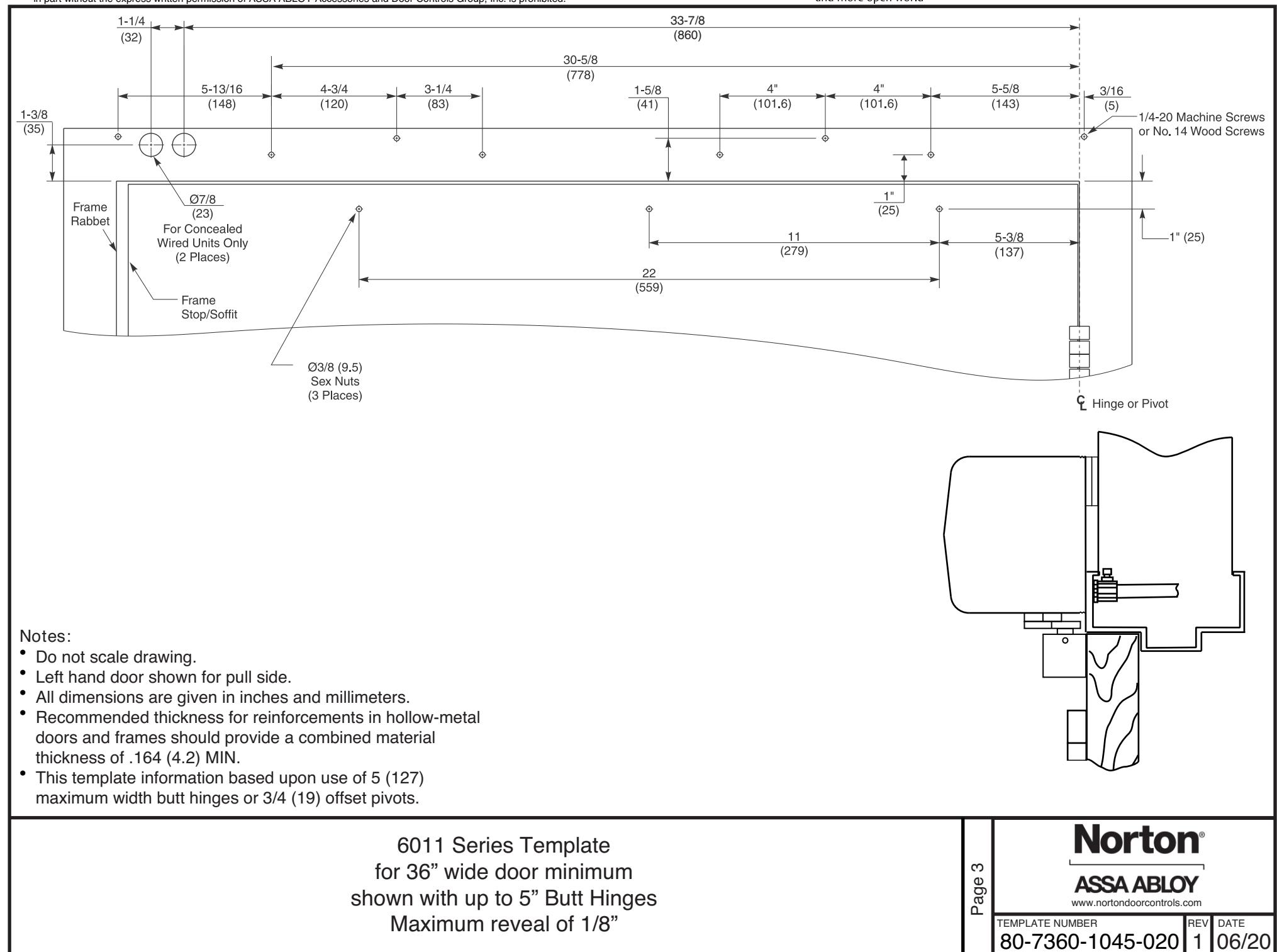

Norton Rixson 6000 Series Operator,6011 Pull Side Mounting for Door Widths 36 and Max Reveal of 1, 8 Template_80-7360-1045-020
Open the original PDF document
View PDF
Interior Interior

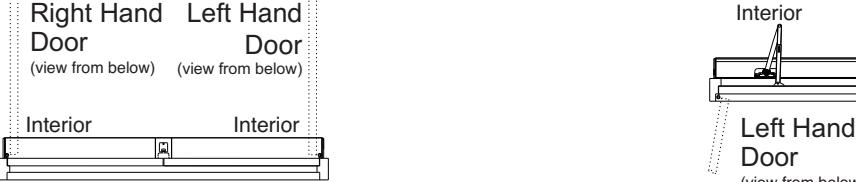

Left Hand Door (view from below)
Right Hand Door (view from below)
Exterior Exterior
NOTE:
Right Hand Door (view from below)
Left Hand Door (view from below)
- All illustrations on this page shown with 36Ó (914mm) wide doors

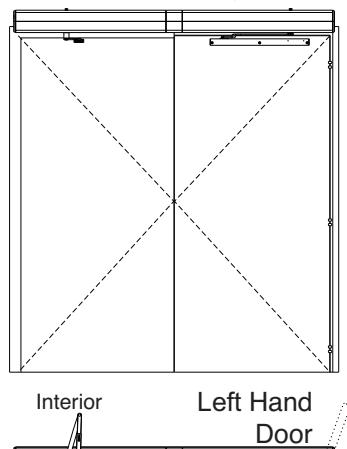

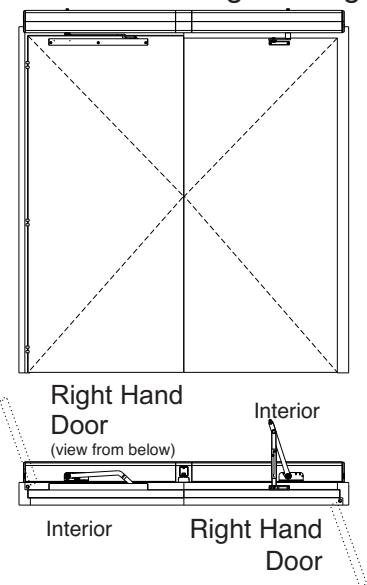

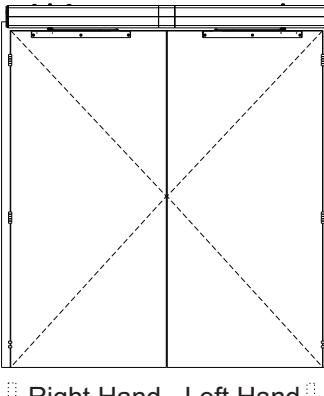

Single Push Side Double Door Push Side Double Door Double Egress Left Hand

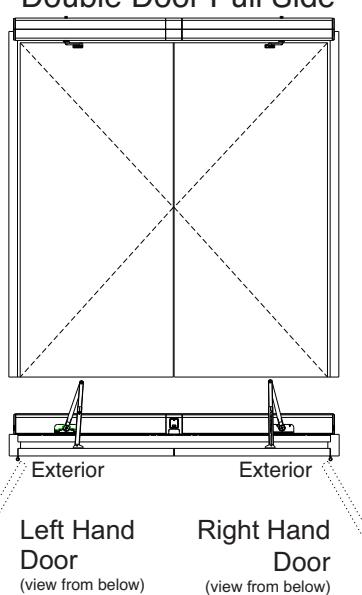

Single Pull Side Double Door Pull Side Double Door Double Egress Right Hand
Interior
Door (view from below)
TEMPLATE NUMBER REV 80-7360-1045-020 06/20
1 DATE
