Table A Mounted on Door Installation Model Being Installed Leaf Width Instruction D6061-36 / D6071-36 38" 80-9360-1031-020 D6061-42 / D6071-42 44" D6061-48 / D6071-48 50" 80-9360-1035-020 D6001DEL-36 / D6001DER-36 38" D6001DEL-42 / D6001DER-42 44" 80-9360-1037-030 D6001DEL-48 / D6001DER-48 50"

Table B

LAP Position
on Back Plate 		Dim "A" Door Opening
Angle
6061/6071@ 95° 13" (330) 85°
6061/6071 @ 100° 12-3/8"(314) 90°
6061/6071 @ 105° 11-3/4" (298) 95°
6061/6071 @ 110° 11-1/8" (283) 100°

Installation Sequence:

  • Determine product being installed and door leaf width. NOTE: for 36", 42" 48" door leafs this template is not required.
  • 2. Prep frame based on installation instructions supplied with product. See Table A for instructions.
  • 3. Determine desired degree of door opening (100° is max door opening with this template).

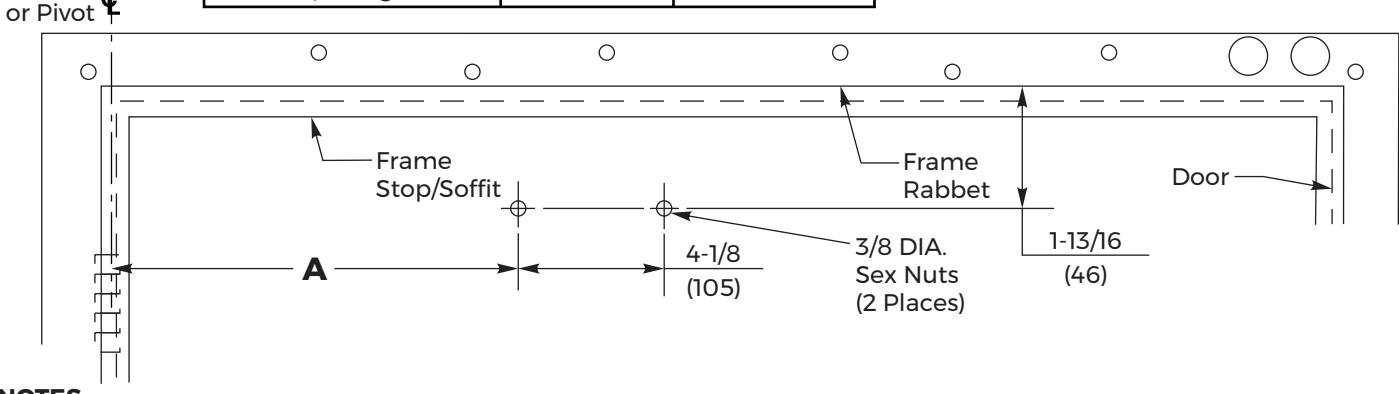

  • 4. Prep door for push side heavy duty arm based on template below and Table B .
  • 5. When installing Push Side LAP to heavy duty arms, use Table B for correct LAP position based on door opening desired.
  • 6. Continue installation using installation instructions supplied with product.

NOTES:

Hinge _

  • Do not scale drawing.
  • Left hand door shown for push side.
  • Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
  • This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.
  • Dimensions in inches (mm).

D6001 Series Product with Heavy Duty Arms on Special Door Widths - 36" product mounted on 38" leaf, 42" product on 44" leaf, or 48" product on 50" leaf 100° maximum door opening

Approved 2023-09-15

TEMPLATE NUMBER 7360-1035

REV DATE 2 09/23
