Norton Rixson 6000 Series Operator, D6071 Double Doors, Widths 36 – 48 and Reveals of 4-13, 16 to 7-3, 8, …_7360-1056

(337)

(320)

(292)

(283)

(273)

ASSA ABLOY

2 05/23

TEMPLATE NUMBER

7360-1056

shown with up to 5" Butt Hinges

Reveal of 4-13/16" to 7-3/8" and Opening of 85° to 110°

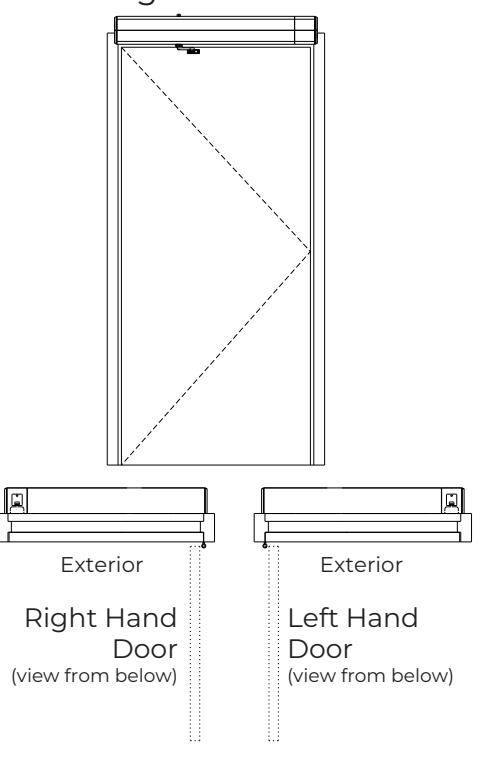

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

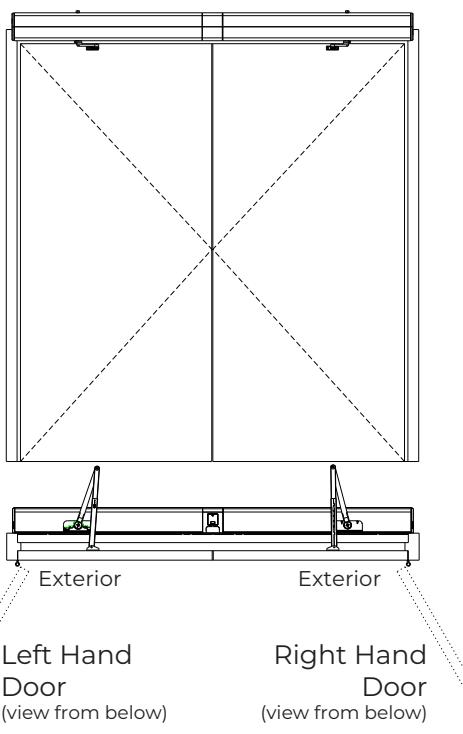

Double Door Pull Side

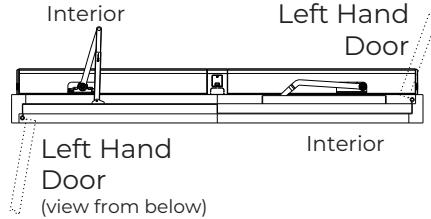

Double Door Double Egress Left Hand

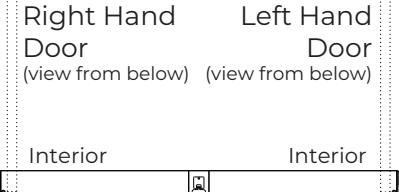

Single Push Side

Right Hand

(view from below)

Interior

Door

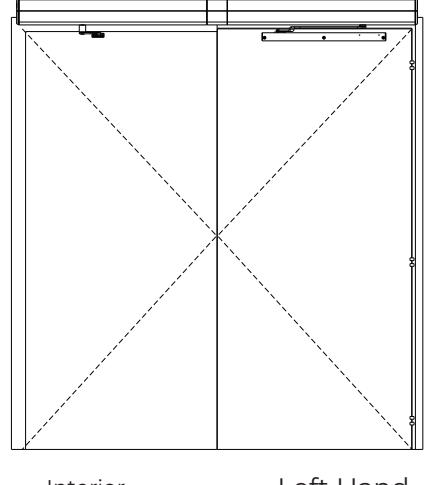

Double Door Push Side

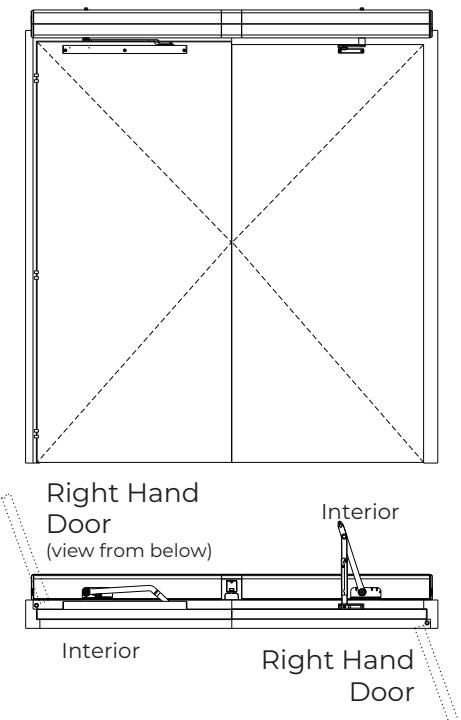

Double Door Double Egress Right Hand

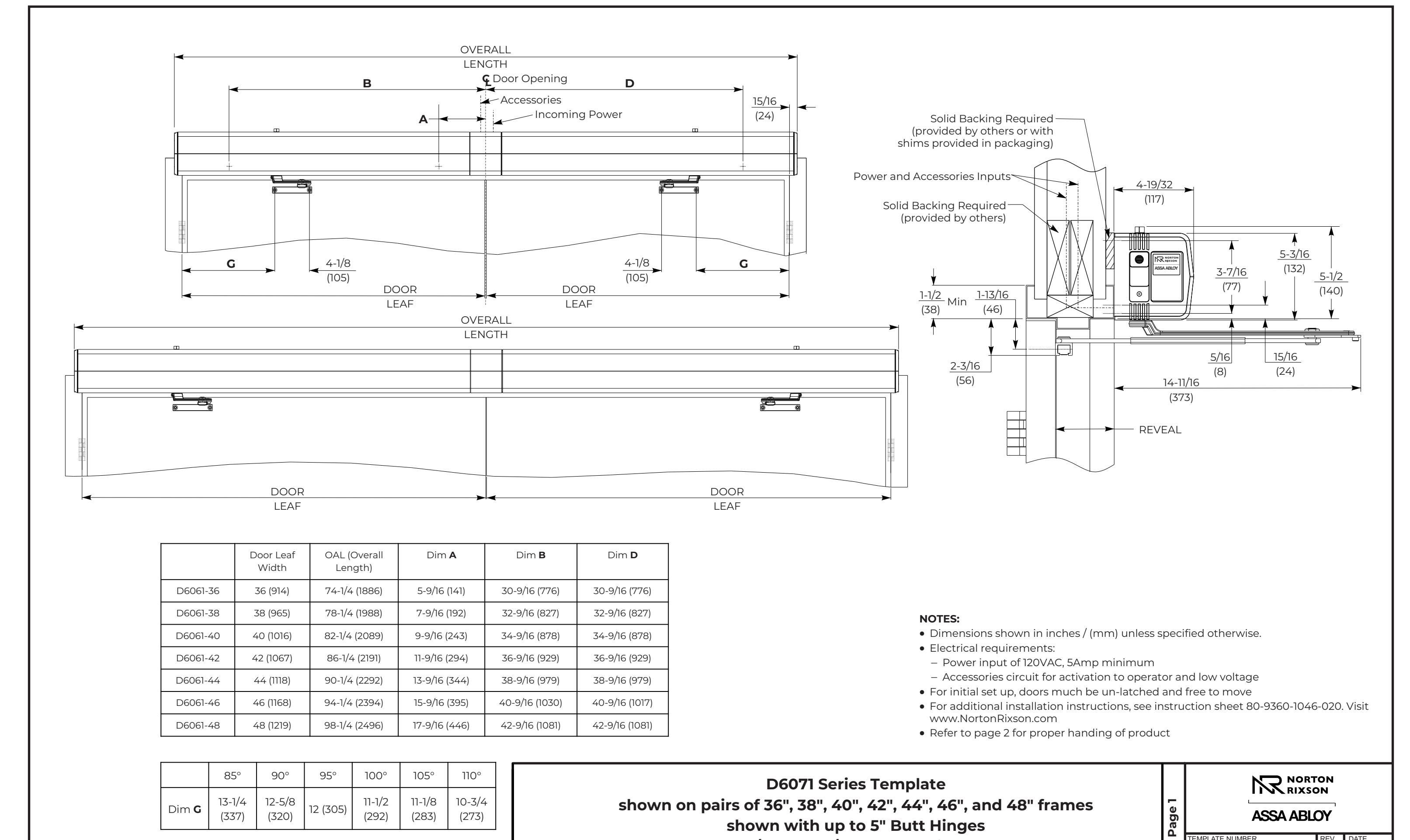

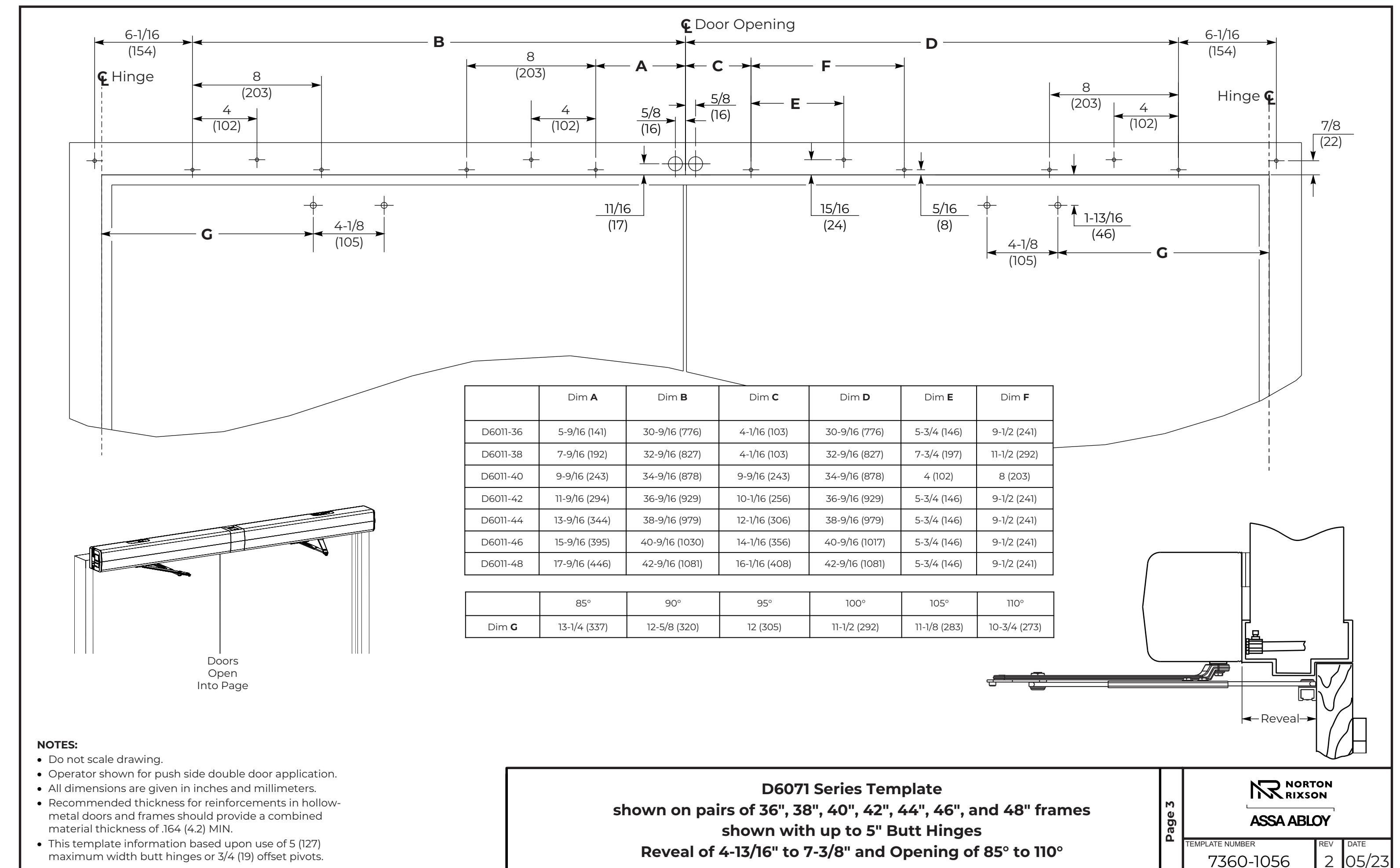

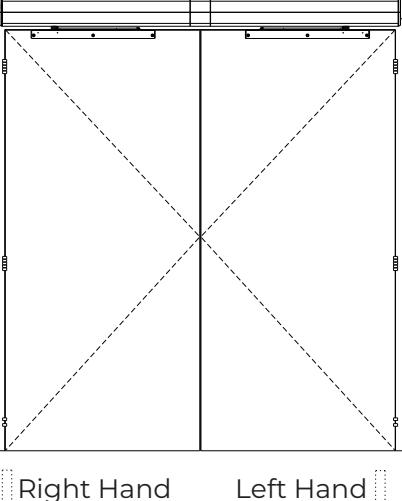

D6071 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 4-13/16" to 7-3/8" and Opening of 85° to 110°

NORTON RIXSON ASSA ABLOY TEMPLATE NUMBER REV DATE 7360-1056 2 05/23
