Norton Rixson 6000 Series Operator, D6061 Double Doors Widths 36 – 48 and Reveals of 2-1, 4 to 4-3, 4, 85…_7360-1055

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

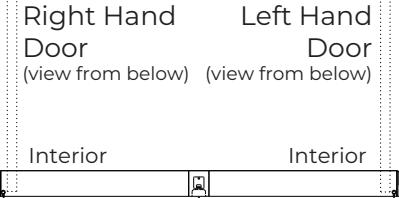

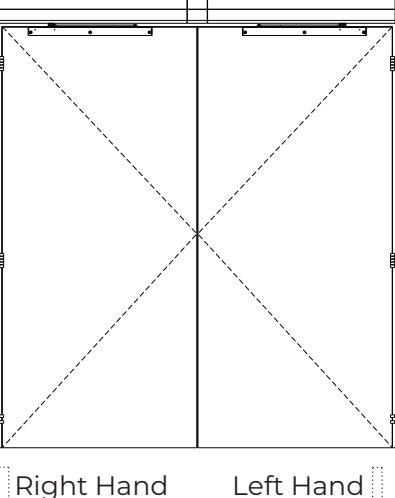

Double Door Pull Side

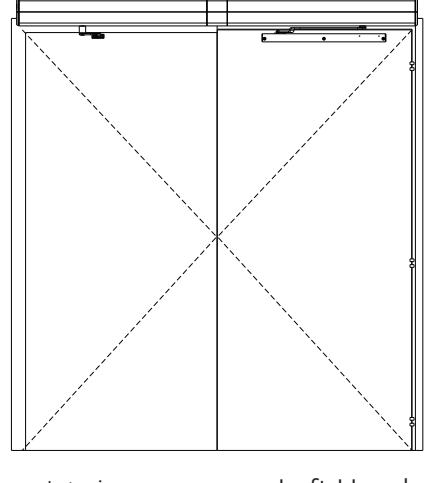

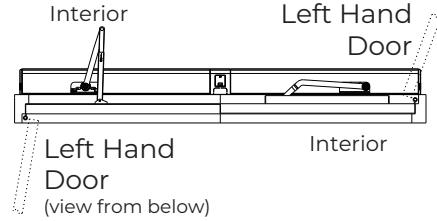

Double Door Double Egress Left Hand

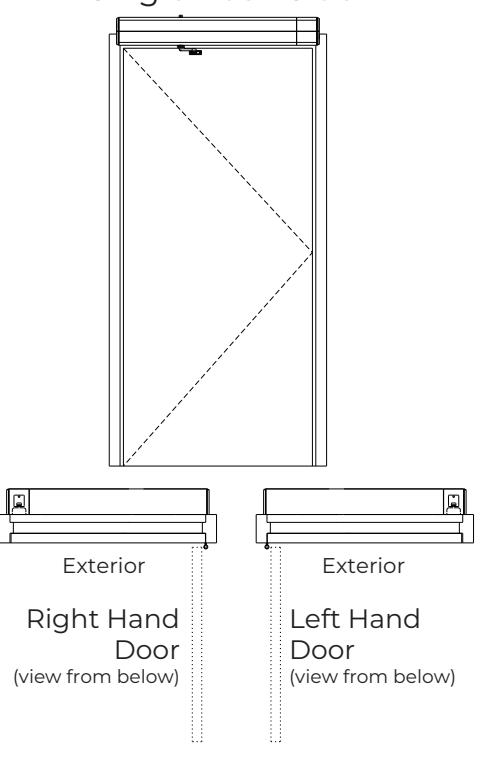

Single Push Side

Right Hand

(view from below)

Interior

Door

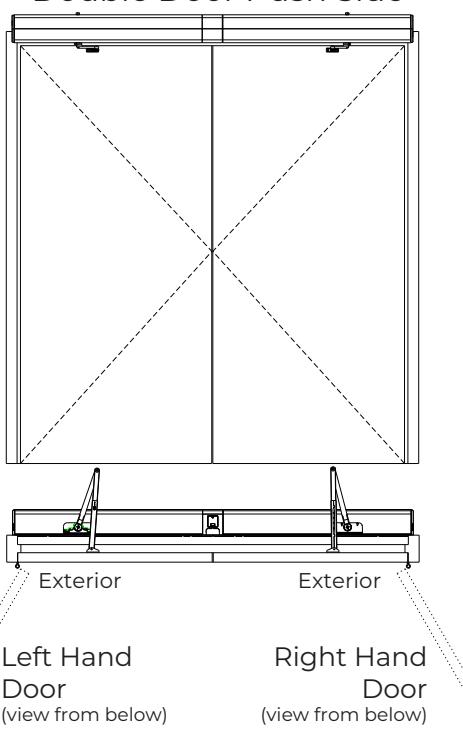

Double Door Push Side

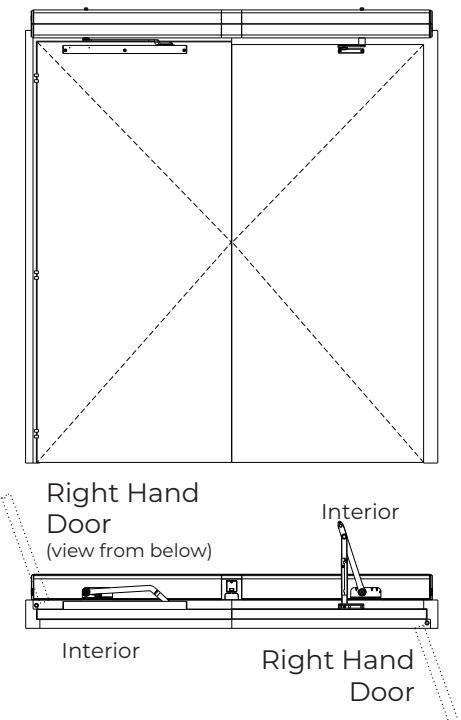

Double Door Double Egress Right Hand

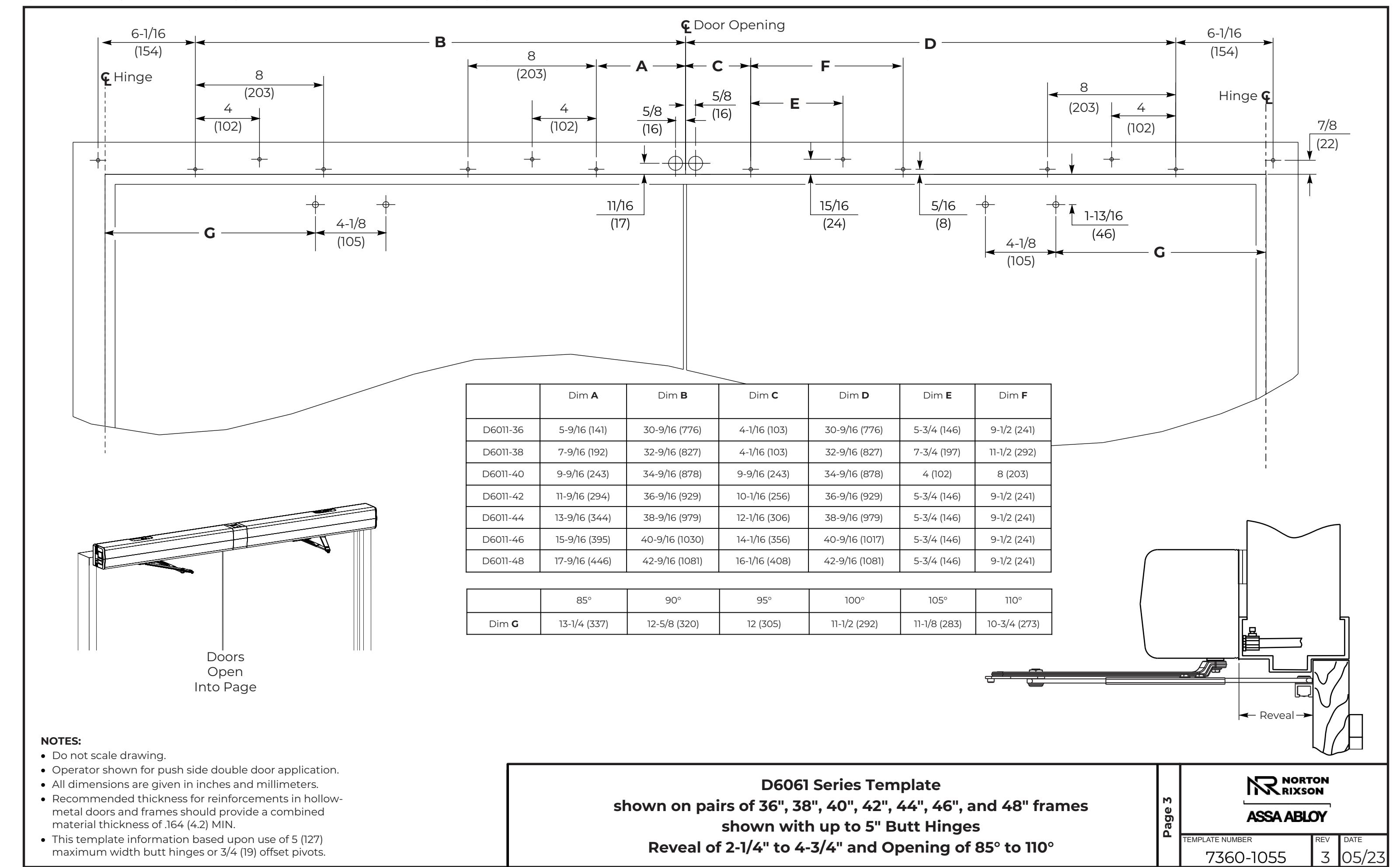

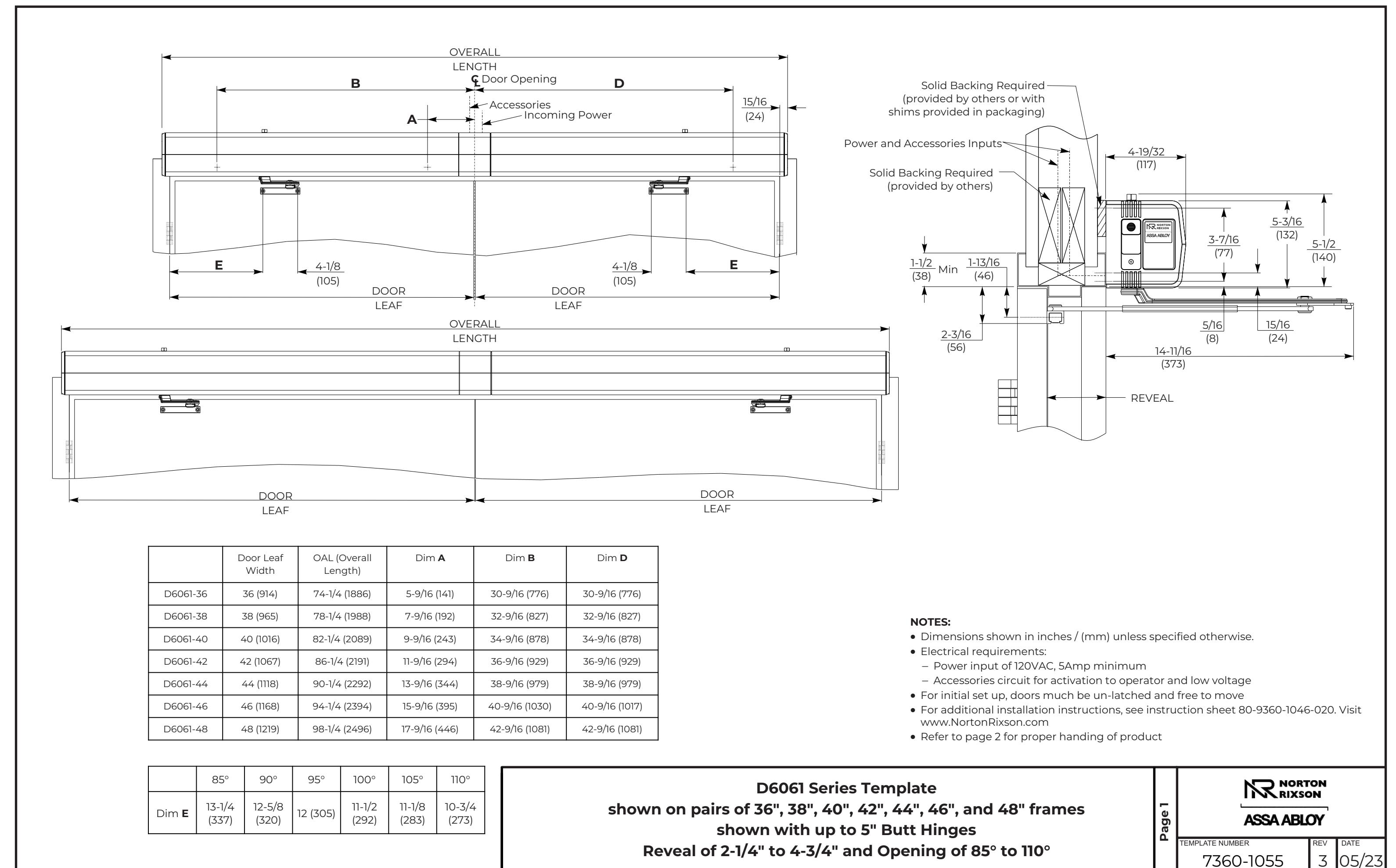

D6061 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85° to 110°

NORTON RIXSON ASSA ABLOY TEMPLATE NUMBER REV

7360-1055 3 05/23
