Norton Rixson 6000 Series Operator, D6031 Double Doors Push Side Mounting for Door Widths 36 – 48 and Max Re…_7360-1053

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

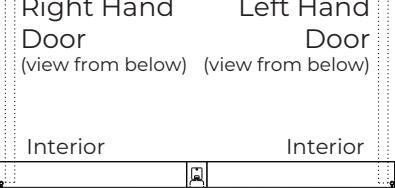

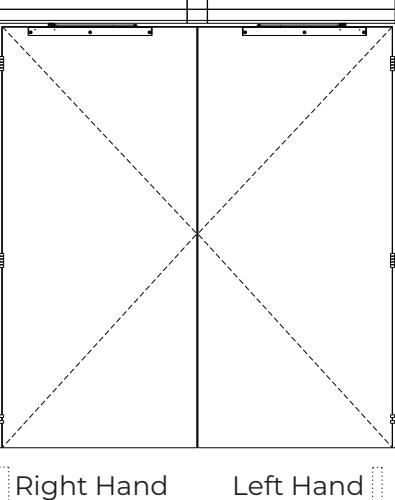

Double Door Pull Side

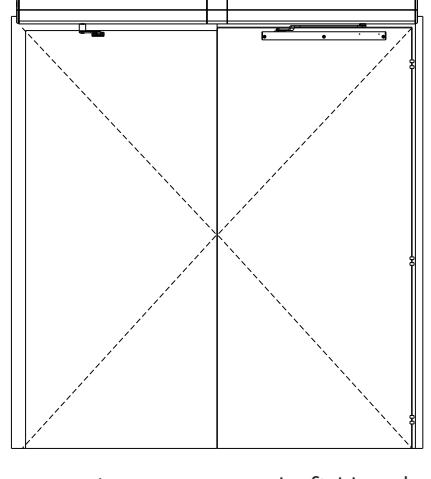

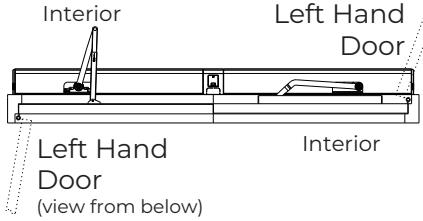

Double Door Double Egress Left Hand

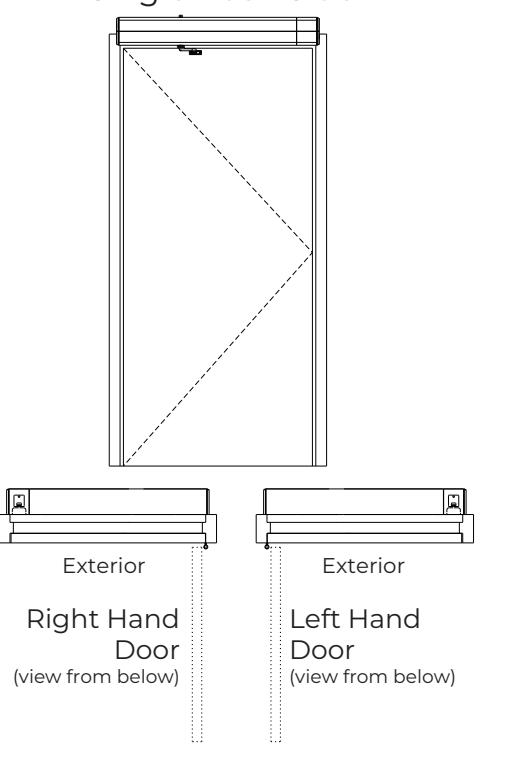

Single Push Side

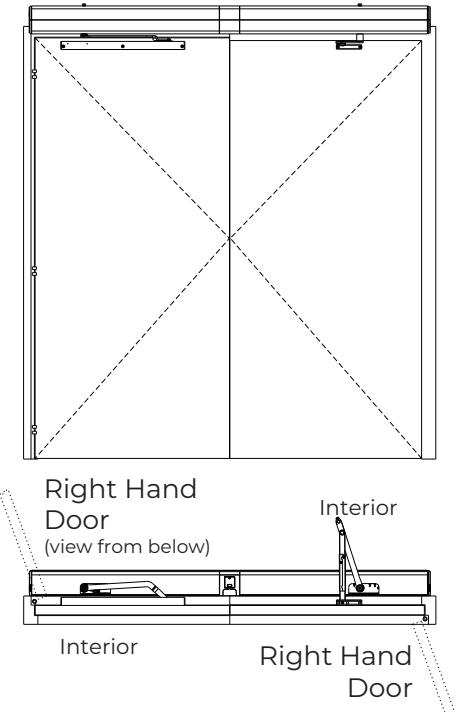

Right Hand

(view from below)

Interior

Door

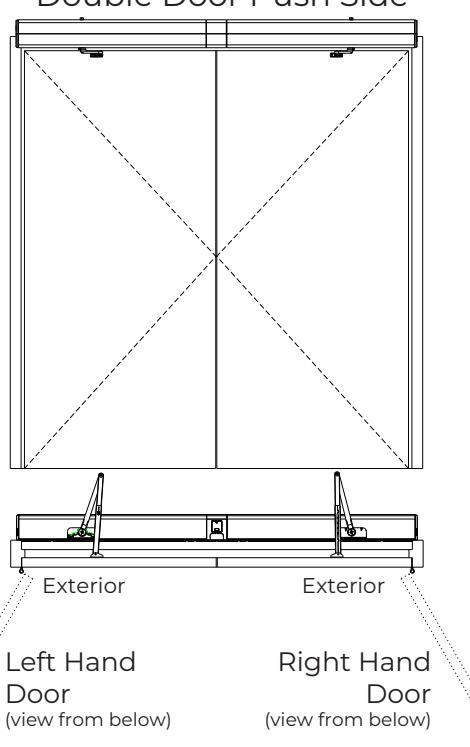

Double Door Push Side

Double Door Double Egress Right Hand

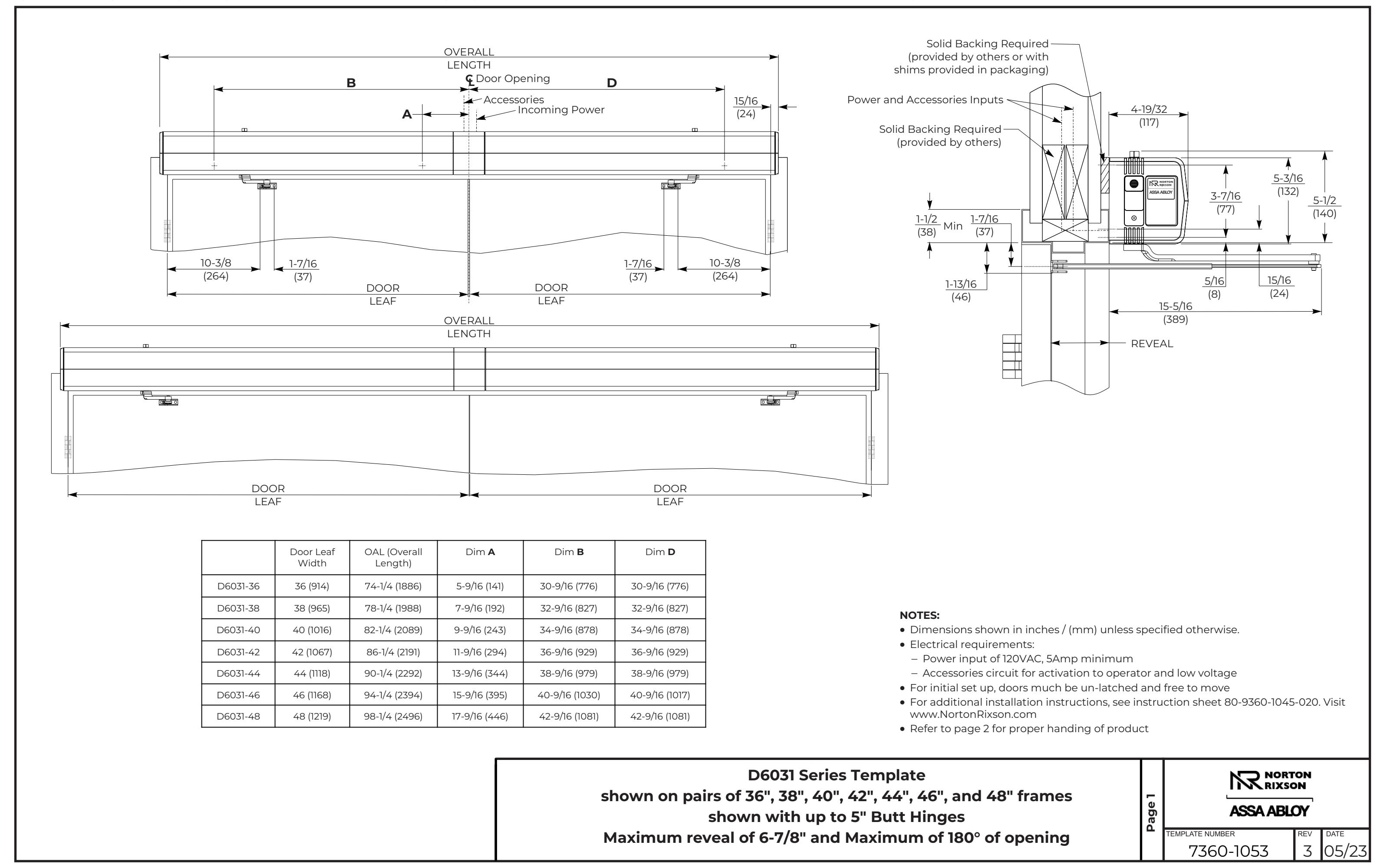

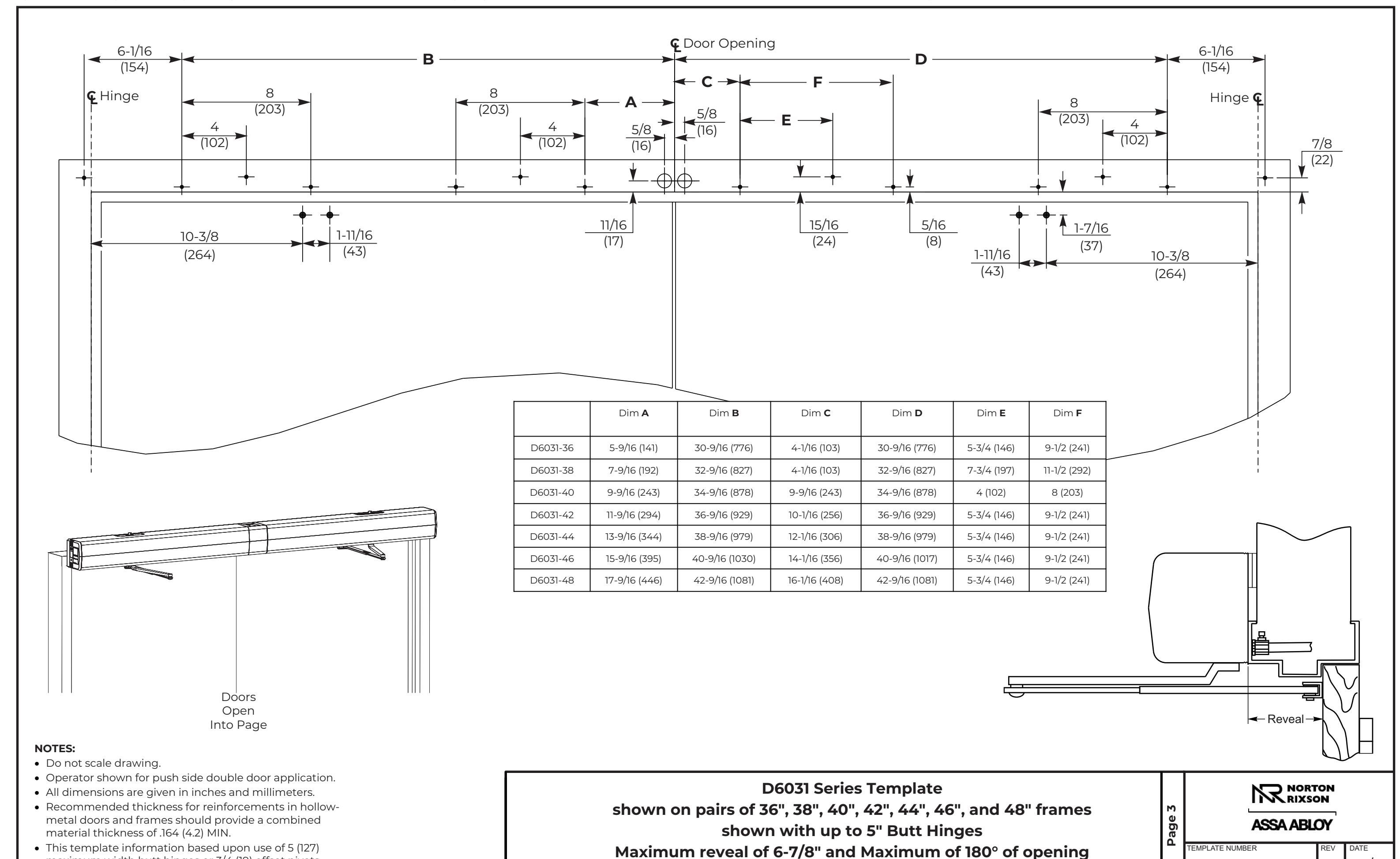

D6031 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 180° of opening

NORTON RIXSON ASSA ABLOY TEMPLATE NUMBER TREV

TEMPLATE NUMBER REV DATE 3 05/23

maximum width butt hinges or 3/4 (19) offset pivots.

3 05/23

7360-1053
