Norton Rixson 6000 Series Operator, D6021 Double Doors Push Side Mounting for Door Widths 36 – 48 and Max Re…_7360-1052

TEMPLATE NUMBER

7360-1052

3 05/23

Maximum reveal of 6-7/8" and Maximum of 110° of opening

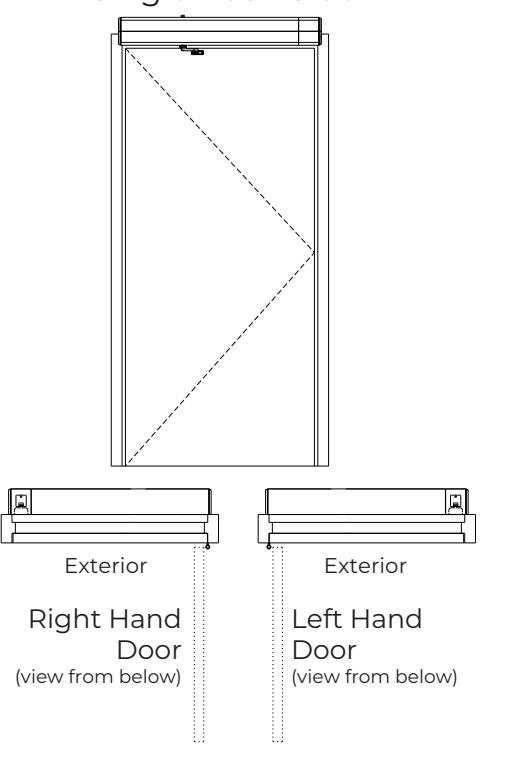

Single Pull Side

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

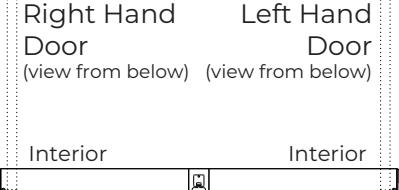

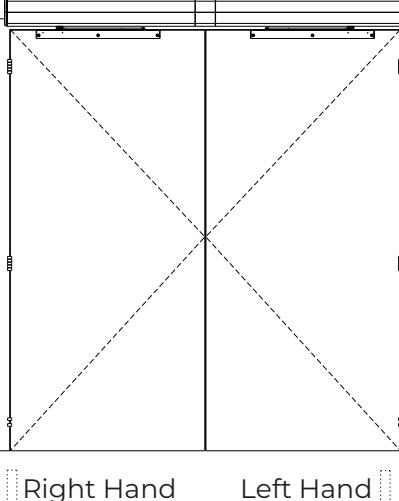

Double Door Pull Side

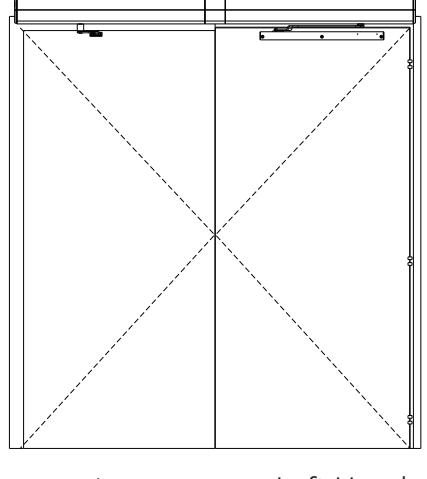

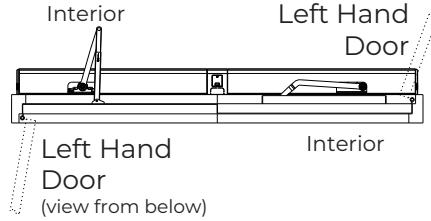

Double Door Double Egress Left Hand

Single Push Side

Right Hand

(view from below)

Interior

Door

Left Hand

(view from below)

Interior

Door

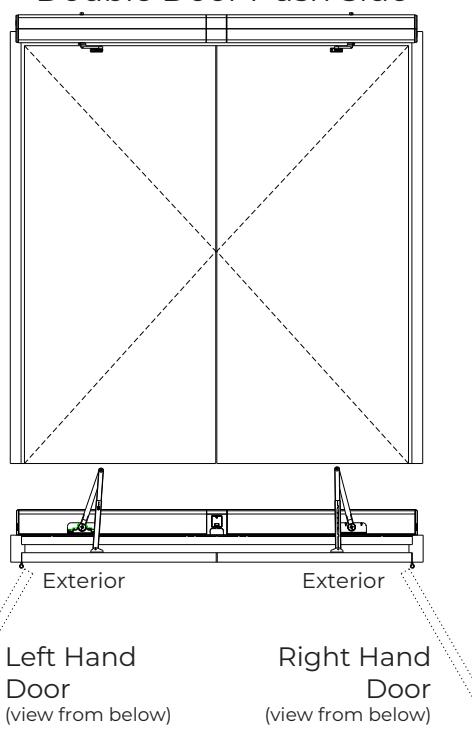

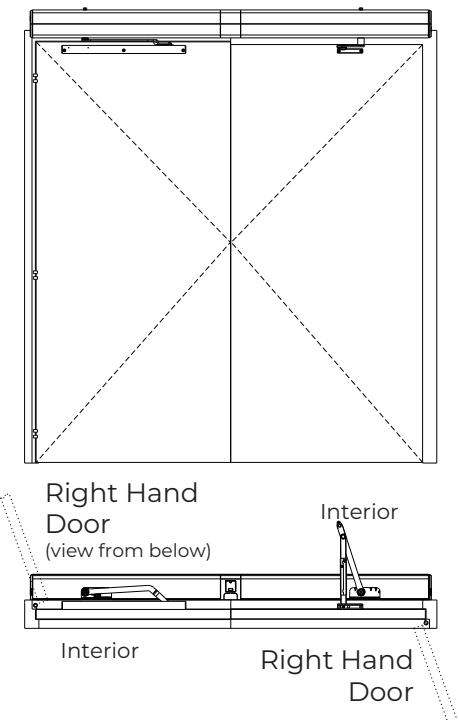

Double Door Push Side

Double Door Double Egress Right Hand

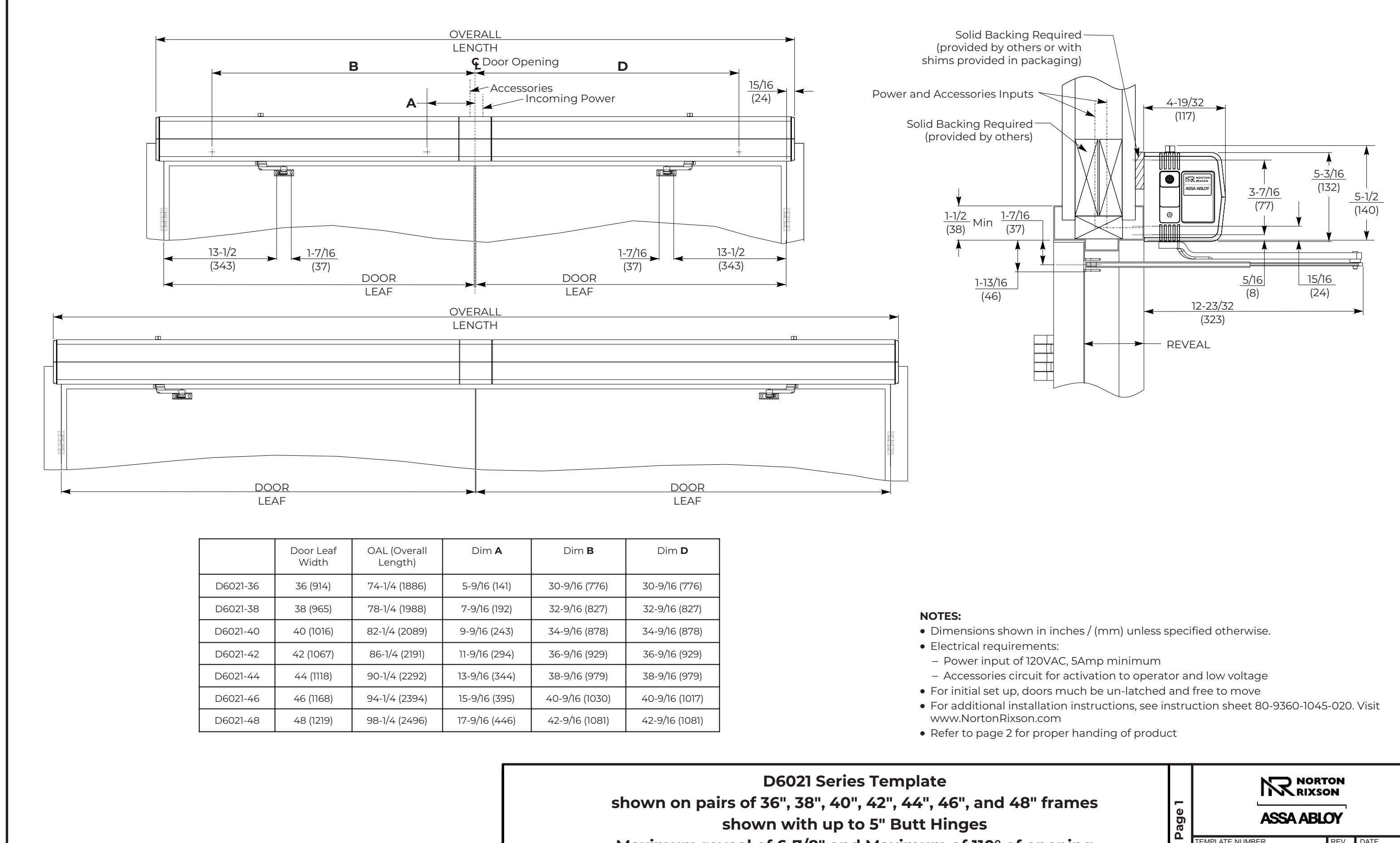

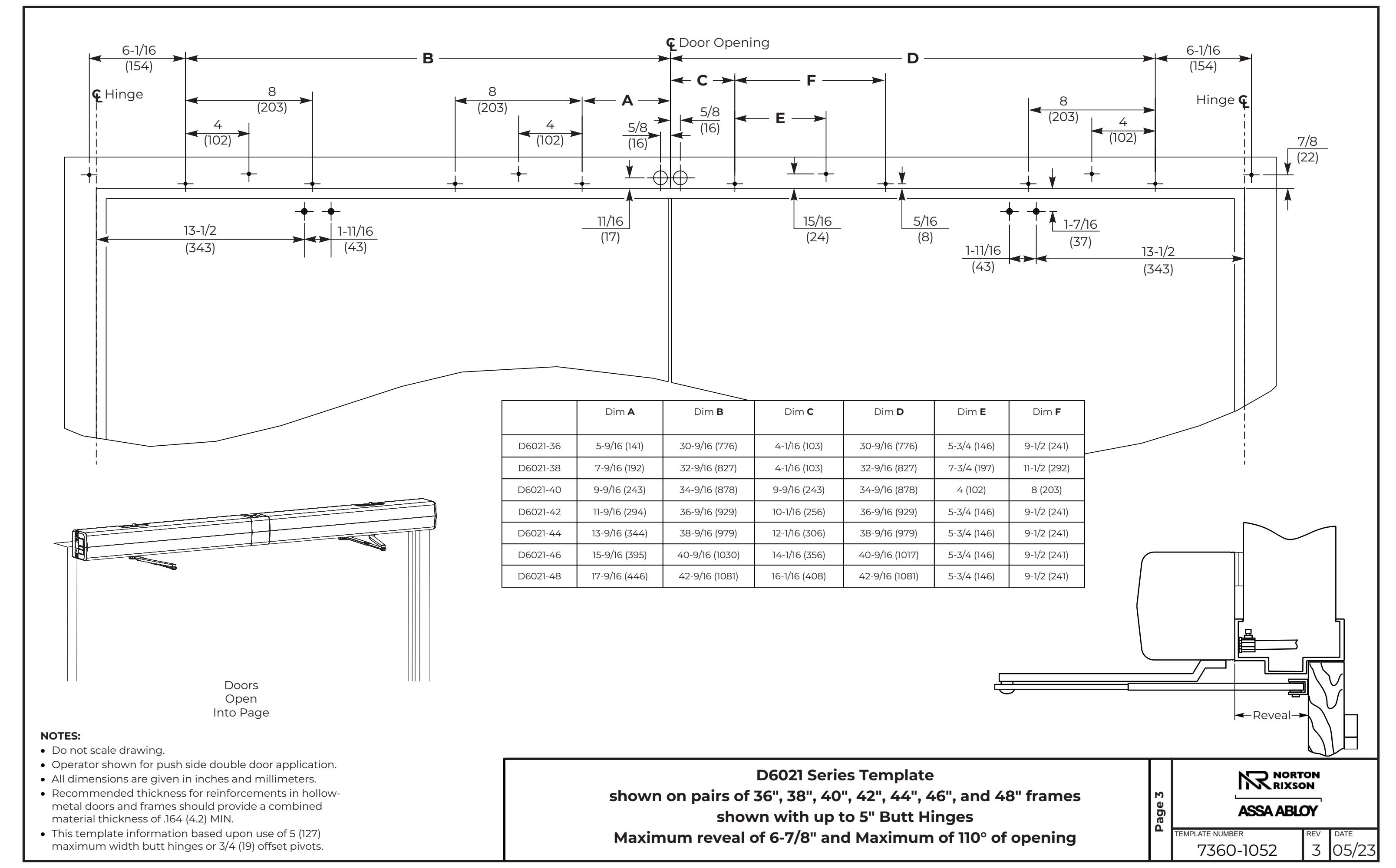

D6021 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 6-7/8" and Maximum of 110° of opening

Norton Rixson ASSA ABLOY

TEMPLATE NUMBER REV DATE 3 05/23
