Norton Rixson 6000 Series Operator, D6011 Double Doors Pull Side Mounting for Door Widths 36 – 48 and Max Re…_7360-1051

Experience a safer

shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"

RIXSON Page 1 ASSA ABLOY TEMPLATE NUMBER 3 05/23 7360-1051

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

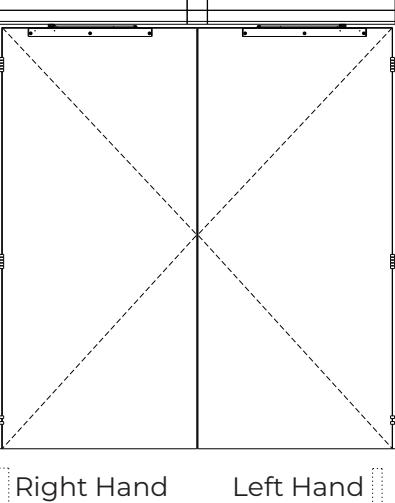

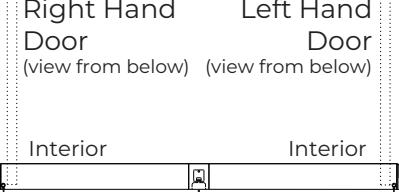

Double Door Pull Side

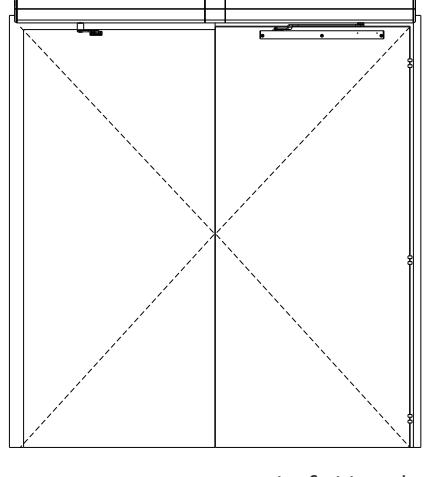

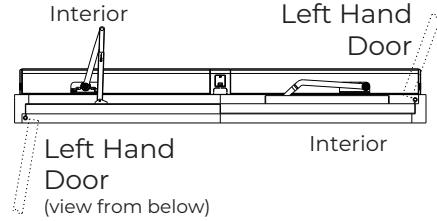

Double Door Double Egress Left Hand

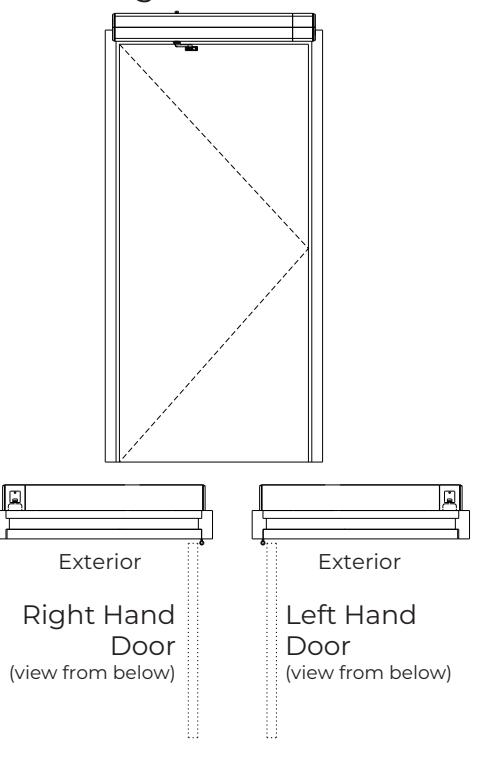

Single Push Side

Right Hand

(view from below)

Interior

Door

Left Hand

(view from below)

Interior

Door

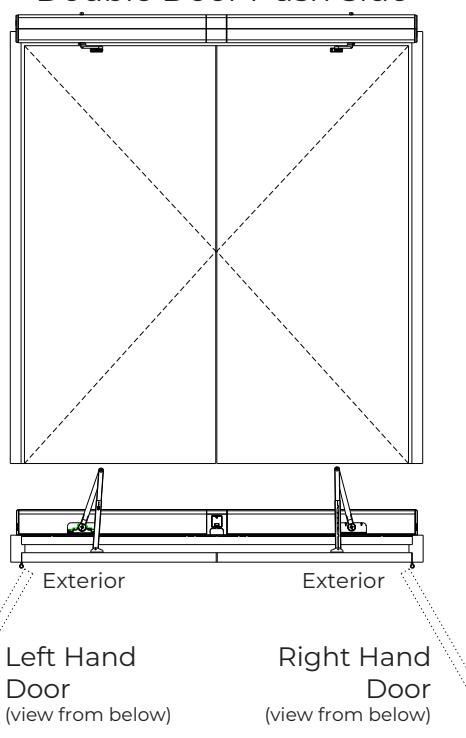

Double Door Push Side

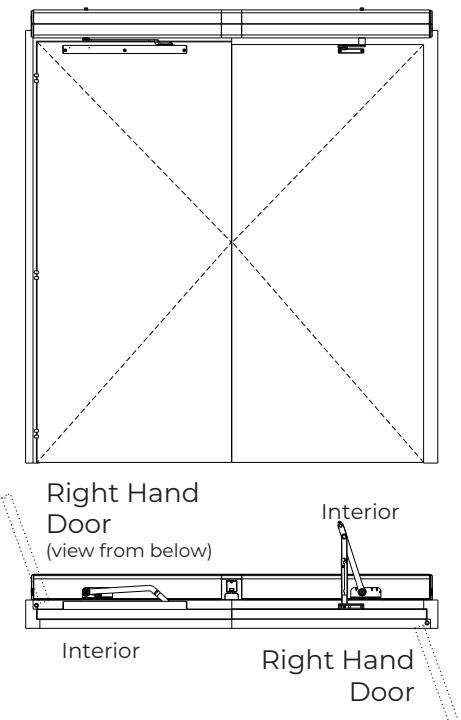

Double Door Double Egress Right Hand

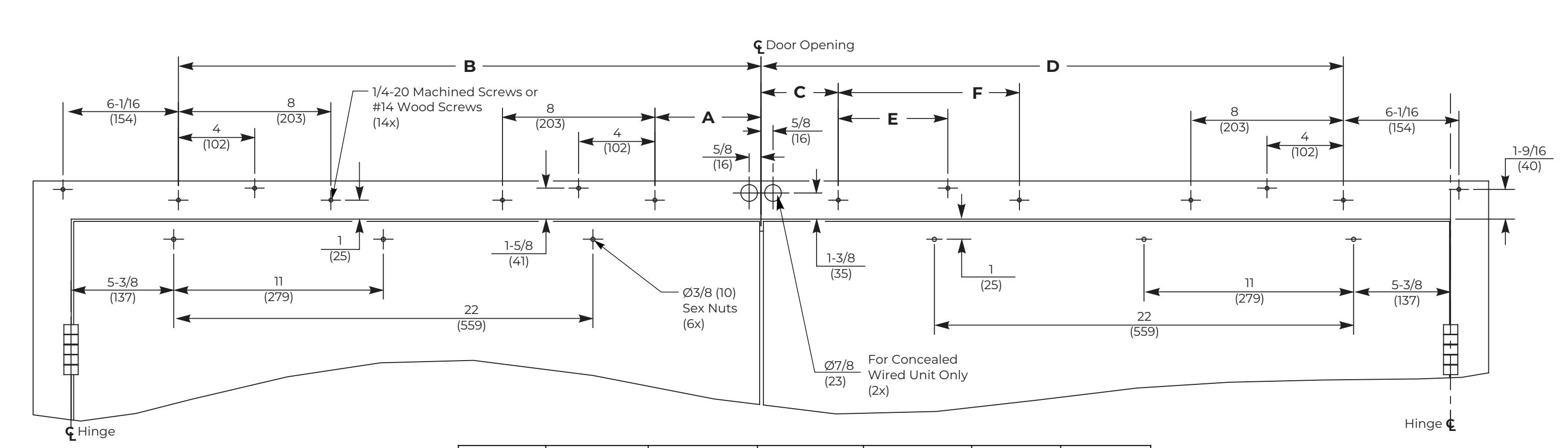

D6011 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"

NORTON RIXSON ASSA ABLOY TEMPLATE NUMBER REV

7360-1051

3 05/23

	Dim A	Dim B	Dim C	Dim D	Dim E	Dim F
D6011-36	5-9/16 (141)	30-9/16 (776)	4-1/16 (103)	30-9/16 (776)	5-3/4 (146)	9-1/2 (241)
D6011-38	7-9/16 (192)	32-9/16 (827)	4-1/16 (103)	32-9/16 (827)	7-3/4 (197)	11-1/2 (292)
D6011-40	9-9/16 (243)	34-9/16 (878)	9-9/16 (243)	34-9/16 (878)	4 (102)	8 (203)
D6011-42	11-9/16 (294)	36-9/16 (929)	10-1/16 (256)	36-9/16 (929)	5-3/4 (146)	9-1/2 (241)
D6011-44	13-9/16 (344)	38-9/16 (979)	12-1/16 (306)	38-9/16 (979)	5-3/4 (146)	9-1/2 (241)
D6011-46	15-9/16 (395)	40-9/16 (1030)	14-1/16 (356)	40-9/16 (1017)	5-3/4 (146)	9-1/2 (241)
D6011-48	17-9/16 (446)	42-9/16 (1081)	16-1/16 (408)	42-9/16 (1081)	5-3/4 (146)	9-1/2 (241)

NOTES:

• Do not scale drawing.

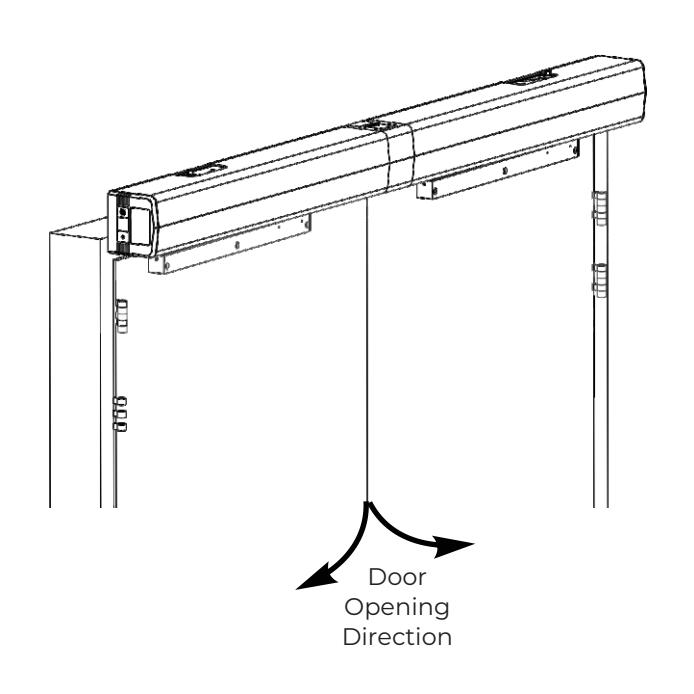

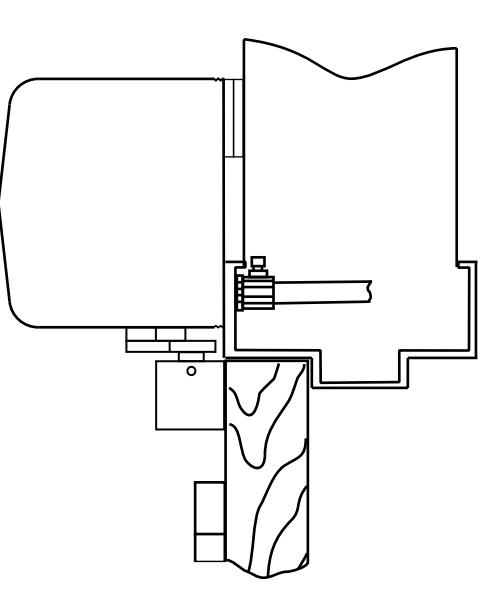

• Operator shown for pull side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollowmetal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

D6011 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Maximum reveal of 1/8"
