Norton Rixson 6000 Series Operator, D6001DER1 Double Egress for Door Widths 36 – 48 and Reveals up 3 – 4-3…_7360-1059

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

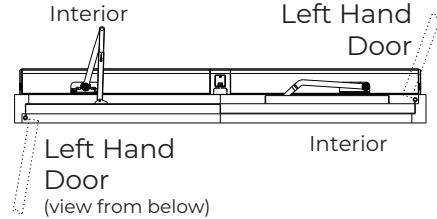

Double Door Pull Side

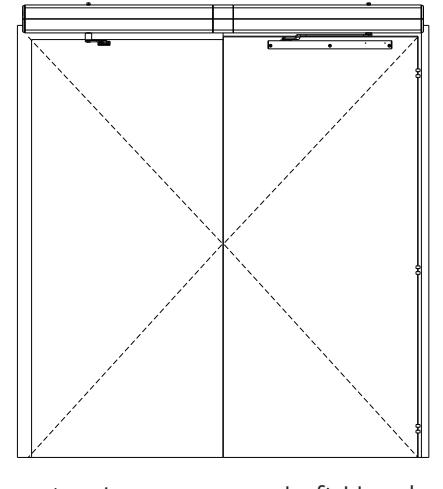

Double Door Double Egress Left Hand

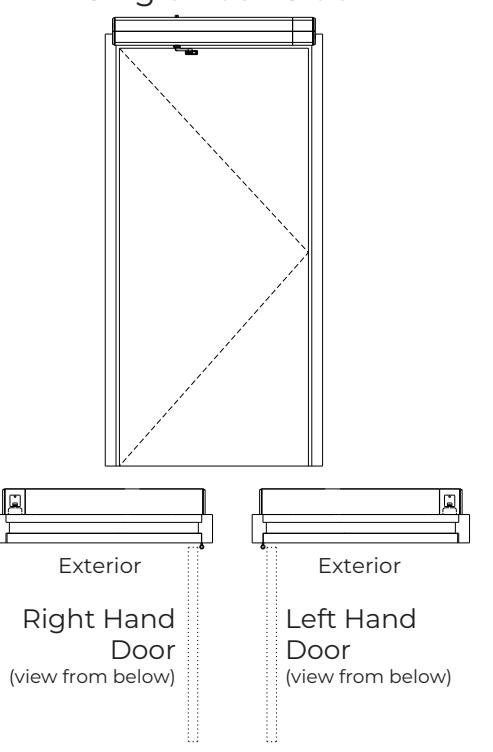

Single Push Side

Right Hand

(view from below)

Interior

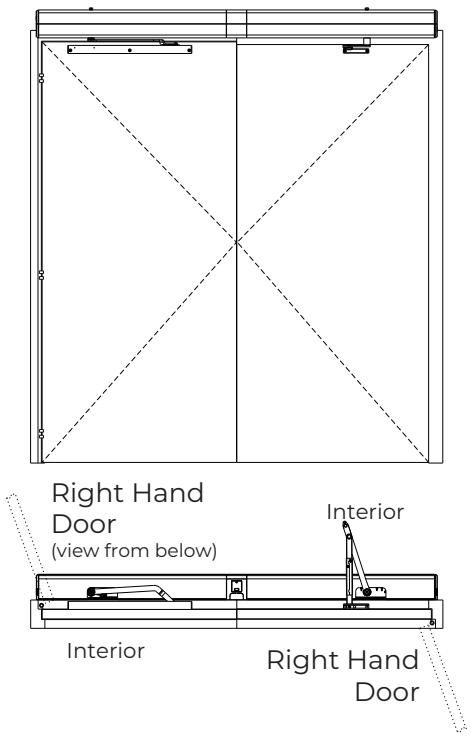

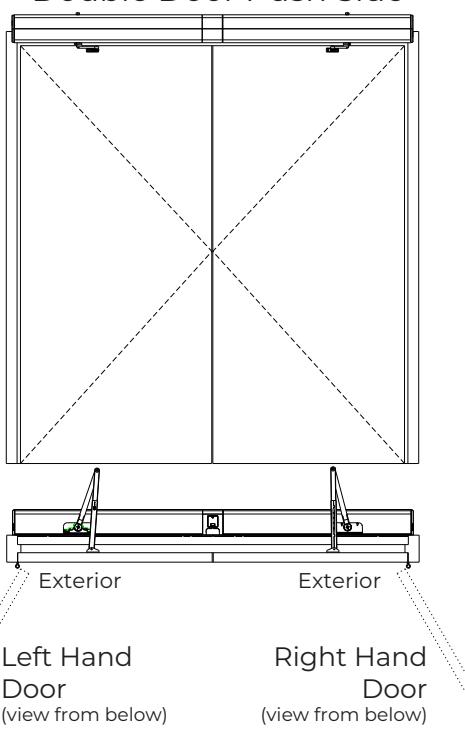

Double Door Push Side

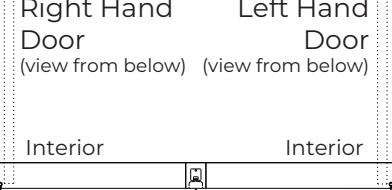

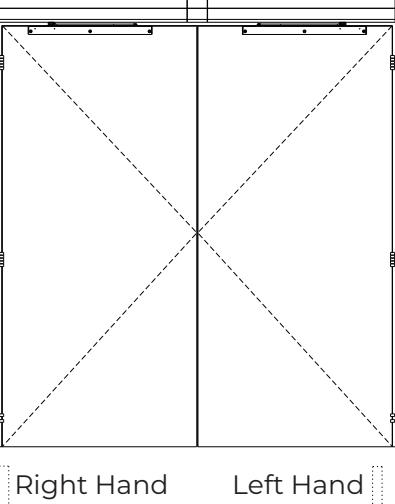

Double Door Double Egress Right Hand

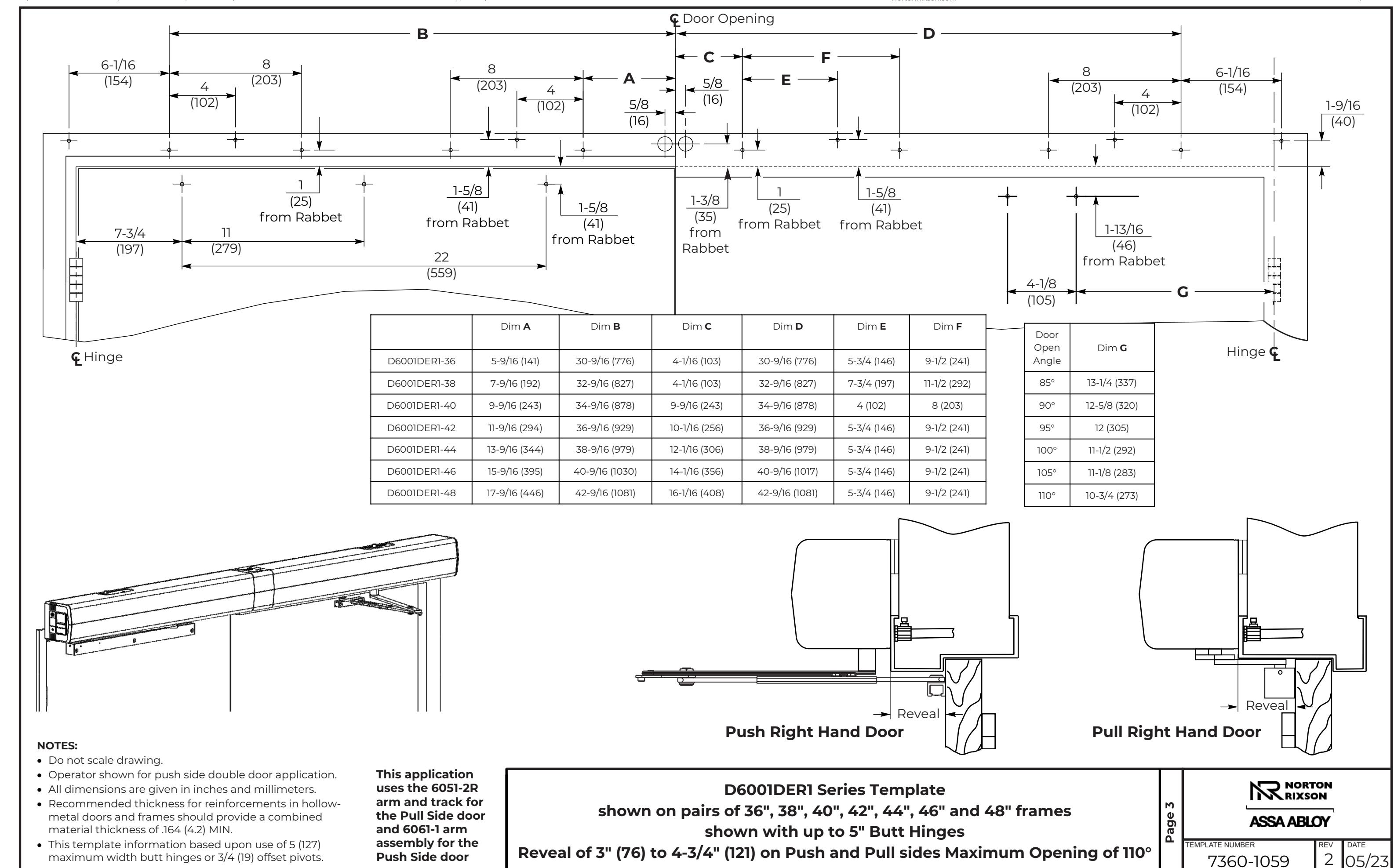

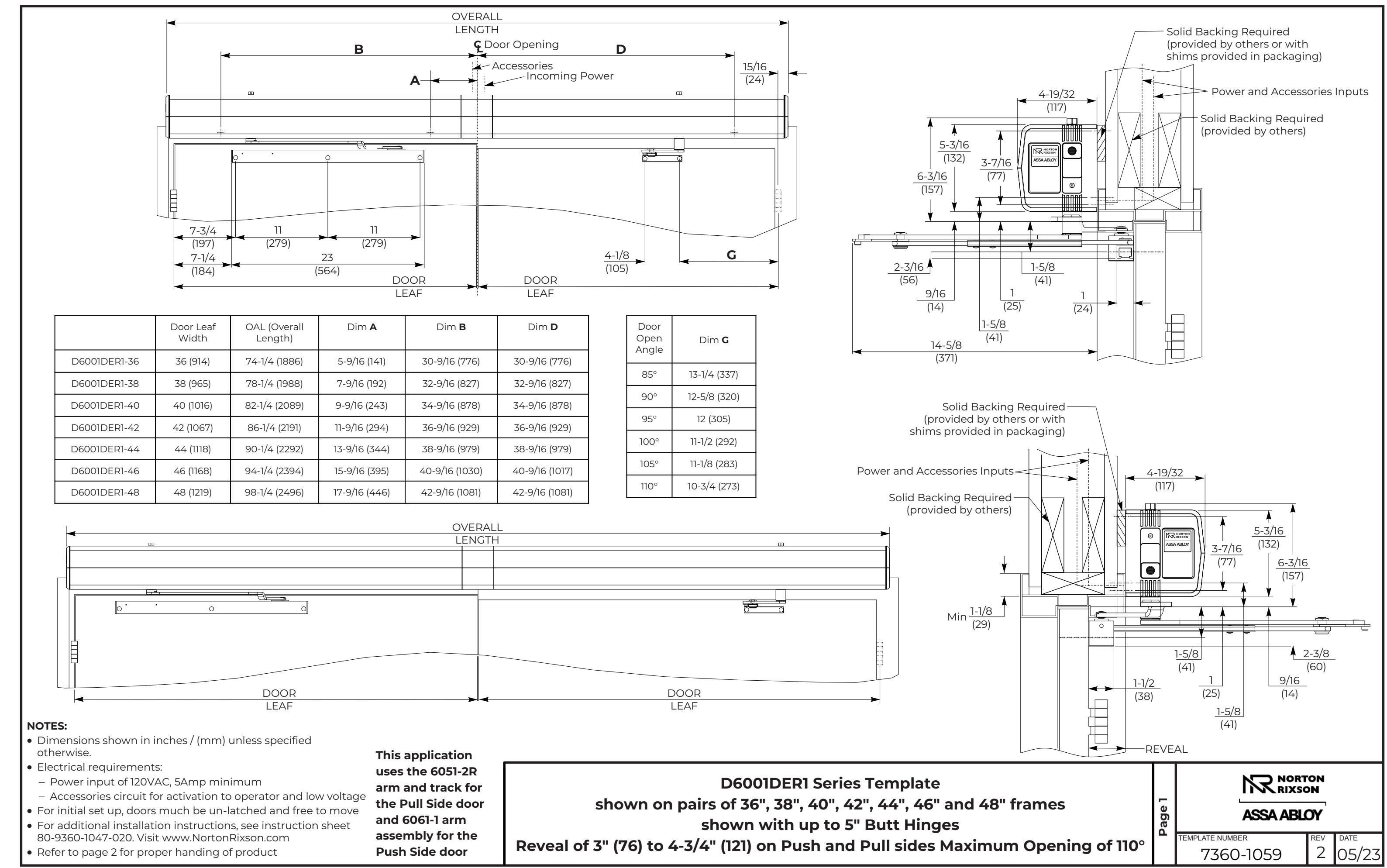

D6001DER1 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides Maximum Opening of 110°

RIXSON Page 2 ASSA ABLOY TEMPLATE NUMBER 2 05/23

7360-1059
