Norton Rixson 6000 Series Operator, D6001DER Double Egress, Widths 36 – 48 and Reveals up to 3, 110 Max O…_7360-1057

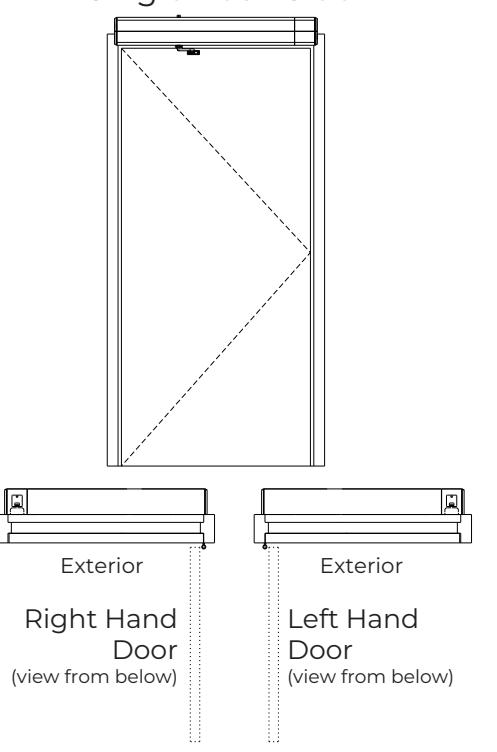

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

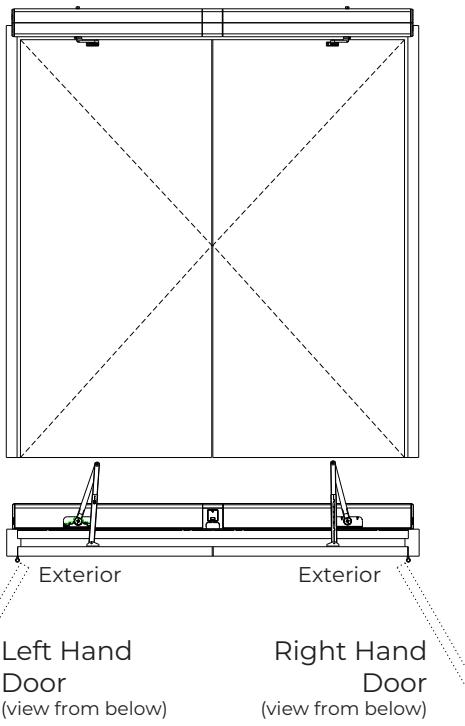

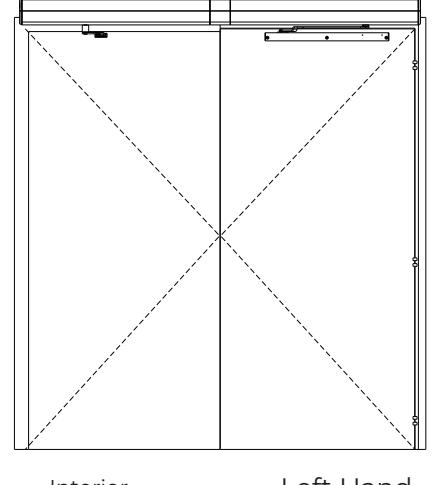

Double Door Pull Side

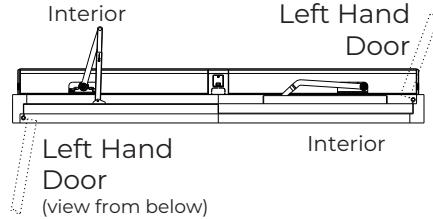

Double Door Double Egress Left Hand

Single Push Side

Right Hand

(view from below)

Interior

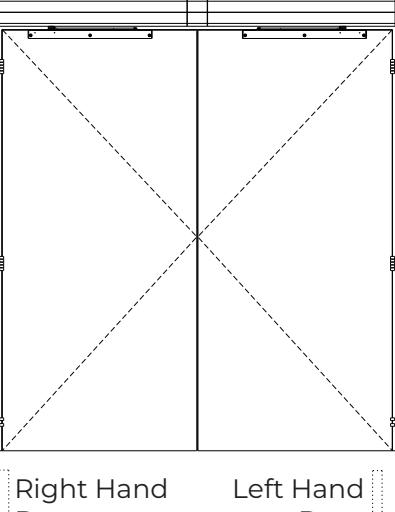

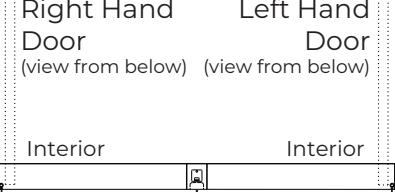

Double Door Push Side

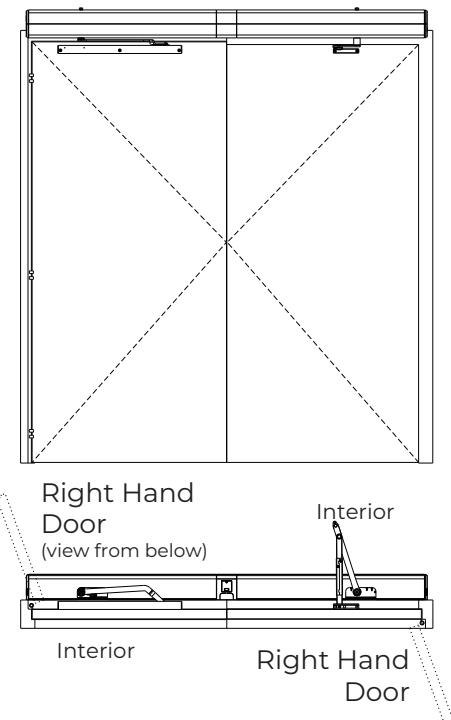

Double Door Double Egress Right Hand

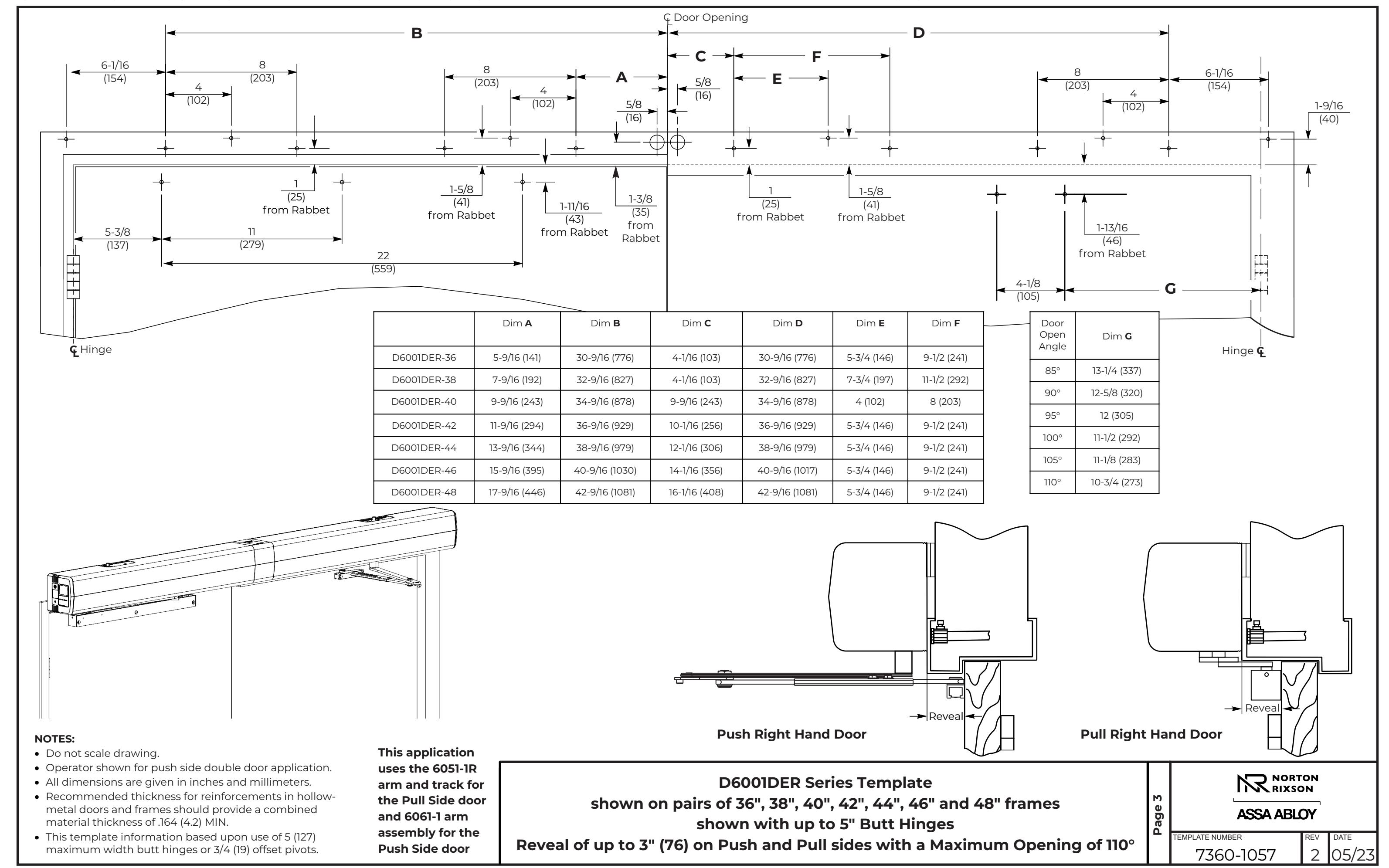

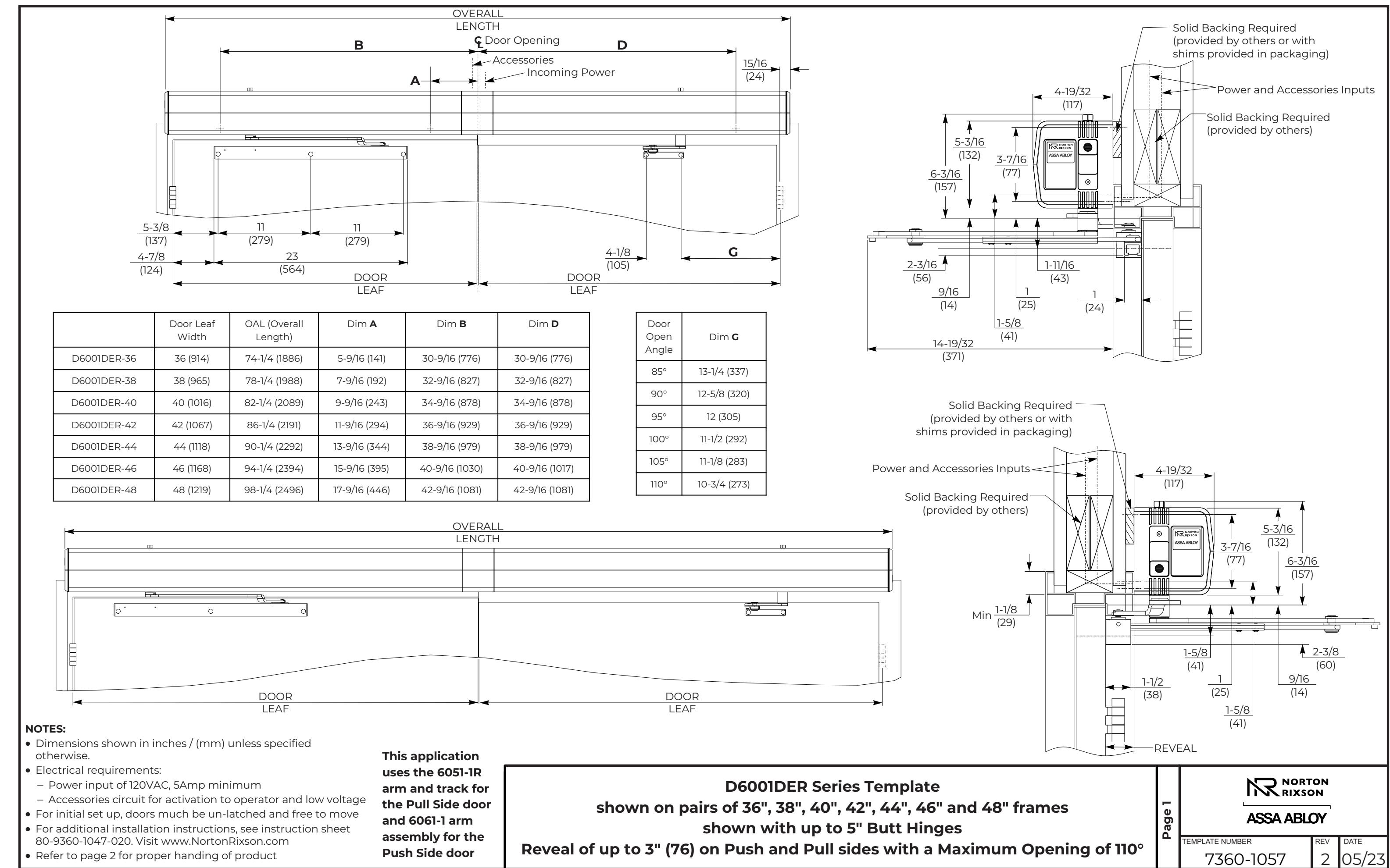

D6001DER Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of up to 3" (76) on Push and Pull sides with a Maximum Opening of 110°

ASSA ABLOY TEMPLATE NUMBER REV DATE 7360-1057 2 05/23
