Norton Rixson 6000 Series Operator, D6001DEL2 Double Egress for Door, Widths 36 – 48 and Reveals of 4-3, 4 …_7360-1062

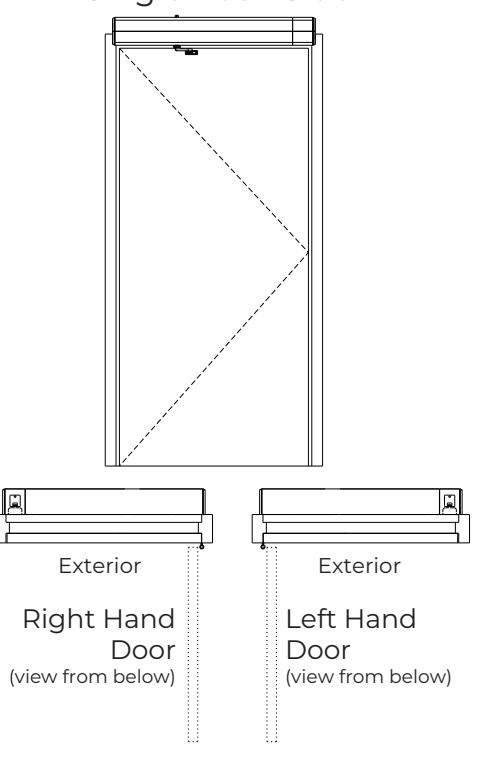

Single Pull Side

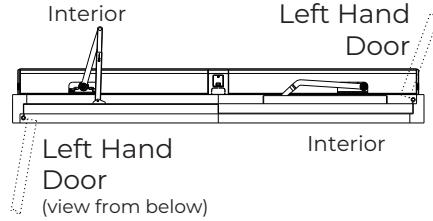

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

Double Door Pull Side

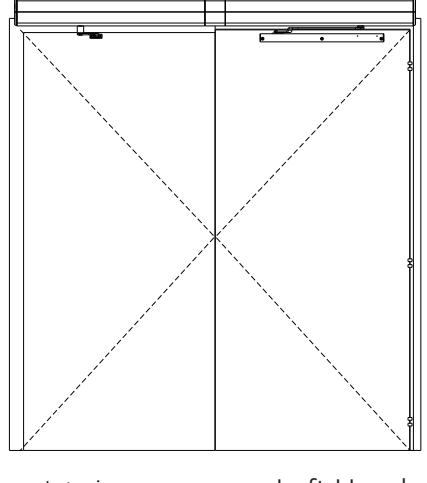

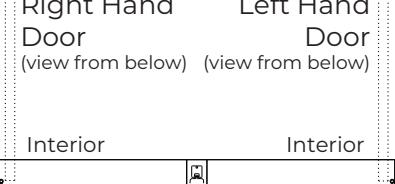

Double Door Double Egress Left Hand

Single Push Side

Right Hand

(view from below)

Interior

Door

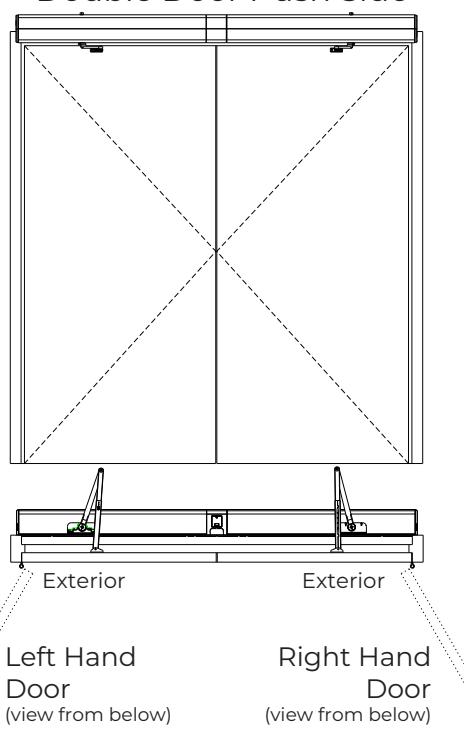

Double Door Push Side

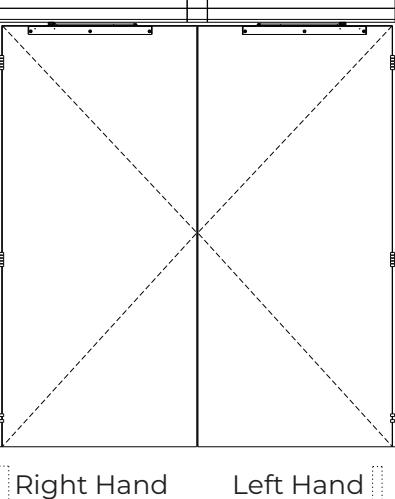

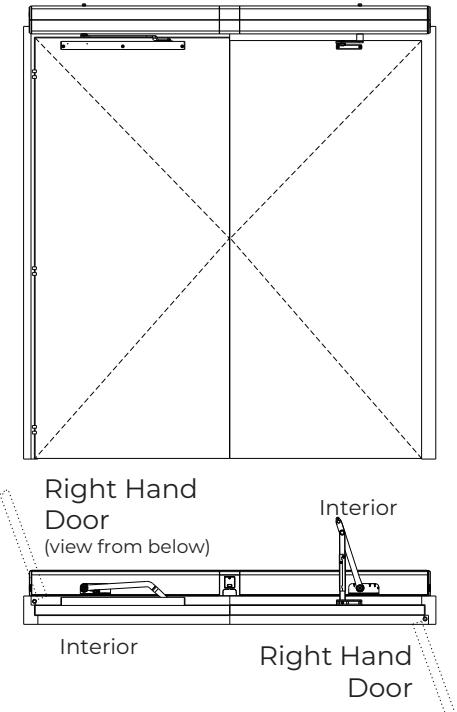

Double Door Double Egress Right Hand

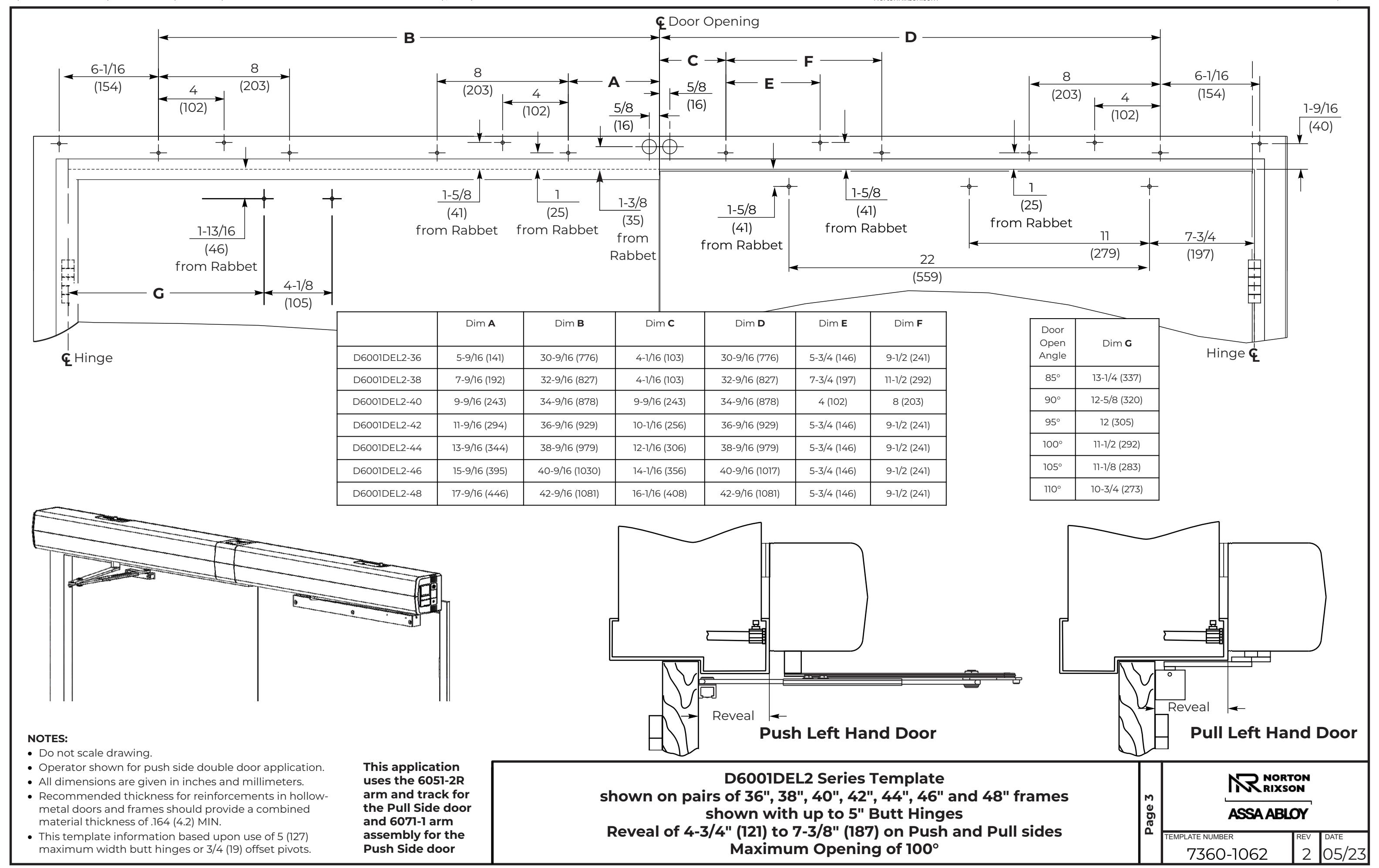

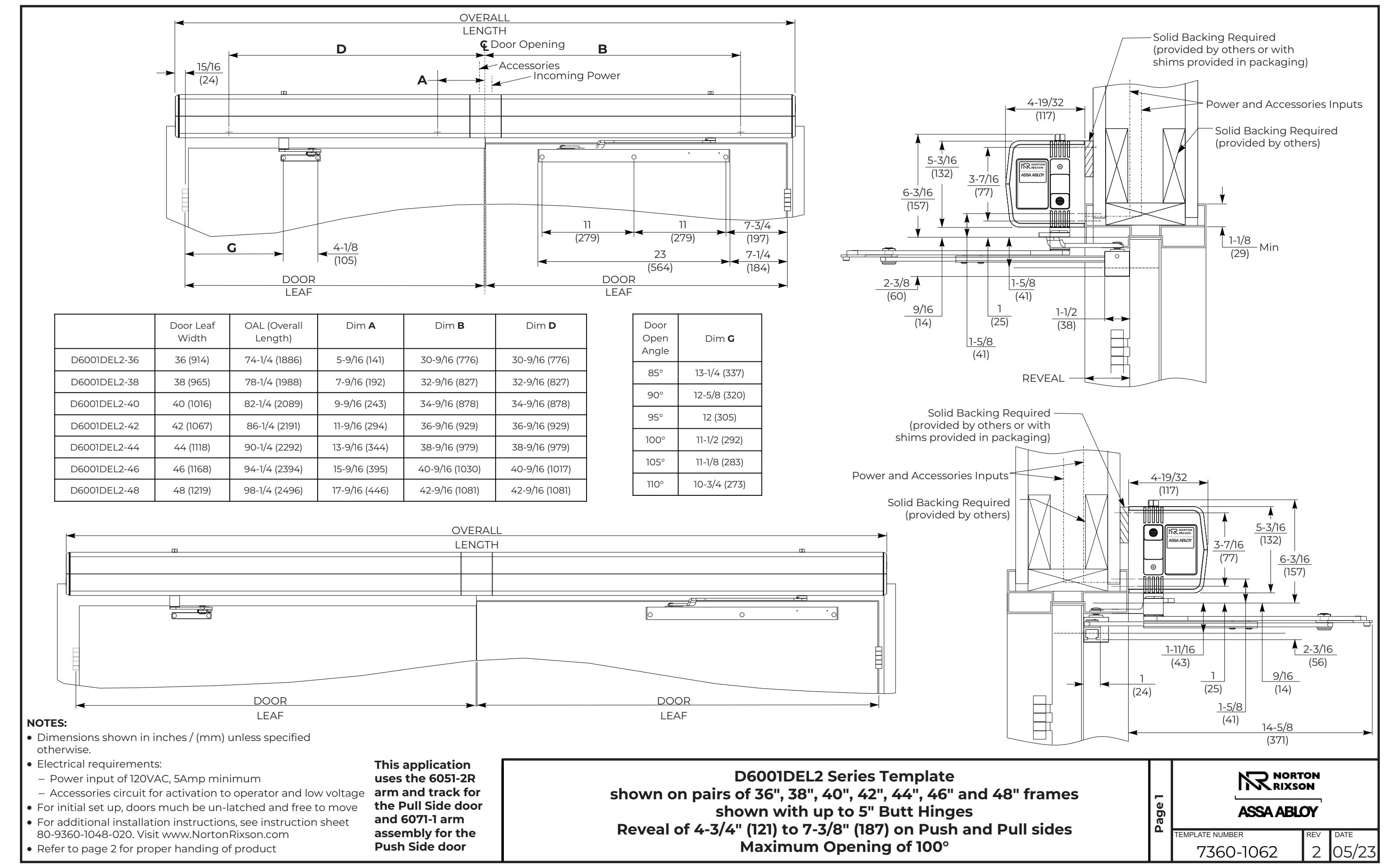

D6001DEL2 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 4-3/4" (121) to 7-3/8" (187) on Push and Pull sides Maximum Opening of 100°

Norton Rixson ASSA ABLOY TEMPLATE NUMBER TEMPLATE NUMBER REV

TEMPLATE NUMBER REV DATE 2 05/23
