Norton Rixson 6000 Series Operator, D6001DEL1 Double Egress for Door Widths 36 – 48 and Reveals 3 to 4-3, 4…_7360-1060

80-9360-1048-020. Visit www.NortonRixson.com · Refer to page 2 for proper handing of product

7360-1060 2 05/23

TEMPLATE NUMBER REV DATE

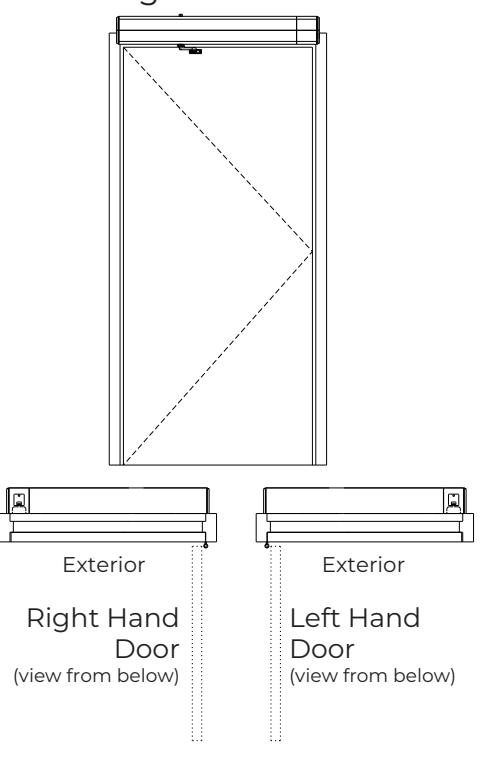

Push Side door

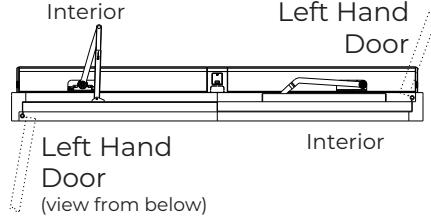

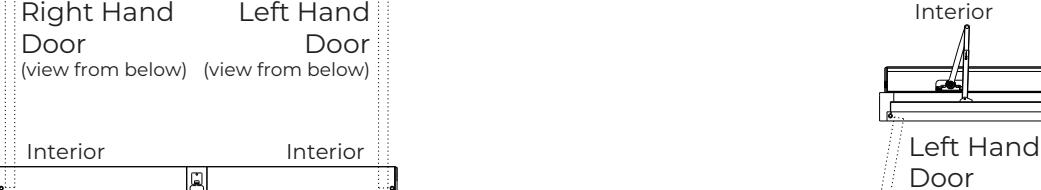

Left Hand Door

(view from below)

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

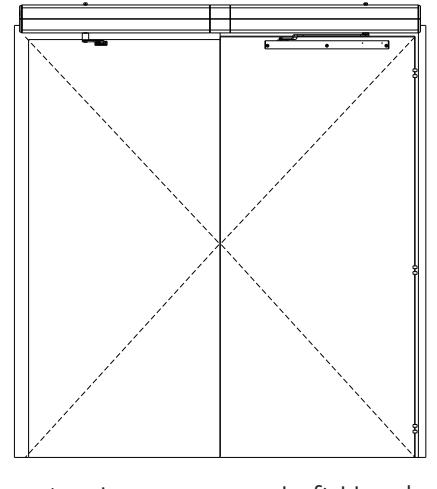

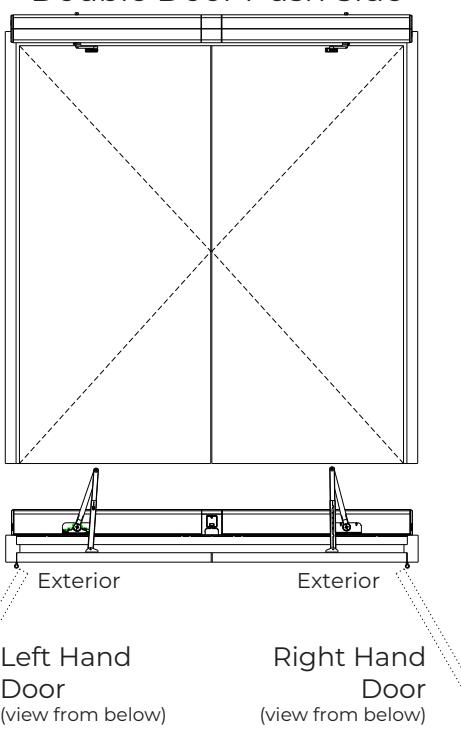

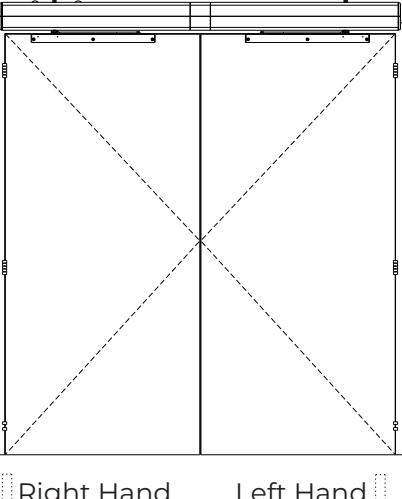

Single Pull Side Double Door Pull Side Double Door Double Egress Left Hand

Interior Interior

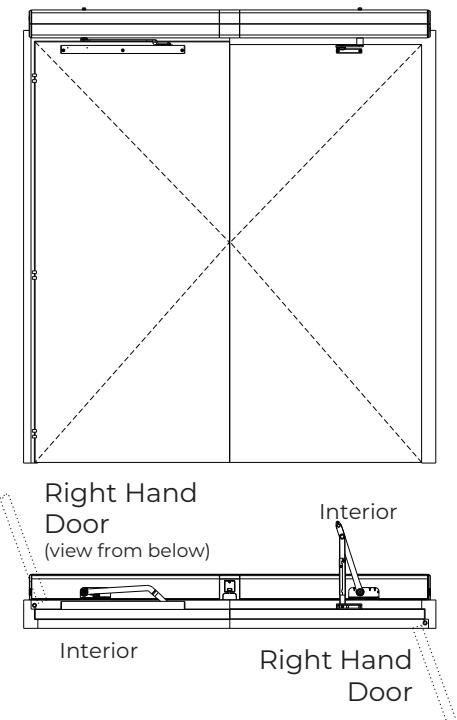

Right Hand

(view from below)

Door

Single Push Side Double Door Push Side Double Door Double Egress Right Hand

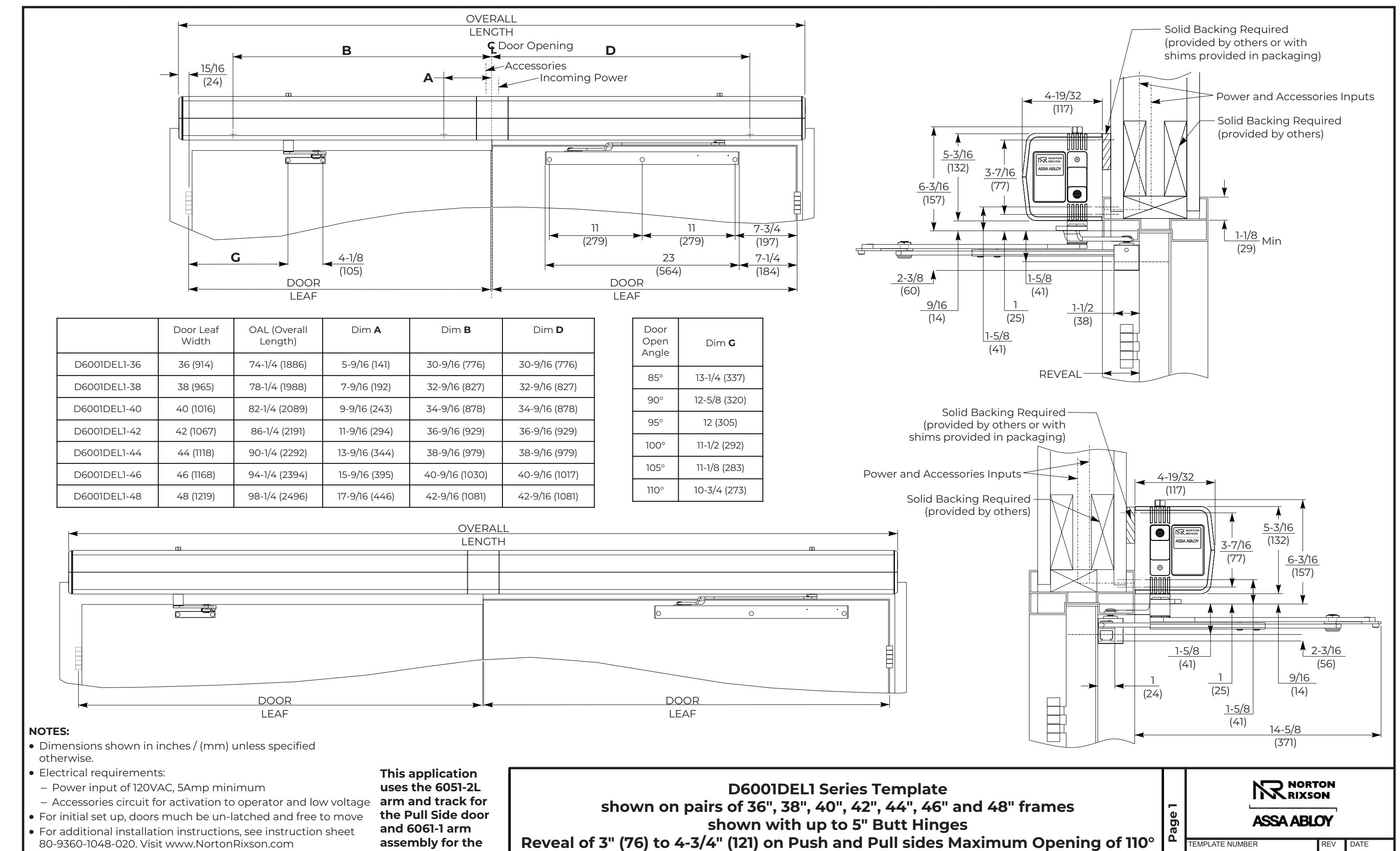

D6001DEL1 Series Template shown on pairs of 36", 38", 40", 42", 44", 46" and 48" frames shown with up to 5" Butt Hinges Reveal of 3" (76) to 4-3/4" (121) on Push and Pull sides Maximum Opening of 110°

Page 2

7360-1060 2 05/23 TEMPLATE NUMBER REV DATE
