Norton Rixson 6000 Series Operator, D6001DEL Double Egress for Door Widths 36 – 48 and Reveals up to 3, 11…_7360-1058

7360-1058

2 05/23

Push Side door

• Refer to page 2 for proper handing of product

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

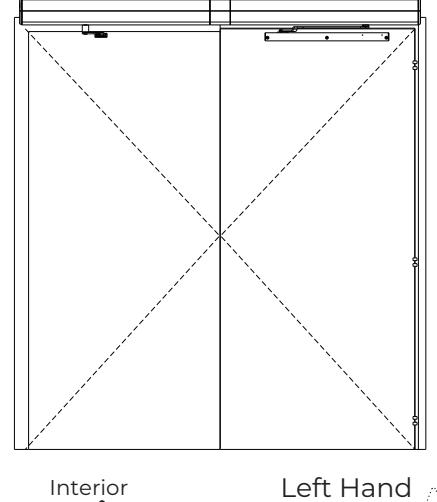

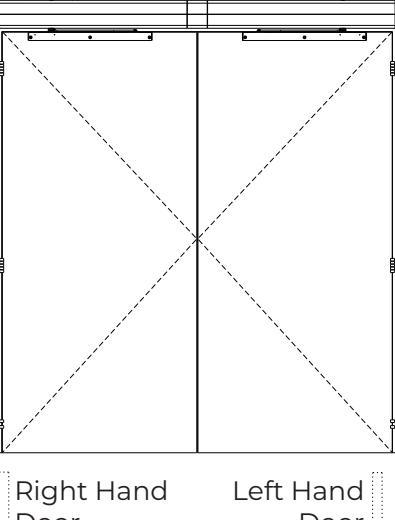

Double Door Pull Side

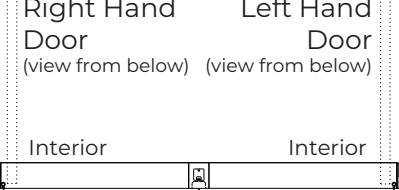

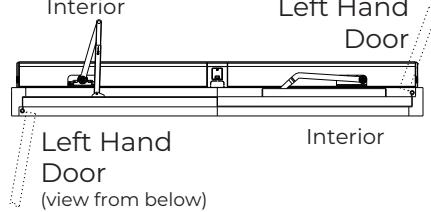

Double Door Double Egress Left Hand

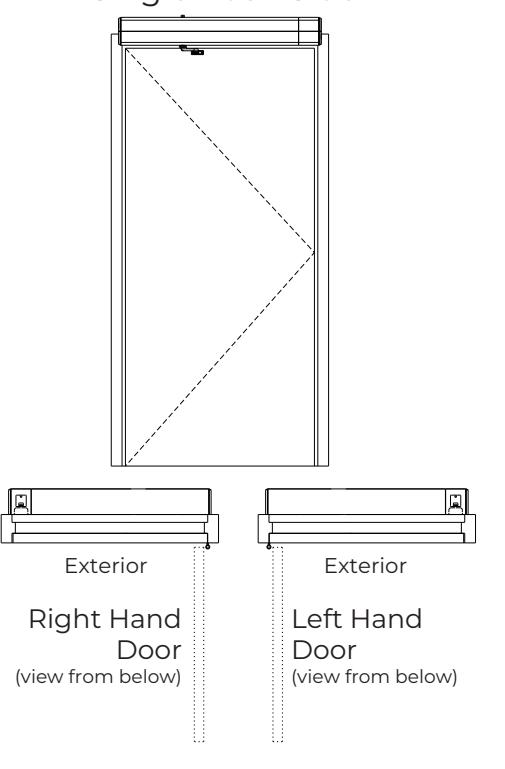

Single Push Side

Right Hand

(view from below)

Interior

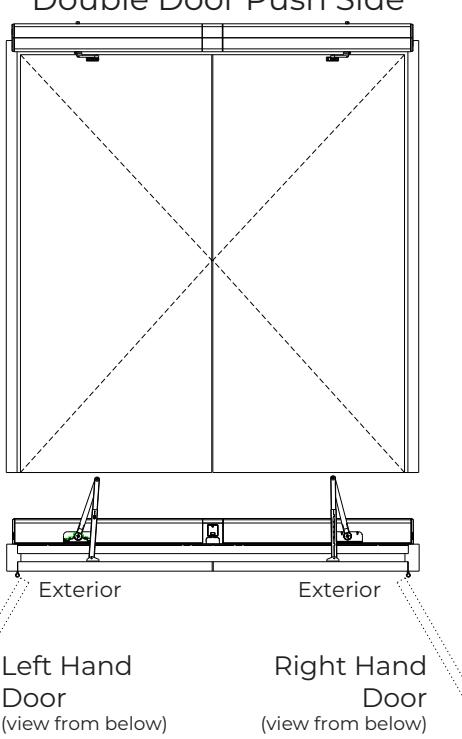

Double Door Push Side

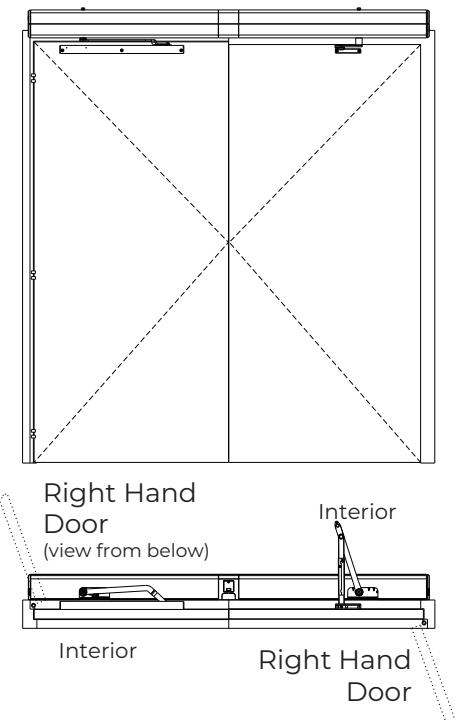

Double Door Double Egress Right Hand

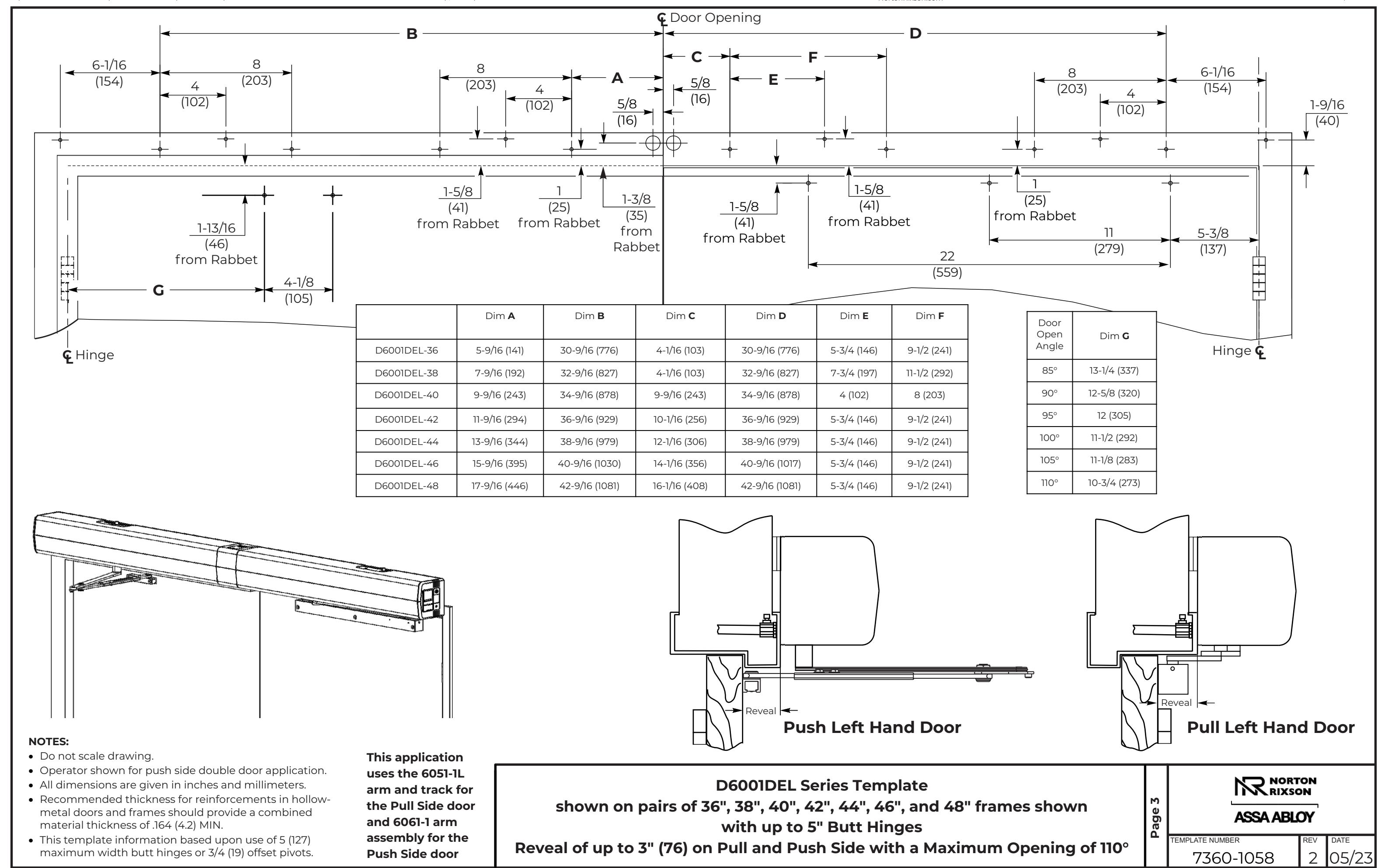

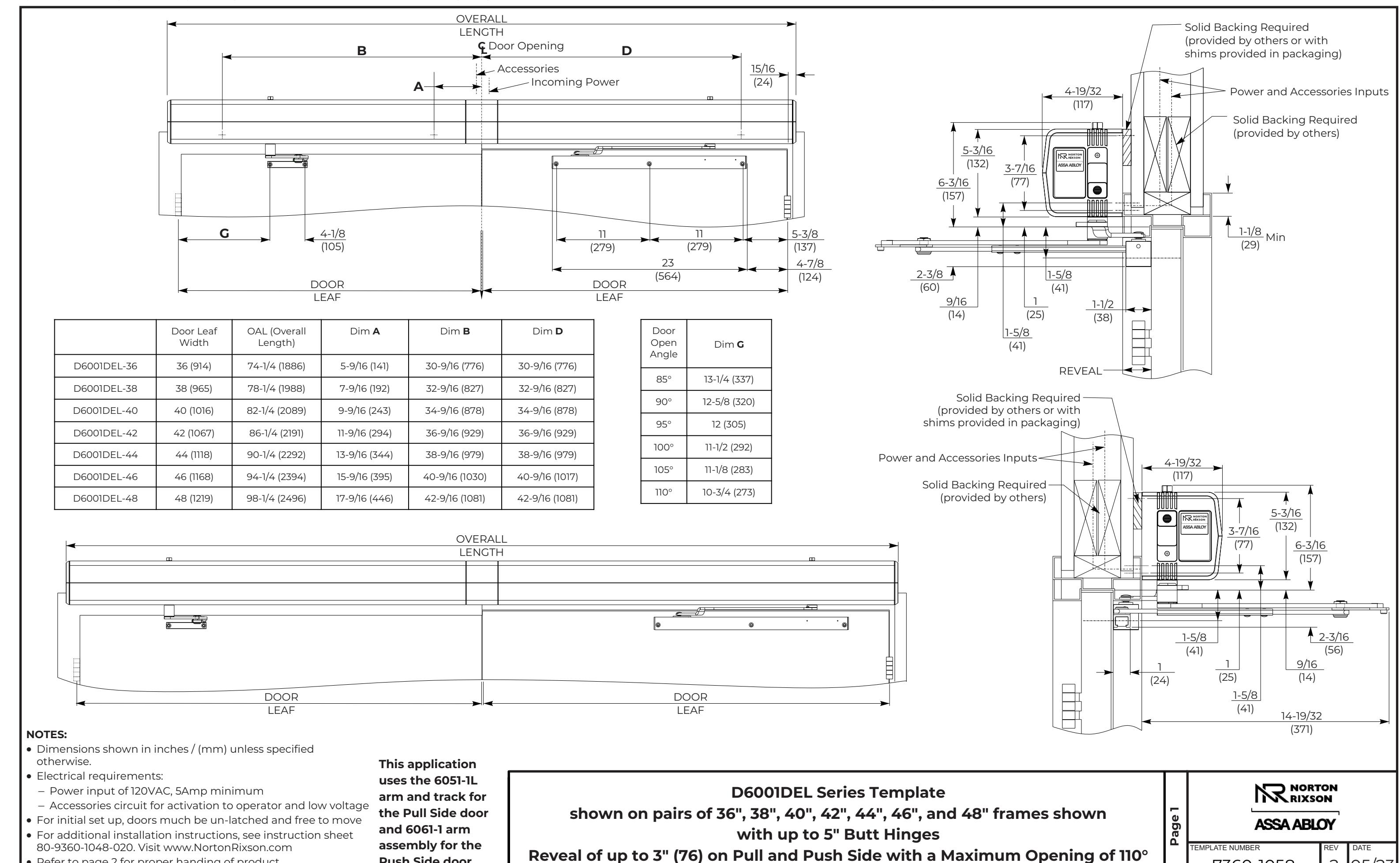

D6001DEL Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of up to 3" (76) on Pull and Push Side with a Maximum Opening of 110°

RIXSON Page 2 ASSA ABLOY TEMPLATE NUMBER 2 05/23

7360-1058
