Norton Rixson 6000 Series Operator 6061,6071 Drop Application Push Side Mounting for Door Widths 36 and Reveal…_80-7360-1012-020

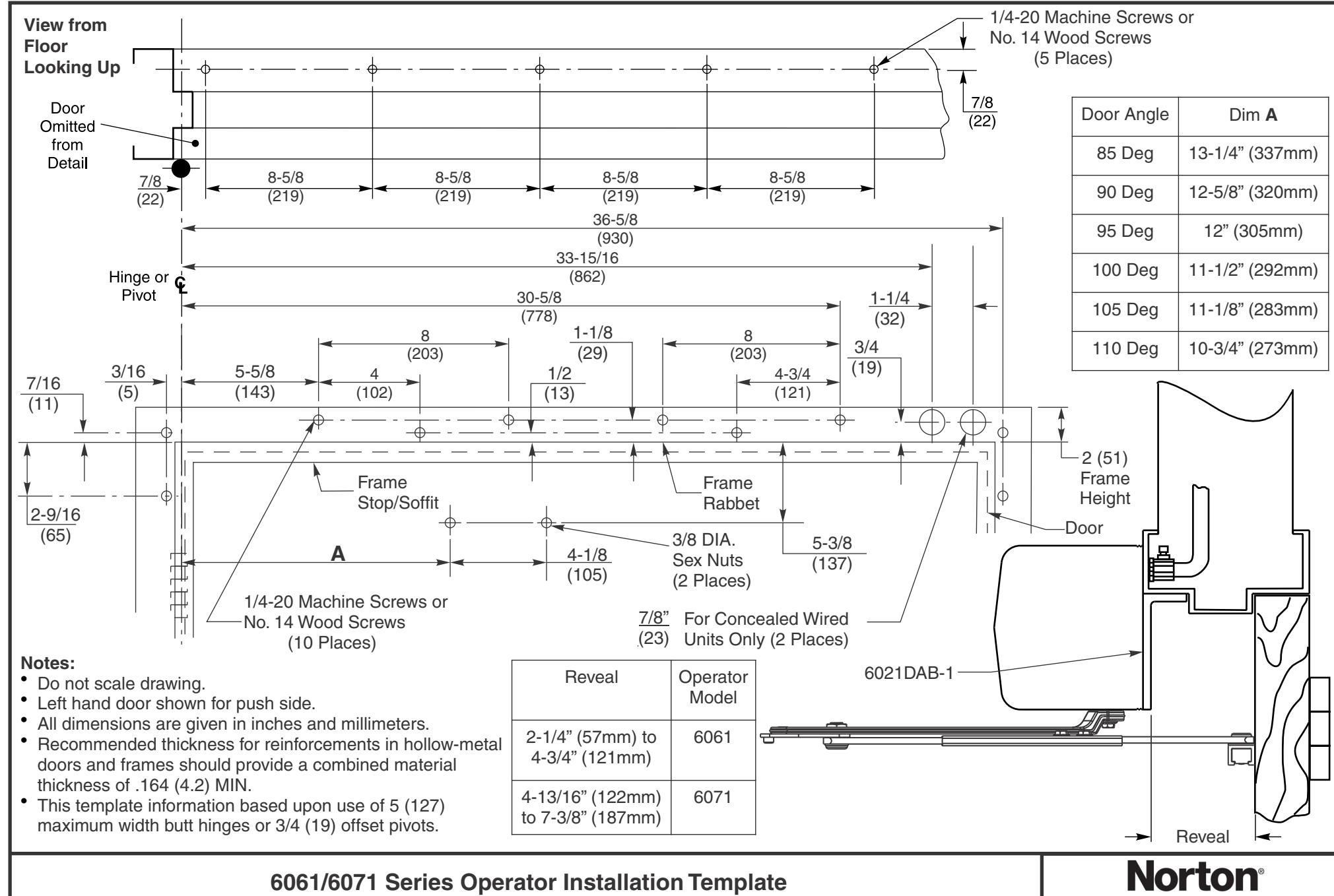

6061/6071 Series Operator Installation Template for Drop Application using 6021DAB-1 Drop Angle Bracket on 36" wide doors For Reveal of 2-1/4" (57mm) to 7-3/8" (187mm)

ASSA ABLOY www.nortondoorcontrols.com

TEMPLATE NUMBER 80-7360-1012-020

DATE 07/19
