Norton Rixson 6000 Series Operator, 6061 for Door Widths 36 and 37 – 48 and Reveals of 2-1, 4 to 4-3, 4,…_7360-1049
Open the original PDF document
View PDF
Approved 2023-07-12
TEMPLATE NUMBER 7360-1049
05/23

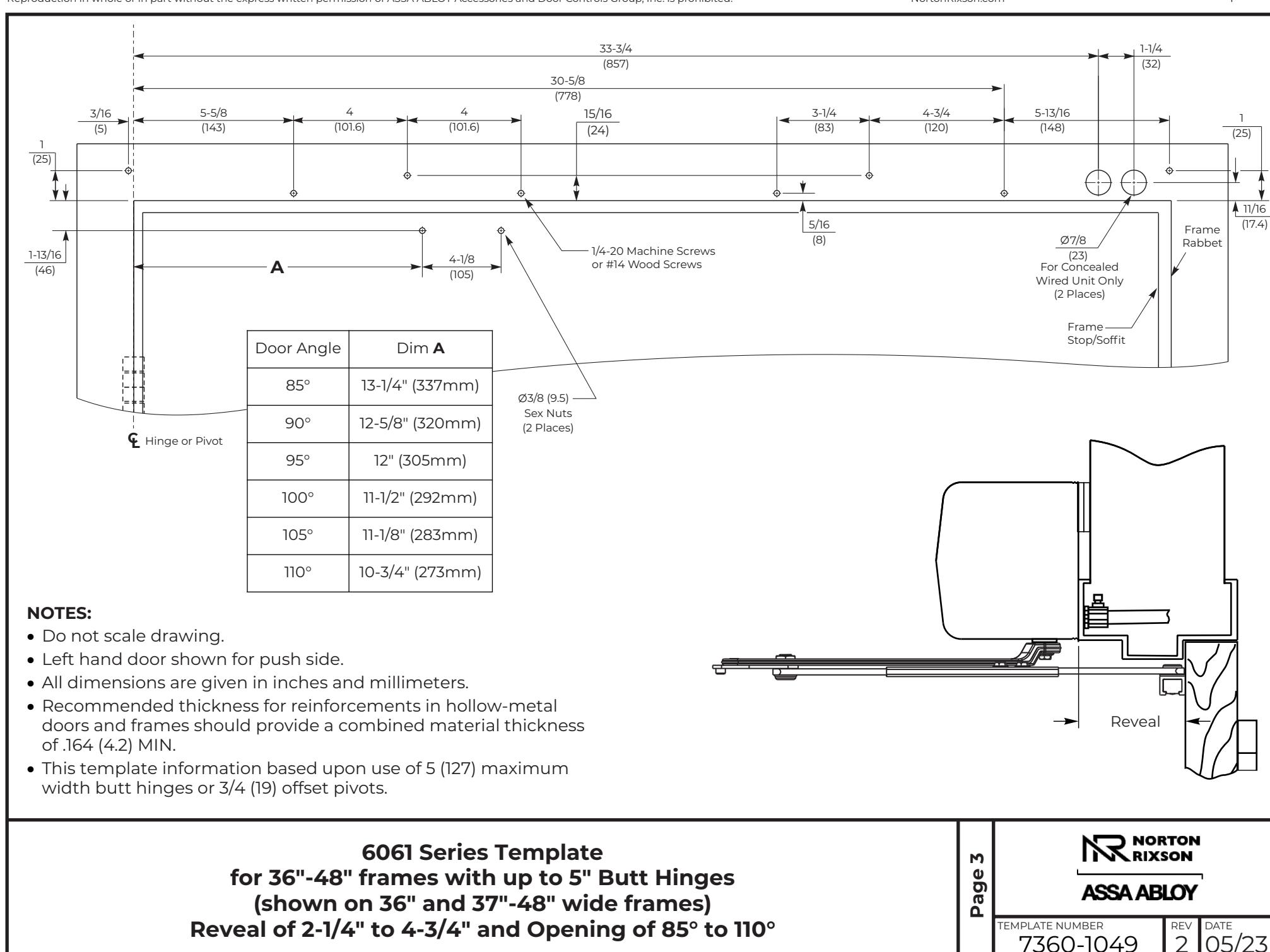

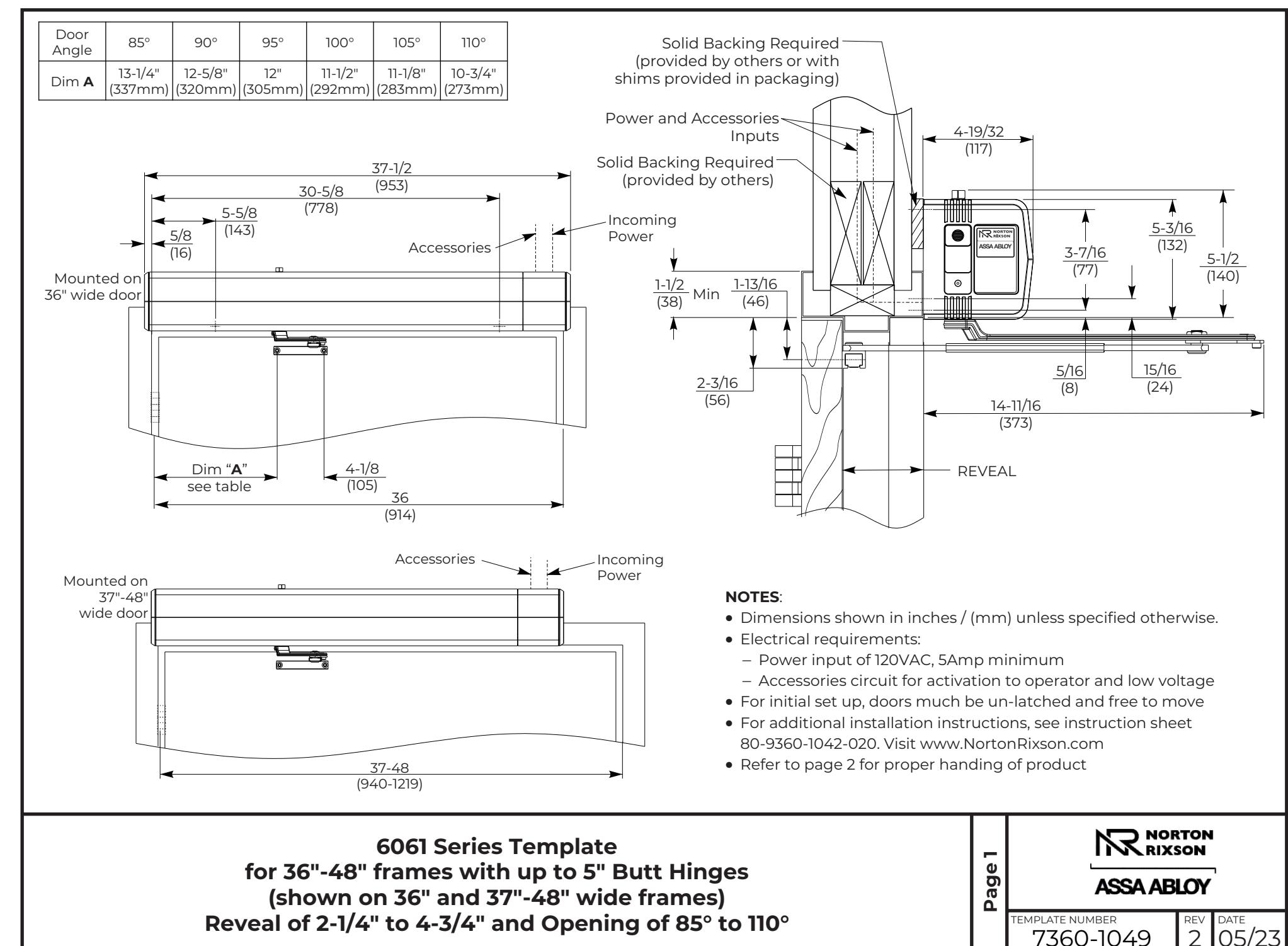

Reveal of 2-1/4" to 4-3/4" and Opening of 85° to 110°
Approved 2023-07-12
Approved 2023-07-12
