Norton Rixson 6000 Series Operator, 6031 Push Side Mounting for Door Widths 36 and 37 – 48 and Max Reveals…_7360-1047

Open the original PDF document

ASSA ABLOY

05/23

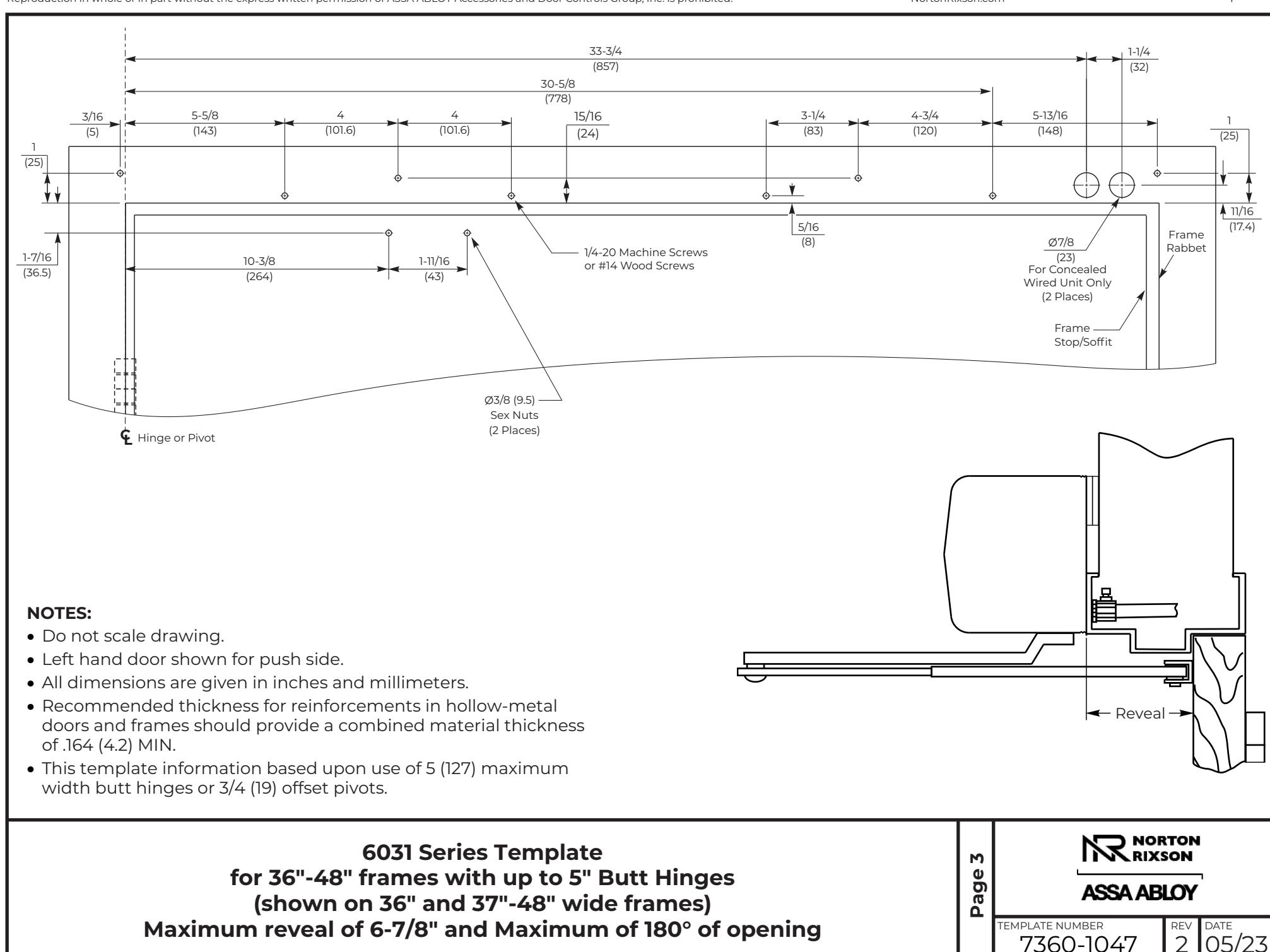

TEMPLATE NUMBER 7360-1047

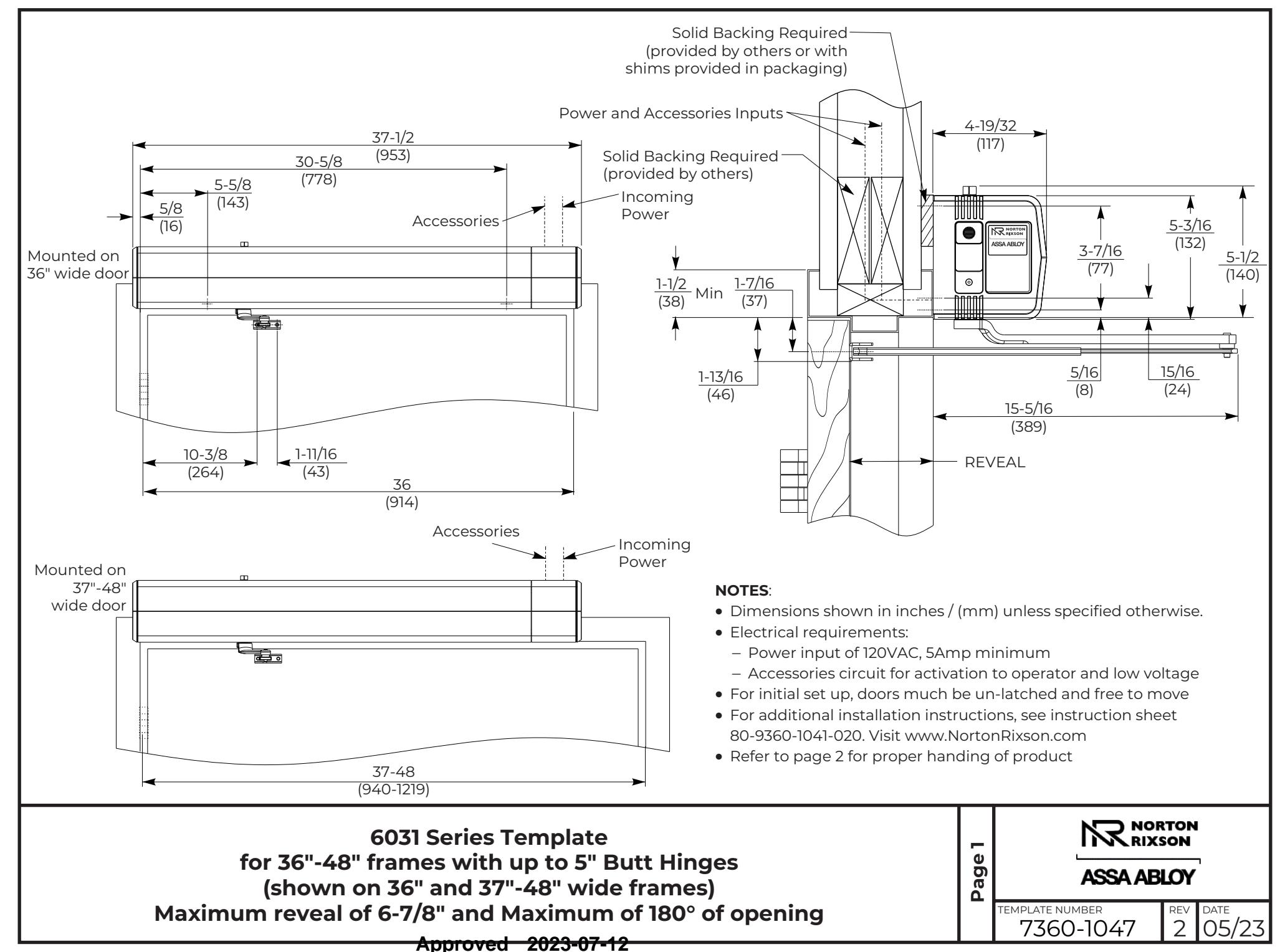

for 36"-48" frames with up to 5" Butt Hinges (shown on 36" and 37"-48" wide frames) Maximum reveal of 6-7/8" and Maximum of 180° of opening

Approved 2023-07-12
