5845xWTO 700 Series Wave-to-Open Installation Instructions

Operation:

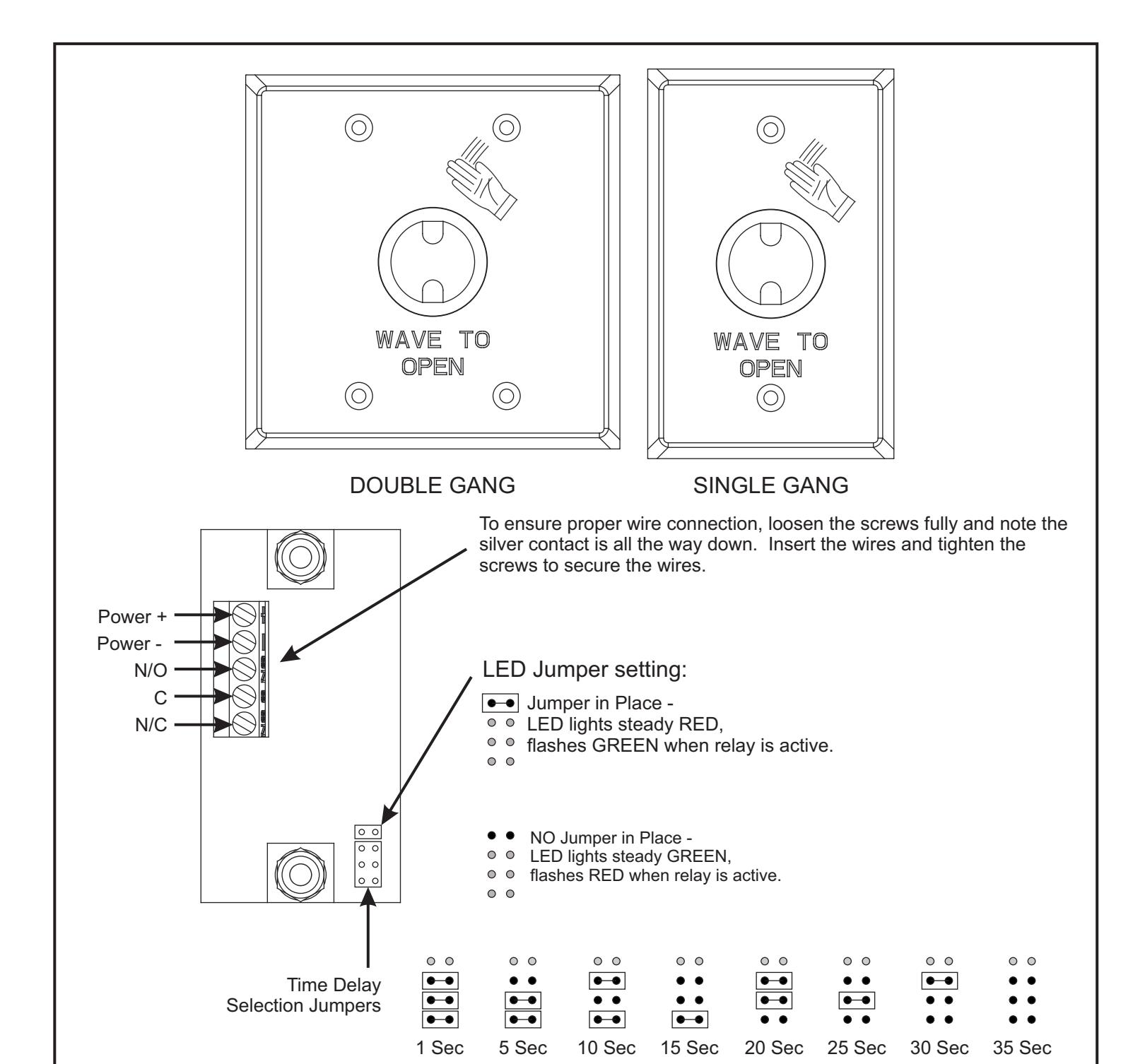

To operate the switch, make a slow waving motion with your hand within 4 inches of the front of the plate. A tone will sound and the circle will flash to indicate that the relay has been activated. The relay will activate for the amount of time as set by the time delay jumpers.

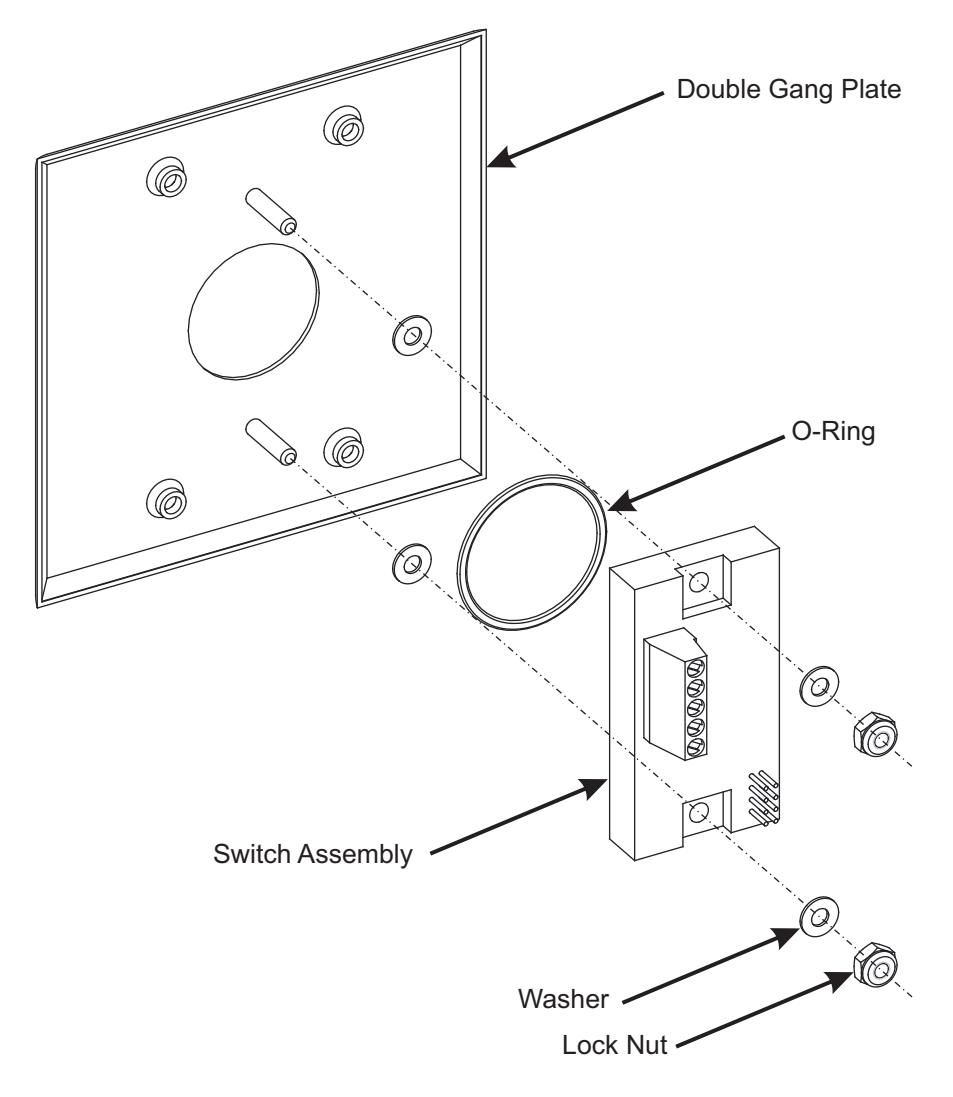

To change plate from DOUBLE GANG to SINGLE GANG:

• 1. Remove the lock nut and washer from the back of the switch.
• 2. Remove the switch assembly and O-ring from the Double Gang plate.

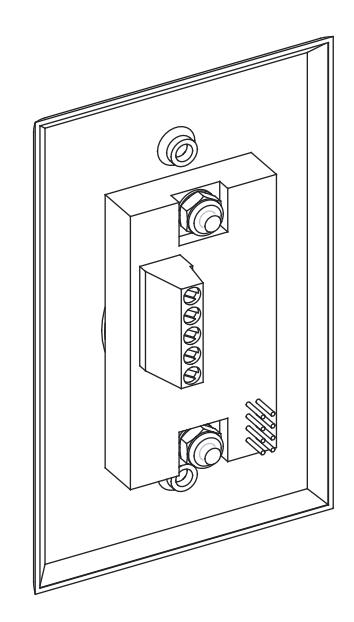

• 3. Reassemble the O-ring and switch assembly on the Single Gang plate.
• 4. Reassemble the washer and lock nut to secure switch assembly to Single Gang plate.

Specifications:

Input Voltage: 12-24 VDC

SPDT Contact Rating: 2A @30V AC or DC Sensor Detection Range: Up to 4 inches Operating Temperature: -25°C to 55°C

Current Draw: 50mA @12VDC, 65mA @24VDC
