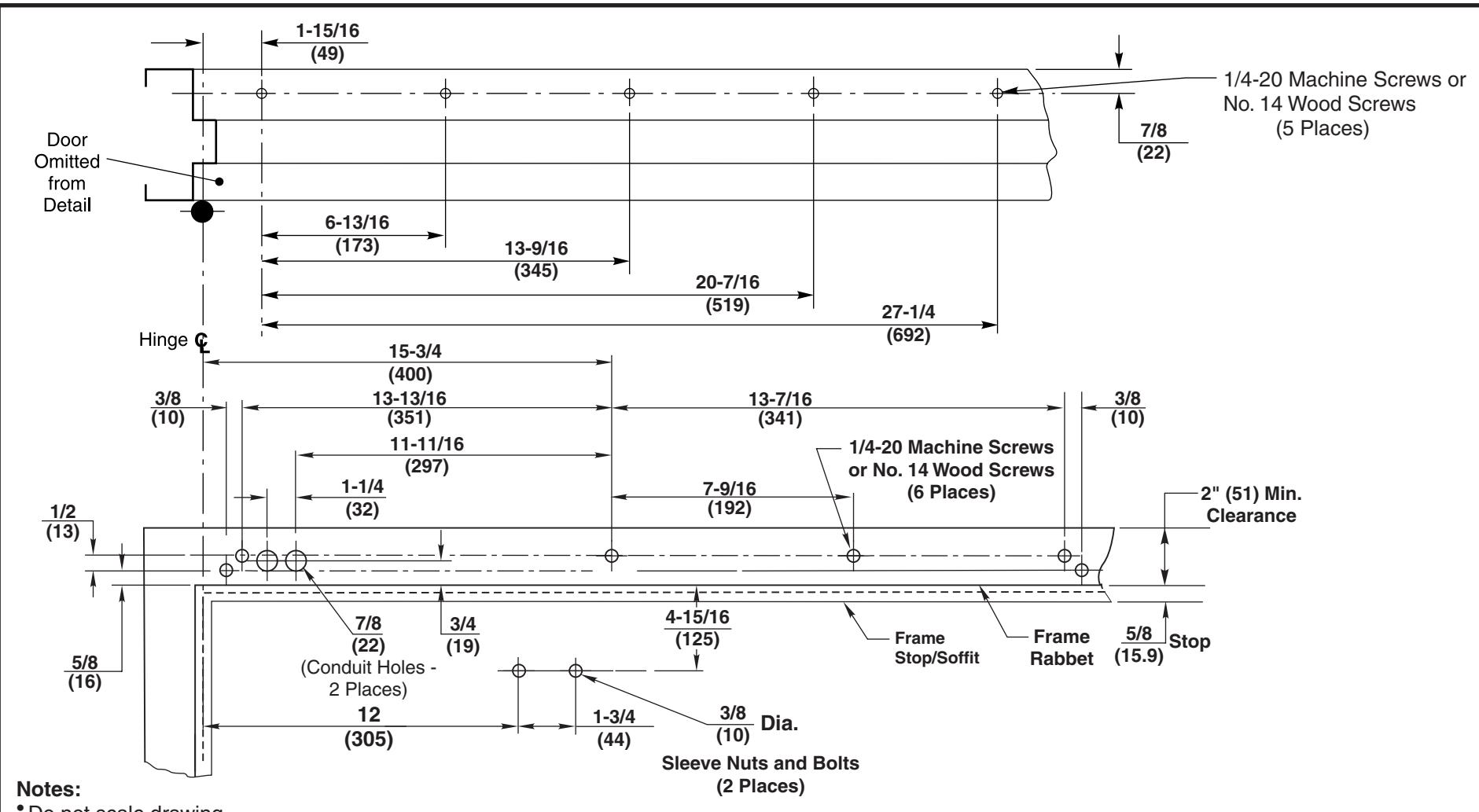

Norton Rixson 5700DAB Push Side Drop Application Template_7357-0001

• Do not scale drawing.
• *Left hand door shown for push side.
• * All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal. doors and frames should provide a combined material thickness of .164" (4.2) MIN.
• *This template information based upon use of 5" (127) maximum width butt hinges or 3/4" (19) offset pivots.

For door opening up to 110°

5700 Series Low Energy Operator

Drop Application for Stop (Push) Side of Door Installation 5700DAB

RIXSON ASSA ABLOY

TEMPLATE NUMBER |7357-0001|1 of 2

2 02/22

Approved 2023-07-28

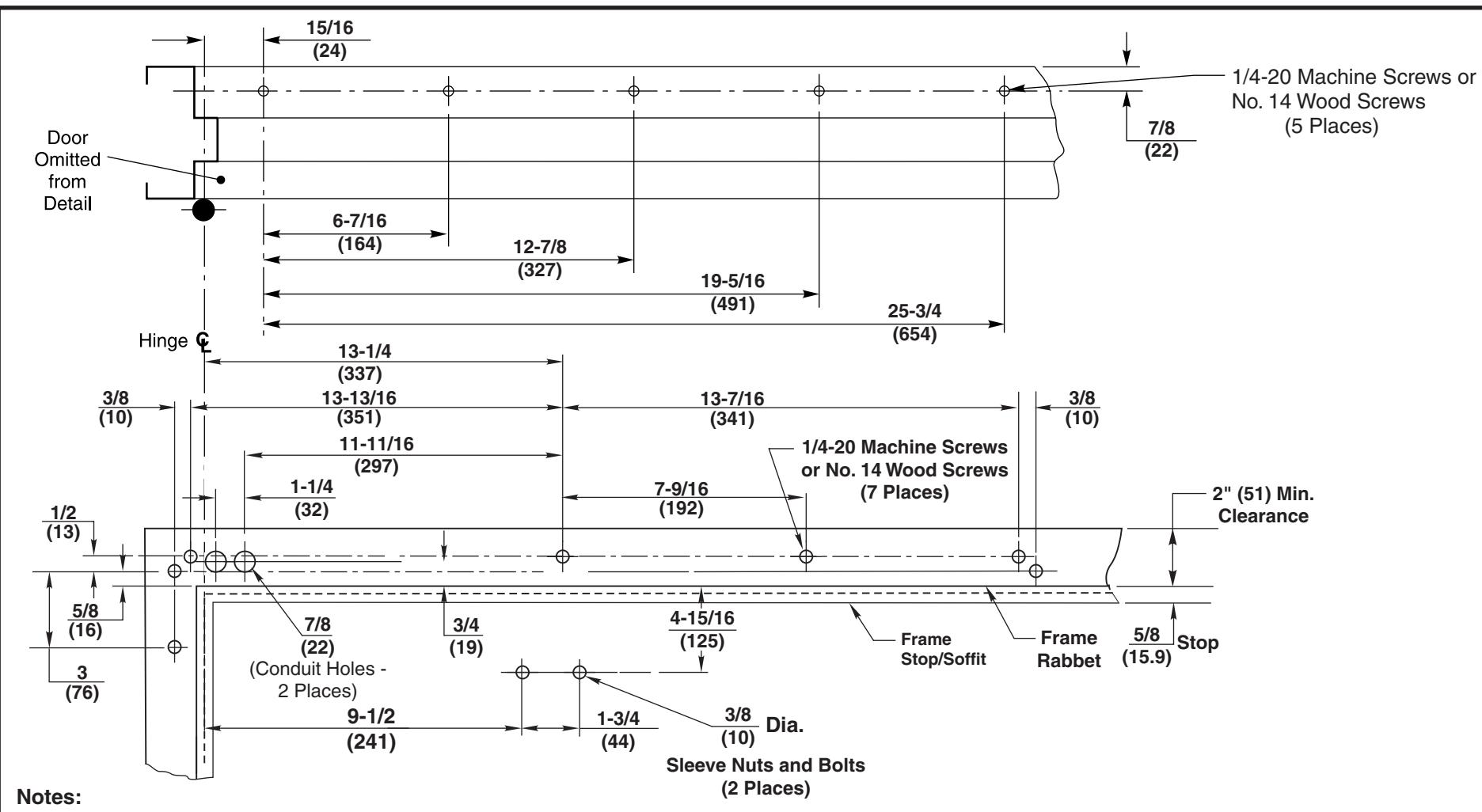

• Do not scale drawing.
• *Left hand door shown for push side.
• * All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal. doors and frames should provide a combined material thickness of .164" (4.2) MIN.
• This template information based upon use of 5" (127) maximum width butt hinges or 3/4" (19) offset pivots.

For door opening up to 180°

5700 Series Lower Energy Operator

Drop Application for Stop (Push) Side of Door Installation 5700DAB-180

RIXSON ASSA ABLOY

TEMPLATE NUMBER |7357-0001|2 of 2|

| 2 |02/22

Approved 2023-07-28
