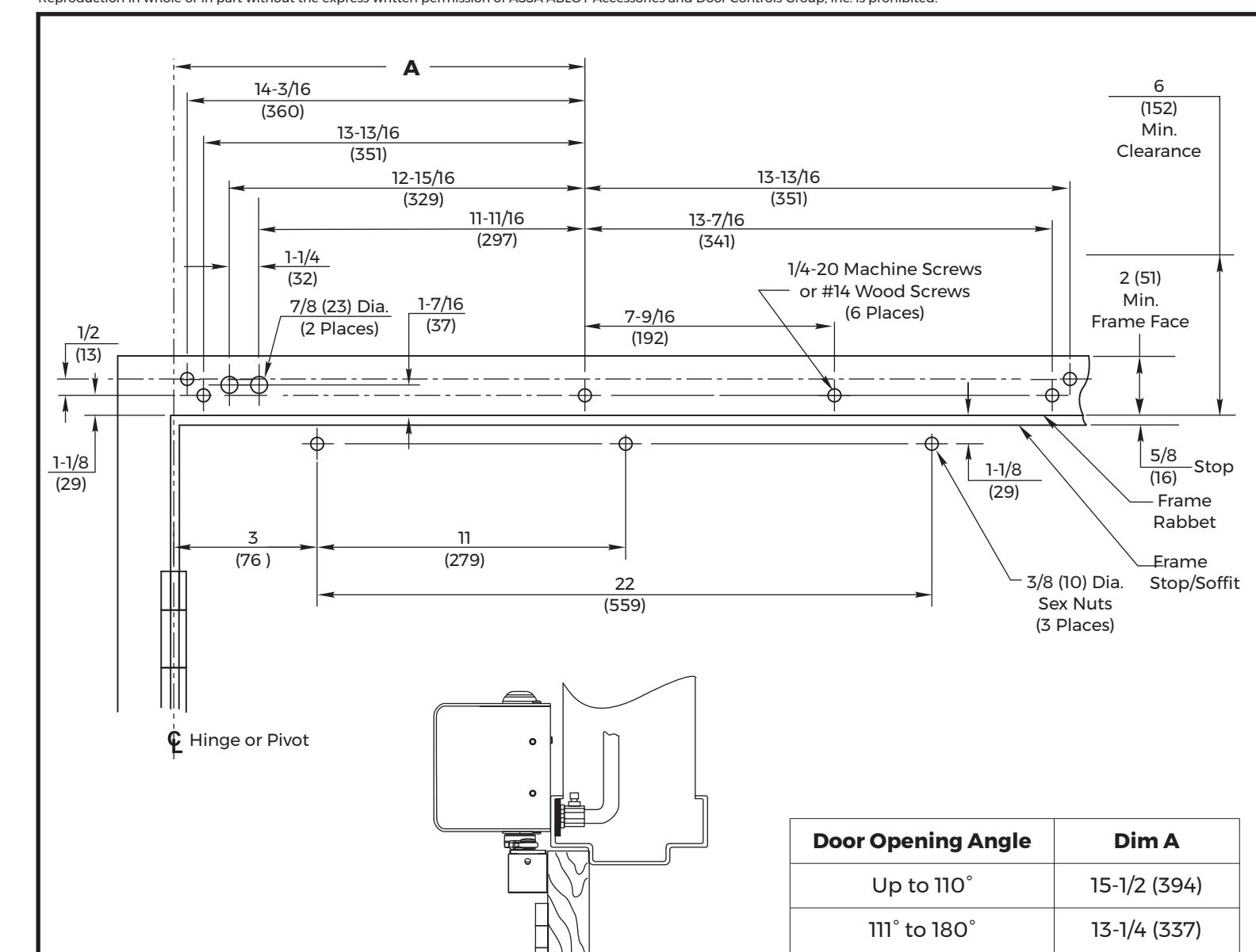

Norton Rixson 5700 Series Operator, 5710, Adjustable Arm, Slide Track, Pull Side Template_7357-0110

NOTES:

• · Do not scale drawing.
• Right hand door shown from Pull side...
• All dimensions given in inches (mm).
• Maximum frame reveal is 1/8" (3mm) for this application.
• Thickness recommended for reinforcements in hollow metal doors and frames should provide a combined material thickness of .064" (4.2mm) Min.
• This template information based upon use of 5" (127mm) maximum width butt hinges or 3/4" (19mm) offset pivots. A separate template is required for other conditions.
• Conduit hole nearest hinge is suggested for 120 VAC power input.
• Door must be visible by person operating activation switch(es).
• Installation Instruction document number 80-9357-0008-020, available for download from nortonrixson.com.

Series 5710 - Door Openings 85° to 110° or 111° to 180° Adjustable Arm and Slide Track Application Maximum Hinge Side Frame Reveal to 1/8" (3mm) Hinge (Pull) Side of Door Installation Approved 2024-02-13

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7357-0110

REV DAT

01/24
