564/565 Push Button Kit

Wiring Instructions for 5600, 5700, 6000 and 6300 Power Operators

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

Pour la version francaise voir www.nortondoorcontrols.com. READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

Operation:

• Door is normally closed.
• Activating wireless switch or hand held wireless transmitter will open door.
• Door will close after hold open time delay has elapsed.

NOTE:

• 1. Power input to Door Operator Unit is at "T1" Power Input Terminal (not shown) 120VAC 60Hz.
• 2. Door must be visible by person operating activation switch(es).
• 3. Current draw at Power Outputs not to exceed 1.3 amps.

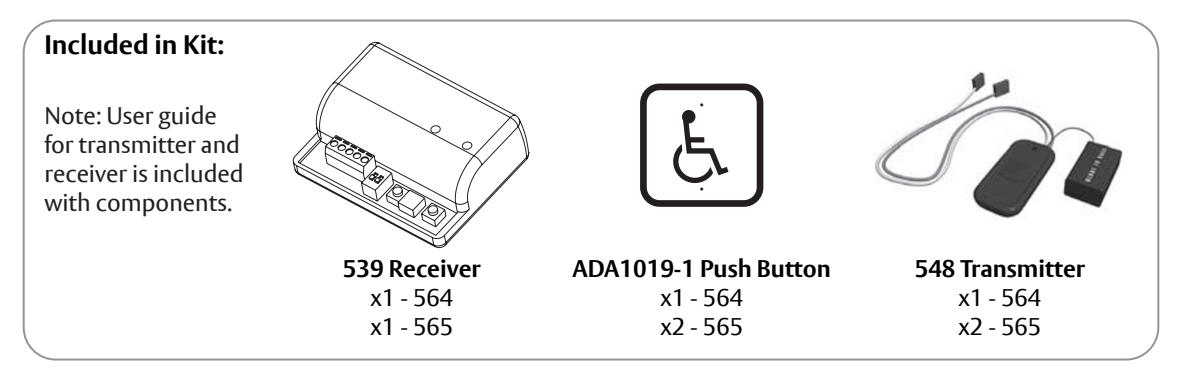

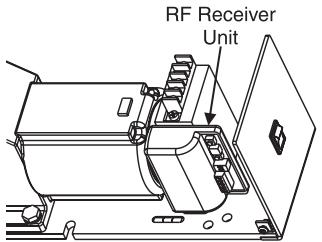

Example installation of RF receiver:

• Position supplied hook and loop fastener onto back of receiver. Remove protective film.
• Press receiver onto inside of end cap or where space will allow with green wire toward conduit hole.
• Refer to specific section to wire.

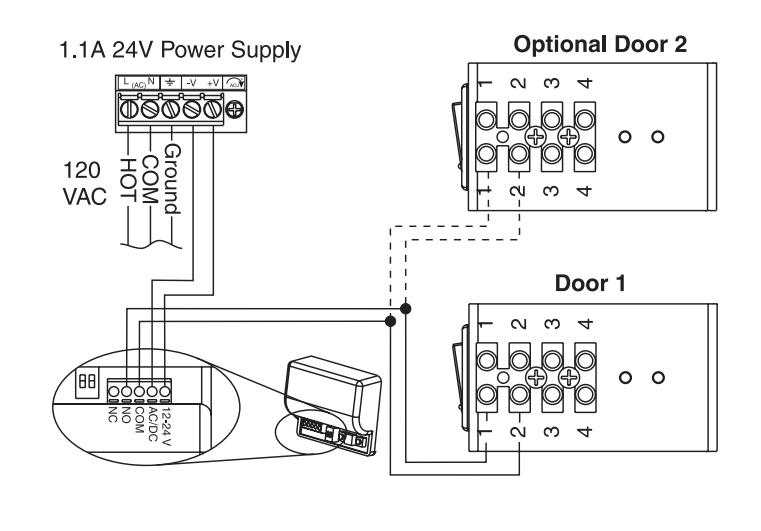

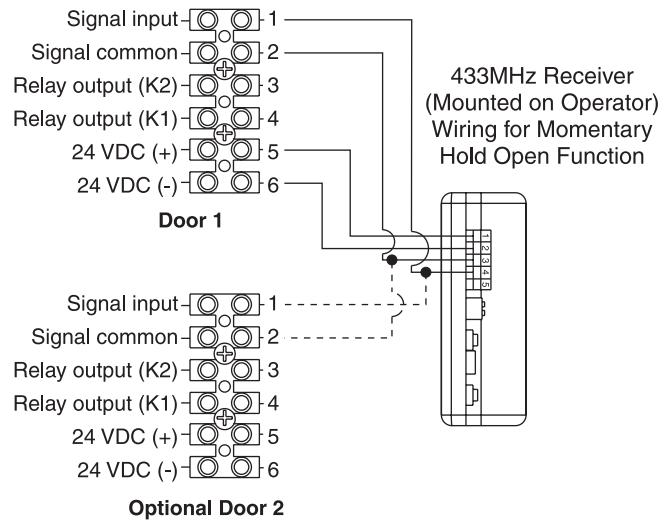

5600 Power Operators: 5700 Power Operators:

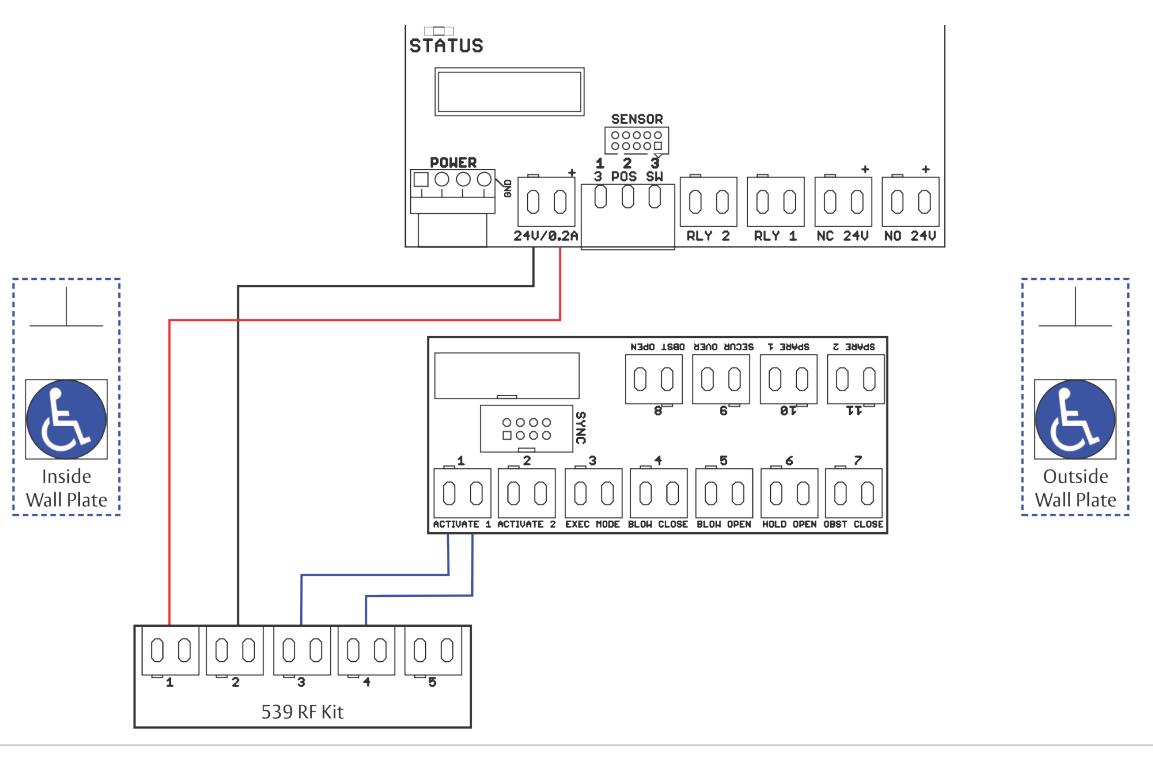

6000 Power Operators:

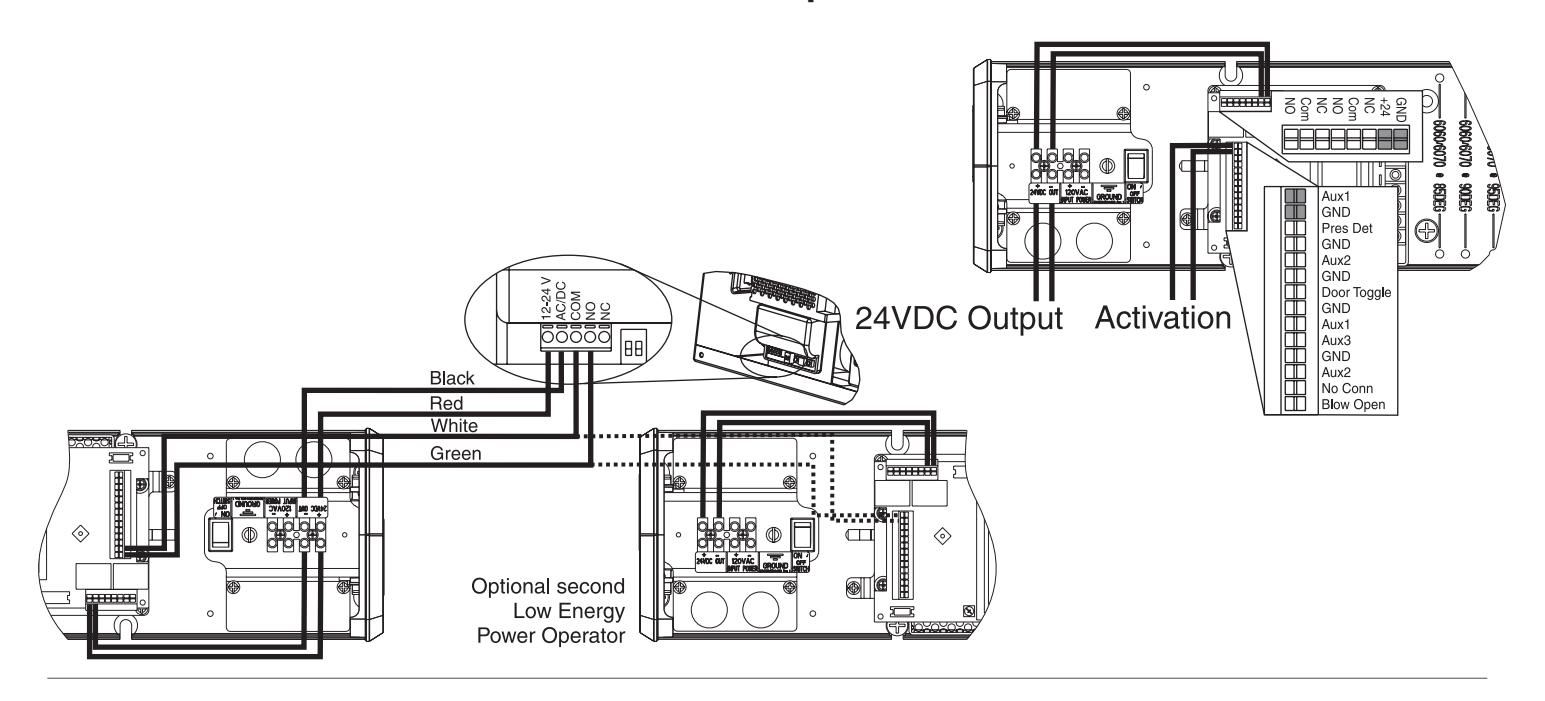

6300 Power Operators:

Norton Technical Product Support: Monroe, NC 28112 USA Phone: 800.438.1951 ext: 6030 TechSupport.Norton@assaabloy.com nortondoorcontrols.com
