5500 SERIES LOW ENERGY DOOR OPERATOR

Norton's 5500 Series is a budget-conscious option for upgrading doors to comply with building codes requiring handicapped accessibility. Compatible with Wave-to-Open switches for a completely touchless door opening solution to reduce transmission of harmful germs. The 5500 Series is one of the only fire rated, hydraulic door operators available today.

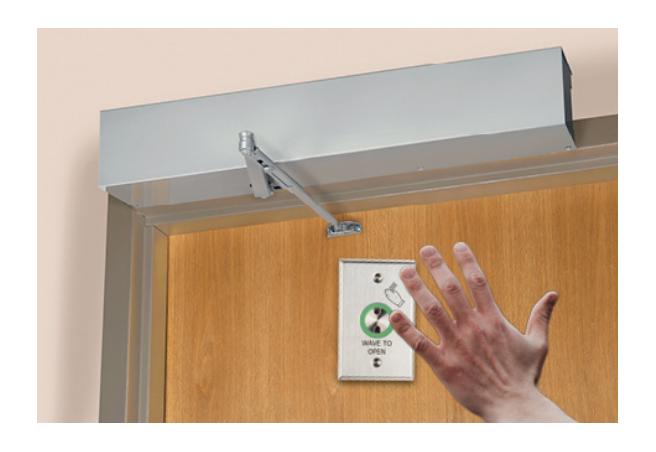

When coupled with a Wave-to-Open switch, the 5500 Series door operator delivers an easy solution for touchless door operation for a large variety of swing doors.

FEATURES & FUNCTIONS

• » Non-Handed
• » Push or Pull Side Mounting
• » Maximum Door Weight: 250 lbs
• » Obstruction Detection
• » Backcheck Standard
• » Use with Actuation Devices: Push Buttons, RF and Wave-to-Open Switch
• » Integration with Access Control Systems
• » 2-year warranty

REGULATORY

• » ADA
• » BHMA Certified to A156.19
• » Meets A156.4 for door closer
• » Meets UBC 7.2 (1997) and UL10C Positive Pressure Requirements
• » Conforms to ANSI/UL 325

KEY BENEFITS

• » Low cost automatic door operator
• » Compliant solution for stringent ADA requirements
• » Certified for fire rated doors
• » Part of a larger continuum of operators
• » Pair with wave-to-open switches for touchless operation
• » New smaller footprint for minimal aesthetics and tighter spaces
• » Comprises hydraulic closer to ensure quiet function and smooth operation when opened manually
• » One of the only fire rated, hydraulic operators available
• » Easy, one-person installation with parts packaged preinstalled on backplate

APPLICATIONS

• » Low to moderate door traffic
• » Fire Rated Openings

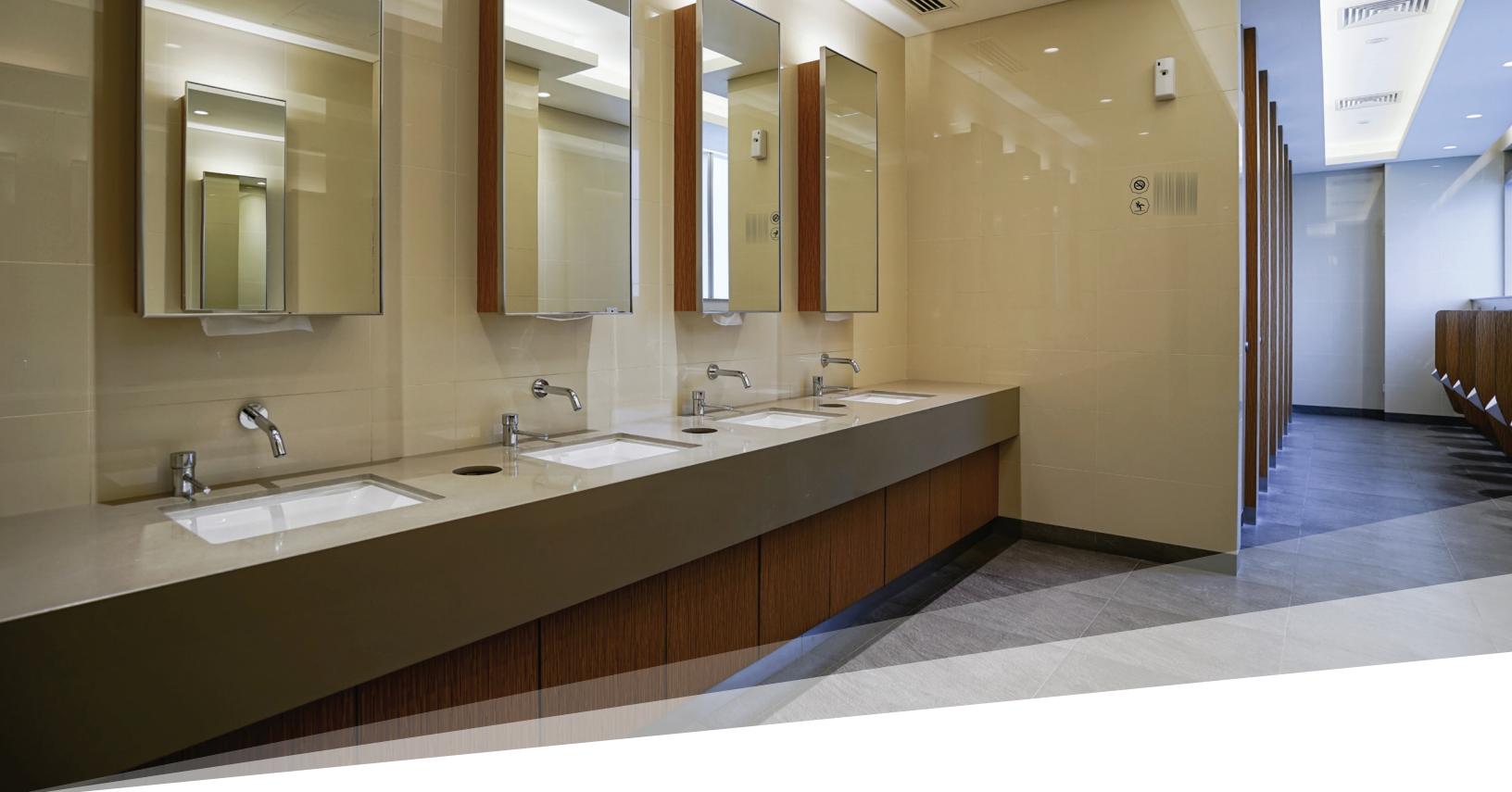

• » Ideal for bathrooms, stairways, offices & storefront doors

For more information go to www.nortondoorcontrols.com/en/products/power-operators/5500-series

Since 1880, Norton door controls have been an integral part of schools, hospitals and businesses around the globe. When you need products and people that perform at the highest level, rely on Norton – From Open to Close.
