Norton Rixson 547 Pivot Set, 3, 4 Offset, Use with Arch Top Doors or Overhead Concealed Closers Template_PS30550

Open the original PDF document

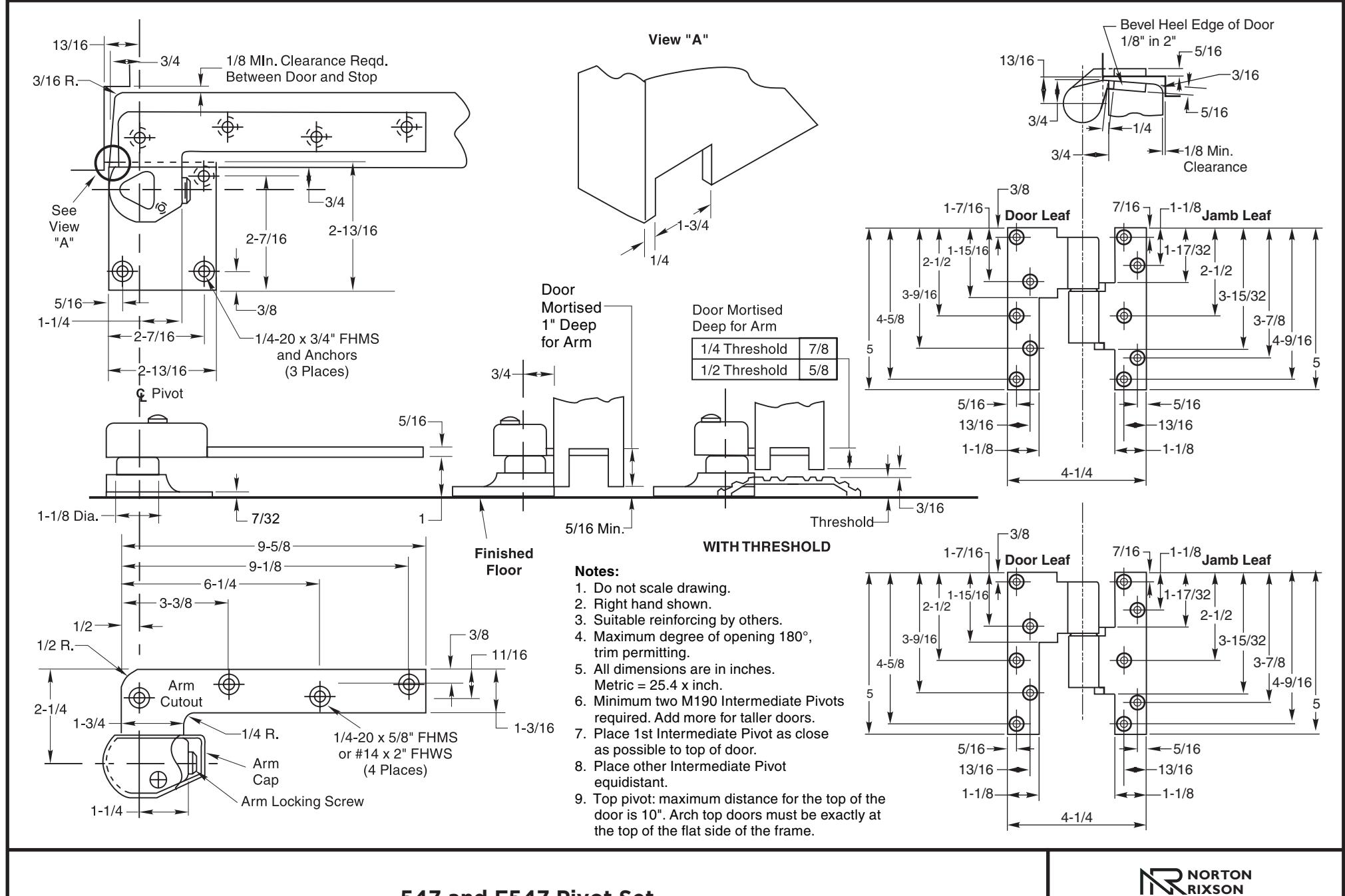

547 and F547 Pivot Set 3/4" Offset For Use With Arch Top Doors Or Overhead Concealed Closers

ASSA ABLOY

TEMPLATE NUMBER PS30550

3 01/22
