Low Energy Operator Single and Double Door Options

RIXSON

523 Flatscan Sensors Wiring Instructions

ASSA ABLOY

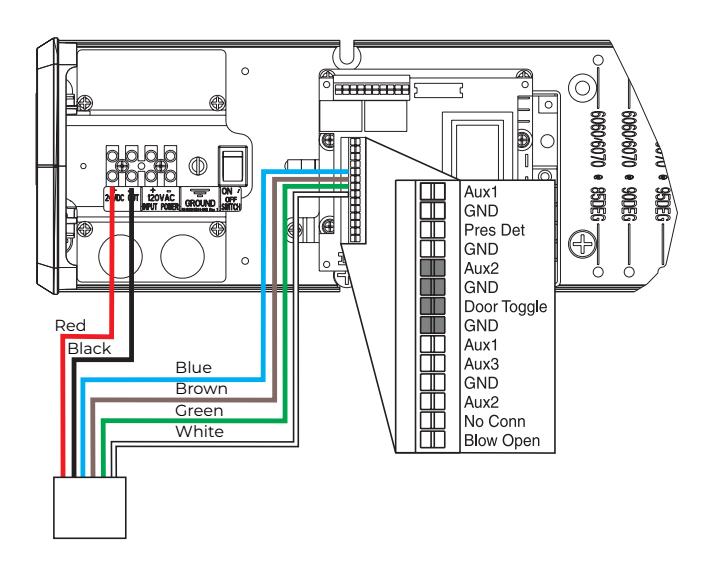

6000 Series with 523 Kit

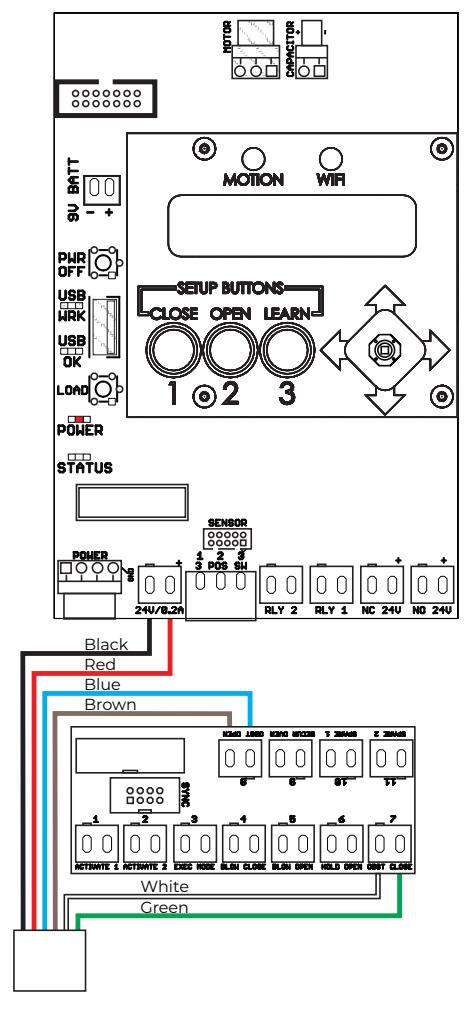

6300 Series with 523 Kit

NOTE:

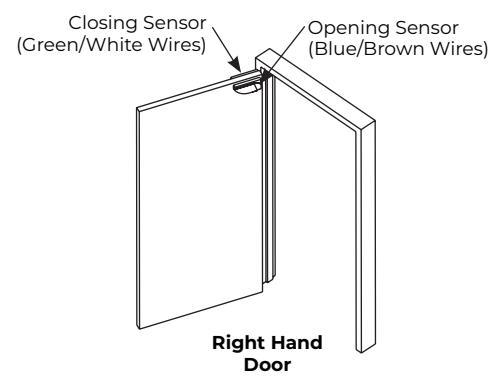

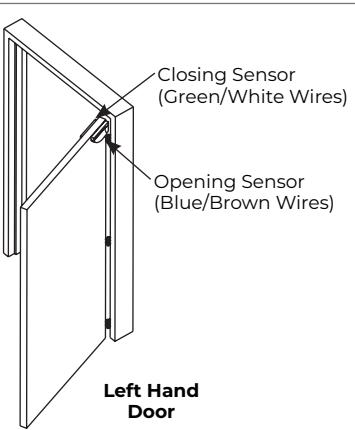

Locations of LZR Flatscans can be reversed on 6000 Series Single Door applications. To reverse:

• Reverse Blue/Brown wires
• Reverse Green/White wires

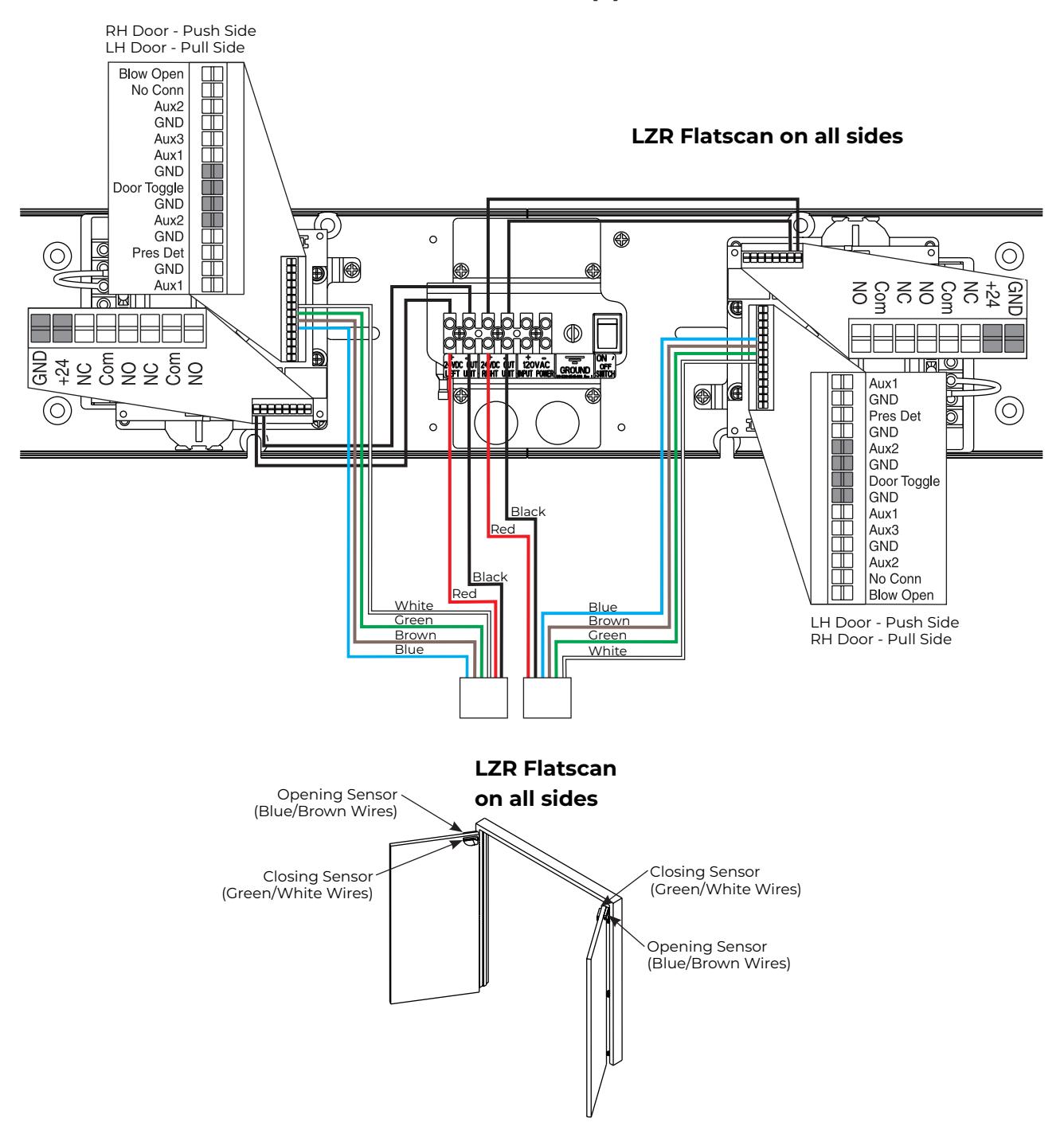

D6000 Series with (2) 523 Kits

Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
