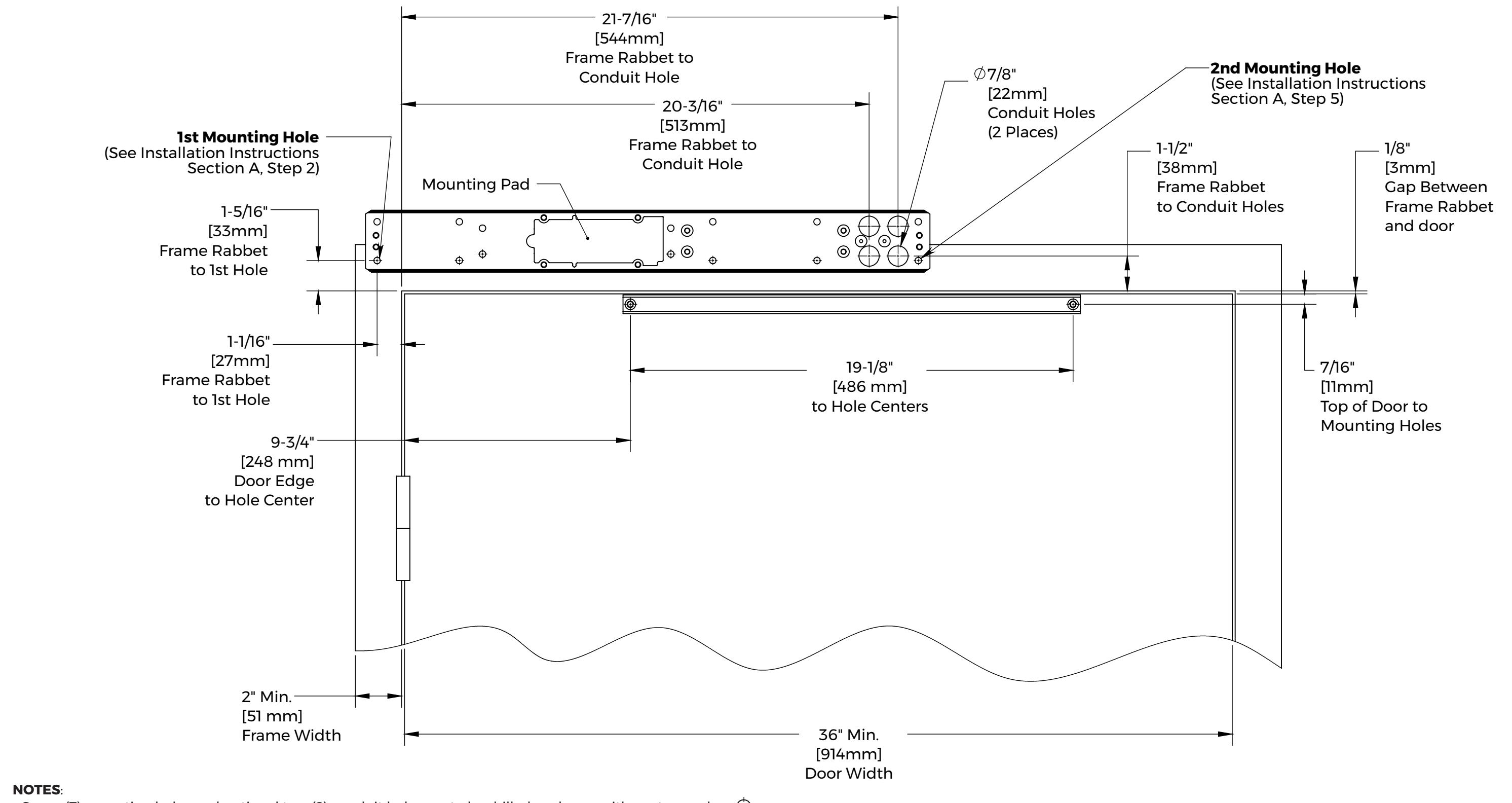

- Seven (7) mounting holes and optional two (2) conduit holes are to be drilled as shown with center marks.
- Dimensions are given in inches (") and millimeters [mm].
- Installation Instruction document number 80-9352-0023-020, available for download from www.nortonrixson.com.
5200 Series Operator Model 5211 Pull Side Installation 36-48" Door Width, 90-200 lb. Door Weight 120° Max Open Angle Approved 2024-04-01
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER 7352-0001
2 03/24
