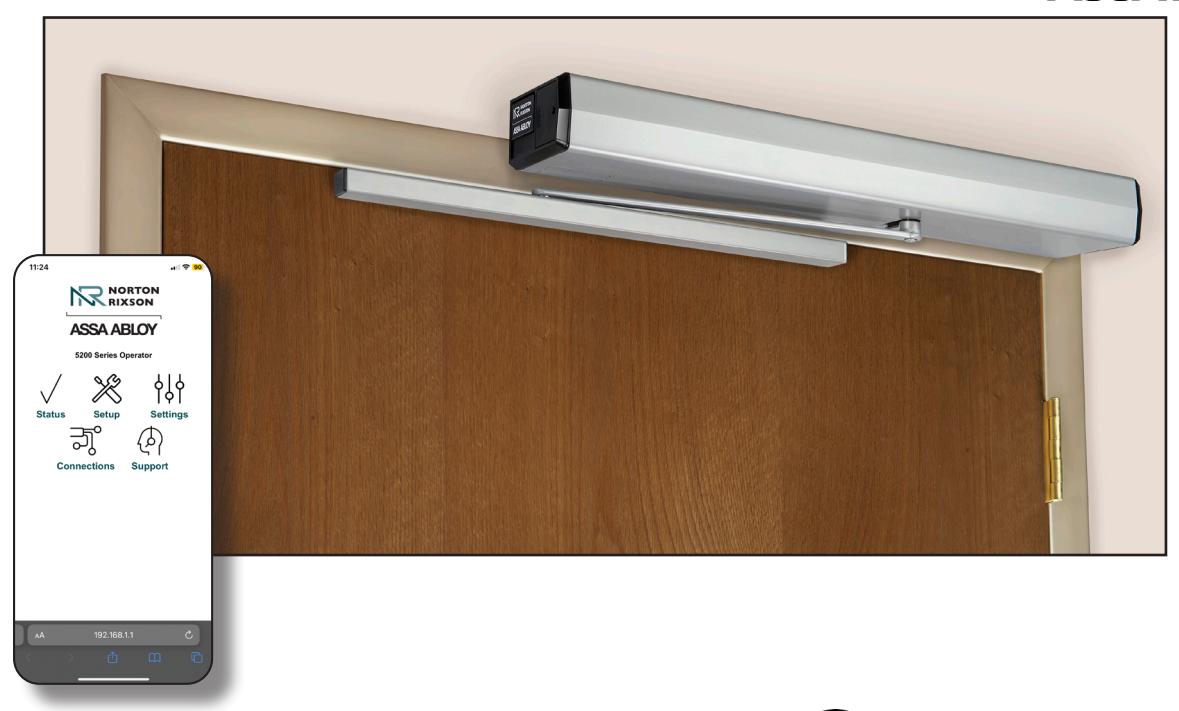

5200 Series Full Feature Low Energy Operator

Approved 2024-05-02

Regulatory Information

FCC:

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the use is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning:

Changes or modifications to this device may void the user's authority to operate the equipment.

Industry Canada:

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.

Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement.

Declaración de México:

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

Turn On Operator WiFi

Connecting to the Wireless Network

1 Open WiFi network on your smart device

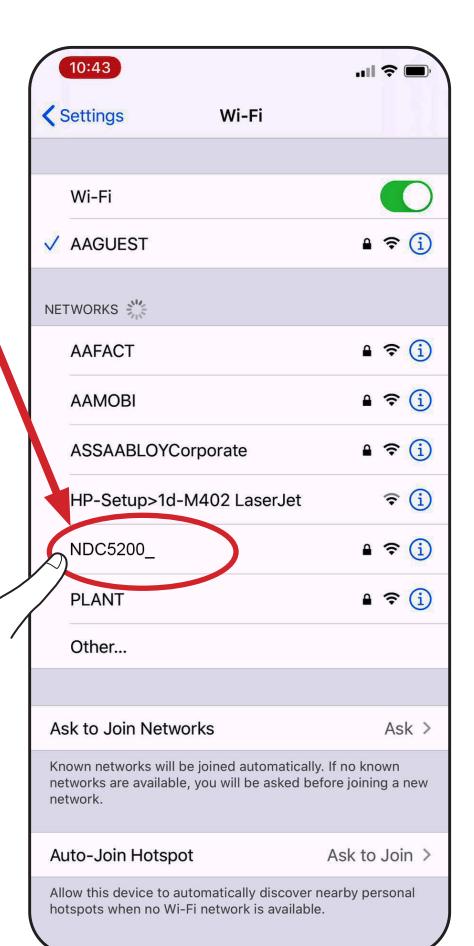

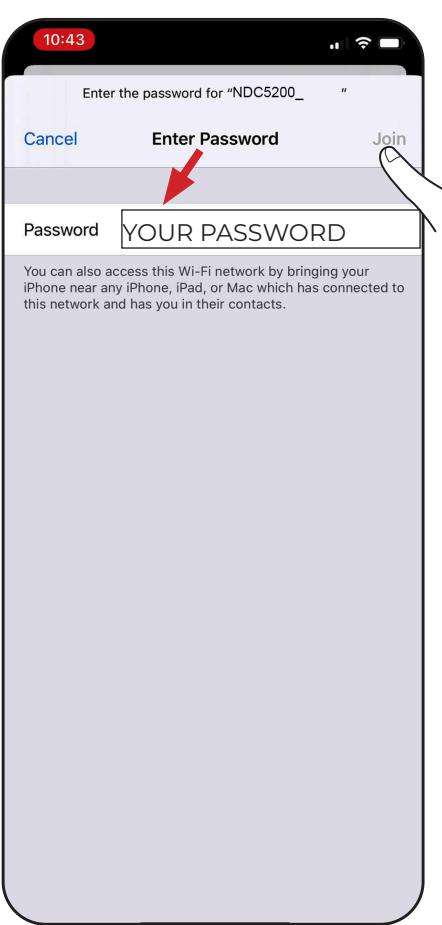

Select the operator's unique WiFi network NDC5200_ YOUR SERIAL NUMBER

or

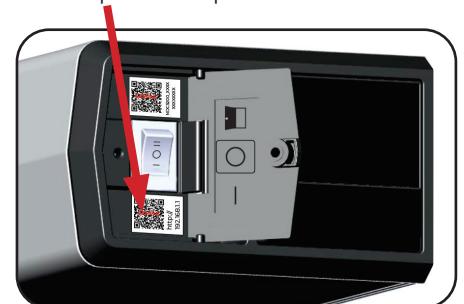

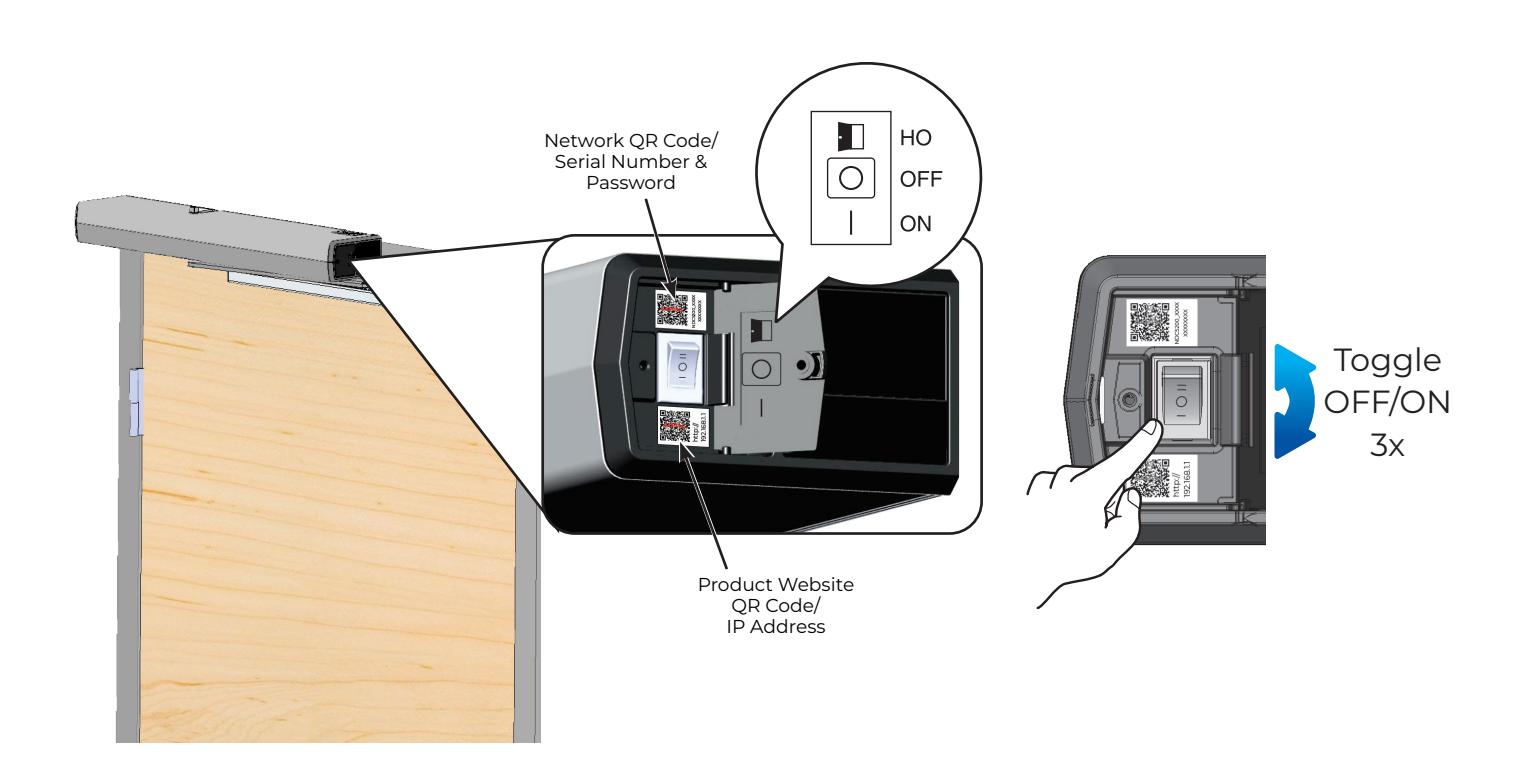

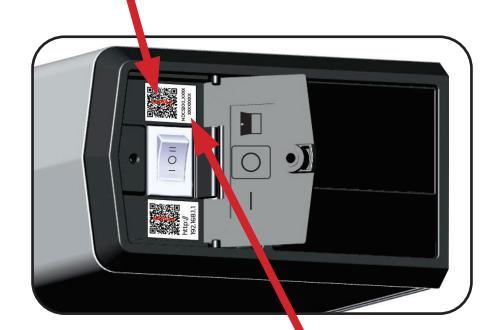

Use the camera application on your smart device to scan the Network QR Code located on the end cap of the operator to connect to the product's WiFi network.

Serial number and Password

Connecting to the Wireless Network

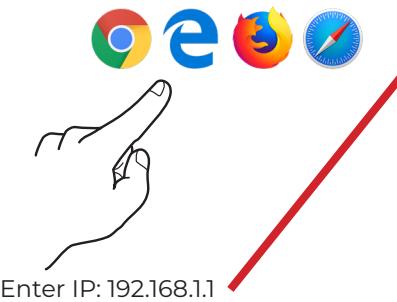

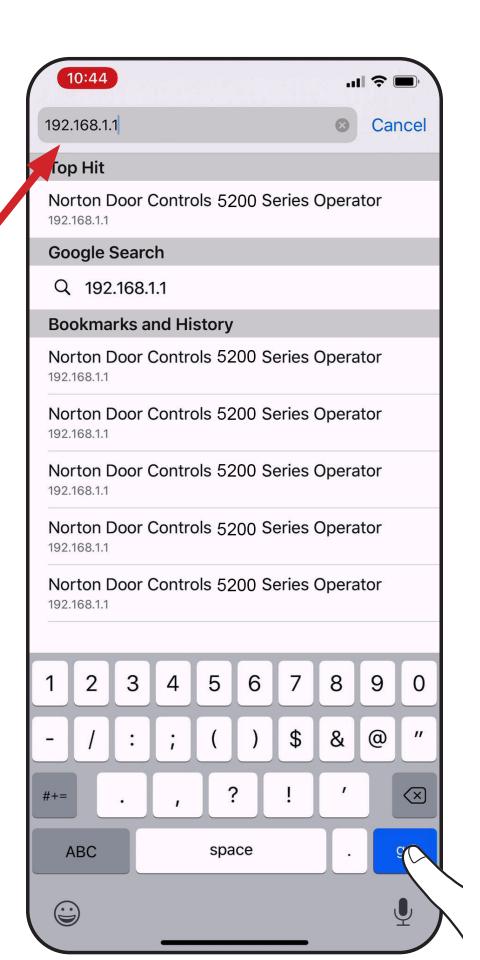

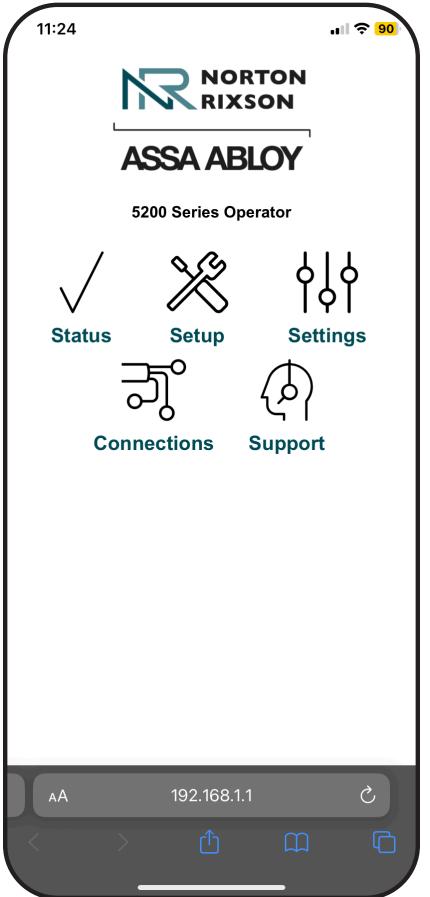

2 Open Internet Browser

or

Use the camera application on your smart device to scan the Product Website QR Code located on the end cap of the operator.

Approved 2024-05-02

Setup

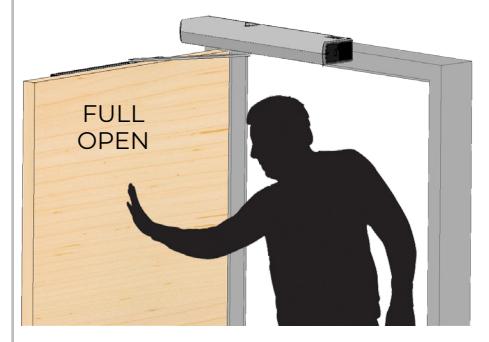

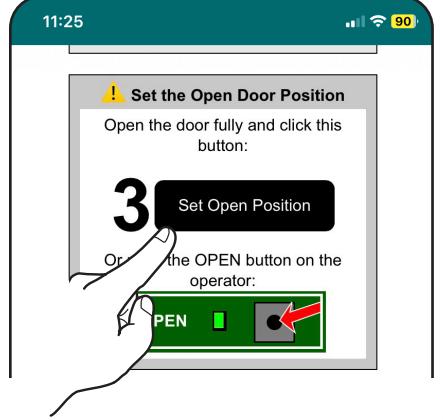

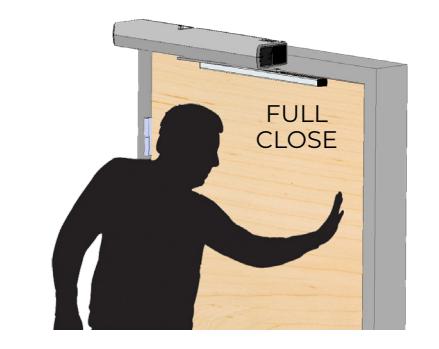

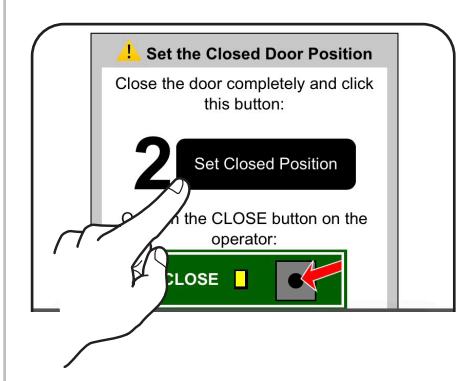

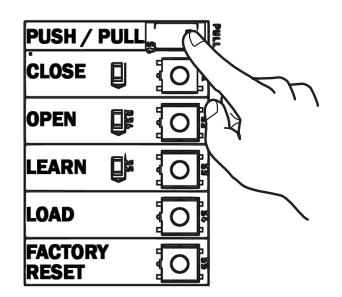

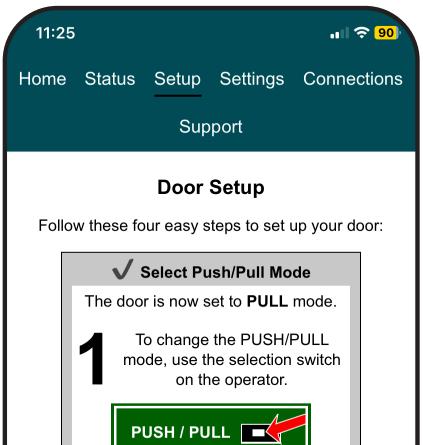

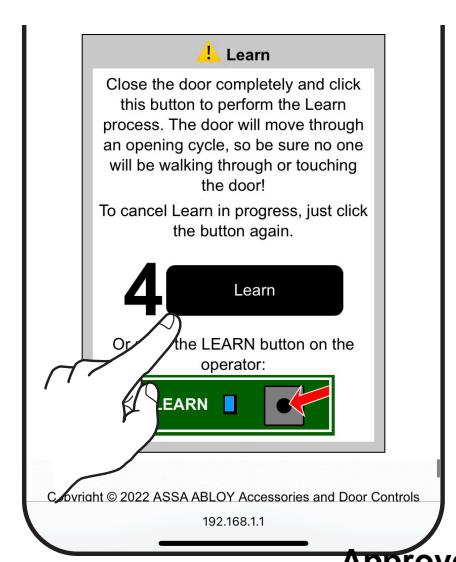

Select arm type on control board.

Approved 2024-05-02

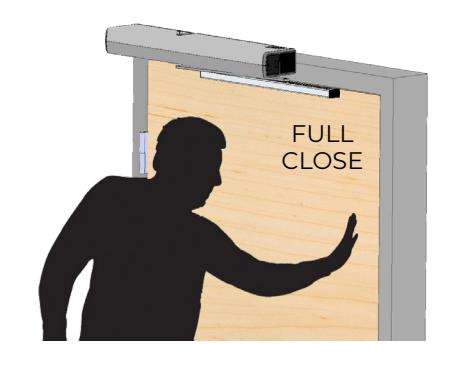

Setup

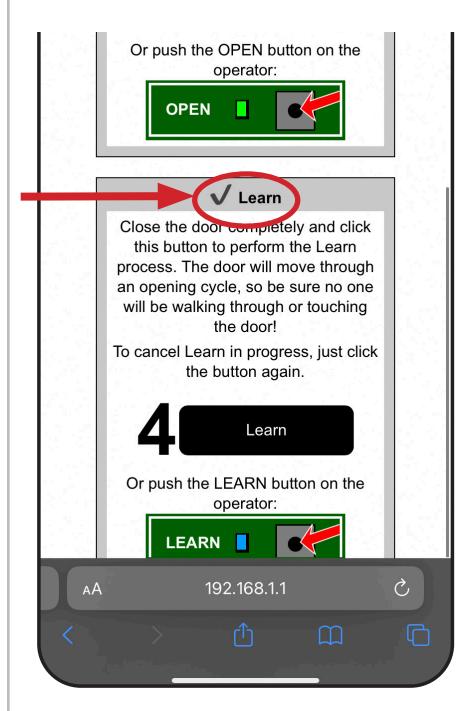

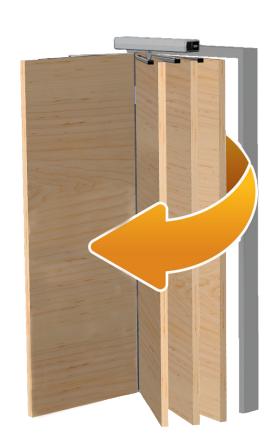

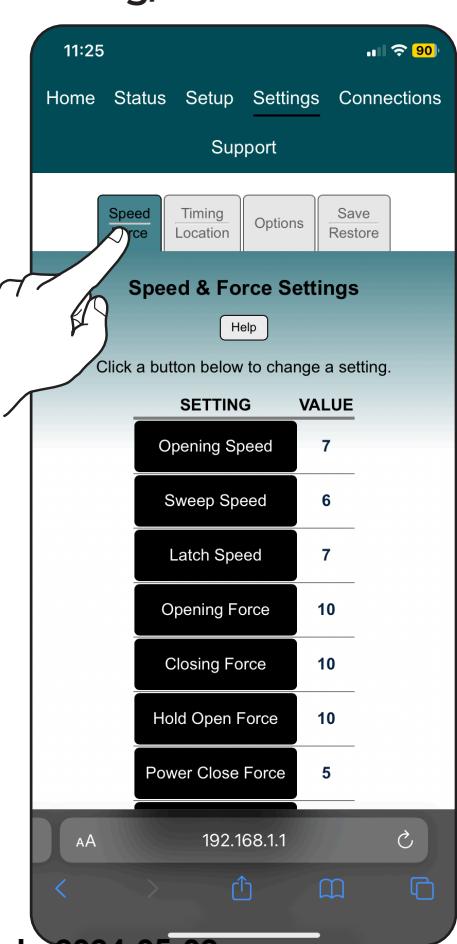

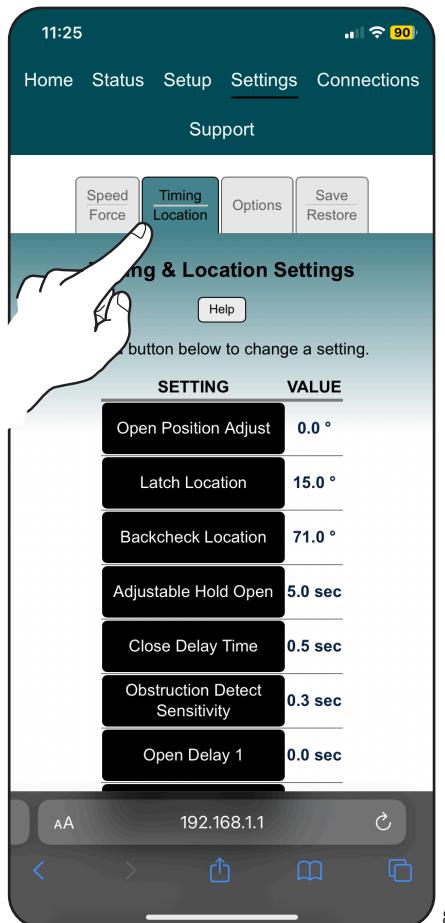

Settings: Speed/Force & Timing/Location

Speed/Force and Timing/Location settings must be adjusted to meet ANSI BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) requirements for opening and closing based on door weight and width.

Setup complete! The following pages are for additional information.

Approved 2024-05-02

8

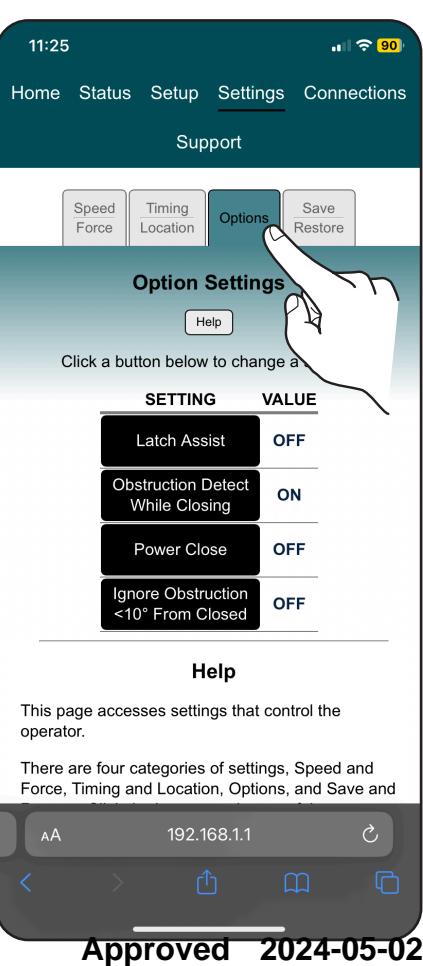

Settings: Options

Settings: Options and Connections vary by application.

You can skip these sections if you do not need to customize control of your operator.

Settings: Save/Restore

Settings: Save/

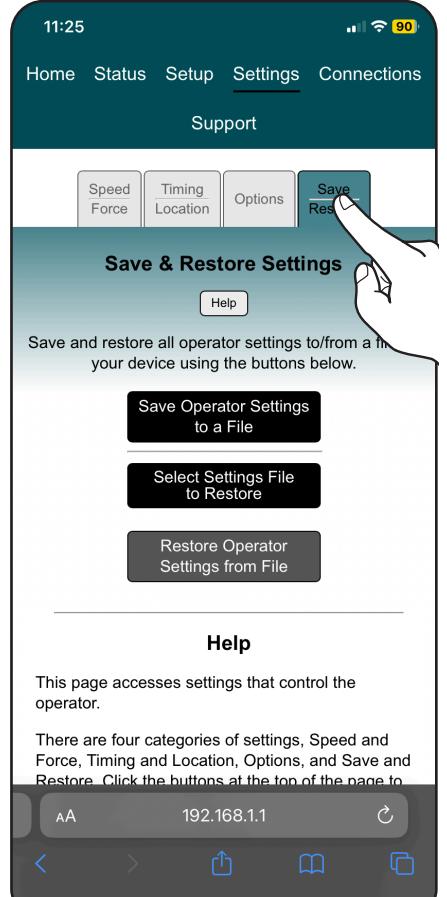

Restore is used to transfer settings to other operators OR to restore customized settings from a saved file.

Setup and settings for this operator are saved as you go through the menus.

See Programming Instructions 80-9352-0022-020 for details.

Connections

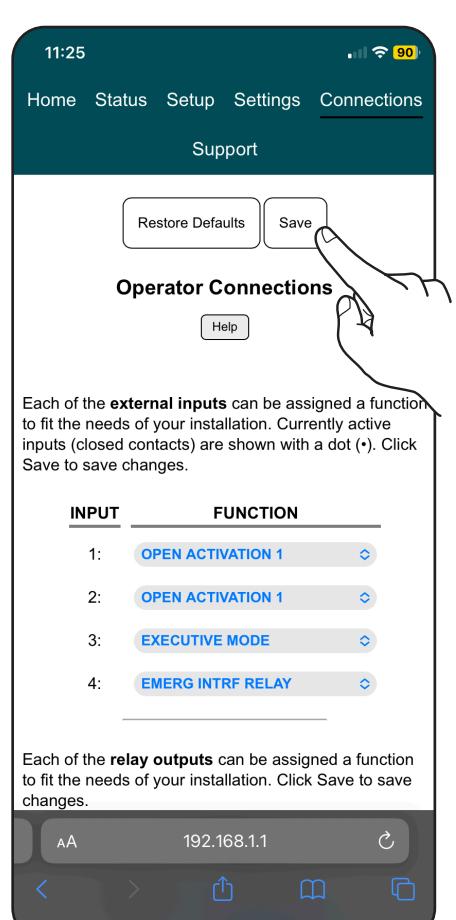

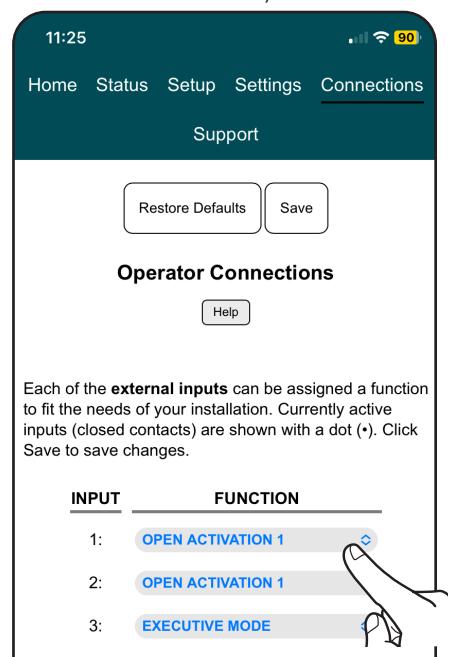

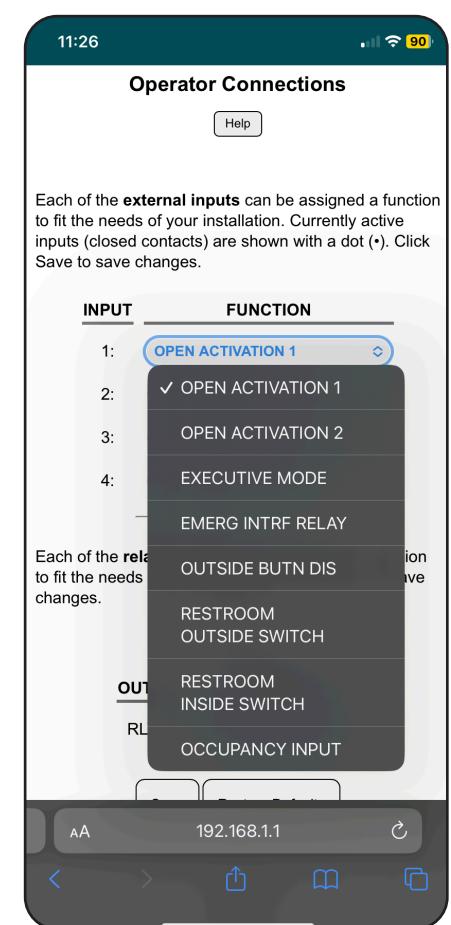

External inputs must be connected. (See separate Programming Instructions 80-9352-0022-020 for details.)

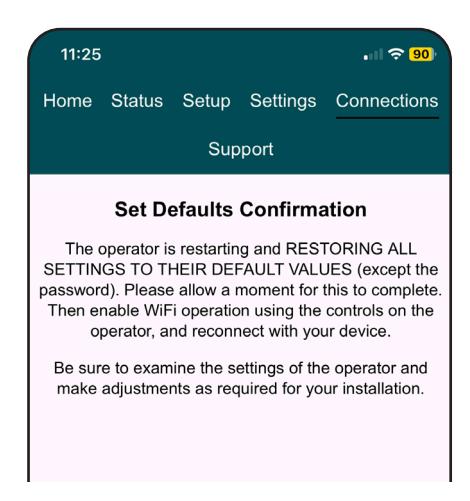

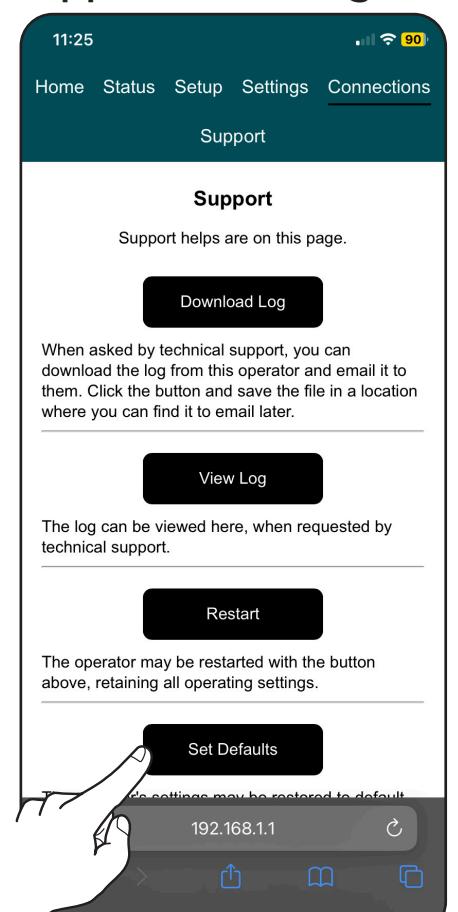

Support: Restoring Factory Default Settings

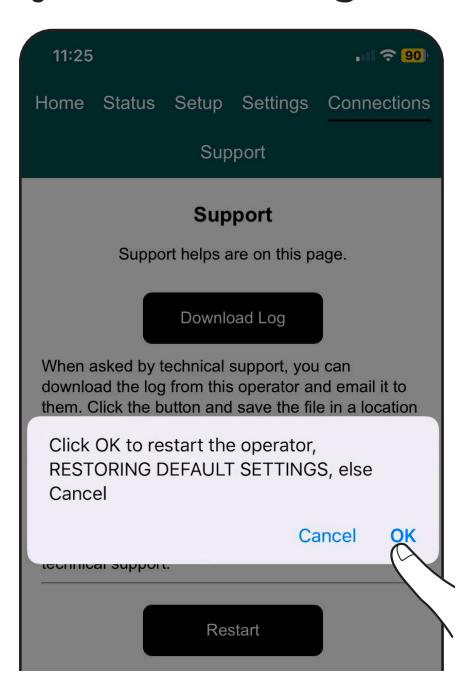

All settings will reset to nortonrixson.com factory default.

For full programming instructions and wiring diagrams, refer to Programming Manual 80-9352-0022-020 included with your operator or online at

Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2 Techsupport.NortonRixson@assaabloy.com NortonRixson.com
