Norton Rixson 480 Top Pivot, 3, 4 Offset, Full Surface Template_TP40400

Open the original PDF document

Notes:

1. Do not scale drawing.
2. Right hand shown.
3. All dimensions are in inches.
4. Template drawing for reference only.

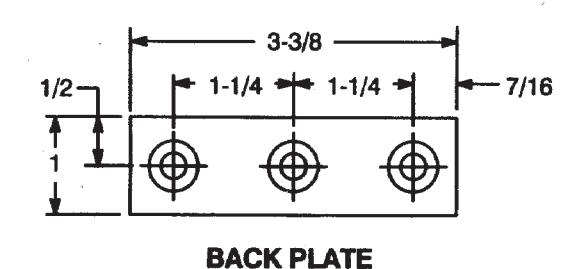

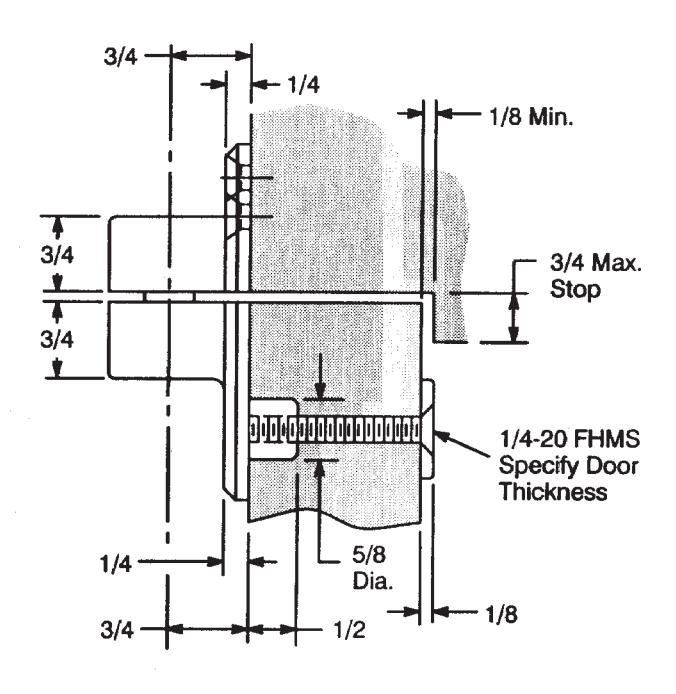

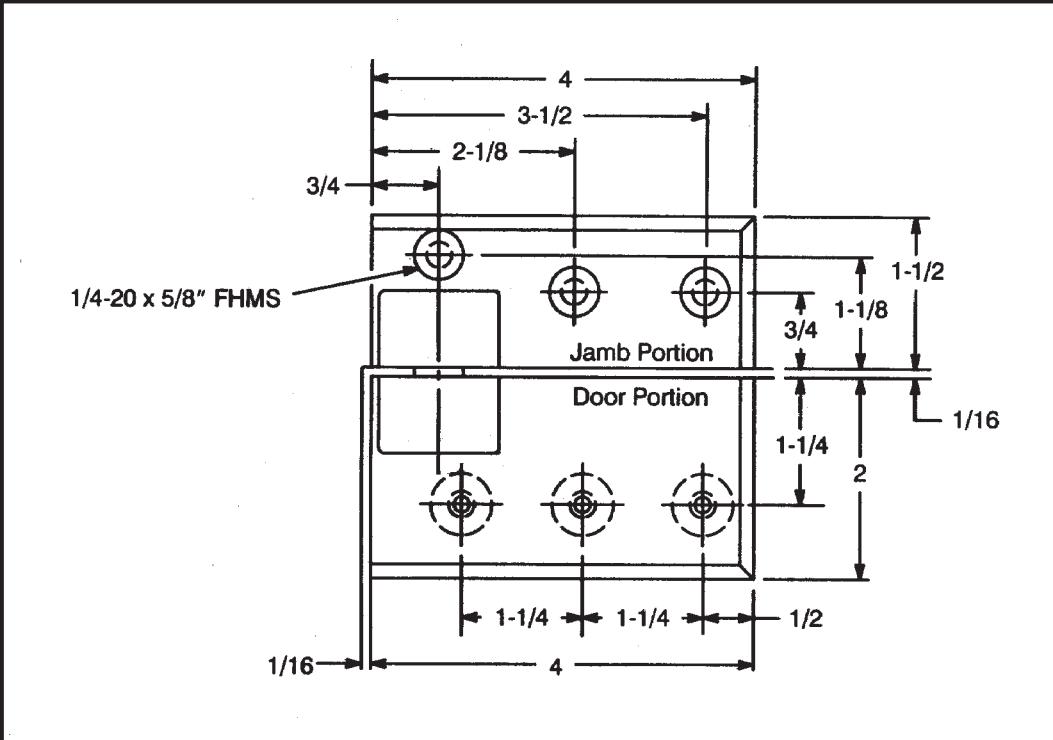

480 Top Pivot 3/4" Offset Full Surface

NORTON RIXSON ASSA ABLOY

ASSA ADLUT

TEMPLATE NUMBER

3 01/22

TP40400 3

Approved 2023-12-15
