NOTES:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Right Hand shown.
• 4. Template drawing for reference only.

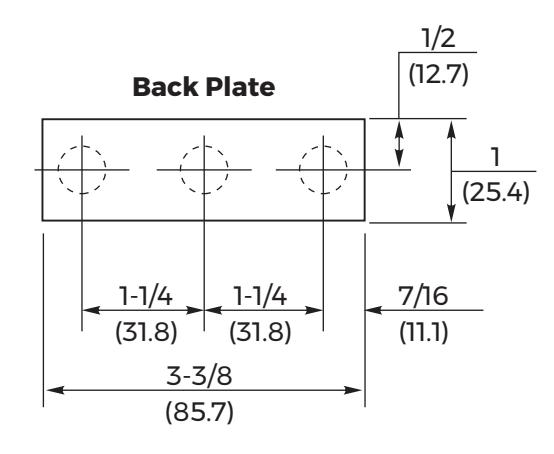

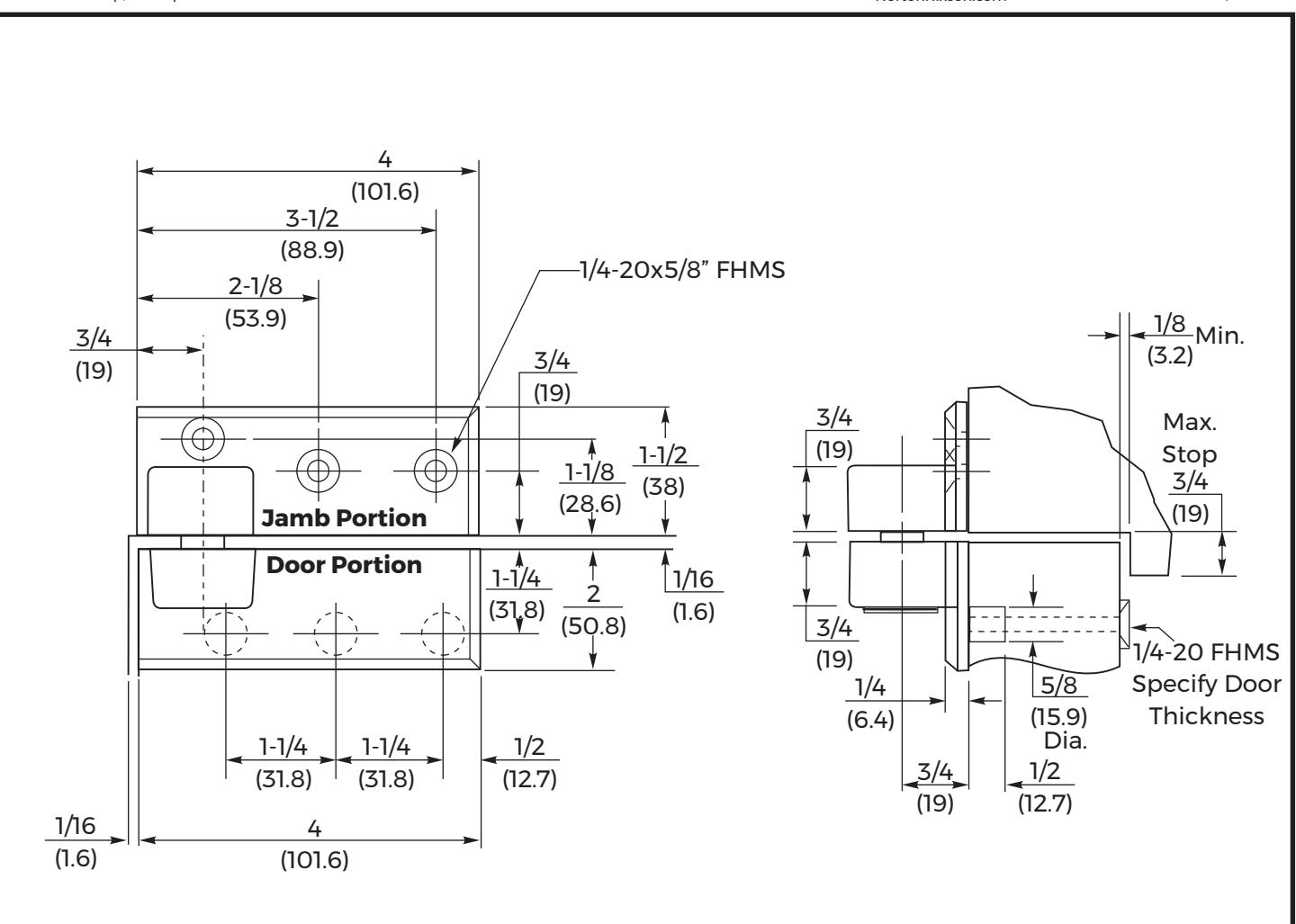

480 Top Pivot

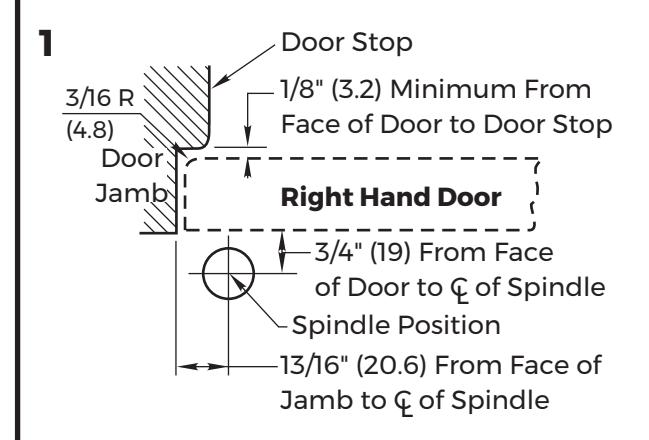

1. Install Pivot

• A. Measure 13/16" (20.6) out from door jamb.
• B. Allow 1/8" (3.2) min. clearance from door stop to door face. Measure door thickness. Add 3/4" (19).
• C. Where lines meet determines center line of closer/bottom pivot.

2

IMPORTANT:

Use plumb line to make sure that center line of top pivot pin lines up with center line of spindle.

Arm Cap

2. Install Top Pivot & Arm

• A. Install top pivot in door per template.
• B. Install top pivot in frame per template.

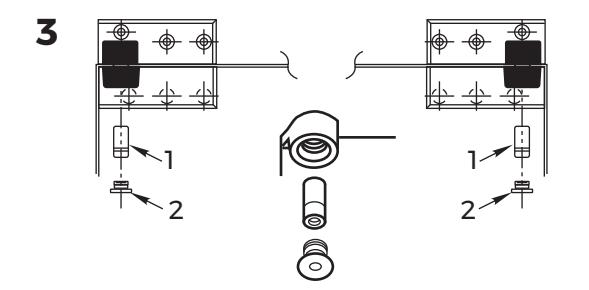

3. Hang Door

• A. Set door on bottom pivot/closer spindle.
• B. Push Item 1 "top pivot pin" into place. Attach "cap" Item 2. CAP MUST BE TIGHTENED SECURELY

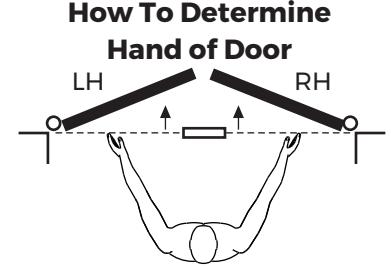

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

480 Top Pivot 3/4" Offset Full Surface Approved 2024-06-06

TEMPLATE NUMBER REV

3 DATE IS-480 05/24
