Norton Rixson 4500 Series Power Operator, Model 4540 Push Side Installation, 90 Max Open Angle Template_80-7345-0001-020

Open the original PDF document

View PDF

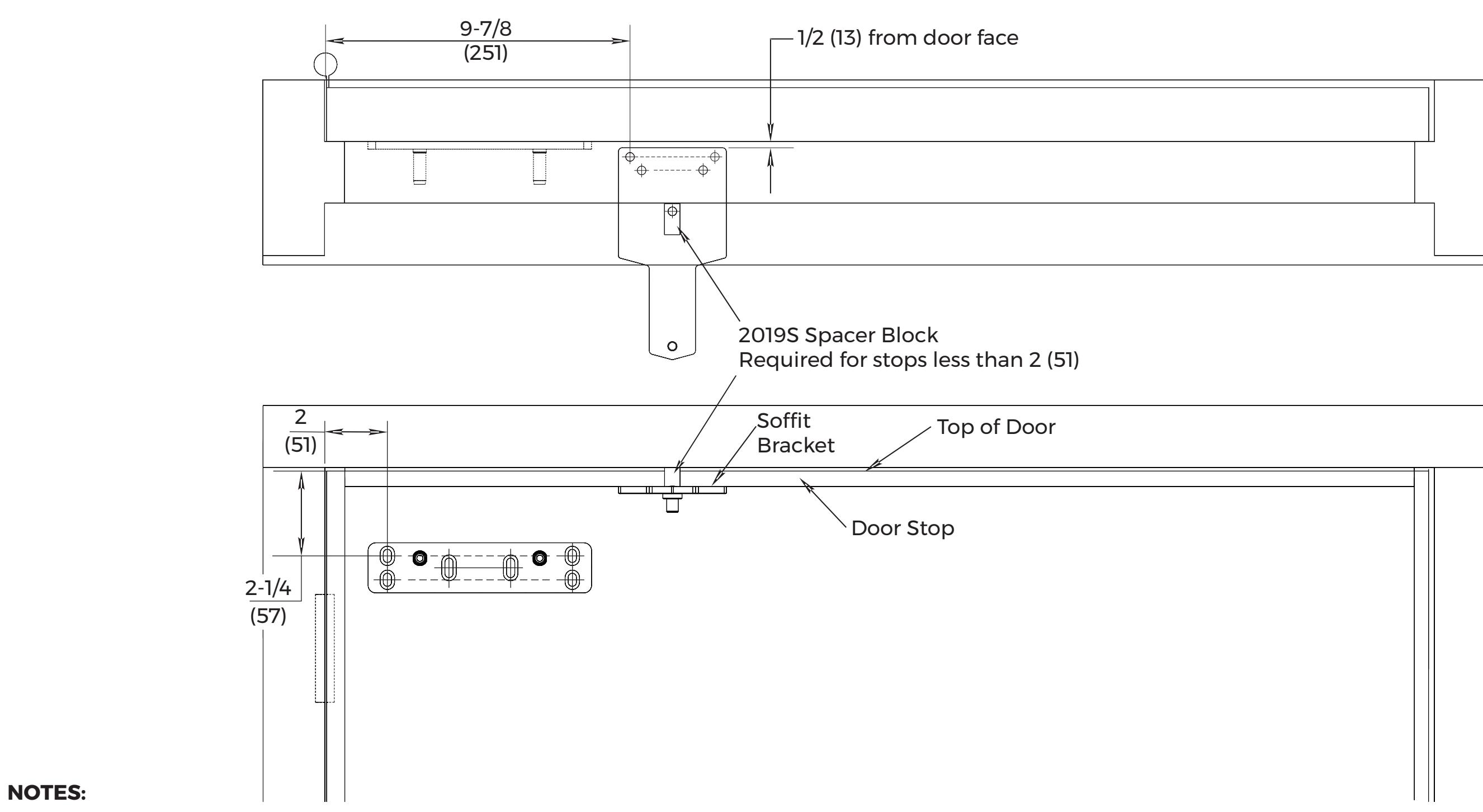

  • Ÿ Left hand shown. Right hand opposite.
  • Ÿ Dimensions are given in inches (millimeters)
  • Ÿ 2019S Spacer Block required for stops less than 2 (51).
  • Ÿ Refer to the installation instructions for additional information.

4500 Series Operator Model 4540 Push Side Installation 90° Max Open Angle Approved 2024-09-04

Installation Instructions

80-7345-0001-020 1 09/24 TEMPLATE NUMBER REV DATE
