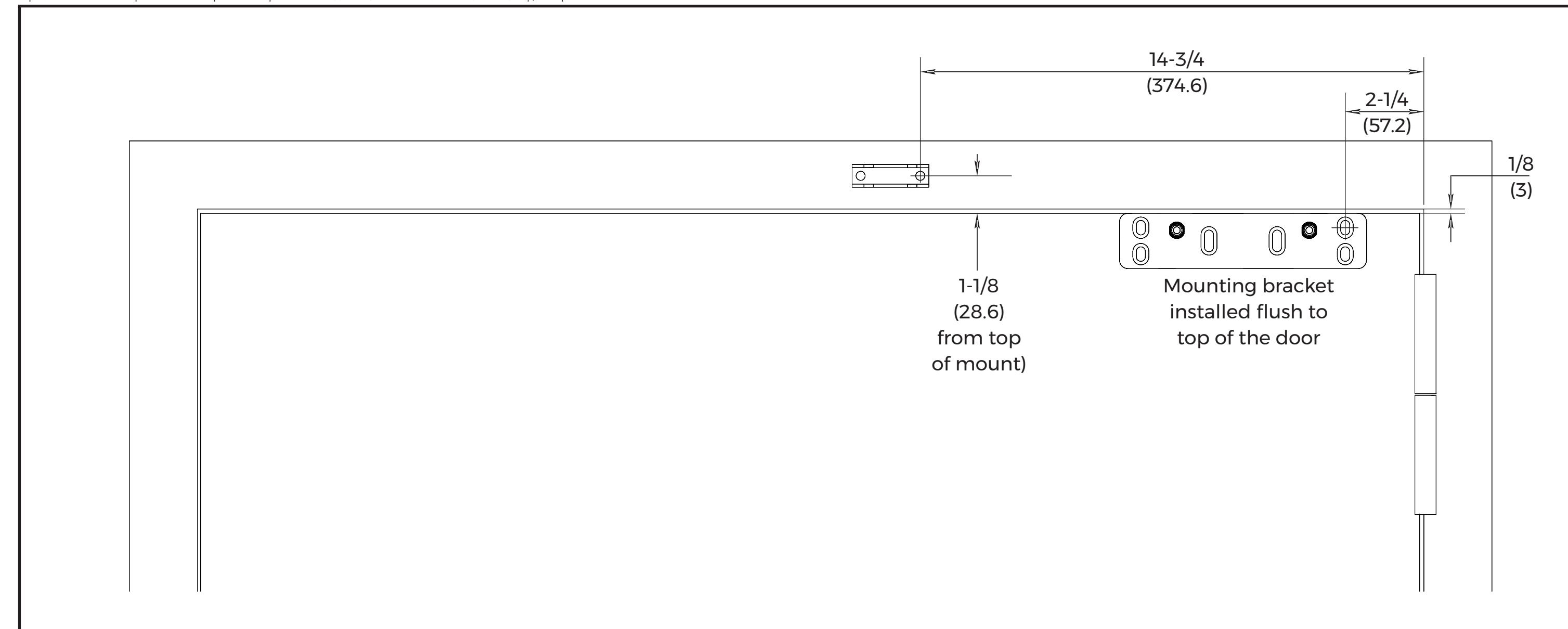

NOTES:
- Ÿ Left hand shown. Right hand opposite.
- Ÿ Dimensions are given in inches (millimeters)
- Ÿ Refer to the installation instructions for additional information.
4500 Series Operator Model 4540 Pull Side Installation 90° Max Open Angle Approved 2024-09-04
TEMPLATE NUMBER REV DATE 80-7345-0002-020 1 09/24
