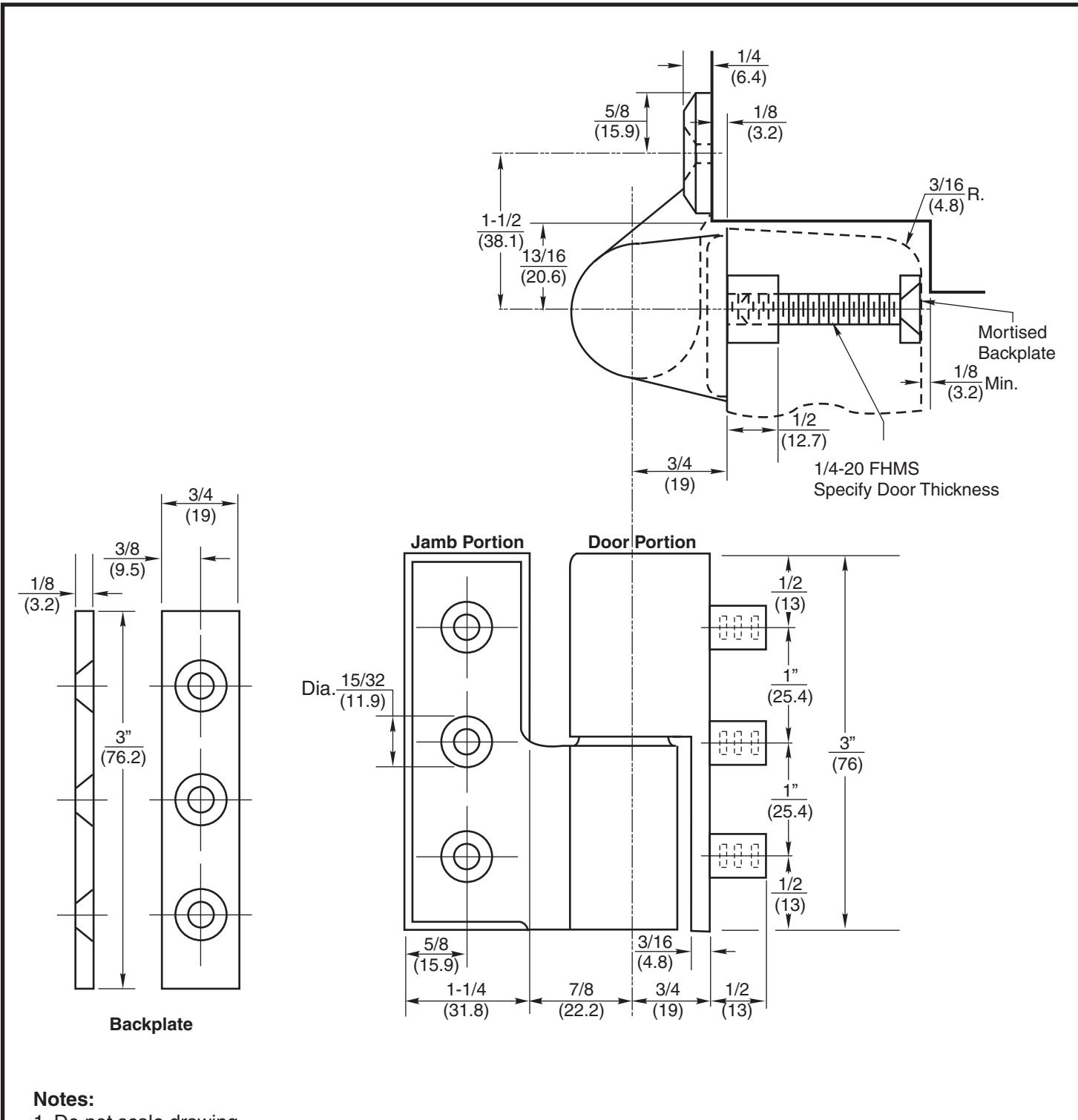

Norton Rixson 419 Intermediate Pivot, 3, 4 Offset, Full Surface Template_IP50400

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 4. Right hand shown.
• 5. All necessary reinforcing for pivot by others.
• 6. Bevel edge of door: 1/8" in 2" (3.2 in 50.8)
• 7. Jamb portion drilled for 5/8" x 1/4-20 FHMS or 1-1/2" #14 FHWS.

419 Intermediate Pivot 3/4" Offset Full Surface

TEMPLATE NUMBER IP50400

3 01/22

Approved 2023-12-15
