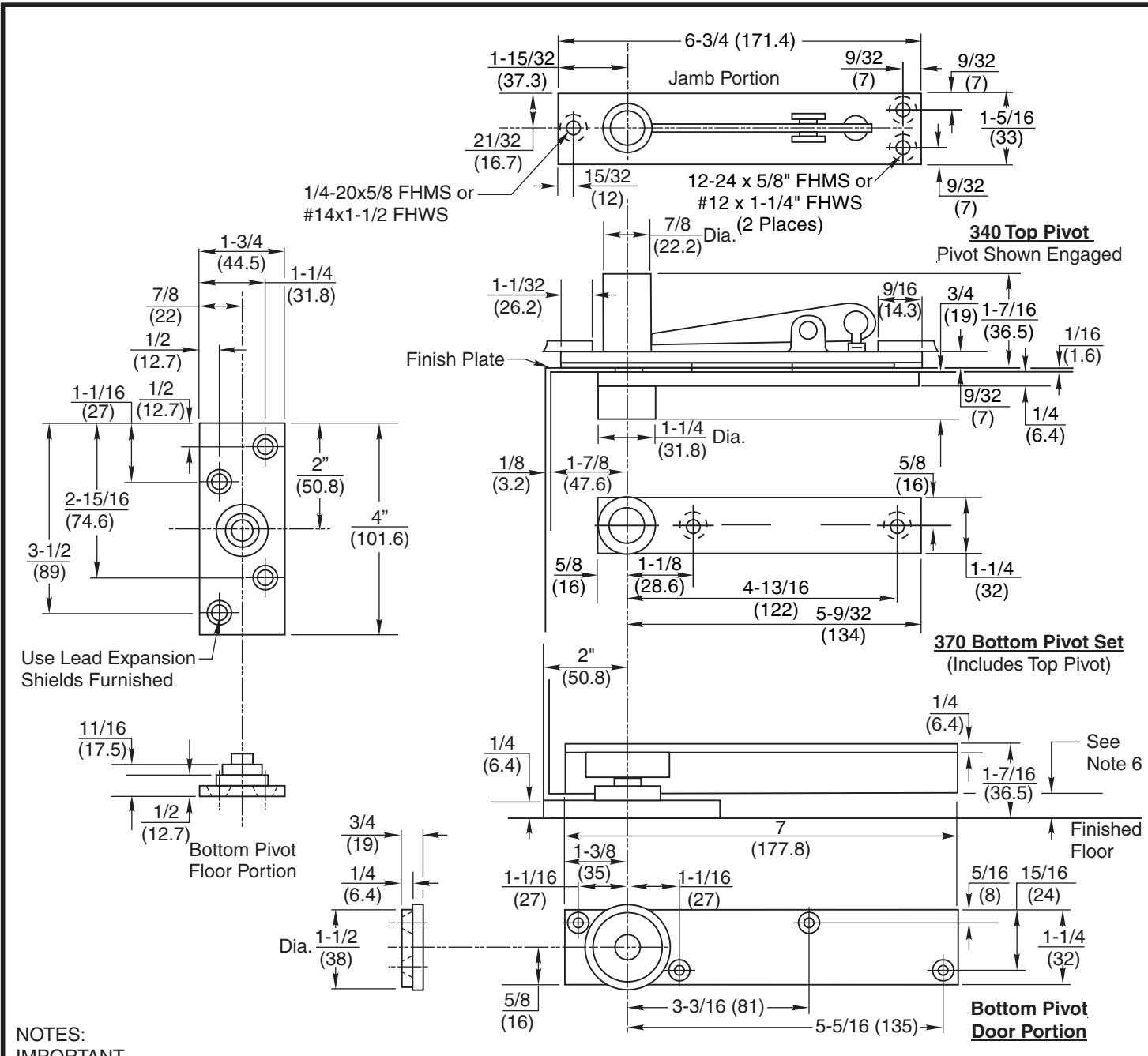

Norton Rixson 370 Pivot Set, Center Hung Template_PS30600

IMPORTANT

• 1. It is the door and frame manufacturers' responsibility to check the hardware schedule and prepare doors and
• 2. Pivots drilled for 1/4-20x5/8 FHMS or #14 x 1-12 FHWS.
• 3. Suitable reinforcing by others.
• 4. For 1-3/4" to 2-1/2" (44.5 to 63.5) doors radius on heel edge of door 1-7/8" (47.6) max.
• 5. Minimum Pivot Point is 2" (50.8).
• 6. Coordinate door mortise depth with required clearance: 5/16" (7.9) Min Clearance = 1-1/8" (28.6) Mortised Depth 11/16" (17.5) Max Clearance = 3/4" (19) Mortised Depth
• 7. Dimensions given in inches (mm).

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER PS30600

3 01/22

Approved 2023-12-15
