Norton Rixson 340 x 102 Top Pivot Center Hung, Non-Handed Installation Instructions_IS-340×102

• 2. Prepare door and frame per details shown.
• 3. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.

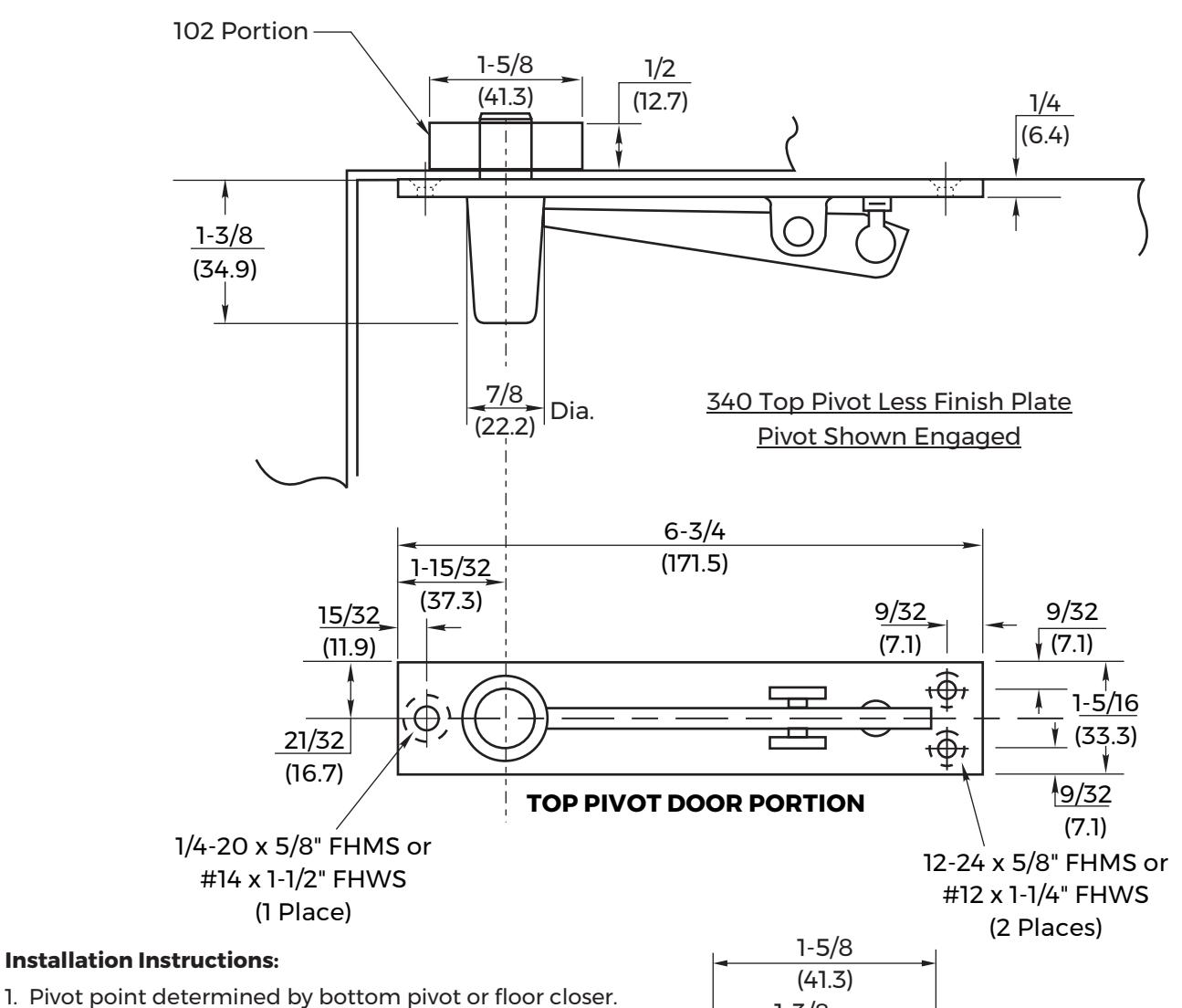

• 4. Install walking beam with pin retracted.

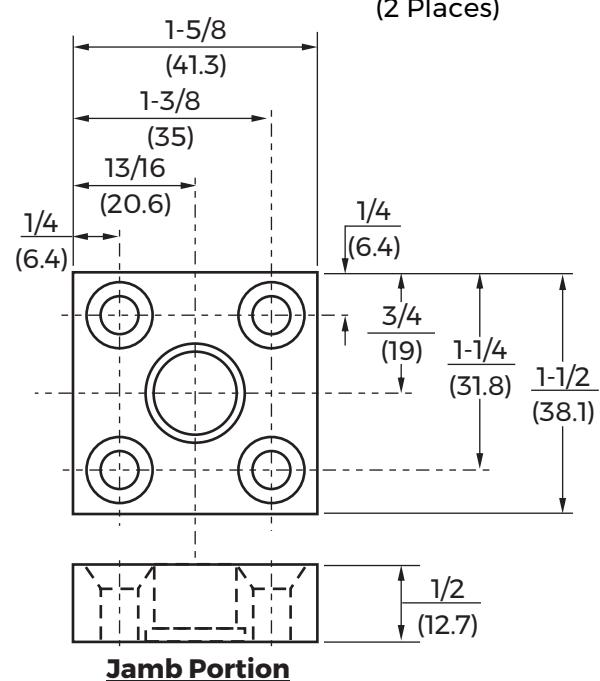

• 5. Install 102 portion.
• 6. Place door on bottom pivot and raise door to vertical position.
• 7. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.

NOTES:

• 1. Do not scale drawing.
• 2. Dimensions given in inches (mm).

340 x 102 Top Pivot Center Hung

Non Handed

Approved 2024-06-06

NORTON

ASSA ABLOY

TEMPLATE NUMBER IS-340x102

3 05/24
